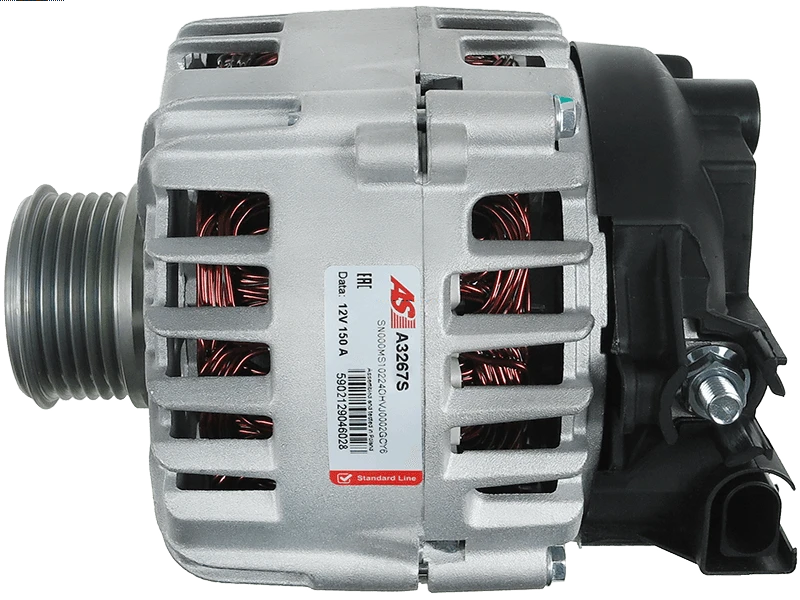

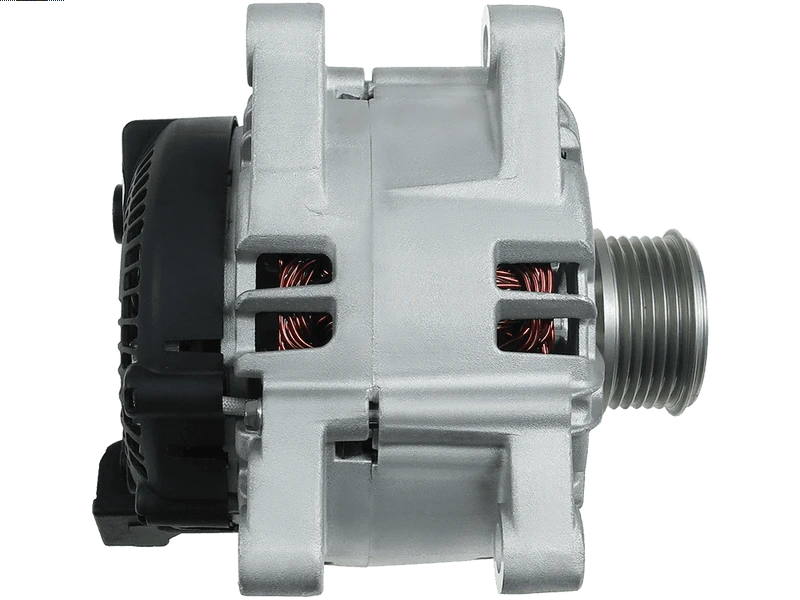

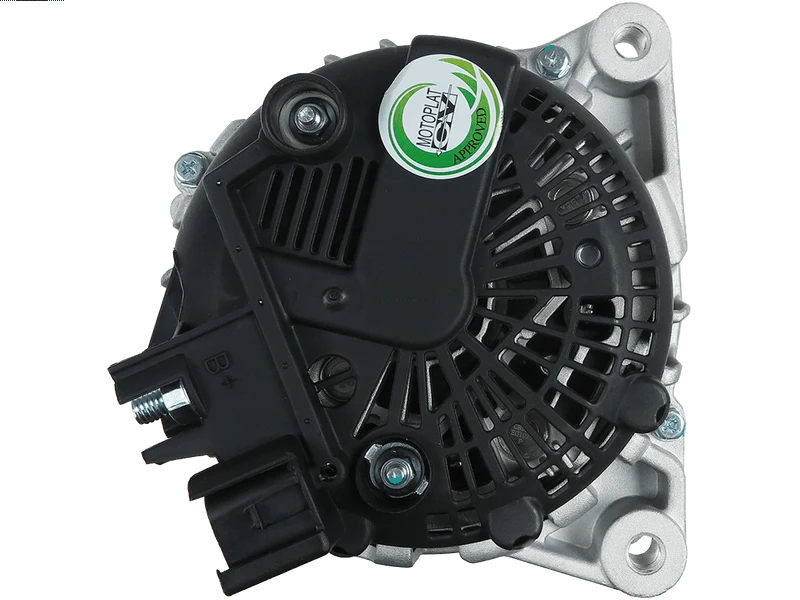

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 598.10 including GST
NZ$ 520.09 excluding GST
or four payments of $149.53
with
Learn More
each
A3267S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TG15C186Associated Numbers
114724 2015480 20179084OE 28-6580 30285659 30659390 31266149 31285659 36001501 36012505 440576 4880 553557RI 553557RIV 554228RIV 595.584.150 A625498A AEK3470 AV6N-10300-GB AV6N-10300-GC AV6N-10300-MB AV6N-10300-MD CA1970IR CAL15480GS DRA0873 FG15T052 FG15T074 LRA03470 TG15C169 TG15C183 TG15C186 TG15C214 UD13570ASpecifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 193 mm |
| Mount Inside Length or Pad Mount C-C (C) | 45.5 mm |
| OEM Product | No |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 42.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | B-Max 1.5 TDCi | [UGJC] | 01.2012- |
| FORD | B-Max 1.6 TDCi | [T3JB] | 01.2012- |
| FORD | C-Max 1.6 TDCi | [T1DA] | 01.2010- |
| FORD | C-Max 1.6 TDCi | [T1DB] | 01.2010- |
| FORD | Fiesta 1.6 TDCi | [T3JA] | 01.2010- |
| FORD | Fiesta 1.6 TDCi | [TZJA] | 01.2010- |
| FORD | Fiesta 1.6 TDCi | [TZJB] | 01.2010- |
| FORD | Focus 1.5 TDCi | [XWD.] | 01.2014- |
| FORD | Focus 1.5 TDCi | [XXD.] | 01.2014- |
| FORD | Focus 1.6 TDCi | [NGDA] | 01.2011- |
| FORD | Focus 1.6 TDCi | [T.DA] | 01.2011- |
| FORD | Focus 1.6 TDCi | [T.DB] | 01.2011- |
| FORD | Galaxy 1.6 TDCi | [T1WA] | 01.2011- |
| FORD | Galaxy 1.6 TDCi | [T1WB] | 01.2011- |
| FORD | Grand C-Max 1.6 TDCi | [T3DA] | 01.2010- |
| FORD | Grand C-Max 1.6 TDCi | [T3DB] | 01.2010- |
| FORD | Mondeo 1.6 TDCi | [T1BA] | 01.2011- |
| FORD | Mondeo 1.6 TDCi | [T1BB] | 01.2011- |
| FORD | Mondeo 1.6 TDCi | [T1BC] | 01.2011- |
| FORD | S-Max 1.6 TDCi | [T1WA] | 01.2011- |
| FORD | S-Max 1.6 TDCi | [T1WB] | 01.2011- |
| FORD | Tourneo Connect 1.6 TDCi | [T1GA] | 01.2013- |
| FORD | Tourneo Connect 1.6 TDCi | [TZG.] | 01.2013- |
| FORD | Tourneo Connect 1.6 TDCi | [UBGA] | 01.2013- |
| FORD | Tourneo Courier 1.5 TDCi | [55KW] | 01.2014- |
| FORD | Tourneo Courier 1.6 TDCi | [T3CA] | 01.2014- |
| FORD | Tourneo Courier 1.6 TDCi | [T3CB] | 01.2014- |
| FORD | Transit Courier 1.5 TDCi | [55KW] | 01.2014- |
| MAZDA | 3 1.6 MZR CD | [Y601] | 01.2009- |
| VOLVO | S40 1.6 D2 | [D4162T] | 01.2011-12.2012 |
| VOLVO | S80 1.6D DRIVe | [D4164T] | 01.2010- |
| VOLVO | V40 1.6 D2 | [D4162T] | 01.2012- |
| VOLVO | V50 1.6 D2 | [D4162T] | 01.2011-12.2012 |
| VOLVO | V60 1.6 D2 | [D4162T] | 01.2011- |
| VOLVO | V70 1.6 D | [D4164T] | 01.2010-12.2011 |
Reference Information
439906 A3267S 28-6580 STX110332 EZ4251 FG15T052 LRA3470 STX110333 553557RI 1707065 1685793 440576 TG15C169 20179084OE 9G9N10300CA 1857696 210420 210860 2015480 595.584.150.008 554228RIV 441938 TG15C234 595.584.150.004 ALTL431 AAL1245 595.584.150.000 31419219 AAL1122 STX102249 REAV6N-10300-GC LRA03470 36012505 1506300 AV6N10300MD 2032603 NPANAL1146 AV6N10300MB 210877 8V2110300BB 30659390 2260730 31285659 TG15C183 FG15T074 553557RIV TG15C186 AV6N-10300-GD AV6N-10300-GE AV6N-10300-GB AV6N-10300-GC A12VA0156A2 114724 AEK3470 1762377 STX110332R 57327 UD13570A ALT00566 36001501 Y406-18-300 595.584.150.608 595.584.150.506 31285808 595.584.150.505 4880 RNLTG15C186 36000909 STX102144 RNLTG15C183 595.584.150.501 DRA0873 AAL1146 A12VA0156AS CAL15480GS TG15C214 STX110333R 30285659 Y666-18-300A 31266149 A625498A CA1970IR ALTL377 1704769 36001117 NPANAL1245 A12VA1183A2 NPANAL1122Video/Publications
