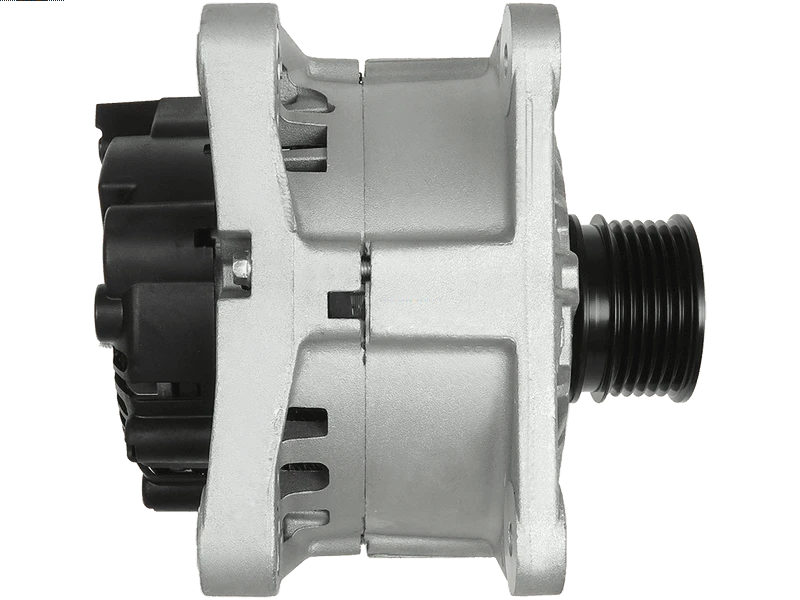

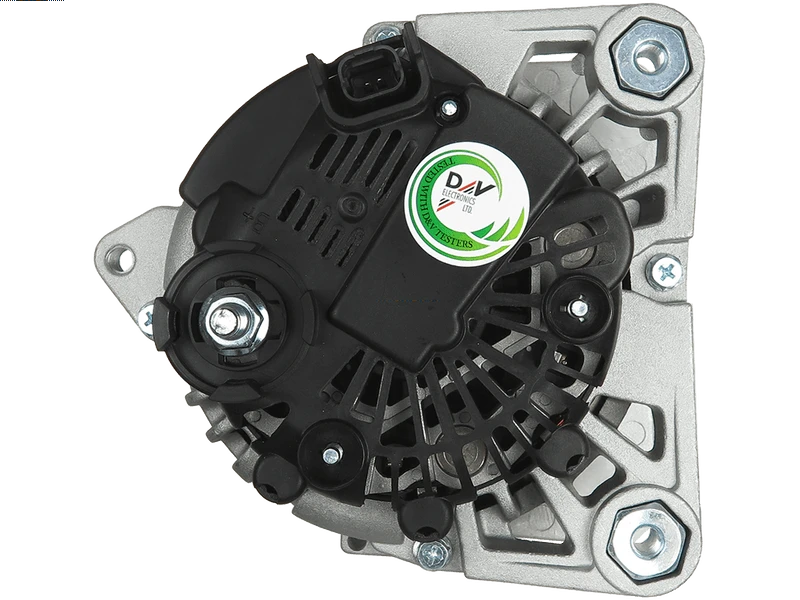

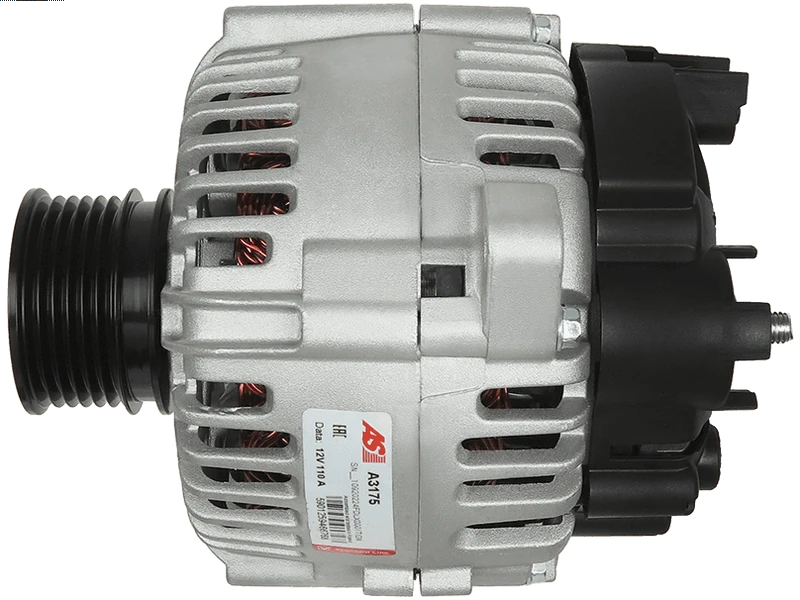

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 439.75 including GST
NZ$ 382.39 excluding GST
or four payments of $109.94
with
Learn More
each
A3175
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
TG11C063Associated Numbers
11.2043 20343RW 2542855 2542855B 2543561 2543561A 28-5778 301768RI 301768RIV 439578 440036 57200 575.514.110 8200323126 8200667607 9214842 AEK3166 ALT14351 CA2043IR DRA0755 LRA03166 TG11C027 TG11C063Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 188 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2401 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 38 mm |
| Pulley Type | SOLID |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DACIA | Duster 1.6 16V | [K4M690] | 04.2010- |
| DACIA | Duster 1.6 16V 4x4 | [K4M606] | 06.2010- |
| DACIA | Duster 1.6 16V Flex | [K4M696] | 04.2011- |
| DACIA | Duster 1.6 16V LPG | [K4M696] | 04.2011- |
| DACIA | Logan 1.6 16V | [K4M690] | 02.2006- |
| DACIA | Logan 1.6 16V Flex | [K4M696] | 01.2011- |
| DACIA | Logan 1.6 16V Flexifuel | [K4M690] | 11.2009- |
| DACIA | Logan 1.6 16V Flexifuel | [K4M694] | 11.2009- |
| DACIA | Logan 1.6 16V MCV | [K4M690] | 02.2007- |
| DACIA | Sandero 1.6 16V | [K4M690] | 07.2011- |
| DACIA | Sandero 1.6 Flexfuel | [K4M690] | 01.2011- |
| DACIA | Sandero 1.6 Flexfuel | [K4M694] | 01.2011- |
| RENAULT | Grand Scenic 1.6 | [K4M761] | 04.2004- |
| RENAULT | Grand Scenic 1.6 | [K4M782] | 04.2004- |
| RENAULT | Grand Scenic 1.6 | [K4M788] | 06.2006- |
| RENAULT | Megane 1.6 | [K4M760] | 08.2003- |
| RENAULT | Megane 1.6 | [K4M760] | 09.2003- |
| RENAULT | Megane 1.6 | [K4M761] | 09.2003- |
| RENAULT | Megane 1.6 16V | [K4M760] | 01.2007- |
| RENAULT | Megane 1.6 16V | [K4M760] | 11.2002- |
| RENAULT | Megane 1.6 16V | [K4M761] | 01.2007- |
| RENAULT | Megane 1.6 16V | [K4M768] | 01.2007- |
| RENAULT | Megane 1.6 16V | [K4M812] | 01.2007- |
| RENAULT | Megane 1.6 16V | [K4M812] | 05.2005- |
| RENAULT | Megane 1.6 16V | [K4M813] | 01.2007- |
| RENAULT | Sandero 1.6 | [K7M710] | 12.2007- |
| RENAULT | Scenic 1.6 16V | [K4M788] | 01.2007- |
| RENAULT | Scenic 1.6 16V | [K4M812] | 01.2007- |
| RENAULT | Scenic 1.6 i 16V | [K4M761] | 06.2003- |
| RENAULT | Scenic 1.6 i 16V | [K4M782] | 06.2003- |
Reference Information
301768RIV ALTS970 ALT14351 11.2043 TG11C027 8200323126 440036 LRA03166 2542855B 575.514.110.460 57200 20343N 8200667606 A3175 439578 9214842 2543561A 7711368385 A12VA1176A2 ANM32975X 575.514.110 DRA0755 575.514.110.008 9090429 AEK3166 115766 8200667607 2542855 LRA3166 442075 STX100617 32083200 28-5778 TG11C063 2543561 RNLTG11C063 CA2043IR 301768RI 20343RW ALT00494 210511Video/Publications
A3175Related Items
