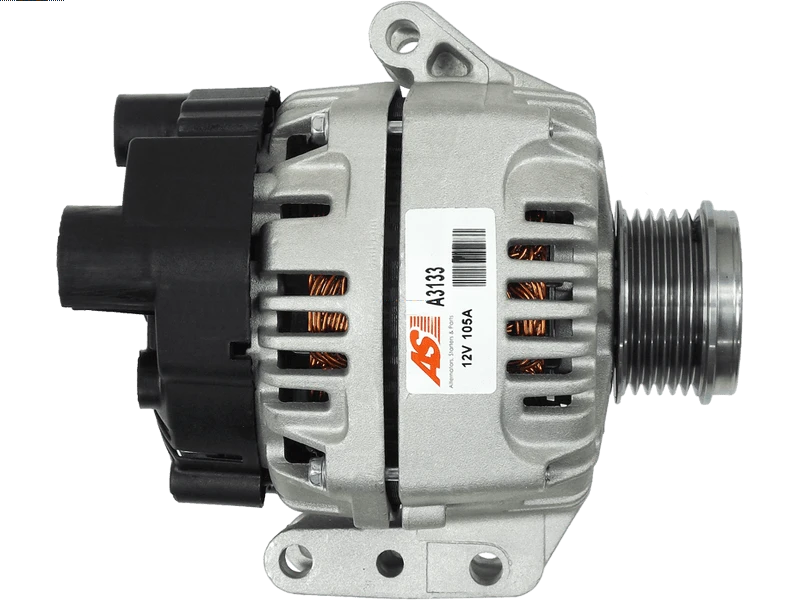

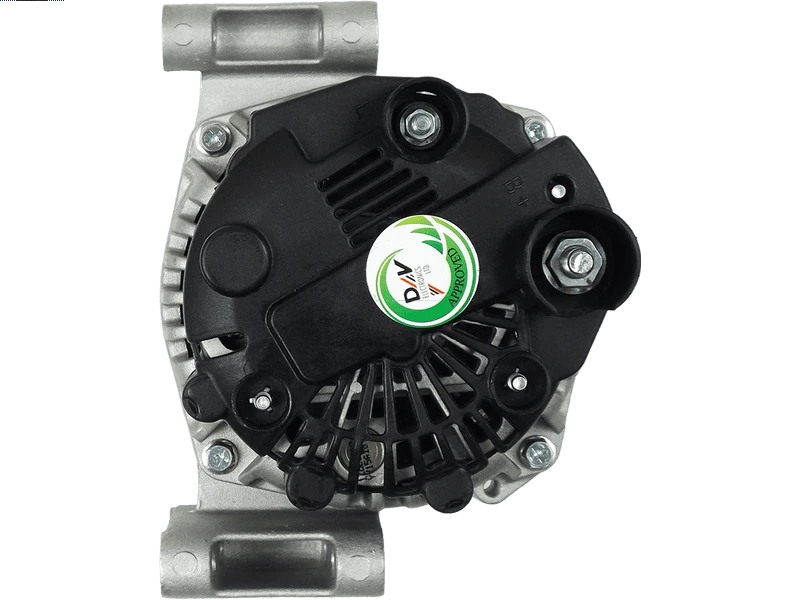

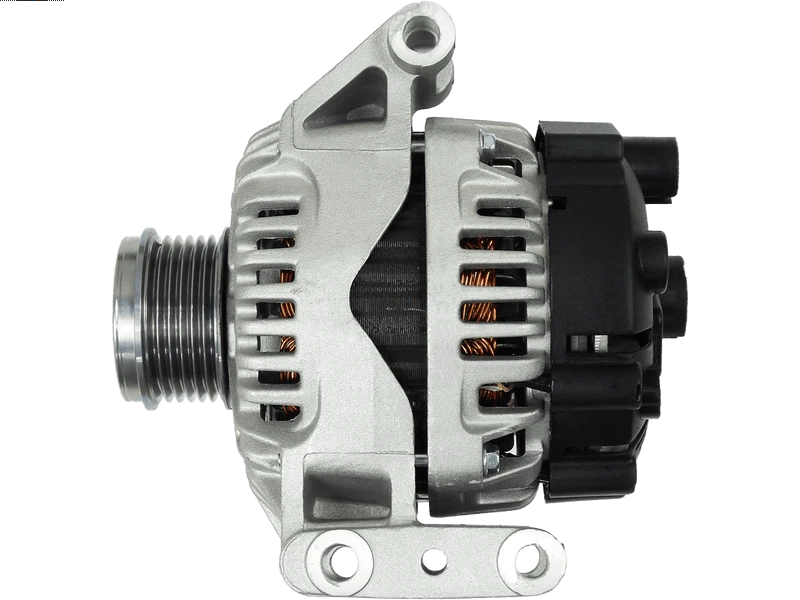

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 478.80 including GST
NZ$ 416.35 excluding GST
or four payments of $119.70
with
Learn More
each
A3133
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
TG9S011Associated Numbers
0986080980 102211-8620 102211-8621 102211-8622 11.1934 114451 1204429 13197578 13256929 2015320 20179023OE 2030231 22795N 2542729 2543479 2543479A 28-5836 301934RI 301934RID 301934RIV 32437504 46835095 51784846 57229 6204213 6204281 63377494 89212574 8EL738212-231 9090532 9212574 93185261 A3133 AEK3301 ALT14324 CA1934IR CAL15320GS CAL30231GS EAA-221564 LRA03224 TG9S011 TG9S027 TG9S039 UD02339ASpecifications
| Amp | 105 A |
| Diameter (D.1) | 9.5 mm |
| Diameter (D.2) | 9.5 mm |
| Diameter (D.3) | 9.5 mm |
| Length (L.1) | 186 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 64 mm |
| Pad mount thickness (E.2) | 64 mm |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 42 mm |
| Pulley Type | CLUTCH |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | MiTo 1.3 JTDM | [199A3.000] | 01.2008- |
| ALFA ROMEO | MiTo 1.3 JTDM | [199B1.000] | 01.2009- |
| FIAT | 500 1.3 JTD | [169A1.000] | 01.2007- |
| FIAT | Doblo 1.3 JTD | [188A9.000] | 01.2004- |
| FIAT | Doblo 1.3 JTD | [223A9.000] | 01.2006- |
| FIAT | Fiorino 1.3 Diesel Multijet | [199A2.000] | 01.2008- |
| FIAT | Grande Punto 1.3 JTD | [199A.000] | 01.2005- |
| FIAT | Grande Punto 1.3 JTD | [199A2./A3.] | 01.2005- |
| FIAT | Idea 1.3 JTD | [188A9000] | 01.2004- |
| FIAT | Idea 1.3 JTD | [199A3.000] | 01.2005- |
| FIAT | Linea 1.3 JTD | [199A3.000] | 01.2007- |
| FIAT | Panda 1.3 JTD | [169A1.000] | 01.2006- |
| FIAT | Panda 1.3 JTD | [188A9.000] | 01.2004- |
| FIAT | Punto 1.3 JTD | [188A9.000] | 01.2003- |
| FIAT | Qubo 1.3 Diesel Multijet | [199A2.000] | 01.2008- |
| FIAT | Strada 1.3 JTD | [223A9.000] | 01.2006- |
| LANCIA | Musa 1.3 JTD | [188A9.000] | 01.2004- |
| LANCIA | Musa 1.3 JTD | [199A3.000] | 01.2006- |
| LANCIA | Ypsilon 1.3 Diesel Multijet | [199A2/3.000] | 01.2006- |
| LANCIA | Ypsilon 1.3 JTD | [188A4.000] | 01.2006- |
| LANCIA | Ypsilon 1.3 JTD | [188A9.000] | 01.2003- |
| OPEL | Agila 1.3 CDTi | [Z13DT] | 01.2008- |
| OPEL | Astra H 1.3 CDTi | [Z13DTH] | 01.2010- |
| OPEL | Combo 1.3 CDTi | [Z13DT] | 01.2004- |
| OPEL | Combo 1.3 CDTi | [Z13DTJ] | 01.2004- |
| OPEL | Corsa C 1.3 CDTi | [Z13DT] | 01.2006- |
| OPEL | Tigra 1.3 CDTi | [Z13DT] | 01.2005- |
| SUZUKI | Ignis 1.3 DDiS | [Z13DT] | 01.2003- |
| SUZUKI | Splash 1.3 DDiS | [Z13DTJ] | 01.2008- |
| SUZUKI | Swift 1.3 DDiS | [Z13DT] | 01.2005- |
| SUZUKI | Wagon R+ 1.3 DDiS | [Z13DT] | 01.2004- |
| VAUXHALL | Agila 1.3 CDTi | [Z13DT] | 01.2008- |
| VAUXHALL | Astra H 1.3 CDTi | [Z13DTH] | 01.2005- |
| VAUXHALL | Combo 1.3 CDTi | [Z13DTJ] | 01.2005- |
| VAUXHALL | Corsa C 1.3 CDTi | [Z13DT] | 01.2003- |
| VAUXHALL | Meriva 1.3 CDTi | [Z13DT] | 01.2010- |
| VAUXHALL | Meriva 1.3 CDTi | [Z13DTJ] | 01.2010- |
| VAUXHALL | Tigra 1.3 CDTi | [Z13DT] | 01.2004- |
Reference Information
RAA11318 210550 51805801 063731934010 AI-90129 6204213 ALT0106 95520871 51787210 ALT173200 CAL15320GS 135.535.105.260 57229 GA439539V-R PRAL451 93185261 PRAL371 PRAL371V 437533 PRAL371U 135.535.105.500 71793464 63377494 TG9S141 439539 ALTL371V MARC1934 LRA3224 ALTL371U 446751 STX100615 46835095 51784846 51784843 A12VA0110A2 0986080980 ALTF416 51854911 TG9S011 MRA90532 51854916 89212574 301934RI DRA0207 PRAF416 LRA03224 CAL15320AS 301934RIV 210550A 301934RID 51727335 8EL012430-041 STX100615R A3133 1204429 135.535.105.000 ALT00601 13197578 ALT173200A 52003518 135.535.105.008 943319341010 STX100071 406751 ALTL371 13256929 STX100071R 71784310 ALTL451 9459 93169024 ALT14327 CA1934IR ALV1934 2015320.1 ALTL451NE GA439539-A 20179023OE 2015320.0 135.535.105.050 6204281 UD02339A 20179023BN 28-5836 22795N 51984056 063377494010 135.535.105.058 944390905320 135.535.105.059 MAN7494Video/Publications
