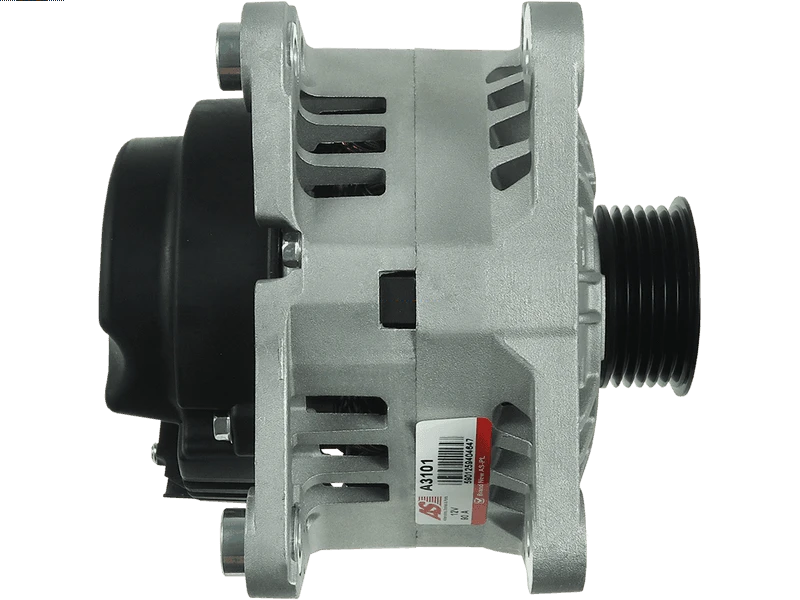

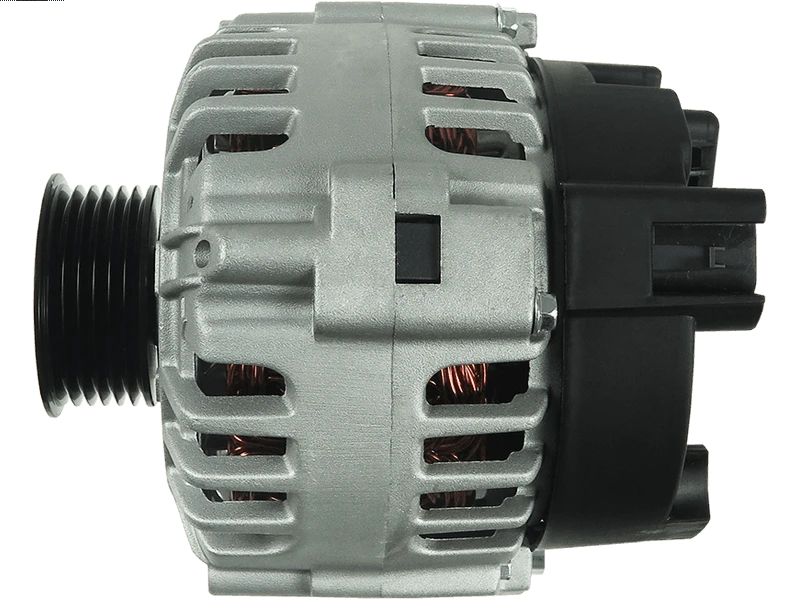

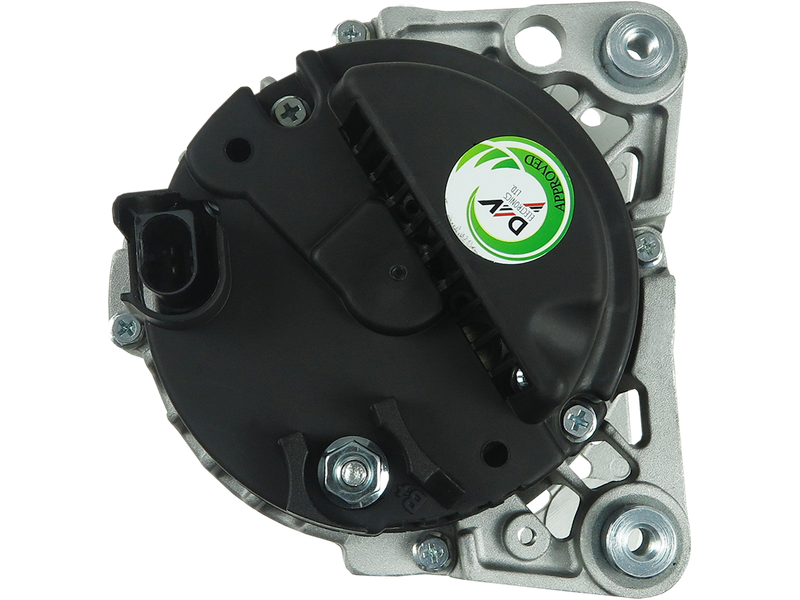

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
VALEO
Price:
NZ$ 495.80 including GST
NZ$ 431.13 excluding GST
or four payments of $123.95
with
Learn More
each
A3101
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
SG9B048Associated Numbers
03D903025D 03D903025DX 03D903025E 03D903025EX 063731675010 0986049101 2015344 20179443OE 210568 21481R 2542578C 28-4731 301675RI 301675RIV 301755RI 301755RIV 305.554.090 437411 437412 439451 4653 57004 6.3219.9 89215686 944390903550 A3101 CAL15344 CAL15344AS CAL15344ES CAL15344GS CAL15344OS CAL15344RS DA5297 DRA4187 LRA02253 MQA1675 MRA90355 SG9B048 UD12131A VAL439451Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 169 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60.5 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | SOLID |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Cordoba 1.2 | [AZQ] | 10.2002-06.2006 |
| SEAT | Cordoba 1.2 | [BME] | 10.2002-06.2006 |
| SEAT | Ibiza 1.2 | [AZQ] | 02.2002-06.2006 |
| SEAT | Ibiza 1.2 | [BME] | 02.2002-06.2006 |
| SEAT | Ibiza 1.2 | [CGPB] | 07.2009- |
| SEAT | Ibiza Sportcoupe 1.2 | [CGPB] | 07.2009- |
| SEAT | Ibiza ST 1.2 | [BZG] | 05.2010- |
| SEAT | Ibiza ST 1.2 | [CGPA] | 05.2010- |
| SEAT | Ibiza ST 1.2 | [CGPB] | 05.2010- |
| SEAT | Ibiza ST 1.2 | [CJLB] | 05.2010- |
| SKODA | Fabia 1.2 | [AWY] | 07.2001-04.2007 |
| SKODA | Fabia 1.2 | [AWY] | 07.2001-12.2007 |
| SKODA | Fabia 1.2 | [BBM] | 10.2007-11.2014 |
| SKODA | Fabia 1.2 | [BMD] | 07.2001-04.2007 |
| SKODA | Fabia 1.2 | [BMD] | 07.2001-12.2007 |
| SKODA | Fabia 1.2 | [CHFA] | 10.2007-11.2014 |
| SKODA | Roomster 1.2 | [BME] | 05.2006-01.2007 |
| SKODA | Roomster 1.2 | [BZG] | 01.2007-05.2015 |
| SKODA | Roomster 1.2 | [CGPA] | 01.2007-05.2015 |
| SKODA | Roomster Praktik 1.2 | [BZG] | 03.2007-05.2015 |
| SKODA | Roomster Praktik 1.2 | [CGPA] | 03.2007-05.2015 |
| VW | Fox 1.2 | [CHFA] | 09.2010-12.2011 |
| VW | Polo 1.2 | [AWY] | 01.2002-05.2007 |
| VW | Polo 1.2 | [BMD] | 01.2002-05.2007 |
| VW | Polo 1.2 12V | [AZQ] | 10.2001-07.2007 |
| VW | Polo 1.2 12V | [BME] | 10.2001-07.2007 |
Reference Information
CGB-84731 CAL15344AS 32439481 ALT172790 A3101 0986049101 2542578C CAL15344ES STX100059 305.554.090.500 063731675010 437411 944390903550 ALTL628V SG9B048 STX100059R 21481R 437412 305.554.090.460 CA1675IR 3D903025E VAL439451 3D903025D UD12131A 03D903025D 03D903025E 03D903025HX LRA2253 03D903025DX 301755RIV 6.3219.9 AX A12VA0131A2 4653 PRAL628 03D903025H CAL15344RS 113253 03D903025J 3D903025EX CAL15344 ALT123240 MQA1675 039903025E 03D903025EX LRA02253 DA5297 STX100307 28-4731 ALTL628 305.554.090.000 439451 57004 CAL15344GS ALT00887 310977 PRAL628V 305.554.090.280 ALT00481 3D903025DX 210568 301755RI CAL15344OS 301675RI 20179443OE 03D903025JX 1130 RNLSG9B057 301675RIV DRA4187 CGB-14187 STX100307R 305.554.090.395 305.554.090 ANM36407X 2015344 STA0444R 89215686 MRA90355 ALT7560Video/Publications
