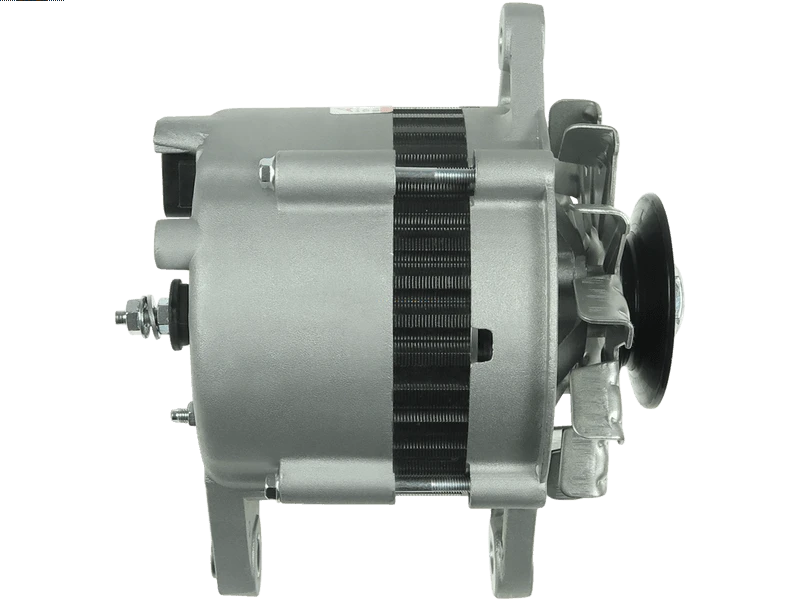

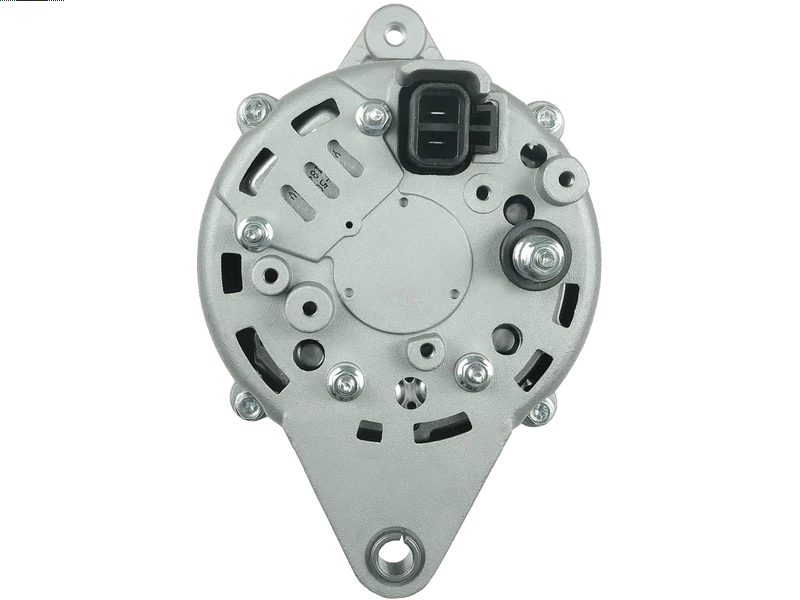

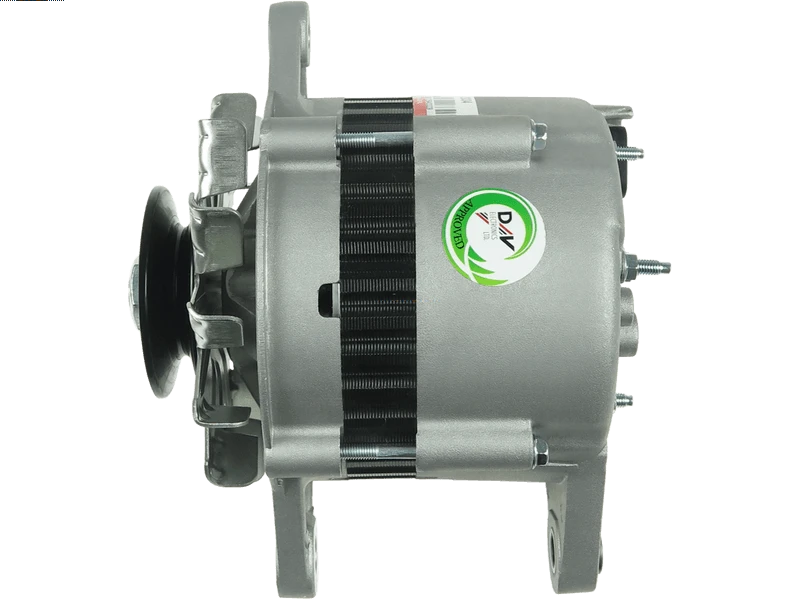

A2034 - Brand new AS-PL Alternator

Associated Numbers

11.0754 112968 14660N 20117101BN 2045101 23100-05G05 23100-20J00 23100-81W00 28-1926 40165RI 40754RI 437724 56468 8EL730087-001 ALT32070 CAL45101AS DRA3335 JA754IR LR160-140 LR160-151 LR160-154 LR160-168 LRA01432

Specifications

Amp	60 A
Bottom Mounting Foot Width (B)	13 mm
Diameter (D.1)	M8x1.25 mm
Diameter (D.2)	10 mm
Diameter (D.3)	10 mm
Length (L.1)	179 mm
Mount Inside Length or Pad Mount C-C (C)	78.5 mm
OEM Product	No
Plug Code	PL_2004
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	12.5 mm
Pulley Outside Diameter (O.D.1)	44 mm
Pulley Outside Diameter (O.D.2)	72 mm
Pulley to Mount Distance (A)	42 mm
Pulley Type	SOLID
Unit Type	HITACHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
NISSAN	King Cab 2.4 i 4WD	(D21)[Z24i]	08.1988-04.1992
NISSAN	Patrol 2.8	(260)[L28]	07.1985-03.1989
NISSAN	Patrol 3.0	(260)[RB30S]	04.1989-05.1998
NISSAN	Pick Up 2.4 4WD	(D21)[Z24]	08.1988-04.1992
NISSAN	TeRano 2.4 i	(WD21)[Z24i]	08.1987-07.1992

Reference Information

002-D415 23100-81W00 ANM35555X LR160-151 437724 2045101 ALD415 LR160-154 28-1926 23100-05G05-EP 112968 LRA1432 14660N 40165RI LR150194B STX101205 ALT471010 LR160159 445803 LR170197 2310081W10 STX101221 ALT3110 40754RI 2310084W00 23100-84W00 ALT32070 ALTS960 LR160-140 23100-20J00 CAL45101AS 2D415 LRA01432 LR160-168 LR150-194B JA754IR 56468 LR150194 DRA3335 8EL730087-001 311935 11.0754 LR160140B 23100-05G05 2310005G05EP 20117101BN
