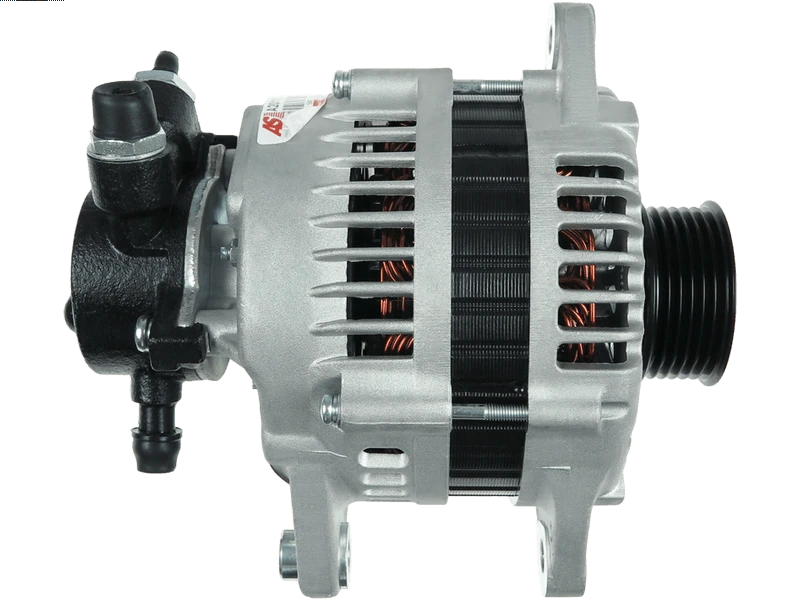

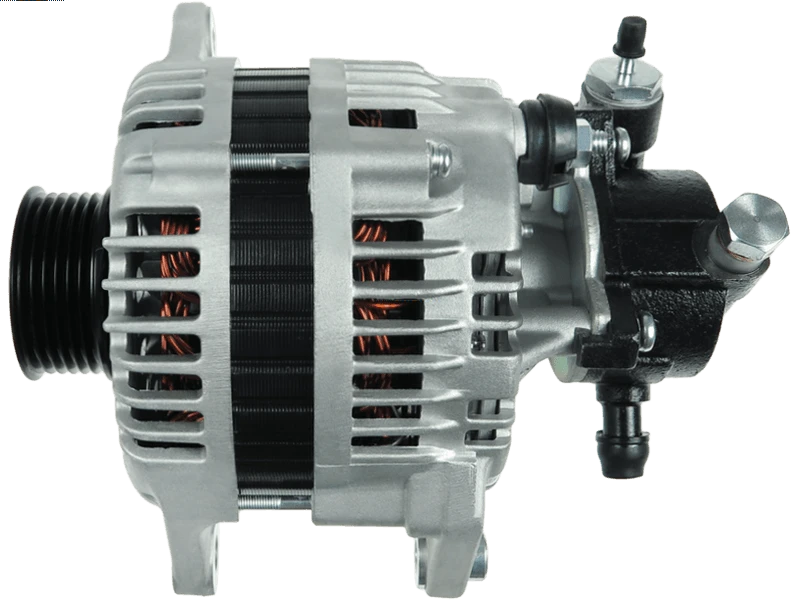

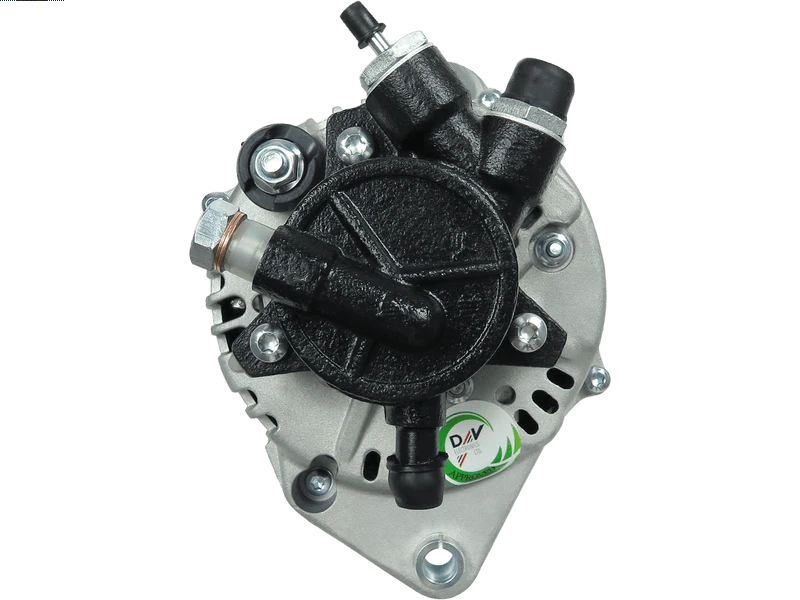

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 455.47 including GST
NZ$ 396.06 excluding GST
or four payments of $113.87
with
Learn More
each
A2011
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
LR170509Associated Numbers
0986043101 11.1526 11.5526 11.5526M 112272 1204157 1204158 20110487 20145121BN 2020121 21705N 21705RW 28-3861 32068020 401526RI 440026 56867 89212544 8971891122 8971891123 8971891124 8971891125 8971891126 8EL011711-161 8EL737803-001 9000 9090005 9212544 97189112 A2011 AEA4246 ALT32097 CAL20121AS DRA3905 DRA3905N EAA-221994 JA1526IR LR170-509 LR170-509C LR170-509E LR170-509F LR170-509G LR170-509H LRB00446 SA254Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 224 mm |
| Mount Inside Length or Pad Mount C-C (C) | 65.5 mm |
| OEM Product | No |
| Plug Code | PL_2000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 36 mm |
| Pulley Type | SOLID |
| Unit Type | HITACHI |
| Vacuum Pump | Yes |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Corsa 1.7 D | [2H7] | 08.2000-07.2002 |
| OPEL | Astra G 1.7 DTi 16V | [Y17DT] | 02.2000-01.2005 |
| OPEL | Astra G 1.7 DTi 16V | [Y17DT] | 02.2000-04.2005 |
| OPEL | Astra G 1.7 DTi 16V | [Y17DT] | 02.2000-07.2004 |
| OPEL | Combo 1.7 Di 16V | [Y17DTL] | 10.2001- |
| OPEL | Combo 1.7 Di 16V | [Y17DTL] | 10.2001-06.2004 |
| OPEL | Combo 1.7 Diesel 16V | [Y17DTL] | 10.2001-08.2004 |
| OPEL | Combo 1.7 DTi 16V | [Y17DT] | 10.2001- |
| OPEL | Combo 1.7 DTi 16V | [Y17DT] | 10.2001-06.2004 |
| OPEL | Corsa C 1.7 CDTi | [Z17DTH] | 06.2003-12.2009 |
| OPEL | Corsa C 1.7 Di | [Y17DTL] | 09.2000-12.2009 |
| OPEL | Corsa C 1.7 Di 16V | [Y17DTL] | 09.2000-07.2003 |
| OPEL | Corsa C 1.7 Diesel 16V | [Y17DTL] | 09.2000- |
| OPEL | Corsa C 1.7 DT | [Y17DTL] | 09.2000- |
| OPEL | Corsa C 1.7 DTi | [Y17DT] | 09.2000-12.2009 |
| OPEL | Corsa C 1.7 DTi 16V | [Y17DT] | 09.2000-07.2003 |
| OPEL | Meriva 1.7 DTi | [Y17DT] | 03.2003-09.2005 |
| OPEL | Meriva A 1.7 DTi | [Y17DT] | 09.2003-05.2010 |
| VAUXHALL | Astra MK IV 1.7 DTi 16V | [Y17DT] | 02.2000-08.2005 |
| VAUXHALL | Combo 1.7 Diesel 16V | [Y17DTL] | 09.2000-08.2003 |
| VAUXHALL | Combo 1.7 DTi | [Y17DT] | 10.2001- |
| VAUXHALL | Corsa MK II 1.7 DT 16V | [Y17DTL] | 09.2000- |
| VAUXHALL | Corsa MK II 1.7 DTi 16V | [Y17DT] | 09.2000- |
| VAUXHALL | Corsavan MK II 1.7 Diesel | [Y17DTL] | 09.2000-08.2003 |
| VAUXHALL | Corsavan MK II 1.7 DTi 16V | [Y17DT] | 09.2000-08.2003 |
Reference Information
8EL011711-161 PRAF438 443172 98056867 21705N 401526RI STA0407R 32068020 A12HT1186A2 ANM36125X 97189112 28-3861 DRA3905 CGB-13509 89212544 JA1526IR LR170-509 63731526010 1204157 8971891120 8971891123 A2011 6204182 8971891122 2020121.0 8971891125 8971891124 ALT3185 ALT5640 R1530065 56867 STX100086R AEA4246 210131 CGB-83861 8971891126 LRB00446 20145121BN 9000 897189-1120 21705RW DRA3905N ALH1526 STX100311 0986043101 STX100001R 112272 8EL737803-001 9212544 ALT32097 9512987 LRB446 LR170-509B 93178174 LR170-509A CAL20121AS 93178173 LR170-509D 440026 LR170-509C RAA14016 446575 2506101 8-97189-112-0 6204284 LR170-509F LR170-509E LR170-509H LR170-509G STX100311R STX100001 ALTF438 STX100121 STX100086 STX100121RVideo/Publications
A2011Related Items
