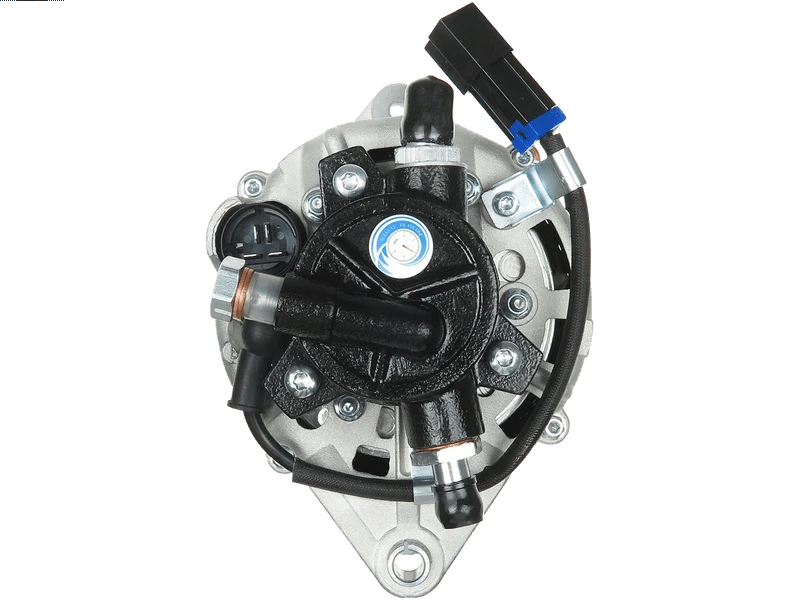

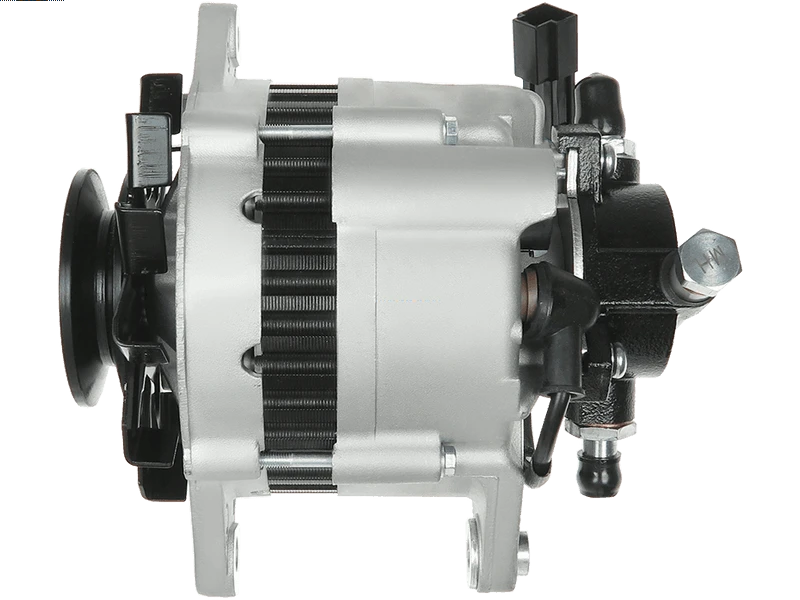

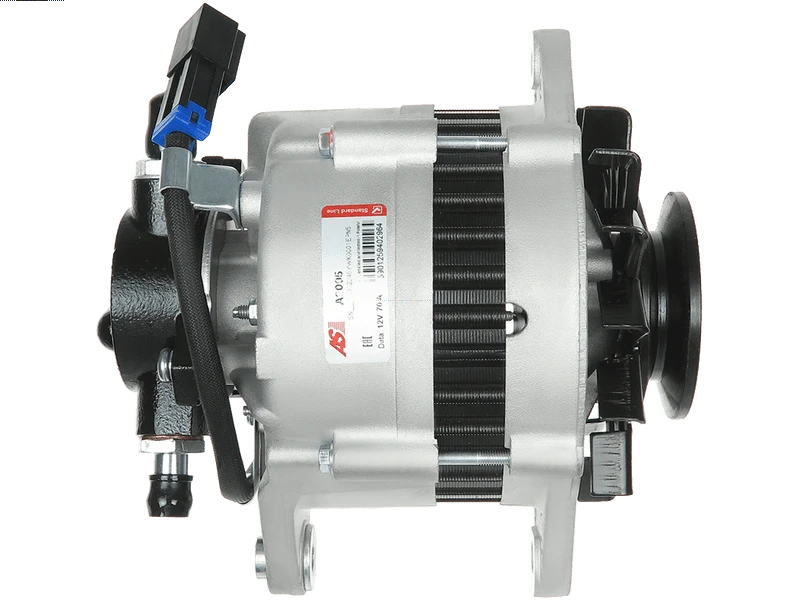

A2005 - Brand new AS-PL Alternator

Brand new AS-PL Alternator
Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 427.14 including GST

NZ$ 371.43 excluding GST



or four payments of $106.79 with
Afterpay Payment Offer Learn More

each
A2005
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

LR170420
0986041771 11.209.402 11.209.403 111186 1204144 12273N 135.807.070 20110154 20145001 2020100 210063 28-1896 32170420 40863RI 436725 437120 56363 6204059 72735582 72735583 8-97041-790-0 8-97113-118-0 89212373 8EL011711-441 8EL731750-001 90542407 9163941 9353 943346136010 943356393010 943356590010 944390900070 9512124 97041790 A2005 AAK3161 AAK3162 AEA1254 AG0431 ALH0863 ALH2863 ALT157 ALT32044 CAL20100 CAL20100AS CAL20100ES CAL20100GS CAL20100OS CAL20100RS DA4406 DRA3296 EAA-221091 EAA-221829 F042305032 IA9003 IA9019 JA863IR LR170420 LR170420B LR170427 LR170427B LR170427C LRB00154 MAR5152 MAR6136 MG583 MG584 MRA90007 NEA1254 R1030072 RAA14307
Amp70 A
Bottom Mounting Foot Width (B)13 mm
Diameter (D.1)M8x1.25 mm
Diameter (D.2)10.5 mm
Diameter (D.3)10.5 mm
Length (L.1)212 mm
Mount Inside Length or Pad Mount C-C (C)78 mm
OEM ProductNo
Plug CodePL_4500
Product LineStandard Line
Product TypeBrand new
Pulley Grooves1 qty
Pulley Groove Width (W.1)12 mm
Pulley Outside Diameter (O.D.1)53 mm
Pulley Outside Diameter (O.D.2)81 mm
Pulley to Mount Distance (A)43 mm
Pulley TypeSOLID
Unit TypeHITACHI
Vacuum PumpYes
Voltage12 V
Make Model Type Year
OPEL Astra F 1.7 TD [X17DTL] 11.1994-09.1998
OPEL Astra F 1.7 TD [X17DT(TC4EE1)] 03.1995-02.1998
OPEL Astra F 1.7 TDS [17DT(TC4EE1)] 03.1992-09.1998
OPEL Astra F 1.7 TDS [17DT(TC4EE1)] 12.1991-01.1998
OPEL Combo 1.7 D [17D(4EE1)] 07.1994-10.2001
OPEL Combo 1.7 D [X17D(4EE1)] 07.1994-10.2001
OPEL Corsa B 1.5 D [15D(4EC1)] 03.1993-09.2000
OPEL Corsa B 1.5 TD [15DT(T4EC1)] 03.1993-09.2000
OPEL Corsa B 1.5 TD [X15DT(T4EC1)] 03.1993-09.2000
OPEL Corsa B 1.7 D [17D(4EE1)] 02.1996-09.2000
OPEL Vectra A 1.7 TD [17DT] 03.1990-11.1995
OPEL Vectra A 1.7 TD [X17DT] 03.1990-11.1995
VAUXHALL Astra F 1.7 TD [17DT(TC4EE1)] 12.1991-02.1998
VAUXHALL Astra MK III 1.7 TD [17DT(TC4EE1)] 12.1991-09.1998
VAUXHALL Cavalier 1.7 TD [17DT(TC4EE1)] 09.1988-11.1995
VAUXHALL Combo 1.7 D [17D(4EE1)] 07.1994-10.2001
VAUXHALL Combo 1.7 D [X17D(4EE1)] 07.1994-10.2001
VAUXHALL Corsa B 1.5 D [15D] 03.1993-09.2000
VAUXHALL Corsa B 1.5 TD [15DT(T4EC1)] 03.1993-10.1996
VAUXHALL Corsa B 1.5 TD [X15DT(T4EC1)] 03.1993-10.1996
VAUXHALL Corsa B 1.7 D [17D] 02.1996-09.2000
VAUXHALL Corsa B 1.7 D [X17D] 02.1996-09.2000
VAUXHALL Corsavan 1.7 D [17D(4EE1)] 01.1994-09.2000
VAUXHALL Corsavan 1.7 D [X17D(4EE1)] 01.1994-09.2000
ALTL281 11.209.403 STX100050R 11.209.402 72735583 32170420 72735582 90542407 6204013 8EL011711-441 002-U906 CAL20100RS 943346136010 ALTL281LU LR170-427BA 9353 LR170427 97041790 ALT157 40863RI A2005 IA9003 437120 8-97113-118-0 8EL731750-001 DA4406 AX 8-97041-790-0 LR170420 943356590010 STA0077R AEA1254 MG583 MG584 PRAL281 1204144 9512275 135.807.070.460 LR170427BA 12273N 135.807.070 2U906 LR170-427A 111186 MAR6136 RNLLR170-420 AG0431 PRAL281LU NEA1254 210063 436725 LRB00154 CAL20100ES DRA3296 9163941 CGB-13296 ALU906 LR170427C LR170427B ALT3045 89212373 LR170-420A 20145001 943356393010 6204059 LR170420B RAA14307 MG MRA90007 STX100050 JA863IR 09119722 9512124 CAL20100GS MAR5152 20110154 CAL20100OS 28-1896 ALH2863 1148 0986041771 R1030076 2020100 R1030072 97113118 LRB154 ALT32044 ALT79803 ALTL281NE ALT79804 8971131181 9119723 311944 IA9019 ALT5410 9119722 AAK3161 AAK3162 F042305032 ANM35516X 56363 CAL20100AS CAL20100 ALH0863 583 584 944390900070
A2005
