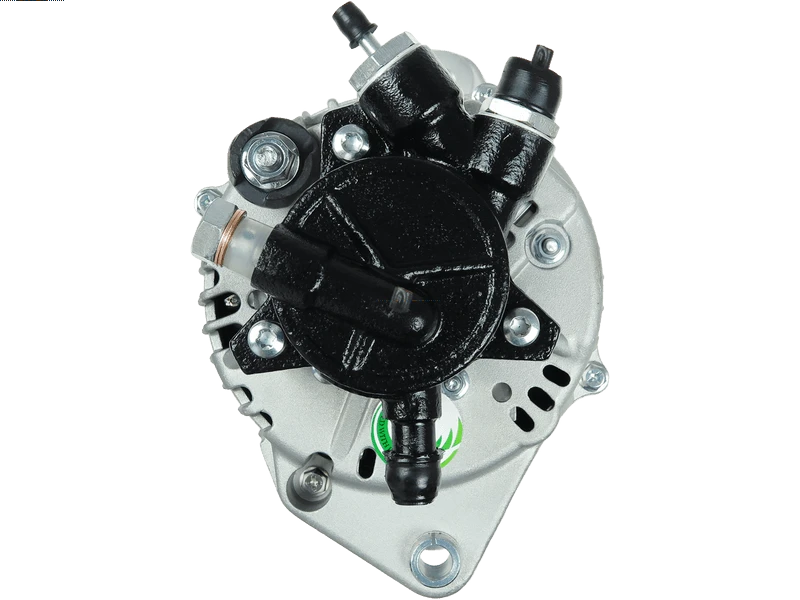

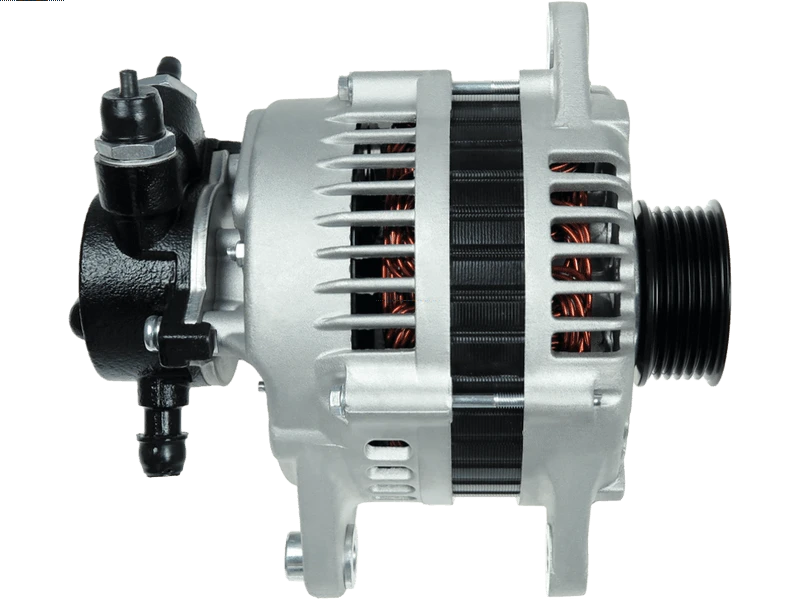

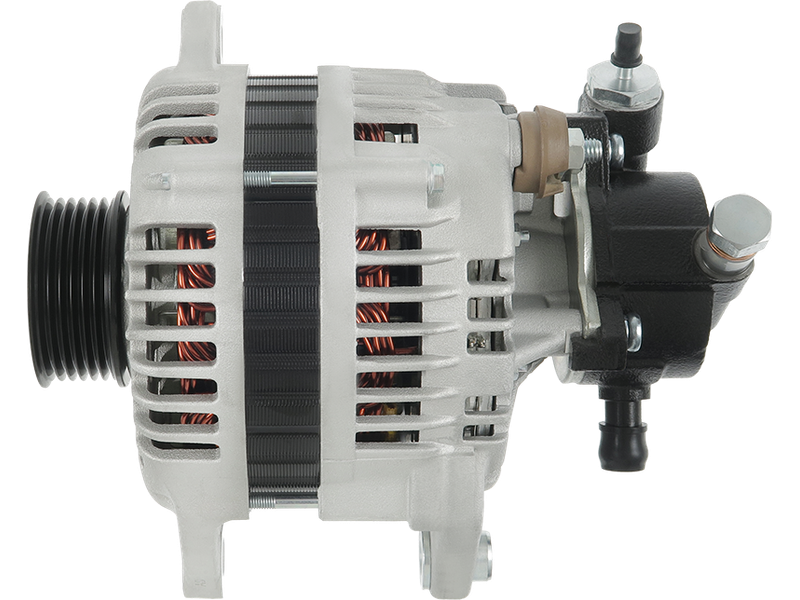

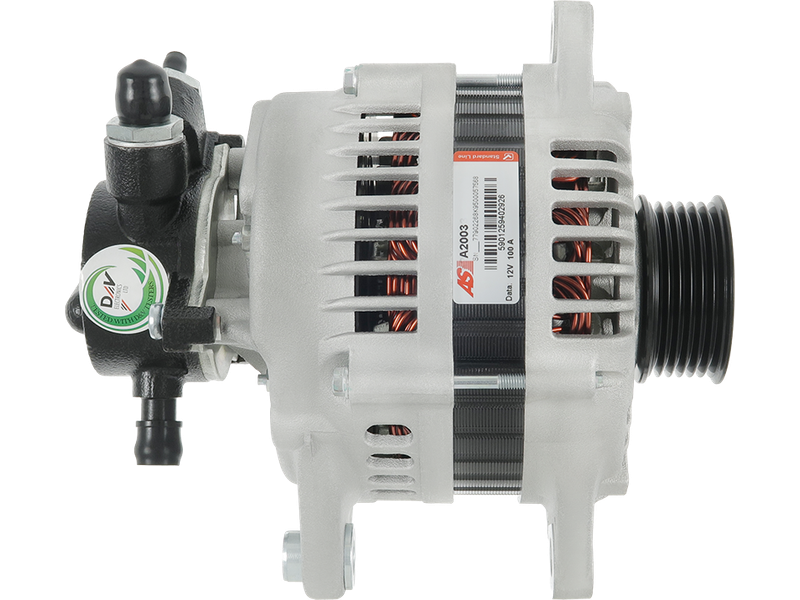

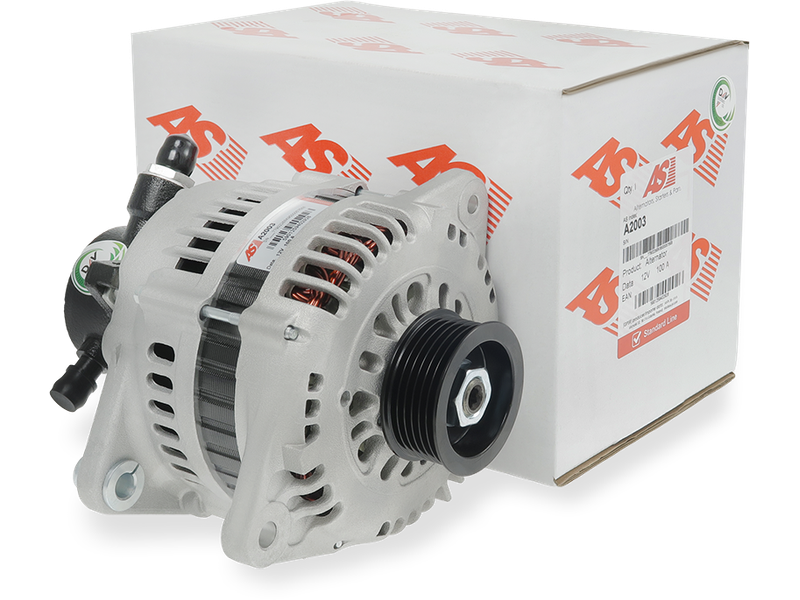

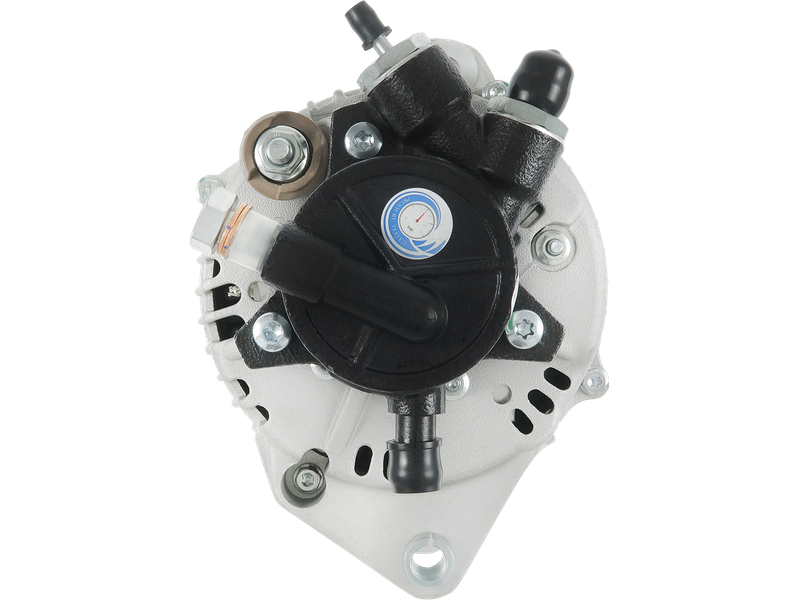

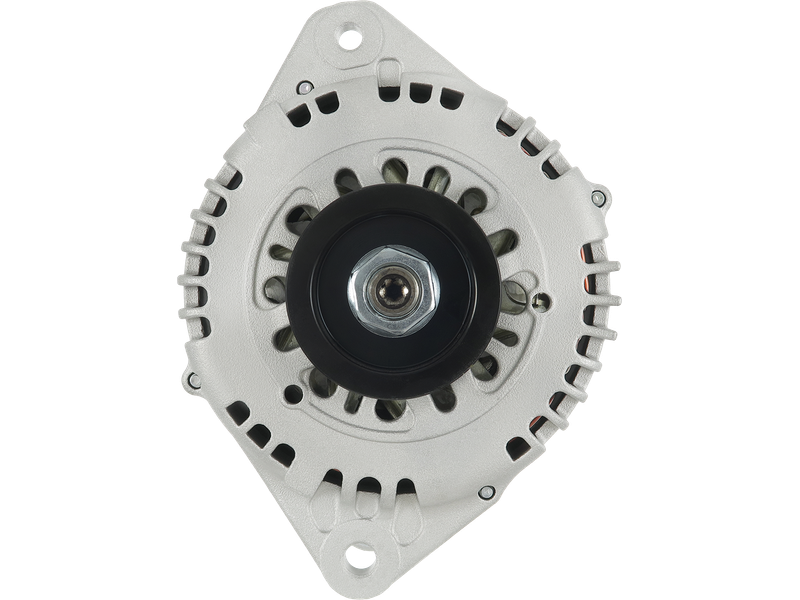

A2003 - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A2003
Price: 391.82 NZD
Availability: BackOrder

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

HITACHI

Price:

NZ$ 391.82 including GST

NZ$ 340.71 excluding GST

or four payments of $97.96 with
Learn More

UOM:

each

Product Code:

A2003

Quantity In Stock Nationally:

No stock in NZ

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Related Items

LR1100502

063731521010 0986043981 11.209.424 112271 1204158 135.601.100 136101 20110487 20145201BN 20145201OE 20145201RE 2020102 210062 21830N 21830R 2506101 28-3839 31100-PLZ-D00 32068020 401521RI 401521RIL 437497 56815 6.3003.9 6204140 89212651 8971891133 8971891134 8971891135 8971891136 8971891137 8971891138 8973261801 8EL011711-151 8EL737795-001 9001 93175799 944390900060 97189113 A2003 A2107S AAK5574 AEA4287 AG0466 ALH1521 CAL20102 CAL20102AS CAL20102ES CAL20102GS CAL20102OS CAL20102RS DA4904 DA4904N DRA3794 DRA3794N EAA-221011 F002G90229 GA100502-A IA9415 JA1521IR LR1100-502 LR1100-502B LR1100-502E LR1100-502F LR1100-502G LR1100-502H LR1100-502J LR1100-502K LR1100-502L LR1100-502N LR1100-504B LR1100-504C LR1100-504E LR1100-505 LR1100-505B LR1100502 LR1100502MD LRB00487 MG506 MQA1521 MRA90006 NEA4287 R1530037 RAA14805 UD15481A UD47285A

Amp	100 A
Bottom Mounting Foot Width (B)	13.5 mm
Diameter (D.1)	8 mm
Diameter (D.2)	10.5 mm
Diameter (D.3)	10.5 mm
Length (L.1)	223 mm
Mount Inside Length or Pad Mount C-C (C)	65 mm
OEM Product	No
Plug Code	PL_2000
Product Line	Standard Line
Product Type	Brand new
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	60 mm
Pulley to Mount Distance (A)	36 mm
Pulley Type	SOLID
Unit Type	HITACHI
Vacuum Pump	Yes
Voltage	12 V

Make	Model	Type	Year
HONDA	Civic 1.7 CTDi	[4EE-2]	01.2002-09.2005
OPEL	Astra G 1.7 CDTi	[Z17DTL]	04.2003-07.2009
OPEL	Astra G 1.7 CDTi	[Z17DTL]	04.2003-12.2009
OPEL	Astra G 1.7 DTi 16V	[Y17DT]	02.2000-01.2005
OPEL	Astra G 1.7 DTi 16V	[Y17DT]	02.2000-07.2004
OPEL	Combo 1.7 Di 16V	[Y17DTL]	10.2001-
OPEL	Combo 1.7 DTi 16V	[Y17DT]	10.2001-
OPEL	Combo Tour 1.7 Di 16V	[Y17DTL]	10.2001-06.2004
OPEL	Combo Tour 1.7 DTi 16V	[Y17DT]	10.2001-06.2004
OPEL	Corsa C 1.7 Di	[Y17DTL]	09.2000-12.2009
OPEL	Corsa C 1.7 Di 16V	[Y17DTL]	09.2000-07.2003
OPEL	Corsa C 1.7 DTi	[Y17DT]	09.2000-12.2009
OPEL	Corsa C 1.7 DTi 16V	[Y17DT]	09.2000-07.2003
OPEL	Meriva A 1.7 DTi	[Y17DT]	09.2003-05.2010
VAUXHALL	Astra Mk IV 1.7 CDTi 16V	[Z17DTL]	04.2003-05.2005
VAUXHALL	Astra Mk IV 1.7 DTi 16V	[Y17DT]	02.2000-05.2005
VAUXHALL	Astravan Mk IV 1.7 CDTi	[Z17DTL]	04.2004-08.2006
VAUXHALL	Astravan Mk IV 1.7 DTi 16V	[Y17DT]	04.2001-08.2006
VAUXHALL	Combo Mk II 1.7 Di 16V	[Y17DTL]	09.2001-11.2011
VAUXHALL	Combo Mk II 1.7 DTi 16V	[Y17DT]	10.2001-11.2011
VAUXHALL	Corsa Mk II 1.7 Di 16V	[Y17DTL]	08.2000-09.2006
VAUXHALL	Corsa Mk II 1.7 DTi 16V	[Y17DT]	08.2000-09.2006
VAUXHALL	Corsavan Mk II 1.7 Di 16V	[Y17DTL]	09.2000-06.2006
VAUXHALL	Corsavan Mk II 1.7 DTi 16V	[Y17DT]	09.2000-06.2006
VAUXHALL	Meriva Mk I 1.7 DTi	[Y17DT]	06.2003-06.2010

AG0466 ALTL130M UD47285A 21830R 6.3003.9 21830N 135.601.100.415 8980564450 5520039 8980564451 97326180 LR1100-505A LR1100-505B 98056867 063730005010 ALU915 ALU914 8972873921 LR1100-505C LR1100-505D PRAL130 8972873923 LR1100-505E 8972873924 97189112 20145201BN 97189113 437497 56815 8-97326-180-2 135.601.100.265 MQA1521 CAL20102GS A2003 ALTF290 8980542550 8EL737795-001 CAL20102OS NPANAL1382 2U914 2U915 6204140 002-U915 95520877 002-U914 CGB-83839 STX100086R 89212651 11.209.424 9001 2020102.4 DRA3794X 2020102.1 2020102.0 CGB-13794 746007 8980568670 ALH1521 ALT5610 ALT3036 LR1100502M PRAF290 LR1100502P STX100311 93175944 ANM36014X LR1100502MD 112271 20145201RE 210062 8EL011711-151 CAL20102AS ALTL130 RNLLR1100-502 8EL011711-152 8973261802 LRB487 R1530037 8973261800 31100-PLZ-D00 8973261801 F032UA0065 9512785 98054255 ALTL130LU LR1100-504A 20110487 AAL1382 LR1100-504F 6204284 063731521010 LR1100-504B LR1100-504C 746807 LR1100-504D LR1100-504E 8EL011360-241 A12HT0022A2 DRA3794N MG506 20145201OE ALT79823 32068020 GA100502-A MG 136101 LR1100504H MRA90006 LR1100504J LR1100505C AX1150 89708911380 28-3839 UD15481A 1204158 LR1100-502D AAK5574 LR1100-502E LR1100-502F DRA3794 LR1100-502G 8971891120 EZ4509 LR1100-502A LR1100-502B LR1100-502C LR1100-502L PRAL130LU LR1100505E LR1100-502M LR1100-502N 93175799 F002G90229 LR1100-502H ALTL130NE F042305043 LR1100-502I LR1100-502J LR1100-502K DA4904N RAA14805 LRB00487 AEA4287 401521RIL 8971891130 ALT328 8971891134 LR1100-504 8971891133 LR1100-505 8971891136 LR1100-502 8971891135 IA9415 135.601.100.080 0986043981 311828 STX100001R 0986043983 401521RI 944390900060 STA0020R 8971891138 JA1521IR 8971891137 446570 8971891139 2506101 DA4904 NEA4287 STX100311R STX100001 STX100121 506 STX100086 STX100121R

A2003

Mitsi/Hitachi Alternator plug

NZ$ 13.80 each
NZ$ 12.00 excl GST
