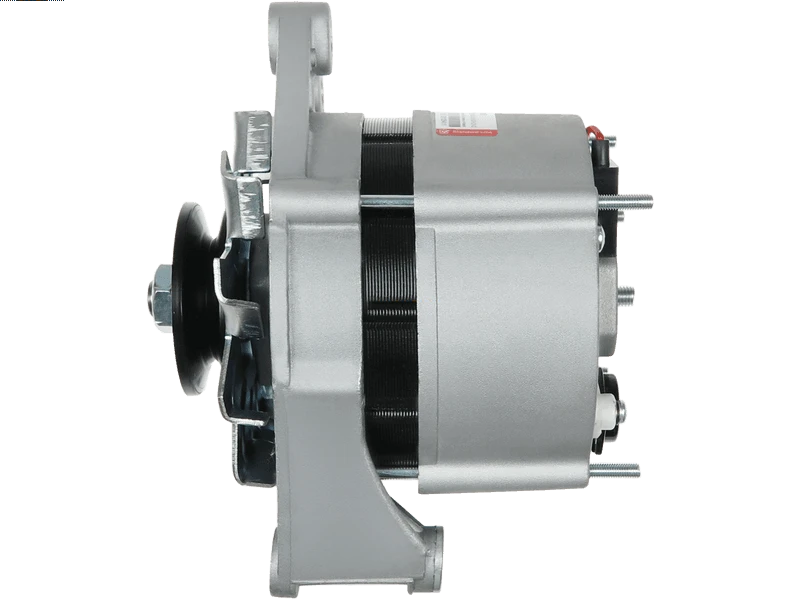

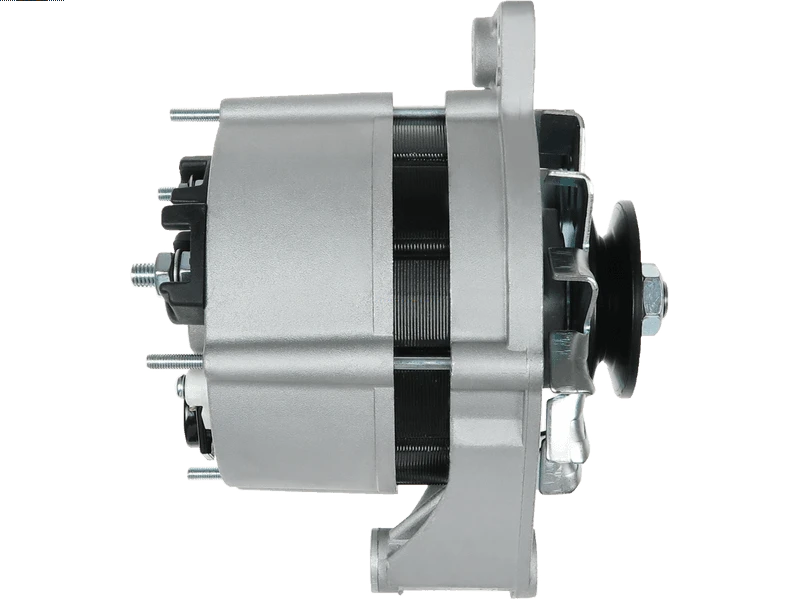

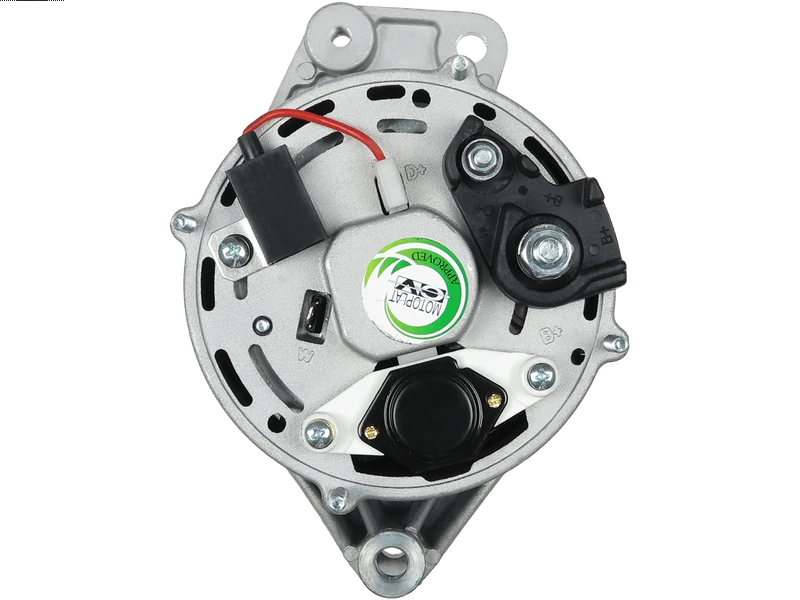

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 307.99 including GST
NZ$ 267.82 excluding GST
or four payments of $77.00
with
Learn More
each
A0689S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120489382Associated Numbers
0120488196 0120488197 0120488236 0120488239 0120488265 0120489382 0120489383 036903025 036903025B 036903025S 036903025T 036903027 036903027B 036903027D 0986036260 20101581 2010185 28-0937 30347RI 30364RI 30588RI 436399 89213410 8EL012427-331 8EL725871-001 943356681010 AG0036 ALB0588 CA588IR CAL10185 CAL10185AS CAL10185ES CAL10185GS CAL10185OS CAL10185RS DA7373 DRA6263 LRA00562 MAR577 UD15489ASpecifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 168 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10.5 mm |
| Pulley Outside Diameter (O.D.1) | 44.5 mm |
| Pulley Outside Diameter (O.D.2) | 68 mm |
| Pulley to Mount Distance (A) | 77.5 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Ibiza 1.0 | [AAU] | 01.1993-12.1997 |
| SEAT | Ibiza 1.3 | [2G] | 01.1993-12.1994 |
| SEAT | Ibiza 1.3 | [AAV] | 01.1993-12.1994 |
| VW | Golf 1.0 | [HZ] | 01.1985-12.1991 |
| VW | Golf 1.3 | [MH] | 01.1985-12.1992 |
| VW | Golf 1.3 | [NU] | 01.1985-12.1992 |
| VW | Golf 1.3 | [NZ] | 01.1985-12.1992 |
| VW | Jetta 1.3 | [GT] | 01.1984-12.1987 |
| VW | Jetta 1.3 | [MH] | 01.1985-12.1992 |
| VW | Jetta 1.3 | [NZ] | 01.1985-12.1992 |
| VW | Polo 1.0 | [AAK] | 01.1985-12.1994 |
| VW | Polo 1.0 | [AAU] | 01.1985-12.1994 |
| VW | Polo 1.0 | [HZ] | 01.1985-12.1994 |
| VW | Polo 1.3 | [2G] | 01.1990-12.1994 |
| VW | Polo 1.3 | [3F] | 01.1990-12.1994 |
| VW | Polo 1.3 | [AAV] | 01.1990-12.1994 |
| VW | Polo 1.3 | [GK] | 01.1988-12.1990 |
| VW | Polo 1.3 | [NZ] | 01.1990-12.1992 |
Reference Information
036903027B 28-0937 LRA562 21115R CAL10182AS 27020-45071 031903017C 036903025 036903017H 036903027 039903025B 031903023B 036903025B 036903027D 8EL012427-331 STX101043R 944356676010 UD15489A 0120488265 STX100314 56135 STX100314R 305.024.065.019 STX101024 STX101043 30347RI 89213410 ALB0588 AG0036 ALT10162 30588RI 0120489382 LRA00562 20101281BN 2010182.0 STX100717 MRA67601 DRA6263 36903027 CA588IR 031903023C 0120488196 36903025 436399 0986041630 036903025T 036903017HX 036903025SVideo/Publications
