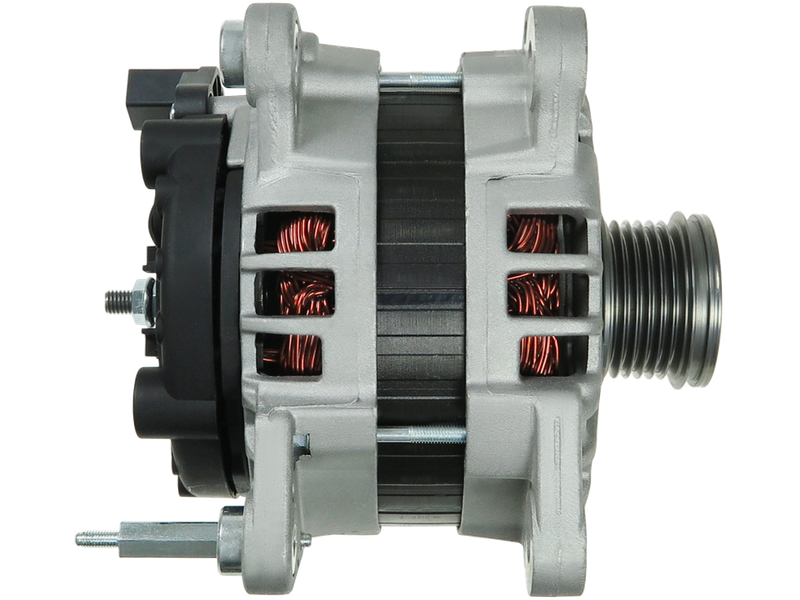

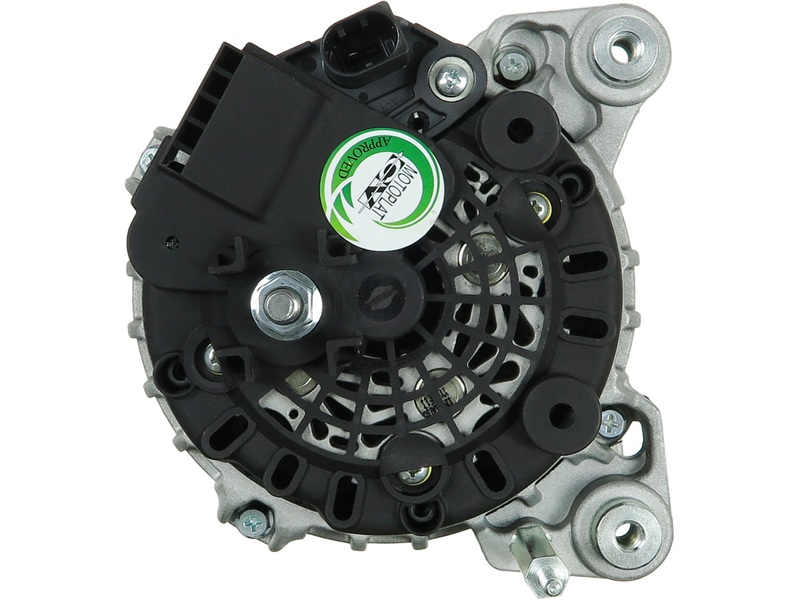

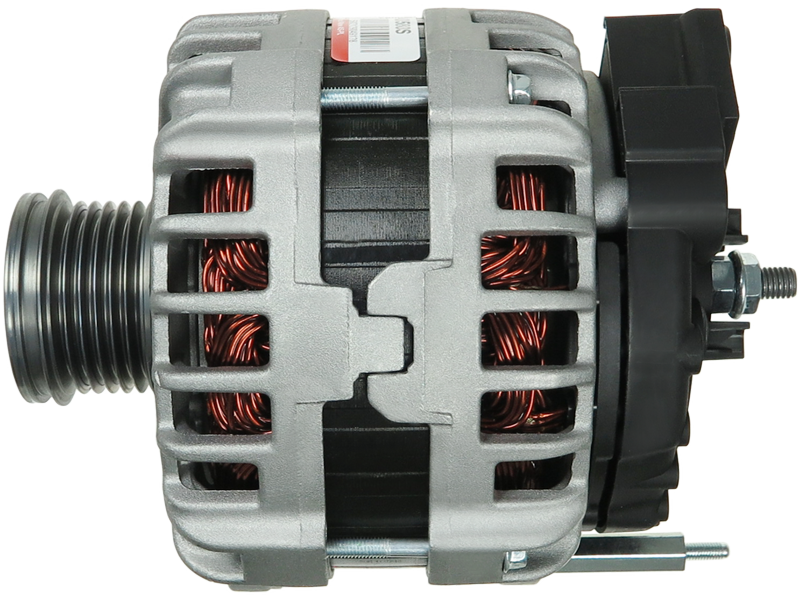

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 788.07 including GST
NZ$ 685.28 excluding GST
or four payments of $197.02
with
Learn More
each
A3127(VALEO)
A0580S
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
F000BL0818Associated Numbers
04E903023B 04E903023J 04E903023JX 04E903023K 04E903023KX 20101945 2010549 20353N 28-6764 305.967.140 554022RIB 554022RIV 554534RIB 89215790 AEK3703 ALB3805 CAL10549 CAL10549AS CAL10549ES CAL10549GS CAL10549OS CAL10549RS F000BL0805 F000BL0818 F000BL0830 F000BL08C8 LRA03703 TG14C049 UD13605A 65-2505-1 439821 1986A00906 ANV081gq IAT A20353 Industry 20353 Lester PIC 208-1064 Valeo Voltux V2-20353 Volkswagen 10444294 Alanko 115916 Cargo 12090564 EuroTec 14201025 AES 14201460 200269 WAI 209276 Messmer 2113931402 DRI 2614609D 286764 Elstock 305906140 PSH 440475 441762 Logistik 444294 4E903023K 4E903023KX 553839RI DAS 554022RI 614609 Power Max 8EL738214021 Hella 9090771 Frisians 9090771F 9198 CEVAM 931376 EDR A132400 Short code A148183 A159379 A3127 AS-PL A3127PR A3127S AA8186 Auto Charge ABO1335 Quasar Electro ALT00531sa Electrolog ALT10033SA ALT14646 Wood DRA1376 Remy KTR611812280 KTR L85700 ATL Lucas VAL439821 VALTG14C049 WOOALT14646 04C903021A 04C903023K 04C903023LX 04C903023M 0986083340 Bosch Exchange 12090519 14201372 200285 20351N 209492 2115201402 2622499A 2715267A 2715992A 287503 305923140 439894 440640 441952 442303 555318RI 57411 EAI 715992 89215862 8EL011712881 8EL012241201 8EL015630201 9090827 9090827F 931346 A132427 A148220 A149918 A3340PR A3340S AA7499 AAL1906 Apec AEG1399 ALT14538 ALT2383CP Rolling Components AVA1324 AVE1511 Everkraft AVE1511E CAL15594 Airframe DRA1346 LRA03893 LRA3893 NAL1906 Napa (UK) O4C903021A RNLTG14C071 RNL TG14C071 TG14C071RR TG14C071SEL +line TG14C083 TG14C094 TG14C103 WOOALT14538 A20351 20351 208-2074 355703Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.5 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A1 1.4 TFSi | [CPTA] | 01.2012- |
| AUDI | A3 1.2 TFSi | [CJZA] | 01.2013- |
| AUDI | A3 1.4 TFSi | [CMBA] | 01.2012- |
| AUDI | A3 1.4 TFSi | [CPTA] | 01.2012- |
| AUDI | A3 1.4 TFSi | [CXSA] | 01.2012- |
| AUDI | Q3 1.4 TFSi | [CZDA] | 01.2013- |
| AUDI | Q3 1.4 TFSi | [CZEA] | 01.2013- |
| SEAT | Ibiza 1.4 TSi | [CPTA] | 01.2013- |
| SEAT | Leon 1.2 | [CJZB] | 01.2013- |
| SEAT | Leon 1.2 | [CYVA] | 01.2013- |
| SEAT | Leon 1.2 TSi | [CJZA] | 01.2012-12.2013 |
| SEAT | Leon 1.2 TSi | [CJZB] | 01.2012-12.2013 |
| SEAT | Leon 1.2 TSi | [CYVA] | 01.2012-12.2013 |
| SEAT | Leon 1.2 TSi | [CYVB] | 01.2012-12.2013 |
| SEAT | Leon 1.4 TGi | [CPWA] | 01.2013- |
| SEAT | Leon 1.4 TSi | [C..A] | 01.2012- |
| SKODA | Octavia 1.2 TSi | [CJZA] | 01.2013- |
| SKODA | Octavia 1.2 TSi | [CJZB] | 01.2013- |
| SKODA | Octavia 1.2 TSi | [CYVB | 01.2015- |
| SKODA | Octavia 1.4 TSi | [CHPA] | 01.2013- |
| SKODA | Octavia 1.4 TSi | [CHPB] | 01.2014- |
| SKODA | Octavia 1.4 TSi | [CPWA] | 01.2013- |
| SKODA | Octavia 1.4 TSi | [CZDA] | 01.2014- |
| VW | Golf VII 1.0 TSi | [CHZC] | 01.2015- |
| VW | Golf VII 1.0 TSi | [CHZD] | 01.2015- |
| VW | Golf VII 1.0 TSi | [CHZK] | 01.2015- |
| VW | Golf VII 1.2 TSi | [CJZA] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CJZB] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CYVA] | 01.2012-12.2013 |
| VW | Golf VII 1.2 TSi | [CYVB] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TGi | [CPWA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TGi | [CZBA] | 01.2013-12.2013 |
| VW | Golf VII 1.4 TSi | [CHP.] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TSi | [CPTA] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TSi | [CPV.] | 01.2012-12.2013 |
| VW | Golf VII 1.4 TSi | [CZ.A] | 01.2012-12.2013 |
| VW | Polo 1.4 TSi | [CPTA] | 01.2012-12.2014 |
| VW | Scirocco 1.4 TSi | [CZCA] | 01.2013-12.2015 |
| VW | Scirocco 1.4 TSi | [CZDA] | 01.2013-12.2015 |
Reference Information
115916 ALTL465V 04E903023JX 554534RIB ALT10033 CAL10549AS LRA3703 F000BL0818 04E903024QX CAL10549ES 20353N 89215790 55151213 RNLF000BL0805 STX102042 UD13605A STX102048 A12VA0864AS 04E903023KX 04C903023CX 305.967.140.460 PRAL465 F000BL0805 305.967.140 04B903023C TG14C049 ALTE204 554022RIB LRA03703 PRAE204 STX110283R 441762 A12VA0864 CAL10549 2010549 CAL10549GS ALTL465 305.967.140.014 ALT125530 CAL10549OS 04E903023B CAL10549RS AEK3703 F000BL08C8 209276 STX110283 F000BL0830 554022RIV 04E903023K 20101945 04E903023J 28-6764 ALTE204V ALB3805 A12BH0882AS 04E903023HVideo/Publications
