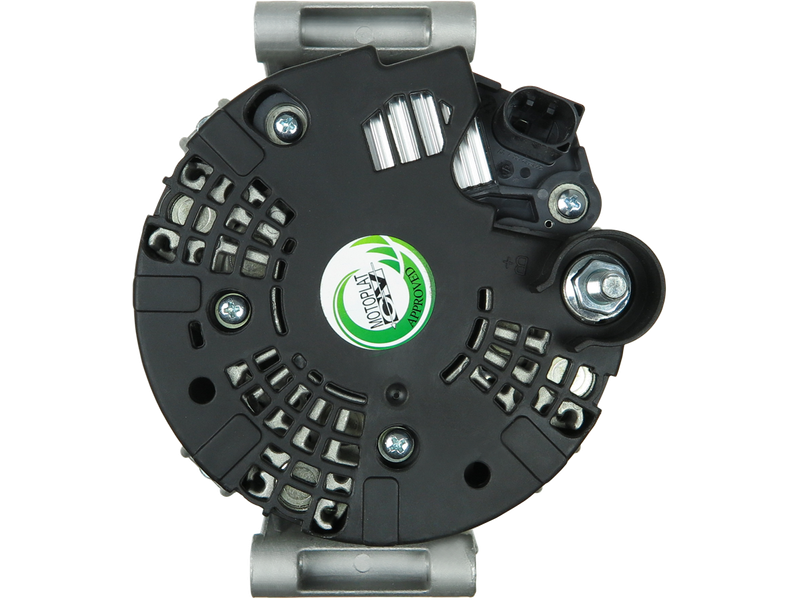

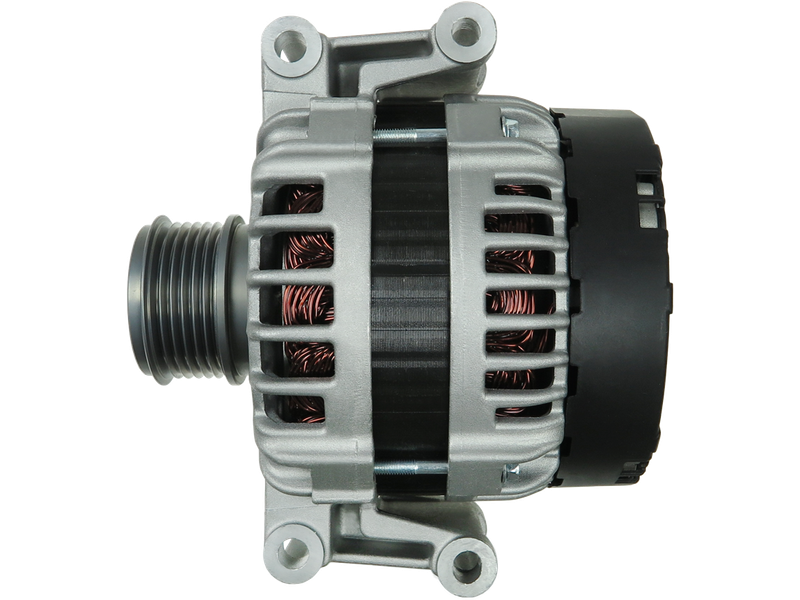

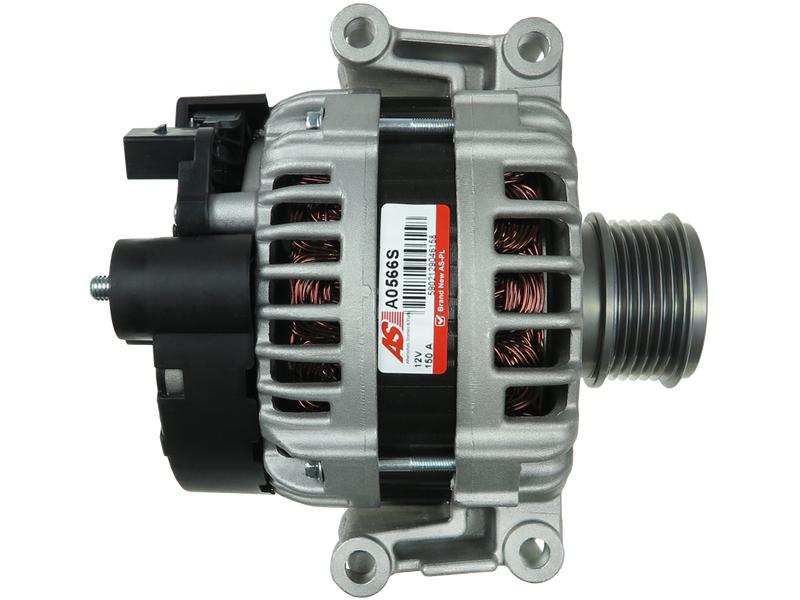

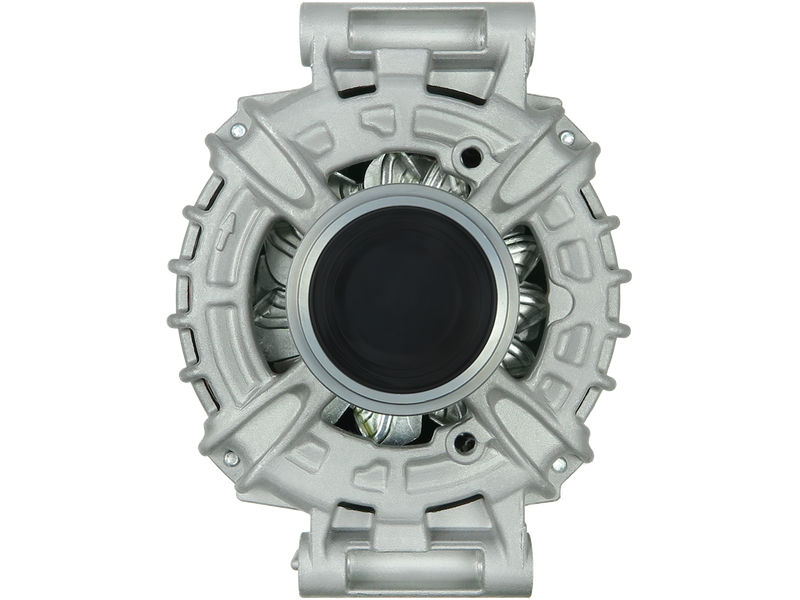

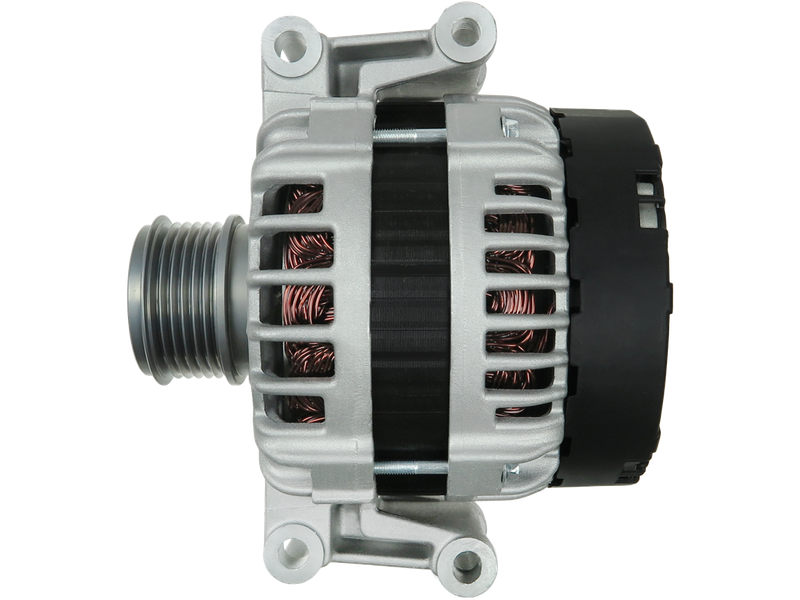

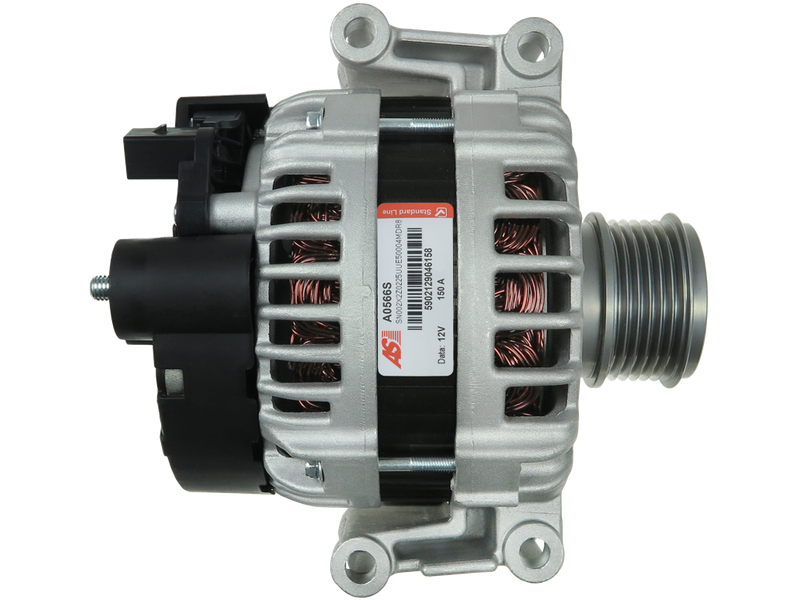

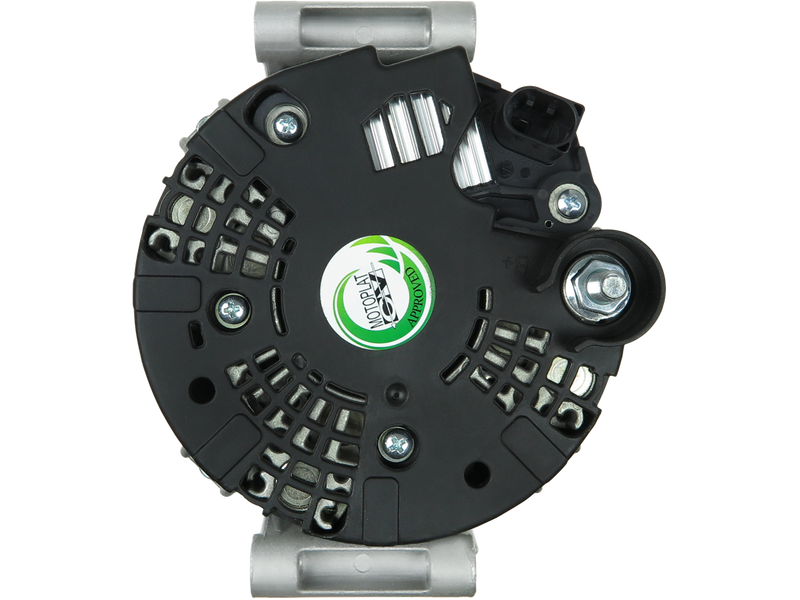

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 735.36 including GST
NZ$ 639.44 excluding GST
or four payments of $183.84
with
Learn More
each
A0566S
No stock in NZ
No stock in NZ
Associated Numbers
0125711127 0125711128 0125711151 06H903018H 06H903018HX DRA1397 UD13166A UD13509ASpecifications
| Amp | 150 A |
| Diameter (D.1) | 9.5 mm |
| Diameter (D.2) | 9.5 mm |
| Diameter (D.3) | 9 mm |
| Diameter (D.4) | 9 mm |
| Length (L.1) | 193 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Pad mount thickness (E.3) | 70 mm |
| Pad mount thickness (E.4) | 70 mm |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A5 1.8 TFSi | [CJED] | 09.2014-01.2017 |
| AUDI | A5 1.8 TFSi | [CJEE] | 05.2015-01.2017 |
| AUDI | A5 2.0 TFSi | [CNCE] | 08.2015-01.2017 |
| AUDI | A5 2.0 TFSi Quattro | [CNCE] | 08.2015-01.2017 |
| AUDI | Q5 2.0 TFSi Quattro | [CDNB] | 08.2009- |
| AUDI | Q5 2.0 TFSi Quattro | [CNCB] | 08.2009- |
| AUDI | Q5 2.0 TFSi Quattro | [CNCE] | 08.2015- |
Reference Information
AL03472 06H903018HX 8EL015637-071 205.545.150.280 BOS0125711044 6.8062.1 UD13509A 06H903017JX 06H903018P 06H903018PX 06H903018H 57426 TT12708 20101400OE 06H903018J 0125711044 LRA3907 554171RIB 11725N 205.545.150.010 IR6379 209254 ALT10222 ALT1923 10444285 2115241502 28-7517 A-6644 116201 3114993 G100870 444206 20101474OE 12090694 AU8076 11157 WG2011212 PRAE313 CGB-87517 LRA03907 0125711151 426ST75 G100869 SEG0125711044 06H903018JX 11444285 RNL711044 ALT10770 06H903017TX UD13166A 2010474.1 443301 20010474OV CAL10004GS 442417 DRA1029 0125711188 L50640 13266 0125711187 205.545.150.211 ALTE313 205.545.150.014 ALT120040 0986083150 40394 06H903017T 0125711128 0125711127 06H903017X ALB0461 2010004.1 CAL10474GS 0125711090 DRA1397 06H903017J G101143 AEK3907 WOOALT10770 QRA3419 554171RI 0125711051Video/Publications
