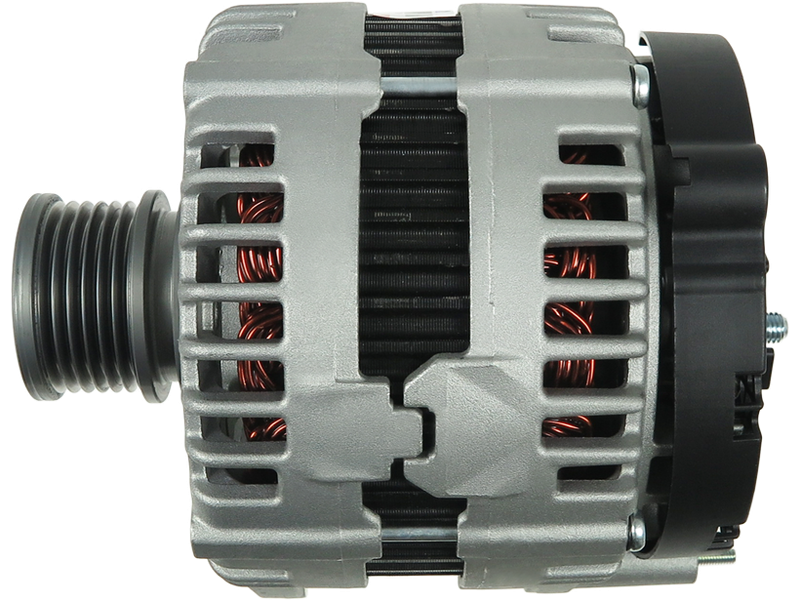

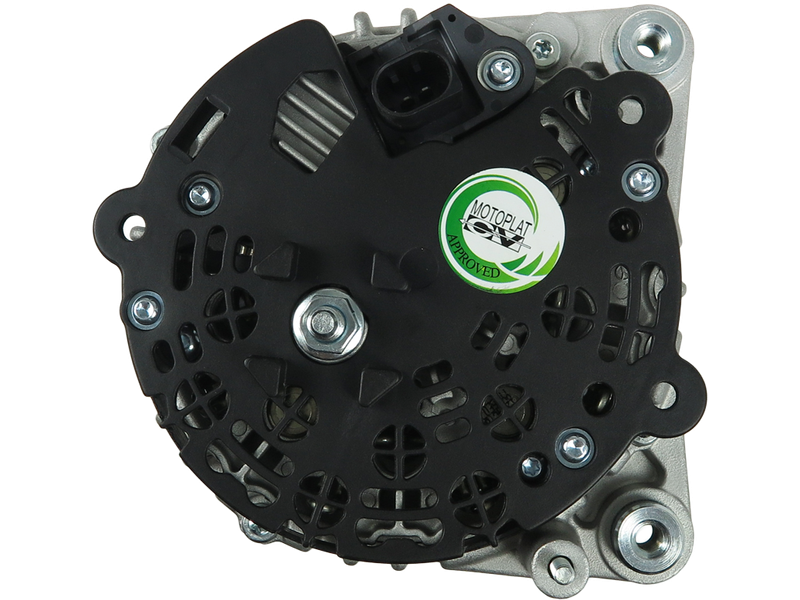

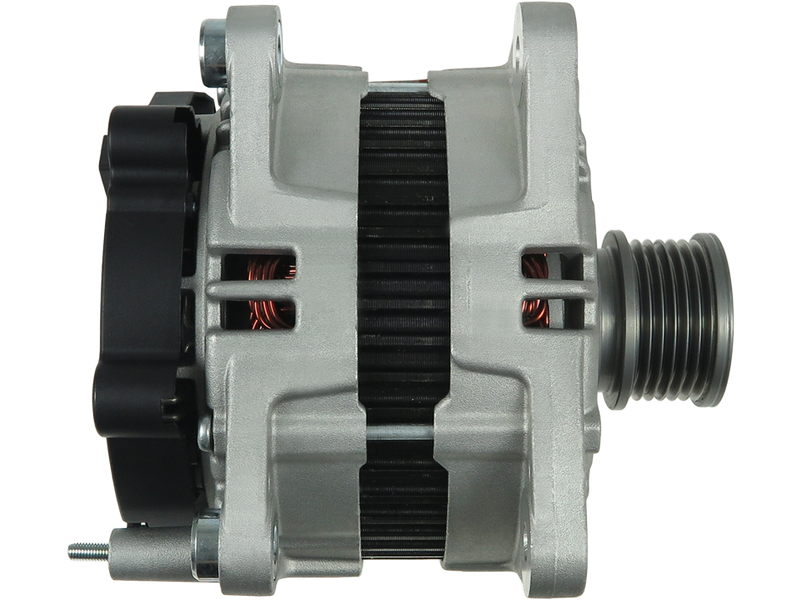

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 672.43 including GST
NZ$ 584.72 excluding GST
or four payments of $168.11
with
Learn More
each
A0492
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0121715077Associated Numbers
0121715049 0121715077 0121715149 0121715177 03G903016L 03G903016LX 03G903016N 03G903016NX 03L903023N 03L903024E 03L903024L 03L903024N 04L903024A 20017R 2015398 20179893OE 28-5764 305.901.180 439783 440415 553625RIB 553625RIV 554763RIV 89215537 8EL738213-411 9215537 A-6663 AEK3152 CAL15398 CAL15398AS CAL15398ES CAL15398GS CAL15398OS CAL15398RS DRA0674 EG18S015 FG18T079 FG18T103 FG18T123 FG18T124 LRA03152 UD12091A VALFG18T079Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 63 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 2.0 TDi | [CZHA] | 01.2015- |
| AUDI | A4 2.0 TDi | [DE..] | 01.2015- |
| AUDI | A4 2.0 TDi | [DF..] | 01.2015- |
| AUDI | A4 2.0 TDi Quattro | [CZHA] | 01.2015- |
| AUDI | A4 2.0 TDi Quattro | [DE..] | 01.2015- |
| AUDI | A4 2.0 TDi Quattro | [DF..] | 01.2015- |
| AUDI | A5 2.0 TDi | [DETA] | 01.2016- |
| AUDI | A6 2.0 TDi | [BNA] | 06.2005-08.2011 |
| AUDI | A6 2.0 TDi | [BNA] | 07.2004-03.2011 |
| AUDI | A6 2.0 TDi | [BRF] | 06.2005-08.2011 |
| AUDI | A6 2.0 TDi | [BRF] | 07.2004-03.2011 |
| AUDI | A6 2.0 TDi | [CAGB] | 01.2008-12.2011 |
| AUDI | A6 2.0 TDi | [CAGB] | 06.2005-08.2011 |
| AUDI | A6 2.0 TDi | [CAGB] | 07.2004-03.2011 |
| AUDI | A6 2.0 TDi | [CAHA] | 01.2008-12.2011 |
| AUDI | A6 2.0 TDi | [CAHA] | 10.2008-08.2011 |
| AUDI | A6 2.0 TDi | [CAHA] | 11.2008-03.2011 |
| AUDI | A6 2.0 TDi | [CAHB] | 01.2008-12.2011 |
| AUDI | A6 2.0 TDi | [CAHB] | 04.2009-03.2011 |
| AUDI | A6 2.0 TDi | [CAHB] | 04.2009-08.2011 |
| SKODA | Octavia 1.6 TDi | [CLHA] | 01.2013- |
| SKODA | Octavia 1.6 TDi | [CLHB] | 01.2013- |
| SKODA | Octavia 1.6 TDi | [CRKB] | 01.2013- |
| SKODA | Octavia 1.6 TDi 4x4 | [CLHA] | 01.2014- |
| SKODA | Octavia 2.0 TDi | [CKF.] | 01.2013- |
| SKODA | Octavia 2.0 TDi | [CRV.] | 01.2013- |
| SKODA | Octavia 2.0 TDi | [CU..] | 01.2013- |
| SKODA | Octavia 2.0 TDi 4x4 | [CKFC] | 01.2012- |
| SKODA | Octavia 2.0 TDi 4x4 | [CUNA] | 01.2012- |
| SKODA | Octavia 2.0 TDi 4x4 | [CUPA] | 01.2012- |
| SKODA | Superb 2.0 TDi | [CRLB] | 01.2015- |
| SKODA | Superb 2.0 TDi | [DDAA] | 01.2015- |
| SKODA | Superb 2.0 TDi | [DFCA] | 01.2015- |
| SKODA | Superb 2.0 TDi | [DFEA] | 01.2015- |
| SKODA | Superb 2.0 TDi 4x4 | [CRLB] | 01.2015- |
| SKODA | Superb 2.0 TDi 4x4 | [DDAA] | 01.2015- |
| SKODA | Superb 2.0 TDi 4x4 | [DFCA] | 01.2015- |
| SKODA | Superb 2.0 TDi 4x4 | [DFEA] | 01.2015- |
| VW | Caravelle 2.0 TDi | [CAAB] | 01.2015- |
| VW | Caravelle 2.0 TDi | [CAAC] | 01.2015- |
| VW | Caravelle T6 2.0 TDi 4-Motion | [CAAC] | 01.2015- |
| VW | CC 3.6 | 01.2012-12.2014 | |
| VW | Crafter 2.0 TDi | [CKTB] | 01.2011- |
| VW | Crafter 2.0 TDi | [CKTC] | 01.2011- |
| VW | Crafter 2.0 TDi | [CKUB] | 01.2011- |
| VW | Crafter 2.0 TDi | [CKUC] | 01.2011- |
| VW | Crafter 2.0 TDi | [CS..] | 01.2011- |
| VW | Crafter 2.0 TDi 4-Motion | [CKUB] | 01.2011- |
| VW | Crafter 2.0 TDi 4-Motion | [CSNA] | 01.2011- |
| VW | Golf VII 2.0 GTD | [CUNA] | 01.2013- |
| VW | Multivan 2.0 TDi | [CAA.] | 01.2012- |
| VW | Multivan 2.0 TDi | [CAAB] | 01.2015- |
| VW | Multivan 2.0 TDi | [CAAC] | 01.2015- |
| VW | Multivan 2.0 TDi | [CCH.] | 01.2012- |
| VW | Multivan 2.0 TDi | [CFCA] | 01.2012- |
| VW | Multivan 2.0 TDi 4-Motion | [CAA.] | 01.2012- |
| VW | Multivan 2.0 TDi 4-Motion | [CAAC] | 01.2015- |
| VW | Multivan 2.0 TDi 4-Motion | [CCH.] | 01.2012- |
| VW | Multivan 2.0 TDi 4-Motion | [CFCA] | 01.2012- |
| VW | Passat 1.6 TDi | [DCXA] | 01.2014- |
| VW | Passat 1.6 TDi | [DCZA] | 01.2014- |
| VW | Passat 2.0 TDi | [CRLB] | 01.2014- |
| VW | Passat 2.0 TDi | [DDAA] | 01.2014- |
| VW | Passat 2.0 TDi | [DFCA] | 01.2014- |
| VW | Passat 2.0 TDi 4-Motion | [CRLB] | 01.2014- |
| VW | Passat 2.0 TDi 4-Motion | [CUAA] | 01.2014- |
| VW | Passat 2.0 TDi 4-Motion | [DDAA] | 01.2014- |
| VW | Passat 2.0 TDi 4-Motion | [DFCA] | 01.2014- |
| VW | Passat 2.0 TDi 4-Motion | [DFEA] | 01.2014- |
| VW | Passat 3.6 FSi 4-Motion | [BWS] | 01.2011- |
| VW | Passat Alltrack 2.0 TDi 4-Motion | [CRLB] | 01.2015- |
| VW | Passat Alltrack 2.0 TDi 4-Motion | [CUAA] | 01.2015- |
| VW | Passat Alltrack 2.0 TDi 4-Motion | [DDAA] | 01.2015- |
| VW | Passat Alltrack 2.0 TDi 4-Motion | [DFCA] | 01.2015- |
| VW | Passat Alltrack 2.0 TDi 4-Motion | [DFEA] | 01.2015- |
| VW | Transporter 2.0 TDi | [CAA.] | 01.2012- |
| VW | Transporter 2.0 TDi | [CAAB] | 01.2015- |
| VW | Transporter 2.0 TDi | [CAAC] | 01.2015- |
| VW | Transporter 2.0 TDi | [CCH.] | 01.2012- |
| VW | Transporter 2.0 TDi | [CFCA] | 01.2012- |
| VW | Transporter 2.0 TDi 4Motion | [CAA.] | 01.2012- |
| VW | Transporter 2.0 TDi 4Motion | [CCH.] | 01.2012- |
| VW | Transporter 2.0 TDi 4Motion | [CFCA] | 01.2012- |
| VW | Transporter 2.0 TDi 4Motion | [CAA.] | 01.2012- |
| VW | Transporter 2.0 TDi 4Motion | [CCH.] | 01.2012- |
| VW | Transporter 2.0 TDi 4Motion | [CFCA] | 01.2012- |
| VW | Transporter 2.0 TDi 4-Motion | [CAAC] | 01.2015- |
Reference Information
LRA4282 205.539.180.014 553625RIB 205.539.180.010 03G903016L 0121715077 UD12091A H5510638 IR6020 ALT14477 28-5764CT 57541 5510638 AG1716 205.539.180.460 AU8085 553625RIV AVA398 2115611802 AG1716RB EZ4260 89215537 ANM100076 116438 F032116438 AI-90214 CAL15398GS 2015398.1 L85930 20015398OV 2015398.0 STX101909 G100950 113057 AZMT-49-035-1030 ALT173980A 9428 BBA3040 ALB0415 20179893OE 440836 03G903016LX ALT173980 LRA04282 AEK3152 ALT1538 32439783 10443613 LEA0779 A12BH0753 AI-90214INA 442415 ALT2224CP 20179893BN G100222 G100223 553625RI 205.539.180.280 AL04150 12090437 20015398AV TT13088PRO AC-CBA6203 A12BH0753AS 90-15-6657 CAL15398AS G106557 A0492 AVA398A 28-7891 20017N 4847913Video/Publications
