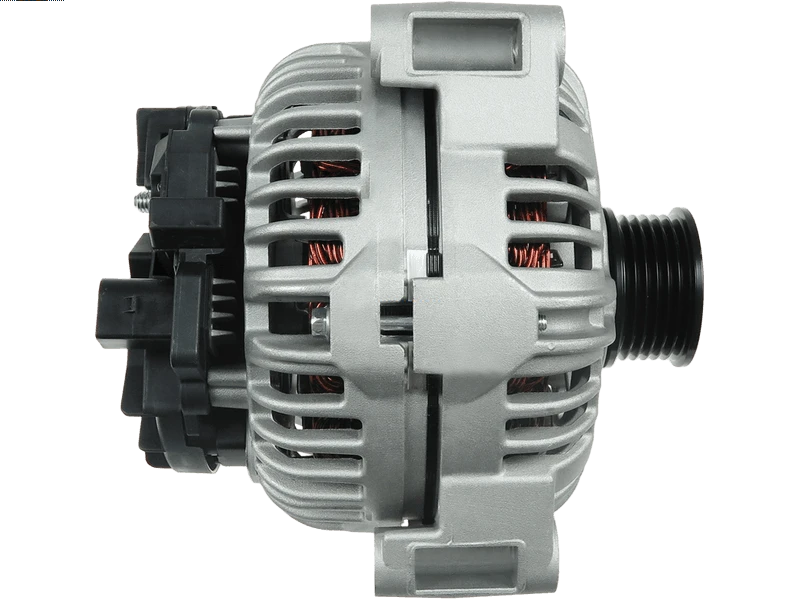

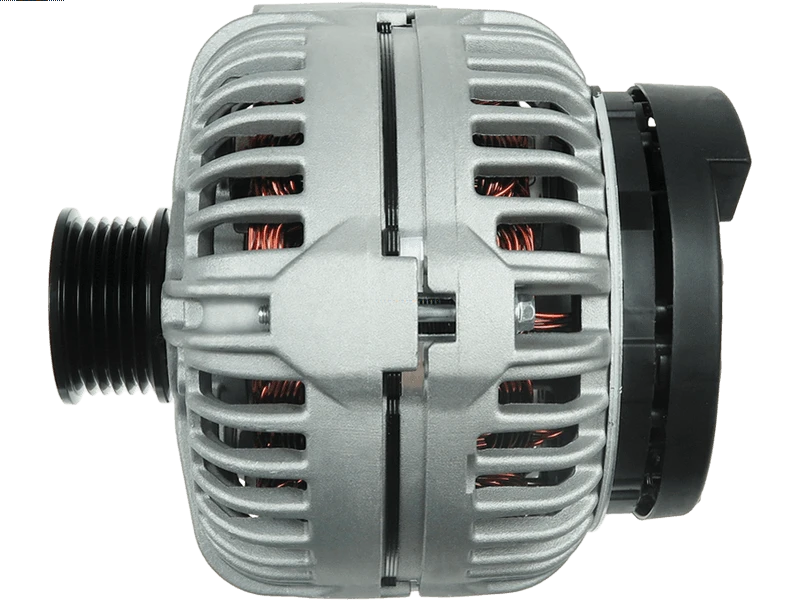

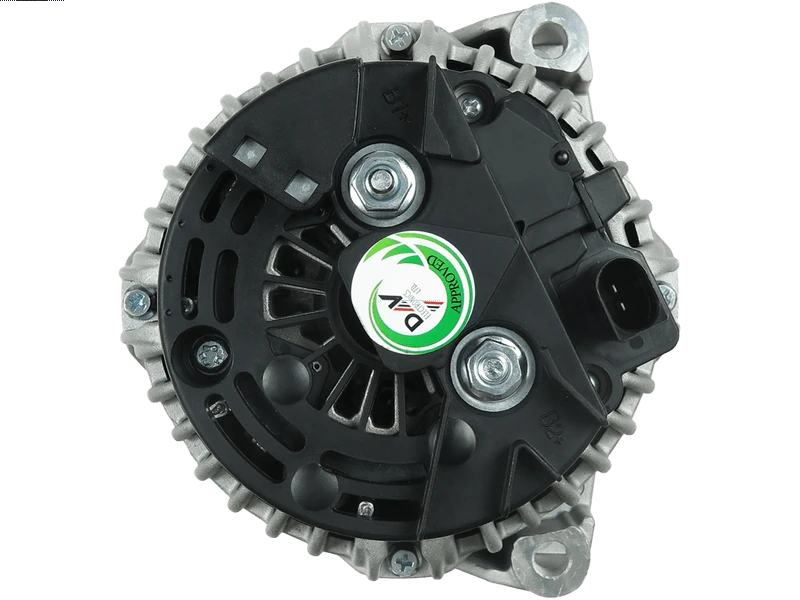

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 603.44 including GST
NZ$ 524.73 excluding GST
or four payments of $150.86
with
Learn More
each
AAM-S6004
A0483
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124625007Associated Numbers
0121546602 0121548902 0124625005 0124625007 0124625032 0131548502 0131548902 0986047480 11068N 11068R 12434 20101723OE 2010327 209047 28-5691 553215RI 555.532.150 555.532.180 57019 90-15-6526 9366 944390903190 A-6507 A0121548902 A0131548902 AEK3079 ALT10603 CAL10327 CAL10327AS CAL10327ES CAL10327GS CAL10327OS CAL10327RS DRB7480 EAA-222168 EAA-252739 LRA03079 UD12227A Bosch Remy Light Duty Wilson References: Arrowhead ABO0337 Beck Arnley 186-1202 0986047487 Lester 11068 Mercedes 012-154-89-02 PIC Picture ID 220-5205 AL0826X 121548902 131548502 A0131548502 Mercedes-Benz show 0124625032OR +line 0124625211 ruil 114737 Cargo 12047480 EuroTec 2205205D 285691 Elstock 555532180 PSH EAI 90156526 9090319F Friesen 947480 EDR L82330 ATL Lucas UD20660A AS-PL 0124615014 BOSCHList 0124615046 0986044920 BOSCH 0986047560 CAL10389GS CASCO 9384 CEVAM DB8670 DELCO DRB7560 A-6436 DIXIE 28-5868 ELSTOCK ALB0013 KRAUF 553643RI KUHNER LRA03256 LUCAS 944390449200 MAGNETI MARELLI MRA44920 01211542702 MERCEDES 0121542702 012154270280 0131548302 013154830280 A0121542702 A012154270280 A0131548302 A013154830280 89214998 POWERMAX 20101683 REAL 20101683OE 2010386.1 SANDO 440451 VALEO 11042N WAI / TRANSPO 11042R 90-15-6521 WILSON ALT10413 WOODAUTO AL0819X ABO0251 11042 012-154-27-02 220-5149 Substitutes: J N 400-24108 J& 220-5149A 0124615046OR 12044920 12047560 121542702 2205149 285868 Valeo 555532150 90156521 9044920F Magneti Marelli L44920 A0708S 0124625032SEL 2251421802 DRI 288531 AL0826N (USA) 690124625032Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Length (L.1) | 185 mm |
| OEM Product | No |
| Plug Code | PL_2308 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 84 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | CL 55 5.4 AMG Kompressor | (C215)[M113.991] | 01.2002-12.2006 |
| MERCEDES BENZ | CLS 55 AMG 5.4 | (C219)[M113.990] | 01.2005- |
| MERCEDES BENZ | E 240 2.6 4-Matic | (W211)[M112.917] | 03.2003-12.2008 |
| MERCEDES BENZ | E 55 AMG 5.4 | (W211)[M113.990] | 07.2003- |
| MERCEDES BENZ | E 55 AMG 5.4 Kompressor | (W211)[M113.990] | 10.2002- |
| MERCEDES BENZ | E 55 T 5.4 AMG Kompressor | (S211)[M113.990] | 07.2003-07.2009 |
| MERCEDES BENZ | G 55 AMG 5.4 | (W463)[M113.993] | 06.2004- |
| MERCEDES BENZ | G 55 AMG 5.5 | (W463)[M113.993] | 08.2008- |
| MERCEDES BENZ | ML 500 5.0 4-Matic | (W164)[M113.964] | 07.2005- |
| MERCEDES BENZ | R 500 5.0 4-Matic | (W251)[M113.971] | 01.2006- |
| MERCEDES BENZ | S 55 AMG 5.4 Kompressor | (W220)[M113.991] | 06.2002-08.2005 |
| MERCEDES BENZ | SL 55 5.5 AMG | (R230)[M113.992] | 01.2001-12.2005 |
| MERCEDES BENZ | SL 55 5.5 AMG | (R230)[M113.995] | 01.2006- |
| MERCEDES BENZ | SL 55 AMG 5.4 | (R230)[M113.992] | 06.2002- |
| MERCEDES BENZ | SL 55 AMG 5.5 | (R230)[M113.992] | 10.2001-06.2002 |
Reference Information
A0121548902 A0121546602 G100729 A0131548902 LRA3079 209047 0131548502 A12BH0411 0986047480 PRAL650 A12BH0411AS ABO327 12434 0124625032 CAL10327GS 11068R LRA03079 20010327OV 114737 0121548902 0121546602 A013154850280 AZMT-49-035-1235 ANM49700X A12BH0411A2 013154850280 20101723OE 28-5691 013154850283 WG2280878 TT11880 20101723BN 555.532.180.280 A013154850283 9366 0124625005 ALB3007 STX110308R 0124625032-R 2010327.1 AEK3079 IR6320 2010327.0 90-15-6526 SKGN-0320261 ALT1374 555.532.180.014 ALT123270 DRB7480 11068N 555.532.180.010 STX110308 0124625211 944390903190 AI-90155 STX102021 ALTL650 A012154890283 012154890280 4G0261 A-6507 A012154890280 CAL10327AS 012154890283 442288 311038 57019 0131548902 10443203 ALT10603 20010327AV 555.532.180.461 A0131548502 UD12227A 0124625007 553215RI 1986A00965Video/Publications
