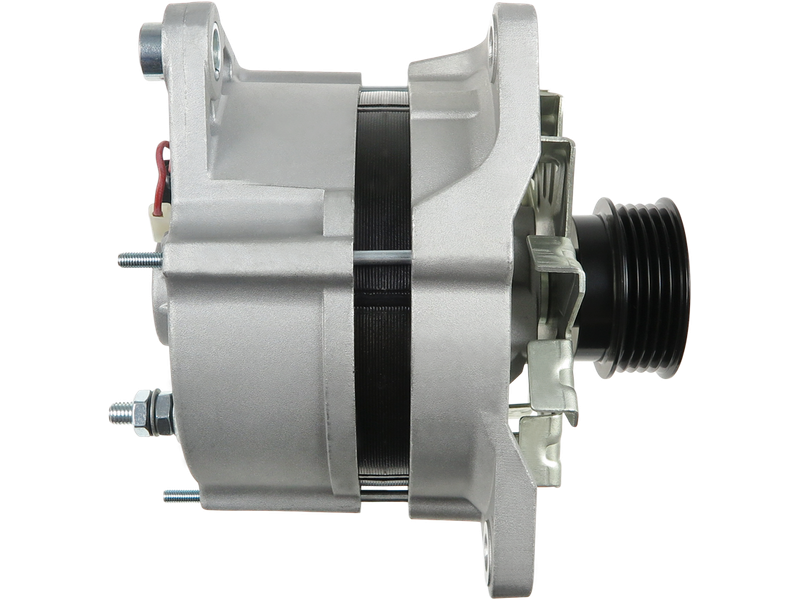

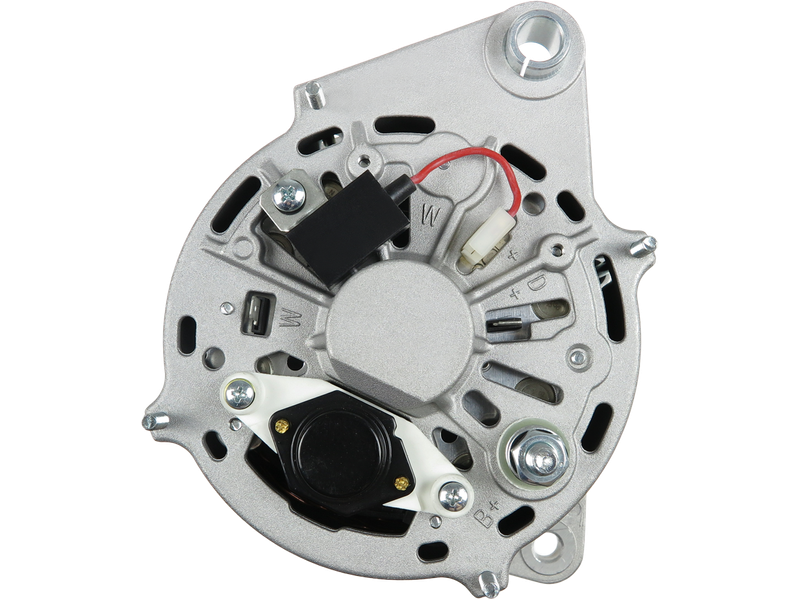

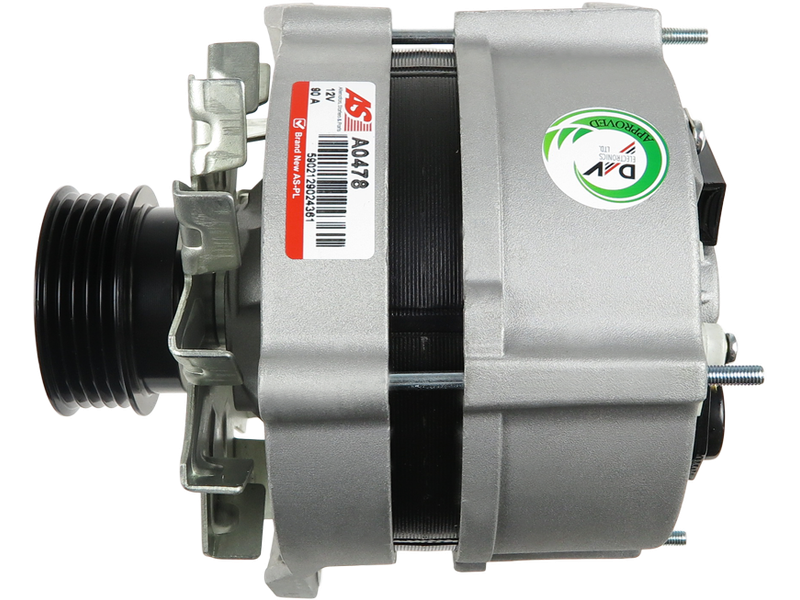

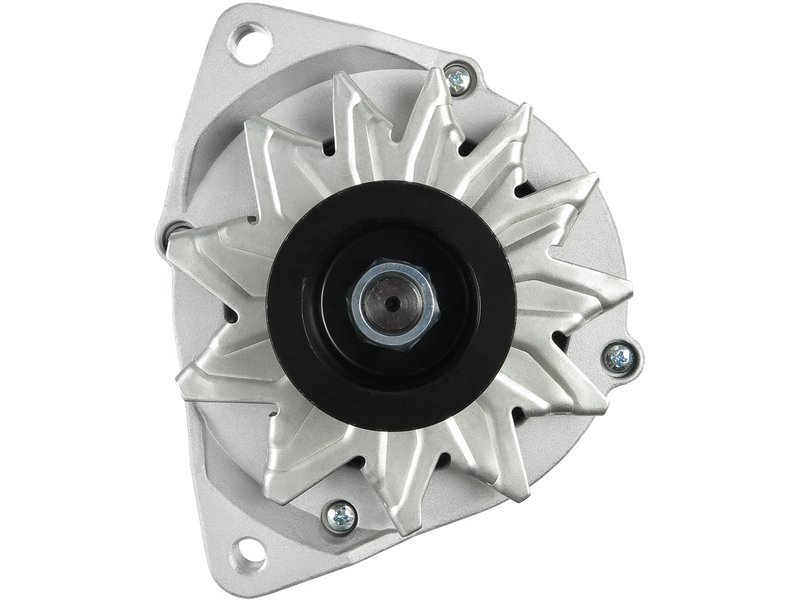

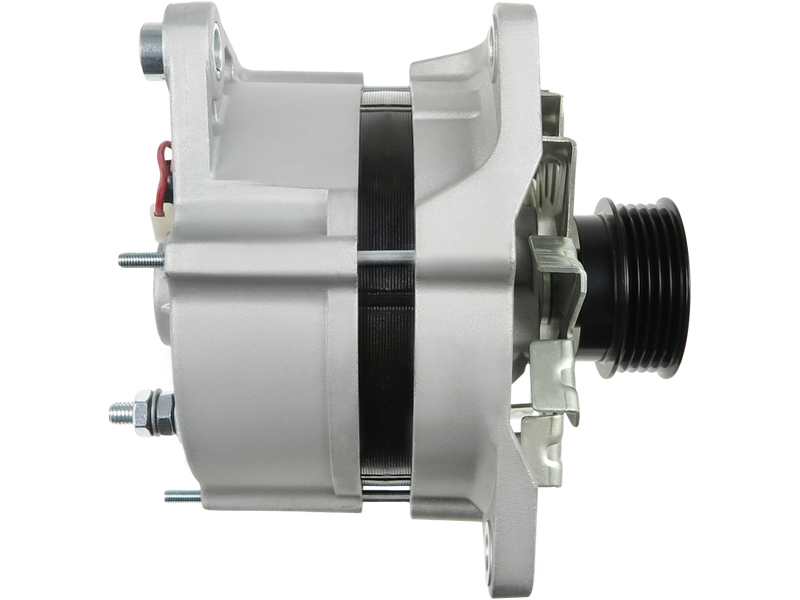

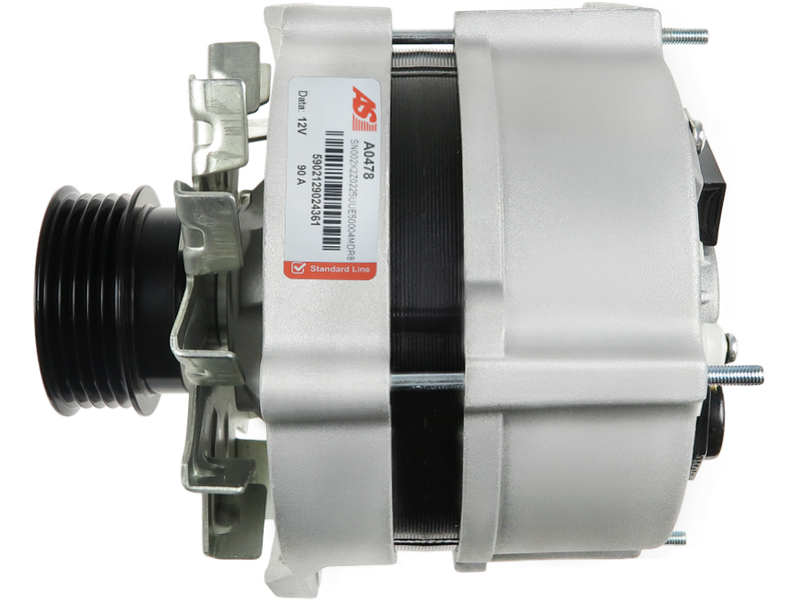

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 375.54 including GST
NZ$ 326.56 excluding GST
or four payments of $93.89
with
Learn More
each
A0478
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120469028Associated Numbers
0120469028 0120469029 0120469847 0120469848 0120469893 0120469936 0120469937 0120469940 0986035720 112780 20101561BN 20101561RC 2010165 210212 28-2956 30712RI 4490 46406404 505.020.085 6.3108.9 7615310 7638884 7674683 7674684 7702650 7702651 7774480 7774481 8EL730010-001 944390357200 ALT10501 CA712IR CAL10165 CAL10165AS CAL10165ES CAL10165GS CAL10165OS CAL10165RS DRA5720 EAA-241340 EAA-251584 LRA01704 UD12216A UNIT BOM 220-5369ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 12.5 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 12.5 mm |
| Length (L.1) | 191 mm |
| Mount Inside Length or Pad Mount C-C (C) | 83.5 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 50 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Punto 1.4 GT Turbo | [176A4.000] | 01.1993-12.1997 |
| FIAT | Punto 1.4 GT Turbo | [176B6.000] | 01.1996-12.1996 |
| FIAT | Punto 1.4 GT Turbo | [176B6.000] | 01.1996-12.1999 |
| FIAT | Tempra 1.4 | [159A2.000] | 01.1990-12.1993 |
| FIAT | Tempra 1.4 i.e. | [160A1.046] | 03.1992-08.1996 |
| FIAT | Tempra 1.6 | [159A3.000] | 01.1990-12.1993 |
| FIAT | Tempra 1.6 | [159A3.000] | 12.1990-04.1993 |
| FIAT | Tempra 1.6 i.e | [159A3.048] | 01.1993-12.1996 |
| FIAT | Tempra 1.6 i.e | [835C1.000] | 01.1993-12.1996 |
| FIAT | Tempra 1.6 i.e. | [159A3.046] | 06.1990-07.1992 |
| FIAT | Tempra 1.6 i.e. | [159A3.046] | 06.1990-08.1996 |
| FIAT | Tipo 1.4 | [160A1.000] | 01.1987-12.1989 |
| FIAT | Tipo 1.4 | [160A1.048] | 01.1987-12.1989 |
| FIAT | Tipo 1.4 i.e. | [159A2.000] | 01.1990-12.1993 |
| FIAT | Tipo 1.4 i.e. | [160A1.046] | 01.1989-12.1993 |
| FIAT | Tipo 1.4 i.e. | [836A4.000] | 01.1989-12.1993 |
| FIAT | Tipo 1.4 Selecta | [160A1.000] | 07.1987-12.1989 |
| FIAT | Tipo 1.6 i.e. | [159A3.048] | 01.1990-12.1995 |
| FIAT | Tipo 1.6 i.e. | [835C1.000] | 01.1990-12.1995 |
| LANCIA | Dedra 1.6 | [159B9.000] | 10.1994-07.1999 |
| LANCIA | Dedra 1.6 i.e. | [835A1.046] | 08.1989-03.1993 |
Reference Information
LRA01704 CAL10165AS 440859 CAL10165ES 46406404 PRAS210 7615310 0120469940 0120469029 A0478 0120469028 7674684 7674683 4490 0120469936 0120469937 DRA5720 2010165 20101561BN CAL10165 CGB-82956 7774481 BOM 46207930 7702650 UNIT ALT10501 220-5369A 7638884 7702652 7702651 7774480 ANM37940X 6.3108.9 944390357200 ALTS210 ALT10057 0986035720 505.020.085 311267 CAL10165OS 28-2956 LRA1704 CAL10165GS UD12216A CA712IR 8EL730010-001 0120469893 0120469848 CAL10165RS PRAS210B 30712RI 0120469847 505.020.085.460 210212 112780 ALTS210B 20101561RC ALT6790Video/Publications
