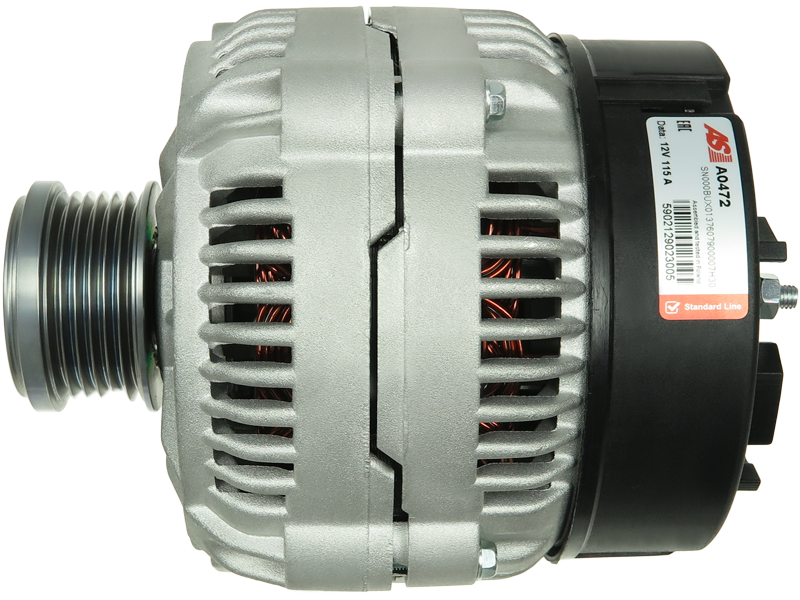

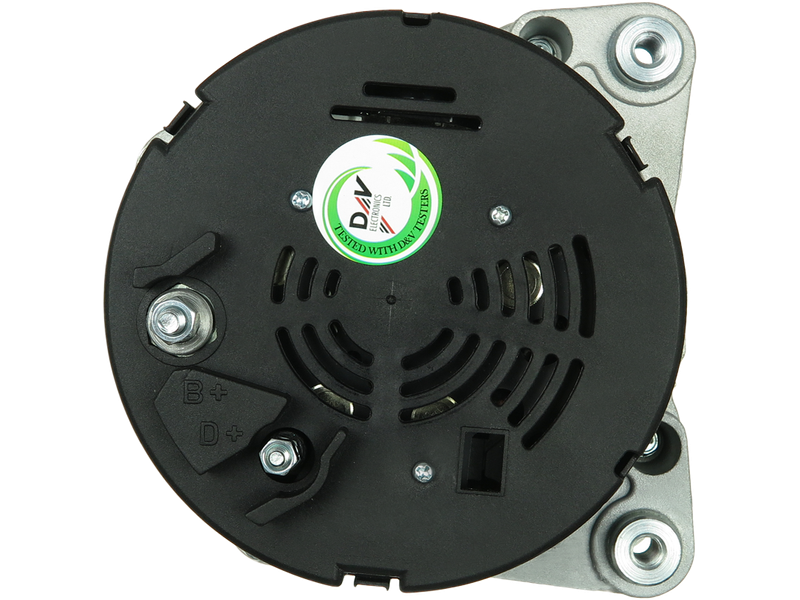

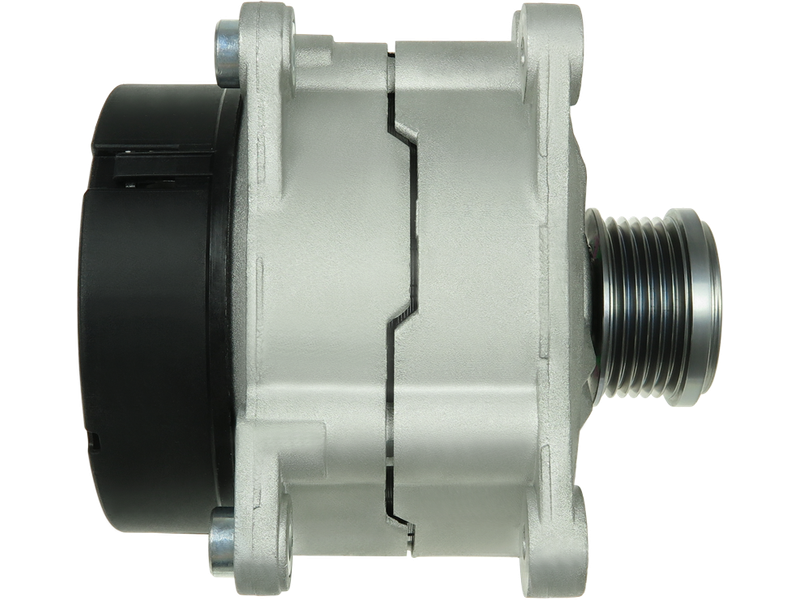

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 502.85 including GST
NZ$ 437.26 excluding GST
or four payments of $125.71
with
Learn More
each
A0472
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0123510037 0123510109 05014342AB 2010282 209067 28-3923 301478RI 301590RI 38522303 835.518.115 8EL737875-001 A0472 AEC1590 ALT10489 CA1590IR CAL10282 CAL10282AS CAL10282ES CAL10282GS CAL10282OS CAL10282RS DRA1568 LRA02014 SA865 SB011 UD12304A UNIT BOM 220-5072Specifications
| Amp | 115 A |
| Bottom Mounting Foot Width (B) | 15 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 60 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55.5 mm |
| Pulley to Mount Distance (A) | 33 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Grand Voyager 2.5 TDiC AWD | [425CLIRS/X] | 01.1995-03.2001 |
| CHRYSLER | Grand Voyager 2.5 TDiC AWD | [ENC] | 01.1995-03.2001 |
| CHRYSLER | Voyager 2.5 TD | [425CLIRS/X] | 01.1995-03.2001 |
| CHRYSLER | Voyager 2.5 TD | [ENC] | 01.1995-03.2001 |
Reference Information
ALTS317 CA1590IR ALTS317R 209067 38522303 LRA02014 A0472 STX101547 447058 835.518.115 ALT122820 57026 23014R 28-3923 DA2678 0123510109 DRA1568 CGB-83923 301590RI ALB0066 ALT10489 LRA2014 RAA12679 05014342AB 38522303F UD12304A PRAS317Video/Publications
