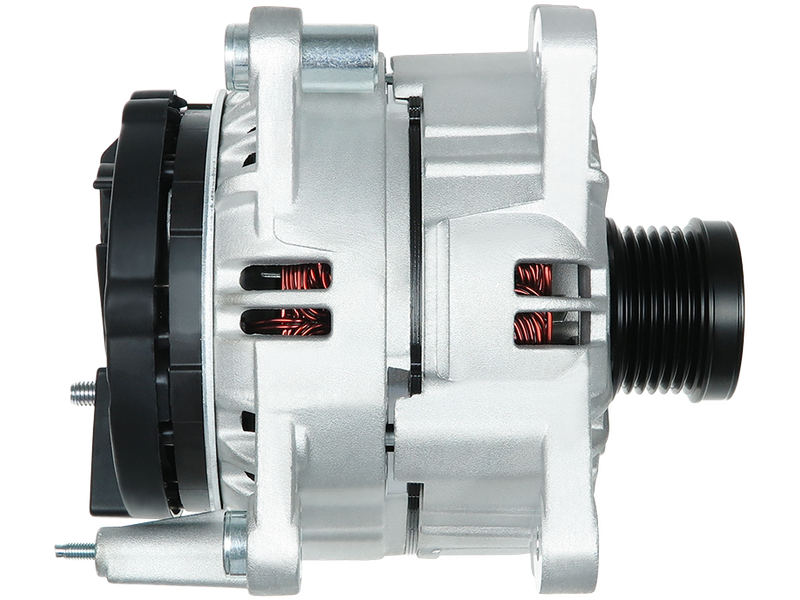

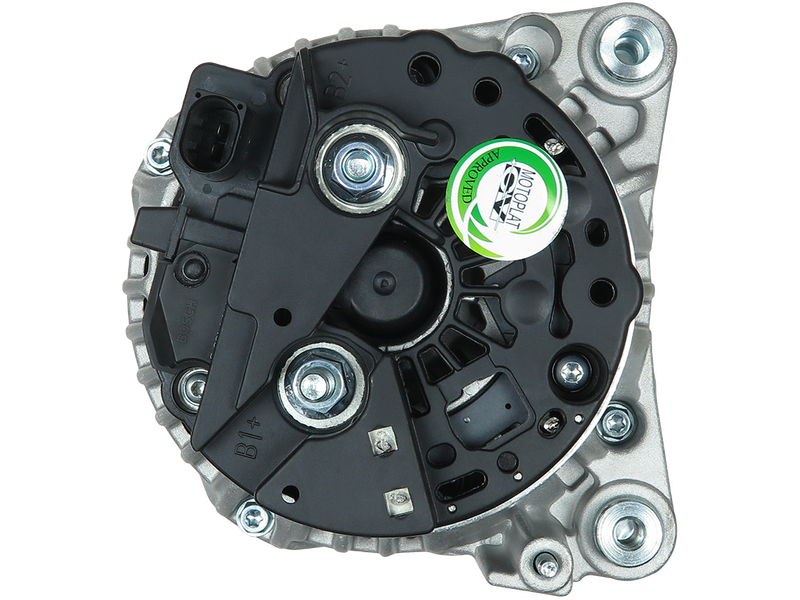

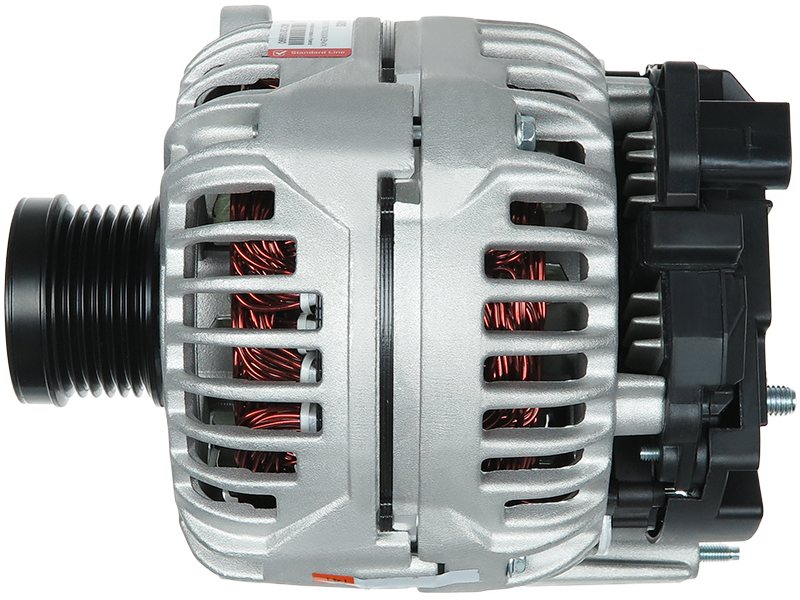

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 561.40 including GST
NZ$ 488.17 excluding GST
or four payments of $140.35
with
Learn More
each
AAM-C6052
A0468S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124525543Associated Numbers
0124525543 UD16516A UD20662A 0986083140 0124525188 0986083530 115528 CAL15577GS 4158 DRA0601 DA1711 RAA11712 57380 28-6662 CA2190IR 8EL012240181 32083140 6.8020.1 ALB5188 553840RI 553840RIV LRA03552 944390905840 MRA90584 89215539 9215539 305.598.140 20179775OE ALT2225CP 2015577.1 439724 440921 TG14C028 TG14C054 440310 2608427A 440590 03C903023S 03C903023SX 03C903024FX 03C903023T 03C903024F 03C903023TX 20147N BOS0124525543 VAL439850 VAL439720 A3309S/A0468S 651789 1986a00906 439720 Bosch 0-124-525-188 0-124-525-543 Service Europe 0-986-083-140 HC Parts CA2190 IAT A325839 PIC 220-5792 SEG Automotive 0124.525.543 Volkswagen Group Voltux V2-325839 A20147 Industry 20147 Lester 208-057 Valeo V2-20147 012068 Da Silva Exchange Cargo 1986A00906 WAI 20147NOS 2015577 Sando 305598140 PSH Herth Buss DAS EAI 930601 EDR A0468 AS-PL A0468PR A0468S A132291 Short code A148090 A159117 AEK3552 Auto Electro ALT10870 Wood AVE1269 Everkraft AVE1269E CAL15577 Airframe Remy DS012068 L83660 ATL RNL525543 RNL RNL525543OER SEG0124525543 WOOALT10870Specifications
| Amp | 140 A |
| Bottom Mounting Foot Width (B) | 13.5 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 199 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |
| Plug Code | PL_2306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A1 1.4 TFSi | [CAXA] | 01.2010- |
| AUDI | A1 1.4 TFSi | [CNVA] | 01.2010- |
| AUDI | A3 1.4 TFSi | [CAXC] | 01.2009- |
| AUDI | A3 1.4 TFSi | [CMSA] | 01.2009- |
| SEAT | Alhambra 1.4 TSi | [CAVA] | 01.2010- |
| SEAT | Alhambra 1.4 TSi | [CNWB] | 01.2010- |
| SEAT | Alhambra 1.4 TSi | [CTHA] | 01.2010- |
| SEAT | Toledo 1.4 TSi | [CAXA] | 01.2012- |
| SKODA | Rapid 1.4 TSi | [CAXA] | 01.2012- |
| SKODA | Yeti 1.4 TSi | [CAXA] | 01.2012- |
| VW | Eos 1.4 TSi | [CAXA] | 01.2011- |
| VW | Golf Plus 1.4 TSi | [CAVD] | 01.2009- |
| VW | Golf Plus 1.4 TSi | [CAXA] | 01.2009- |
| VW | Golf VI 1.4 TSi | [CAVD] | 01.2008- |
| VW | Golf VI 1.4 TSi | [CAXA] | 01.2008- |
| VW | Golf VI Plus 1.4 TSi | [CAVD] | 01.2009- |
| VW | Golf VI Plus 1.4 TSi | [CAXA] | 01.2009- |
| VW | Passat 1.4 TSi | [CAXA] | 01.2009-12.2010 |
| VW | Passat 1.4 TSi | [CAXA] | 01.2010- |
| VW | Passat 1.4 TSi | [CKMA] | 01.2010- |
| VW | Passat 1.4 TSi | [CTHD] | 01.2010- |
| VW | Passat CC 1.4 TSi | [CKMA] | 01.2011- |
| VW | Scirocco 1.4 TSi | [CAXA] | 01.2008- |
| VW | Scirocco 1.4 TSi | [CMSB] | 01.2008- |
| VW | Scirocco 1.4 TSi | [CSMB] | 01.2008- |
| VW | Sharan 1.4 Tsi | [CAVA] | 01.2010- |
| VW | Sharan 1.4 TSi | [CAVA] | 01.2010- |
| VW | Sharan 1.4 TSi | [CTHA] | 01.2010- |
| VW | Tiguan 1.4 TSi | [CAVA] | 01.2009- |
| VW | Tiguan 1.4 TSi | [CAVD] | 01.2009- |
| VW | Tiguan 1.4 TSi | [CAXA] | 01.2009- |
| VW | Tiguan 1.4 TSi | [CTHA] | 01.2009- |
| VW | Tiguan 1.4 TSi | [CTHD] | 01.2009- |
| VW | Touran 1.4 TSi | [CAVB] | 01.2010- |
| VW | Touran 1.4 TSi | [CAVC] | 01.2010- |
| VW | Touran 1.4 TSi | [CDGA] | 01.2010- |
| VW | Touran 1.4 TSi | [CTHB] | 01.2010- |
| VW | Touran 1.4 TSi | [CTHC] | 01.2010- |
Reference Information
0986083140 3C903024F 305.598.140.014 55151221 WOOALT10870 ALT1716 A0468S 3C903023SX 305.598.140 VAL439850 20179775OE L83660 ALT2225CP 03C903024F L83661 BSG 0124525543 6.8020.1 ALTL569 2617851A AC-CBA2190 MRA90584 STX102040 3C903024FX ALTL569V 0986083530 440921 LRA03552 443086 3C903023T 3C903023S 3C903023TX 553840RIV VAL439720 03C903023T 03C903023S A12BH0860AS 553840RI SEG0124525543 209226 209228 440310 G101031 305.598.140.280 AI-90180 439850 9215539 3L903023AX UD20662A 32083140 ALT175770 RNL525543OER AVA577 115528 ALB5188 DA1711 STX100563 210851 944390905840 PRAL569 439720 TG14C028 BOS0124525543 PRAL569V LRA3552 ALTL569RR RAA11712 57380 03C903024FX 20147N 2608427A ALT0423 CAL15577GS G106343 3L903023 0124525188 G100646 CA2190IR 305.598.140.461 03C903023TX 89215539 STX102125 2015577.1 5510664 442589 A12BH0860 28-6662 UD16516A 441969 DRA0601 03C903023SX 30-825-004 ALTL569B A12VA0851AS TG14C054 210927 3L903023A AZMT-49-036-1676 3L903023X RNL525543 A12VA0851A2 440590 8EL012240181 4158 PRAL569B 305.598.140.010Video/Publications
A0468SView your shopping basket or Browse other items in Alternators.
