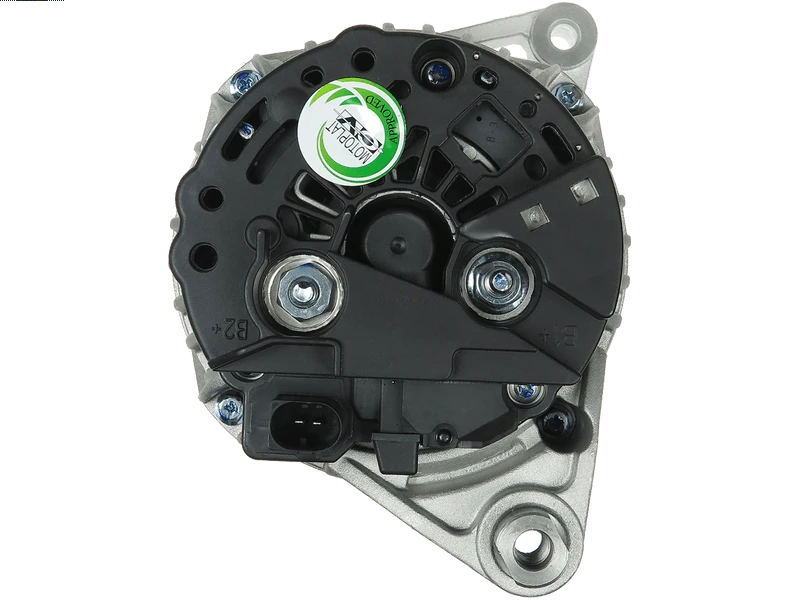

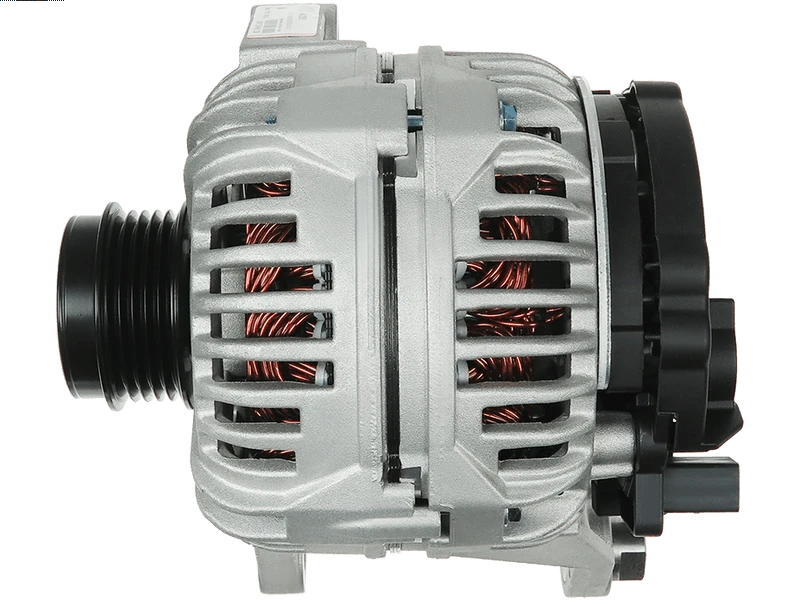

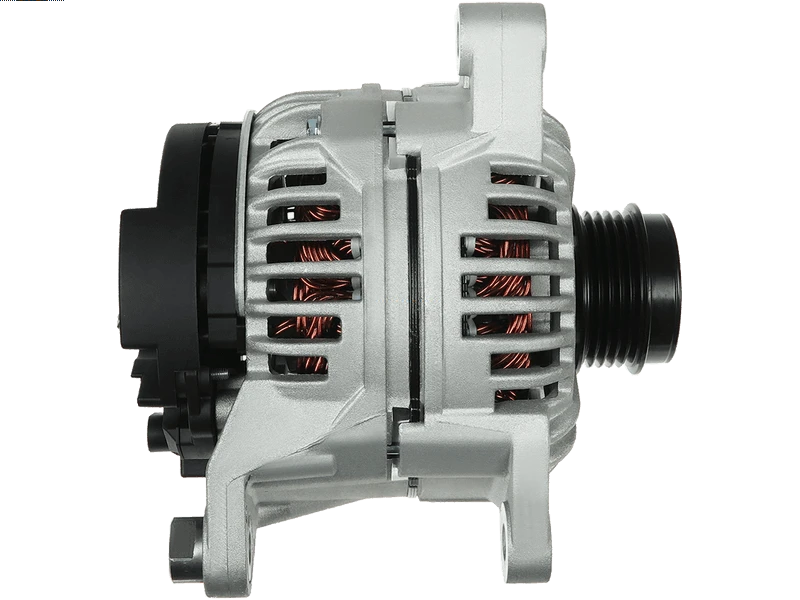

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 537.67 including GST
NZ$ 467.54 excluding GST
or four payments of $134.42
with
Learn More
each
A0351
No stock in NZ
No stock in NZ
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124515025Associated Numbers
0124515025 06B903016AD 06B903016B 06B903016E 06B903016EX 0986044320 113882 2542232 2542680 2574347 28-3900 301588RI 301588RIR 301588RIV 301759RI 32044320 437188 437420 439271 8EL738140-001 AEC1759 ALT10375 B120516094 CA1759IR DRB4320 EAA-221231 LRA01996 SG12B010 SG12B074 11212N 11212RSpecifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 193 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 35 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 1.6 | [ADP] | 01.1995-10.1996 |
| AUDI | A4 1.6 | [ADP] | 11.1994-10.1996 |
| AUDI | A4 1.6 | [AHL] | 10.1996-07.1999 |
| AUDI | A4 1.6 | [ALZ] | 07.2000-09.2001 |
| AUDI | A4 1.6 | [ALZ] | 07.2000-11.2000 |
| AUDI | A4 1.6 | [ALZ] | 11.2000-12.2004 |
| AUDI | A4 1.6 | [ANA] | 08.1998-06.2000 |
| AUDI | A4 1.6 | [ANA] | 08.1998-07.2000 |
| AUDI | A4 1.6 | [ARM] | 08.1998-07.1999 |
| AUDI | A4 1.8 Turbo | [AVJ] | 09.2001-07.2002 |
| AUDI | A4 1.8 Turbo | [AVJ] | 11.2000-07.2002 |
| AUDI | A4 1.9 TDi | [AVB] | 09.2001-12.2004 |
| AUDI | A4 1.9 TDi | [AVF] | 04.2001-12.2004 |
| AUDI | A4 1.9 TDi | [AVF] | 09.2001-12.2004 |
| AUDI | A4 1.9 TDi | [AWX] | 09.2001-12.2004 |
| AUDI | A4 1.9 TDi | [AWX] | 11.2000-12.2004 |
| AUDI | A4 2.0 | [ALT] | 09.2001-12.2004 |
| AUDI | A4 2.0 | [ALT] | 11.2000-12.2004 |
| AUDI | A4 2.0 FSi | [AWA] | 07.2002-12.2004 |
| AUDI | A4 2.4 | [BDV] | 09.2001-12.2004 |
| AUDI | A4 2.5 TDi | [AYM] | 08.2001-07.2002 |
| AUDI | A4 2.5 TDi | [AYM] | 09.2001-07.2002 |
| AUDI | A4 3.0 | [ASN] | 09.2001-12.2004 |
| AUDI | A4 3.0 | [ASN] | 11.2000-12.2004 |
| AUDI | A4 3.0 | [BBJ] | 04.2001-12.2004 |
| AUDI | A6 1.8 | [AEB] | 12.1997-01.2005 |
| AUDI | A6 1.8 | [ANB] | 12.1997-01.2005 |
| AUDI | A6 1.8 | [APU] | 12.1997-01.2005 |
| AUDI | A6 1.8 | [ARK] | 12.1997-01.2005 |
| AUDI | A6 1.8 | [AWT] | 12.1997-01.2005 |
| AUDI | A6 1.8 Turbo | [AEB] | 01.1997-01.2005 |
| AUDI | A6 1.8 Turbo | [ANB] | 01.1999-01.2005 |
| AUDI | A6 1.8 Turbo | [APU] | 11.1998-01.2005 |
| AUDI | A6 1.8 Turbo | [ARK] | 01.1999-01.2005 |
| AUDI | A6 1.8 Turbo | [AWT] | 05.2000-01.2005 |
| AUDI | A6 4.2 Quattro | [ARS] | 11.1998-01.2005 |
| AUDI | A6 4.2 Quattro | [ASG] | 06.2000-01.2005 |
| AUDI | A6 4.2 Quattro | [AWN] | 06.2000-01.2005 |
| AUDI | A8 3.0 | [BBJ] | 07.2003- |
| SKODA | Superb 2.0 | [AZM] | 01.2001-12.2008 |
Reference Information
441906 PRAF316 PRAS177 6B903016BX ALTS177V 038903018FX 2574347 32044320 AEC1759 28-3900 205.520.120.004 439271 11212R SG12B010 205.520.120.608 11212N 0124515025 A12VA0502A2 2015248.1 ALT172480 6B903016EX 06B903016AD 2542232 205.520.120.018 LRA1996 6B903016B B120516094 8EL738140-001 0986044320 6B903016AD DRB4320 CGB-83900 ANM46540X 06B903016E 216037 A12VA0502 ALTS177 6B903016E STX102219 ALT10375 2542680 301588RI STX100514 301588RIV 205.520.120.500 205.520.120.501 301588RIR STX100514R 113882 SG12B074 301759RI 06B903016EX 210524 CAL15248GS 06B903016B 06B903018EX 205.520.120.505 LRA01996 L06B903016E 2542232A PRAS177V 3948717 205.520.120.281 CA1759IR ALT00452 ALT00896 CGB-44320 20179842OE STX100044 STX100044R 437188 437420 ALTF316 06B903016BXVideo/Publications
A0351View your shopping basket or Browse other items in Alternators.
