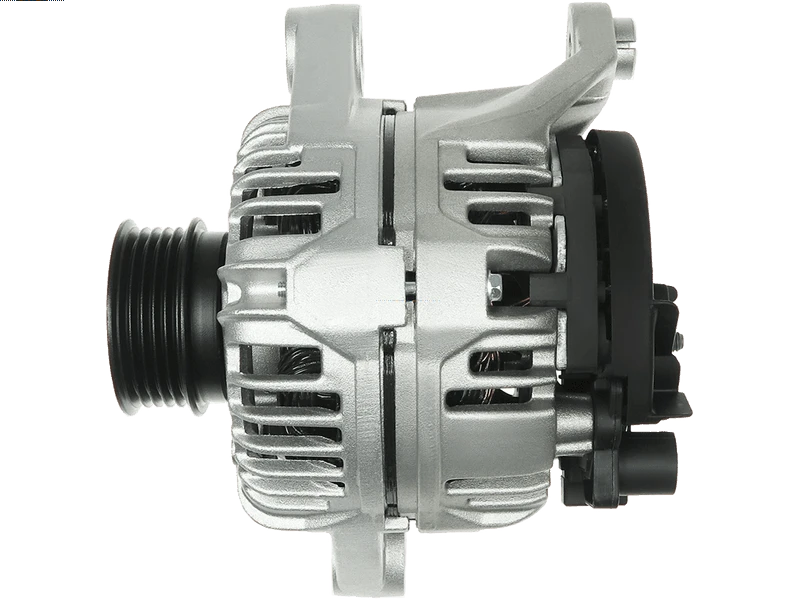

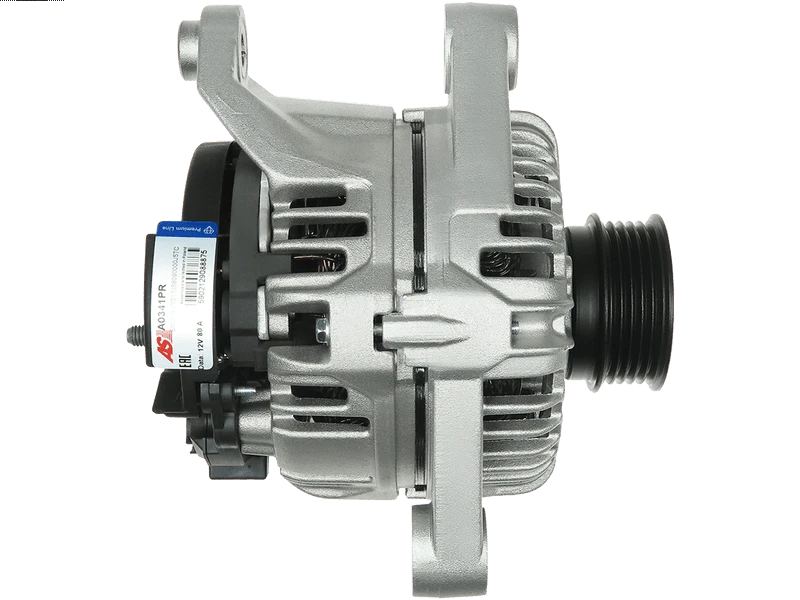

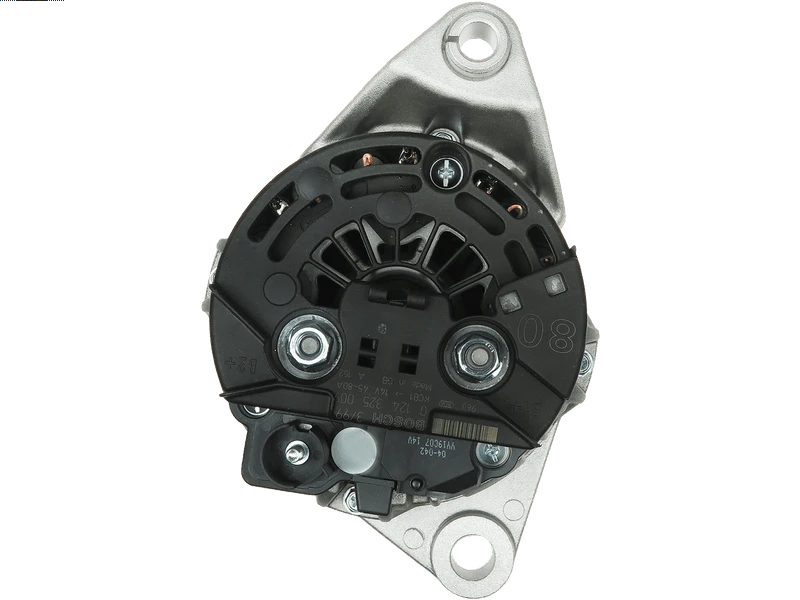

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 318.77 including GST
NZ$ 277.19 excluding GST
or four payments of $79.69
with
Learn More
each
A0341PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0124325009 0124325058 0124415011 0986042000 0986042010 210201 28-3768 301471RI 301471RIB 301485RIB 437673 4500 46532667 505.527.080 56775 89213466 8EL012428-641 8EL737713-001 944390420000 944390420100 AEC1485 ALB1485 CA1485IR DB3120 DRB2010 LRA01898 MRA42010Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | 12.5 mm |
| Diameter (D.2) | 16 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 70 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 59 mm |
| Pulley to Mount Distance (A) | 60 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Brava 1.6 16V | [182A4.000] | 02.1996-10.2001 |
| FIAT | Bravo 1.6 16V | [182A4.000] | 03.1996-10.2001 |
| FIAT | Bravo 1.6 16V | [182A6.000] | 10.1995-10.2001 |
| FIAT | Doblo 1.6 16V | [182B6.000] | 10.2001- |
| FIAT | Doblo 1.6 16V Cargo | [182B6.000] | 10.2001- |
| FIAT | Doblo 1.6 Natural Power | [182B6.000] | 09.2002- |
| FIAT | Doblo 1.6 Natural Power Cargo | [182B6.000] | 09.2002- |
| FIAT | Marea 1.6 | [182B6.000] | 09.2000-08.2002 |
| FIAT | Marea 1.6 100 16V | [182A4.000] | 09.1996-05.2002 |
| FIAT | Marea 1.6 100 16V Bipower | [185A3.000] | 04.1999-05.2002 |
| FIAT | Marea 1.6 100 16V Bipower | [186A4.000] | 04.1999-05.2002 |
| FIAT | Multipla 1.6 100 16V | [182A4.000] | 04.1999-06.2010 |
| FIAT | Multipla 1.6 16V | [182B6.000] | 04.2002-06.2010 |
| FIAT | Multipla 1.6 16V Bipower | [182B6.000] | 10.2001-06.2010 |
| FIAT | Multipla 1.6 16V Bipower | [186A4.000] | 04.1999-06.2010 |
| FIAT | Multipla 1.6 16V Blupower | [186A3.000] | 04.1999-06.2010 |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996-10.2002 |
| FIAT | Palio 1.6 16V | [178B3.000] | 06.1996-02.2001 |
| FIAT | Palio 1.6 16V | [182B6.000] | 02.2001- |
| FIAT | Siena 1.6 16V | [178B3.000] | 09.1998-12.2009 |
| FIAT | Stilo 1.6 16V | [182B6.000] | 01.2003-08.2008 |
| FIAT | Stilo 1.6 16V | [182B6.000] | 10.2001-11.2006 |
| FIAT | Strada 1.6 Trekking | 11.2005- | |
| LANCIA | Lybra 1.6 | [182B6.000] | 10.2000-10.2005 |
| LANCIA | Lybra 1.6 16V | [182A4.000] | 07.1999-10.2005 |
| LANCIA | Lybra SW 1.6 | [182B6.000] | 10.2000-10.2005 |
| LANCIA | Lybra SW 1.6 16V | [182A4.000] | 07.1999-10.2005 |
Reference Information
46532667 CAL10107GS 46532668 A12BH0080A2 8EL012428-641 AEC1485 ALB1485 MRA42010 ALT1957 56775 ALT1235 ALT6600 CAL10107OS STX100296 20101701RE STX100174 0124415011 DRB2010 CA1485IR STX100291 441618 STX100291R LRA01898 2010107.1 71723381 ALT6600RS 46841963 310848 89213466 ALTS778 CAL10107AS 301471RI STX100904 9.4439E+11 112190 2010107 8EL737713-001 28-3768 301471RIB 301485RIB 505.527.080 2010107.4 0986042010 4500 DB3120 210201 71780119 0124325058 STX100174R 437673 441632 ALT1864 46813063 CA1471IR LRA1898 46813061 STX100367 20101701OE ALT6600A 0986042000 ALTL135 STX100367R 0124325009 210254 20101701BN 46832123Video/Publications
