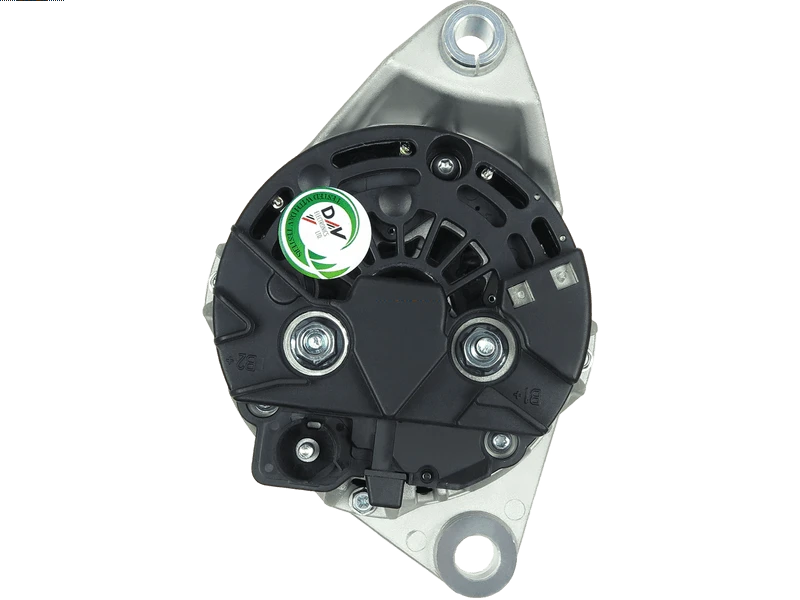

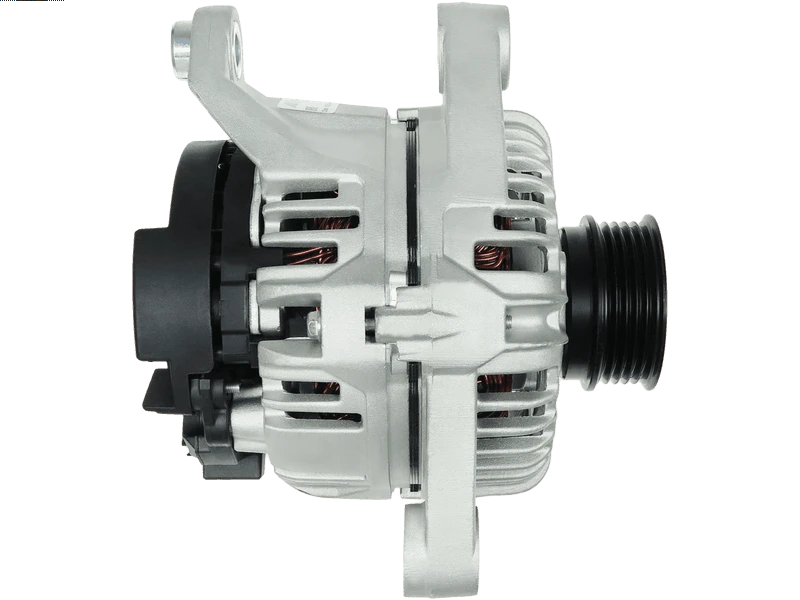

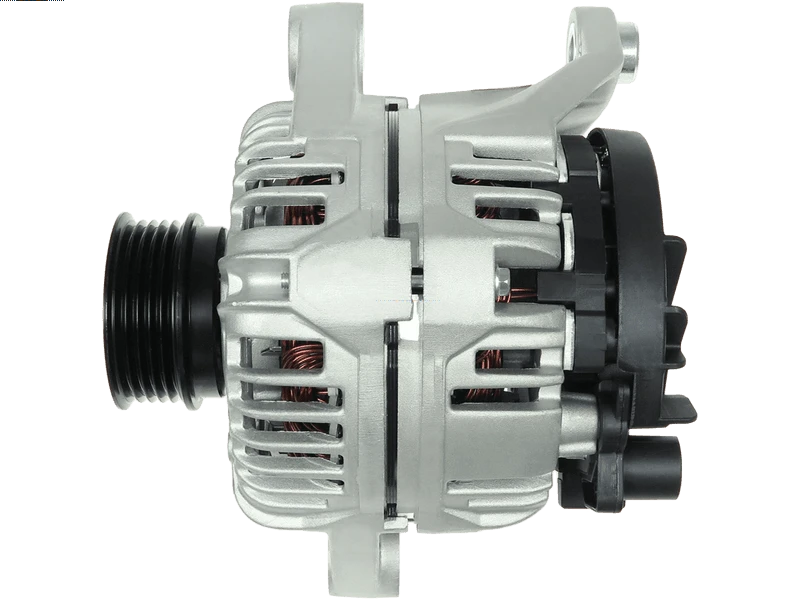

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 407.26 including GST
NZ$ 354.14 excluding GST
or four payments of $101.82
with
Learn More
each
A0341
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0124325009 0124325058 0124415011 0986042000 0986042010 210201 28-3768 301471RI 301471RIB 301485RIB 437673 4500 46532667 505.527.080 56775 89213466 8EL012428-641 8EL737713-001 944390420000 944390420100 AEC1485 ALB1485 CA1485IR DB3120 DRB2010 LRA01898 MRA42010 SA895 UD10090ASpecifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 16 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 71 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 60 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Brava 1.6 16V | [182A4.000] | 02.1996-10.2001 |
| FIAT | Bravo 1.6 16V | [182A4.000] | 03.1996-10.2001 |
| FIAT | Bravo 1.6 16V | [182A6.000] | 10.1995-10.2001 |
| FIAT | Doblo 1.6 16V | [182B6.000] | 10.2001- |
| FIAT | Doblo 1.6 16V Cargo | [182B6.000] | 10.2001- |
| FIAT | Doblo 1.6 Natural Power | [182B6.000] | 09.2002- |
| FIAT | Doblo 1.6 Natural Power Cargo | [182B6.000] | 09.2002- |
| FIAT | Marea 1.6 | [182B6.000] | 09.2000-08.2002 |
| FIAT | Marea 1.6 100 16V | [182A4.000] | 09.1996-05.2002 |
| FIAT | Marea 1.6 100 16V Bipower | [185A3.000] | 04.1999-05.2002 |
| FIAT | Marea 1.6 100 16V Bipower | [186A4.000] | 04.1999-05.2002 |
| FIAT | Multipla 1.6 100 16V | [182A4.000] | 04.1999-06.2010 |
| FIAT | Multipla 1.6 16V | [182B6.000] | 04.2002-06.2010 |
| FIAT | Multipla 1.6 16V Bipower | [182B6.000] | 10.2001-06.2010 |
| FIAT | Multipla 1.6 16V Bipower | [186A4.000] | 04.1999-06.2010 |
| FIAT | Multipla 1.6 16V Blupower | [186A3.000] | 04.1999-06.2010 |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996-10.2002 |
| FIAT | Palio 1.6 16V | [178B3.000] | 06.1996-02.2001 |
| FIAT | Palio 1.6 16V | [182B6.000] | 02.2001- |
| FIAT | Siena 1.6 16V | [178B3.000] | 09.1998-12.2009 |
| FIAT | Stilo 1.6 16V | [182B6.000] | 01.2003-08.2008 |
| FIAT | Stilo 1.6 16V | [182B6.000] | 10.2001-11.2006 |
| FIAT | Strada 1.6 Trekking | 11.2005- | |
| LANCIA | Lybra 1.6 | [182B6.000] | 10.2000-10.2005 |
| LANCIA | Lybra 1.6 16V | [182A4.000] | 07.1999-10.2005 |
| LANCIA | Lybra SW 1.6 | [182B6.000] | 10.2000-10.2005 |
| LANCIA | Lybra SW 1.6 16V | [182A4.000] | 07.1999-10.2005 |
Reference Information
944390420100 46532667 A12BH0080A2 ANM44230X CAL10107GS 46532668 8EL012428-641 AEC1485 ALB1485 UD10090A MRA42010 ALT1957 56775 ALT1235 ALT6600 CAL10107OS STX100296 20101701RE STX100174 0124415011 CA1485IR DRB2010 STX100291 441618 STX100291R 2010107.0 LRA01898 2010107.1 A0341 71723381 ALT6600RS 46841963 310848 89213466 ALTS778 CAL10107AS 301471RI STX100904 112190 8EL737713-001 28-3768 301471RIB 301485RIB 505.527.080 2010107.4 0986042010 210201 4500 DB3120 71780119 0124325058 437673 STX100174R 944390420000 441632 ALT1864 46813063 CA1471IR LRA1898 46813061 STX100367 SA895 20101701OE ALT6600A 0986042000 ALTL135 STX100367R 0124325009 210254 20101701BN 46832123Video/Publications
