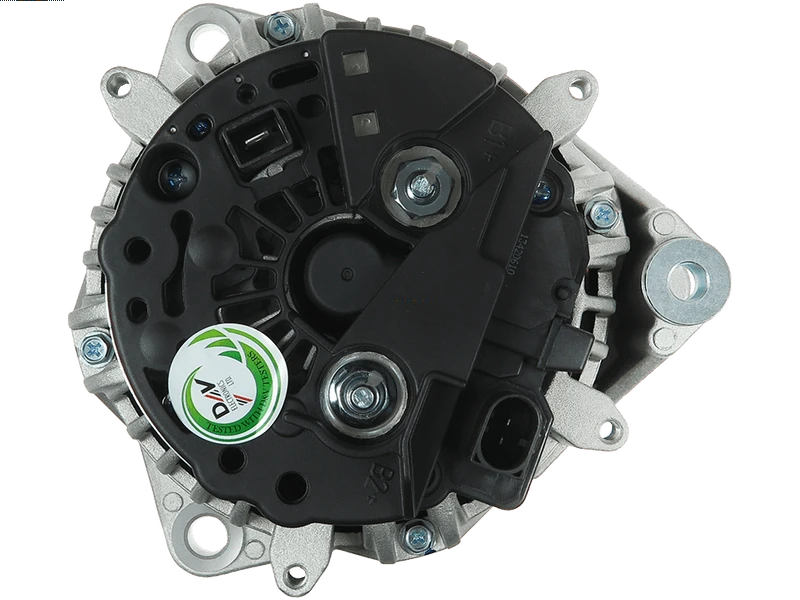

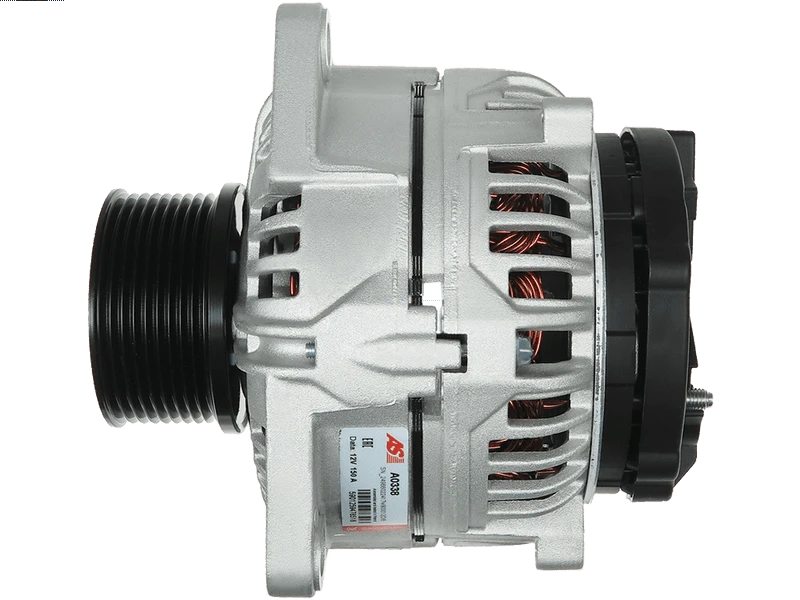

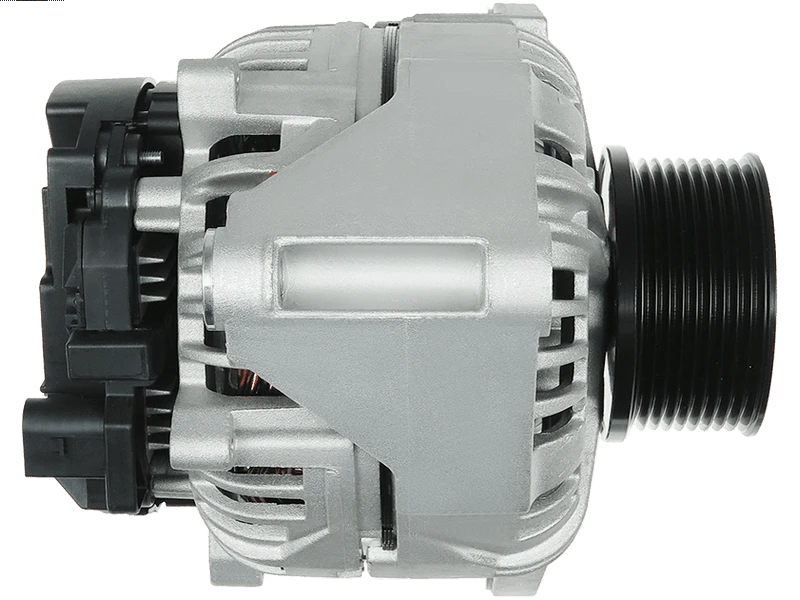

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 450.97 including GST
NZ$ 392.15 excluding GST
or four payments of $112.74
with
Learn More
each
A0338
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
00903320 0124615030 0124615069 0131542602 114834 11561N 160-55117 20101733 2010337 220-30262 28-6600 553345RI 553345RIB 555.568.150 89215406 A0131542602 ALB3030 ALT10600 BOS0124615069 CAL10337 CAL10337AS CAL10337ES CAL10337GS CAL10337OS CAL10337RS DA2231 DRA1121 EAA-212206 LRA03490 UD10833ASpecifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 80 mm |
| Diameter (D.1) | 12.5 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 12.5 mm |
| Length (L.1) | 200 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 9 qty |
| Pulley Outside Diameter (O.D.1) | 77 mm |
| Pulley to Mount Distance (A) | 110 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ TRUCKS & BUSES | 1023 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1023 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1023 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1023 A 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1023 A 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1023 A 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1023 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1023 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1023 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1024 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1024 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1024 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1024 A 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1024 A 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1024 A 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1024 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1024 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1024 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1223 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1223 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1223 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1223 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1223 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1223 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1224 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1224 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1224 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1224 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1224 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1224 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1228 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1228 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1228 L 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1228 L 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1323 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 A 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 A 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 A 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 LS 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 LS 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1323 LS 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 A 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 A 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 A 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 LS 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 LS 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1324 LS 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1328 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1328 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1328 AF 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1328 AF 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1328 F 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1328 F 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1328 L 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1328 L 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1328 LS 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1523 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1523 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1523 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1523 A 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1523 A 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1523 A 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1523 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1523 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1523 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1524 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1524 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1524 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1524 A 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1524 A 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1524 A 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1524 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1524 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1524 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 1528 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 AF 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 AF 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 AK 6.4 | [OM906.911] | 01.1998-09.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 AK 6.4 | [OM906.916] | 01.1998-09.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 F 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 F 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 K 6.4 | [OM906.911] | 01.1998-09.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 K 6.4 | [OM906.916] | 01.1998-09.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 L 6.4 | [OM906.911] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 1528 L 6.4 | [OM906.916] | 01.1998-10.2004 |
| MERCEDES BENZ TRUCKS & BUSES | 823 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 823 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 823 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 823 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 823 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 823 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 824 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 824 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 824 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 923 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 923 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 923 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 923 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 923 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 923 L 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 924 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 924 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 924 6.4 | [OM906.915] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 924 L 6.4 | [OM902.916] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 924 L 6.4 | [OM906.910] | 10.2004- |
| MERCEDES BENZ TRUCKS & BUSES | 924 L 6.4 | [OM906.915] | 10.2004- |
Reference Information
EAA-212206 LRA3490 A0338 CAL10337GS 160-55117 725262 A0131542602 89215406 CAL10337ES 441963 CAL10337AS 553345RI BOS0124615069 UD10833A 0124615069 DRA1121 RNL615030 A12BH0279 A12BH0279A2 555.568.150 11561N ALT123370 CAL10337OS 20101733 PRAL434 131542602 ANM33341X 220-30262 ALT10600 114834 ALB3030 553345RIB DA2231 LRA03490 2010337 903320 CGB-15030 CAL10337 0124615030 ALTL434RR CAL10337RS ALTL434 28-6600 5510548 ALT1380Video/Publications
