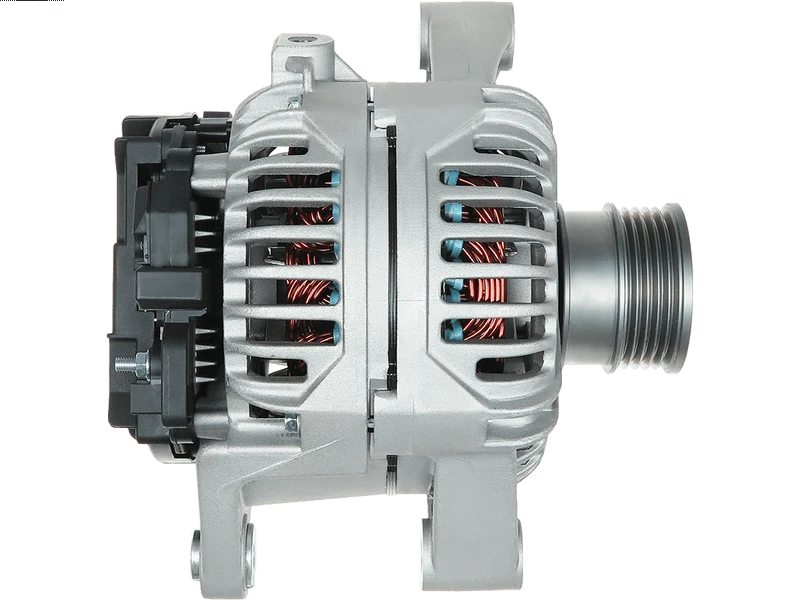

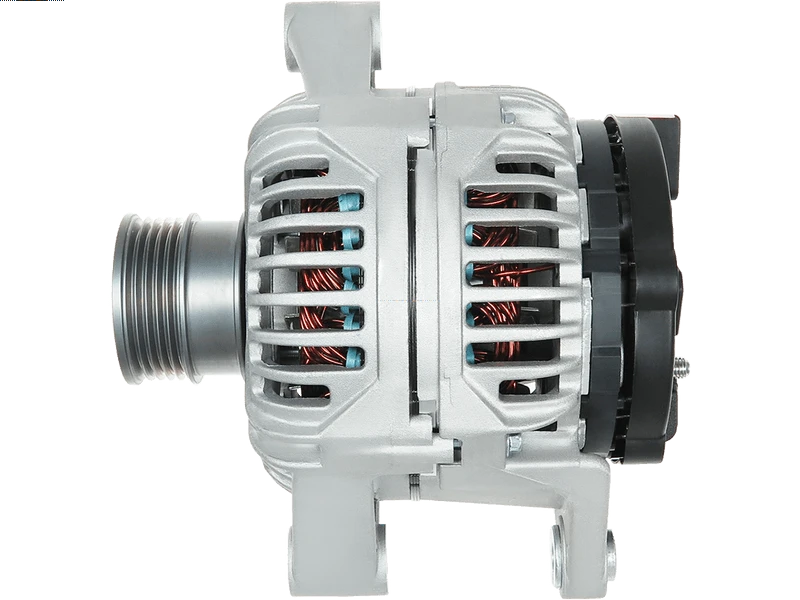

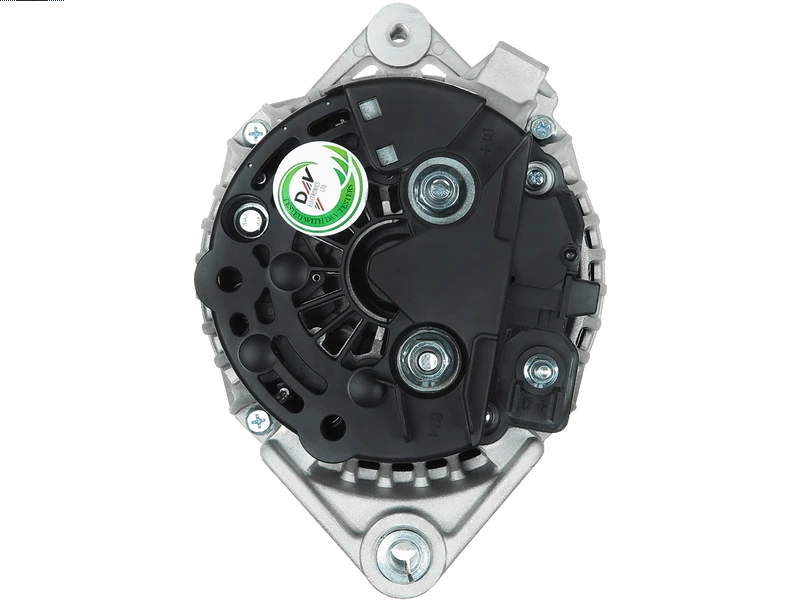

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 521.24 including GST
NZ$ 453.25 excluding GST
or four payments of $130.31
with
Learn More
each
A0336
1
Associated Numbers
0124425015 0986048240 11.1909 13156054 20101644BN 20101644OE 2010446 23295R 23847R 28-4963 301909RI 32046150 57065 89213116 9048240 93180419 AEK2847 ALT10662 CA1909IR CAL10446AS CAL10446GS DRB8240 LRA02847 SB225 UD10979A UNIT BOM 220-5575 AS-PL AUTOELECTRO BOSCHList BOSCH CASCO DELCO EAI ELSTOCK FRIESEN HC PARTS HERTH+BUSS KUHNER LAUBER LUCAS OPEL POWERMAX REAL SANDO SOVEREIGN WAI / TRANSPO WOODAUTO Bosch show ruil 115846 Cargo 12046150 EuroTec 12048240 Opel 135589120 PSH 284963 Elstock 57600 6204246 93189248 93189268 9512182 CA1909 HCA1909IR Lucas R1530084 65-6209-4Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 34 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 69 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra H 2.0 Turbo | [Z20LEH] | 03.2005- |
| OPEL | Astra H 2.0 Turbo | [Z20LEL] | 03.2004- |
| OPEL | Astra H 2.0 Turbo | [Z20LEL] | 08.2004- |
| OPEL | Astra H 2.0 Turbo | [Z20LEL] | 09.2005- |
| OPEL | Astra H 2.0 Turbo | [Z20LER] | 09.2004- |
| OPEL | Astra H 2.0 Turbo | [Z20LER] | 09.2005- |
| OPEL | Astra H 2.0 Turbo GTC | [Z20LEH] | 08.2005- |
| OPEL | Astra H 2.0 Turbo GTC | [Z20LEL] | 03.2005- |
| OPEL | Astra H 2.0 Turbo GTC | [Z20LER] | 03.2005- |
| OPEL | Zafira B 2.0 | [Z20LEH] | 01.2006- |
| OPEL | Zafira B 2.0 | [Z20LER] | 07.2005- |
| VAUXHALL | Astra 2.0 16V Turbo | [Z20LER] | 01.2006-11.2010 |
| VAUXHALL | Astra 2.0 i | [Z20LEL] | 02.2006-11.2010 |
| VAUXHALL | Astra MK V 2.0 Turbo | [Z20LEH] | 03.2005- |
| VAUXHALL | Astra MK V 2.0 Turbo | [Z20LEL] | 02.2005-11.2010 |
| VAUXHALL | Astra MK V 2.0 Turbo | [Z20LEL] | 03.2004- |
| VAUXHALL | Astra MK V 2.0 Turbo | [Z20LEL] | 08.2004-10.2010 |
| VAUXHALL | Astra MK V 2.0 Turbo | [Z20LER] | 03.2004- |
| VAUXHALL | Astra MK V 2.0 Turbo | [Z20LER] | 08.2004-10.2010 |
| VAUXHALL | Astra MK V 2.0 VXRacing Edition | [Z20LEH] | 02.2009-11.2010 |
| VAUXHALL | Zafira 2.0 | [Z20LER] | 06.2002-06.2005 |
| VAUXHALL | Zafira Mk II 2.0 | [Z20LEH] | 01.2006- |
| VAUXHALL | Zafira Mk II 2.0 | [Z20LER] | 07.2005- |
Reference Information
23847R 13156054 57065 ALT10238 32046150 2010446 93189268 CAL10446GS AEK2847 301909RI ALT124460 BOM 89213116 UNIT CGB-84963 93180419 ALTL556RR 32048240 ALT10662 20101644BN ALT124460A 28-4963 0986048240 LRA2847 20101644OE ALTL556 DRB8240 23295R CA1909IR 93199248 442574 93189248 9048240 ANM40460X 6204195 220-5575 CAL10446AS PRAL556 LRA02847 6204246 STX100519 115846 9512182 11.1909 0124425015 311115 A12BH1254 SB225 UD10979A R1530084Video/Publications
