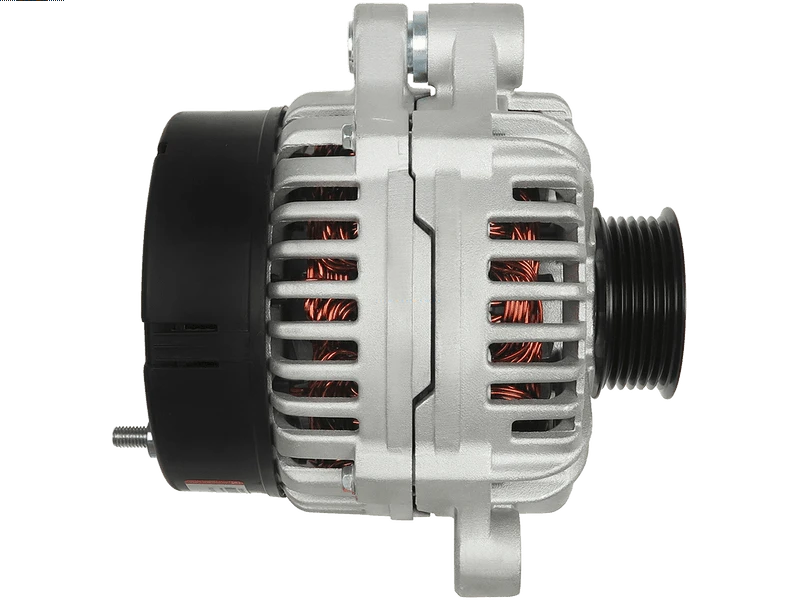

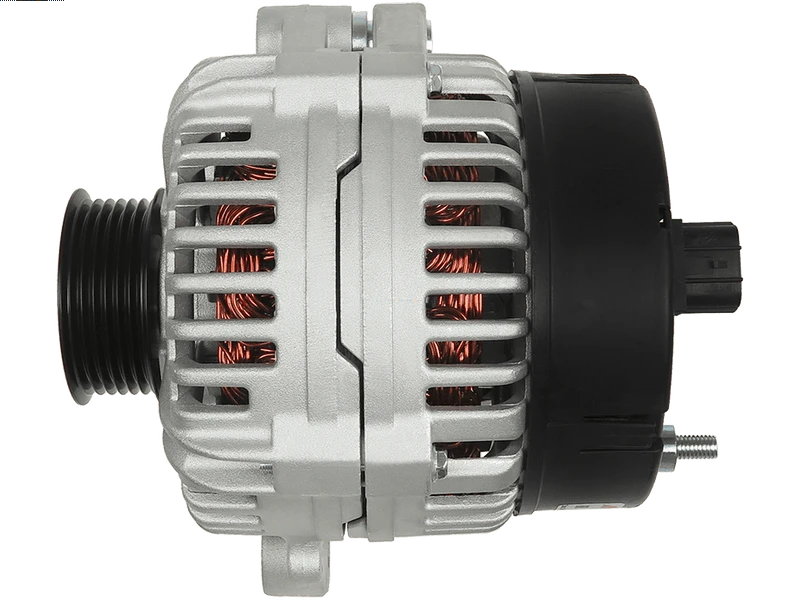

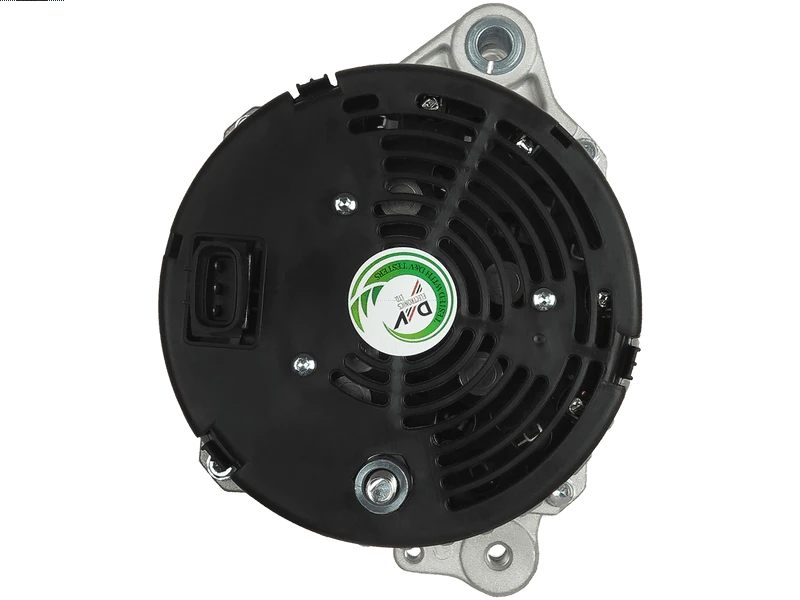

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 581.95 including GST
NZ$ 506.04 excluding GST
or four payments of $145.49
with
Learn More
each
A0320
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0123525500 0123525503 113923 12590N 20101106BN 2010601 301633RI 301633RIM 48-4557 500331736 504065776 504286394 553186RI 553186RIM 8600498 860706 860706GB 860706GBA 860710GB 860710GBA 861284 861285 861286 99477271 A004TA0591 A4TA0591 ALT10446 CA2040IR CAL10601AS CAL10604AS DRA0815N DRA4134 EAA-211444 EAA-222018 LRA02517Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 58 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | M8x1.25 mm |
| Length (L.1) | 198 mm |
| OEM Product | No |
| Plug Code | PL_3314 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | 180 E 24 7.8 | [F2BE0681D] | 09.1999-11.2004 |
| IVECO | 180 T 27 7.8 | [F2BE0681F] | 06.2005- |
| IVECO | 190 E 24 7.8 | [F2BE0681D] | 09.1998- |
| IVECO | 190 E 27 7.8 | [F2BE0681C] | 09.1998- |
| IVECO | 190 E 27 7.8 | [F2BE0681F] | 09.1998- |
| IVECO | 190 E 31 7.8 | [F2BE0681B] | 09.1998- |
| IVECO | 190 E 31 7.8 | [F2BE0681B] | 09.1999-11.2004 |
| IVECO | 190 E 35 7.8 | [F2BE0681A] | 09.1998- |
| IVECO | 190 E 35 7.8 | [F2BE0681A] | 09.1999-11.2004 |
| IVECO | 190 S 27 7.8 | [F2BE0681C] | 05.2005- |
| IVECO | 190 S 27 7.8 | [F2BE0681F] | 04.2004- |
| IVECO | 190 S 30 7.8 | [F2BE0681E] | 04.2004- |
| IVECO | 190 S 31 7.8 | [F2BE0681B] | 06.2003- |
| IVECO | 190 S 31 7.8 | [F2BE0681C] | 06.2003- |
| IVECO | 190 S 31 7.8 | [F2BE0681E] | 06.2003- |
| IVECO | 190 S 31 7.8 | [F2BE3681C] | 04.2004- |
| IVECO | 190 S 33 7.8 | [F2BE3681B] | 05.2007- |
| IVECO | 190 S 33 7.8 | [F2BE3681B] | 12.2006- |
| IVECO | 190 S 35 7.8 | [F2BE0681A] | 04.2004- |
| IVECO | 190 S 35 7.8 | [F2BE0681A] | 06.2003- |
| IVECO | 190 S 36 7.8 | [F2BE3681A] | 05.2007- |
| IVECO | 190 T 27 7.8 | [F2BE0681F] | 06.2005- |
| IVECO | 190 T 31 7.8 | [F2BE0681B] | 06.2005- |
| IVECO | 190 T 31 7.8 | [F2BE0681B] | 10.2004- |
| IVECO | 190 T 33 7.8 | [F2BE3681B] | 03.2006- |
| IVECO | 190 T 35 7.8 | [F2BE0681A] | 06.2005- |
| IVECO | 190 T 35 7.8 | [F2BE0681A] | 10.2004- |
| IVECO | 260 E 24 7.8 | [F2BE0681D] | 11.1999- |
| IVECO | 260 E 27 7.8 | [F2BE0681B] | 11.1999-11.2004 |
| IVECO | 260 E 27 7.8 | [F2BE0681C] | 11.1999- |
| IVECO | 260 E 27 7.8 | [F2BE0681F] | 11.1999- |
| IVECO | 260 E 31 7.8 | [F2BE0681B] | 01.2001-11.2004 |
| IVECO | 260 E 31 7.8 | [F2BE0681B] | 09.1999-11.2004 |
| IVECO | 260 E 31 7.8 | [F2BE0681B] | 11.1999- |
| IVECO | 260 E 35 7.8 | [F2BE0681A] | 01.2000-11.2004 |
| IVECO | 260 E 35 7.8 | [F2BE0681A] | 09.1999-11.2004 |
| IVECO | 260 E 35 7.8 | [F2BE0681A] | 11.1999- |
| IVECO | 260 S 27 7.8 | [F2BE0681F] | 04.2004- |
| IVECO | 260 S 30 7.8 | [F2BE0681E] | 04.2004- |
| IVECO | 260 S 30 7.8 | [F2BE0681E] | 10.2005- |
| IVECO | 260 S 31 7.8 | [F2BE0681B] | 06.2003- |
| IVECO | 260 S 31 7.8 | [F2BE3681C] | 04.2004- |
| IVECO | 260 S 33 7.8 | [F2BE3681B] | 06.2007- |
| IVECO | 260 S 33 7.8 | [F2BE3681B] | 12.2006- |
| IVECO | 260 S 35 7.8 | [F2BE0681A] | 04.2004- |
| IVECO | 260 S 35 7.8 | [F2BE0681A] | 06.2003- |
| IVECO | 260 S 36 7.8 | [F2BE3681A] | 07.2007- |
| IVECO | 260 T 31 7.8 | [F2BE0681B] | 06.2005- |
| IVECO | 260 T 31 7.8 | [F2BE0681B] | 10.2004- |
| IVECO | 260 T 33 7.8 | [F2BE3681B] | 03.2006- |
| IVECO | 260 T 33 7.8 | [F2BE3681B] | 07.2007- |
| IVECO | 260 T 35 7.8 | [F2BE0681A] | 06.2005- |
| IVECO | 260 T 35 7.8 | [F2BE0681A] | 10.2004- |
| IVECO | 260 T 36 7.8 | [F2BE3681A] | 07.2007- |
| IVECO | 260 T 36 7.8 | [F2BE3681A] | 10.2004- |
| IVECO | 340 E 35 7.8 | [F2BE0681A] | 01.2001-11.2004 |
| IVECO | 340 E 35 7.8 | [F2BE0681A] | 09.1999-11.2004 |
| IVECO | 340 T 35 7.8 | [F2BE0681A] | 06.2005- |
| IVECO | 340 T 36 7.8 | [F2BE3681A] | 03.2006- |
| IVECO | 340 T 36 7.8 | [F2BE3681A] | 06.2006- |
| IVECO | 340 T 36 7.8 | [F2BE3681A] | 07.2007- |
| IVECO | 380 E 35 7.8 | [F2BE0681A] | 01.2000-11.2004 |
| IVECO | 380 T 33 7.8 | [F2BE3681B] | 03.2006- |
| IVECO | 380 T 36 7.8 | [F2BE3681A] | 04.2006- |
| IVECO | 380 T 36 7.8 | [F2BE3681A] | 10.2004- |
| IVECO | 400 E 31 7.8 | [F2BE0681B] | 09.1998- |
| IVECO | 400 E 35 7.8 | [F2BE0681A] | 01.2000-11.2004 |
| IVECO | 400 E 35 7.8 | [F2BE0681A] | 09.1998- |
| IVECO | 400 T 35 7.8 | [F2BE0681A] | 06.2005- |
| IVECO | 400 T 36 7.8 | [F2BE3681A] | 10.2004- |
| IVECO | 410 E 35 7.8 | [F2BE0681A] | 01.2000-11.2004 |
| IVECO | 410 T 36 7.8 | [F2BE3681A] | 03.2006- |
| IVECO | 440 E 31 7.8 | [F2BE0681B] | 09.1998- |
| IVECO | 440 E 35 7.8 | [F2BE0681A] | 09.1998- |
| IVECO | 440 S 31 7.8 | [F2BE0681B] | 06.2003- |
| IVECO | 440 S 33 7.8 | [F2BE3681B] | 12.2006- |
| IVECO | 440 S 35 7.8 | [F2BE0681A] | 06.2003- |
Reference Information
LRA02517 AG0427 A004TA8494AM CAL10601AS 553186RIM 506.504.090.130 210909 ALT344 ALT376120 506.504.090.370 PRAL774 ALT126010A ALT1359 2010601 A004TA0594 230-40107 DRA0815 A4TA8294 860706GBA 20137216OE A4TA8494 CAL35612GS MG733 A4TCV394 19090017 A4TA8494AM PRAL774MI MITA4TA8494 19092021 AAN5793 553186RI DRA4134N 20289N 20137216BN ALT376120A 860706GB 20101106OE ALM9633 0123525503 F042303088 861284 504282333 IA9439C CAL10601GS 2035612.1 DRA4134 A4TA0594 506.504.090.265 LRA2517 504109413 2486 20101106BN A24MH0027A2 DA1925 A004TCV394 506.504.090.900 2010601.1 11.209.452 72740669 A0320 ALT10446 CAL35612AS 48-4557 A004TA8294 ALT31285 115602 A004TA8494 DA5244 2035612 500337394 230-40107NOE 506.504.090.010 ALTL774 ANM36354X ALTL774MI 5802959388 506.504.090.415 ALT126010Video/Publications
A0320Related Items
