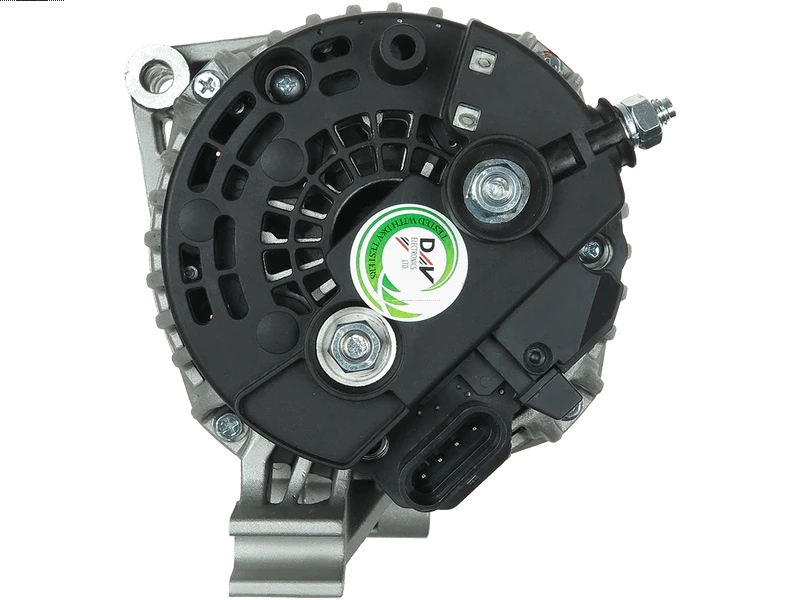

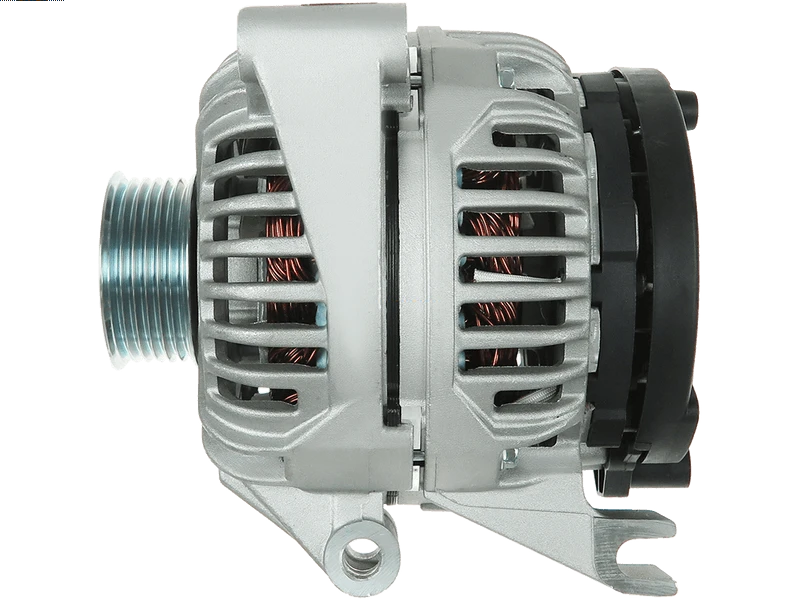

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 455.25 including GST
NZ$ 395.87 excluding GST
or four payments of $113.81
with
Learn More
each
A0317
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
10288764 10344573 10418889 13771N 28-4924 553479RI 6004ML0017 6004ML0021 A0001541557 ALT10623 LRA02894Specifications
| Amp | 125 A |
| Bottom Mounting Foot Width (B) | 43 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 181 mm |
| Mount Inside Length or Pad Mount C-C (C) | 74 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 57 mm |
| Pad mount thickness (E.2) | 30 mm |
| Plug Code | PL_4306 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 54 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHEVROLET | Impala 3.8 V6 | 01.2000-12.2004 | |
| CHEVROLET | Venture 3.4 V6 | 01.1999-12.2001 | |
| PONTIAC | Montana 3.4 V6 | 01.1999-12.2001 |
Reference Information
A0317 10288764 6004ML0021 PRAE722 448058 LRA02894 ALT10623 LRA2894 10418889 ALT1214 28-4924 6004ML0017 13771N 10344573 553479RI ALTE722 A0001541557Video/Publications
A0317Related Items
-
