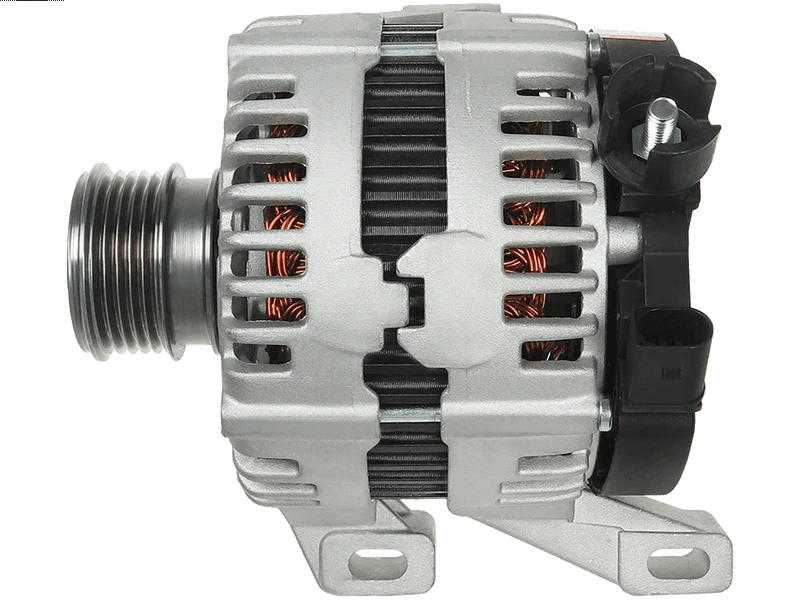

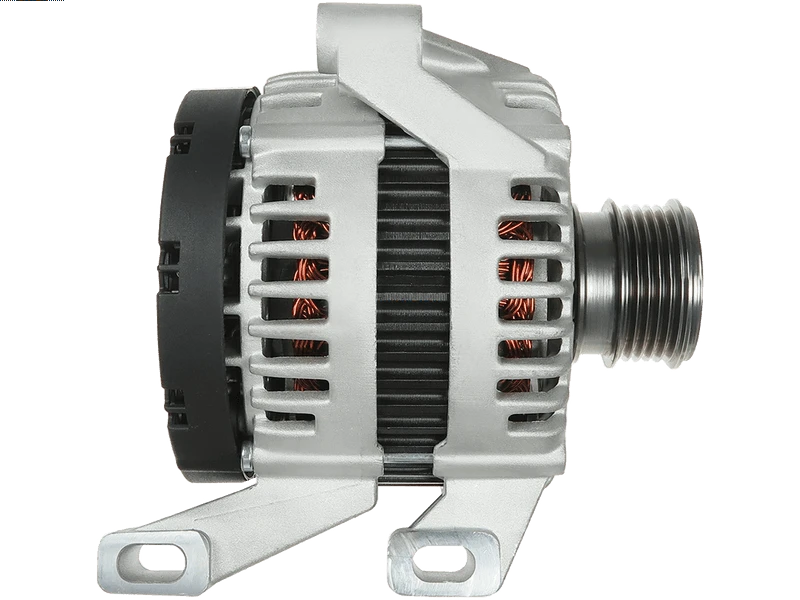

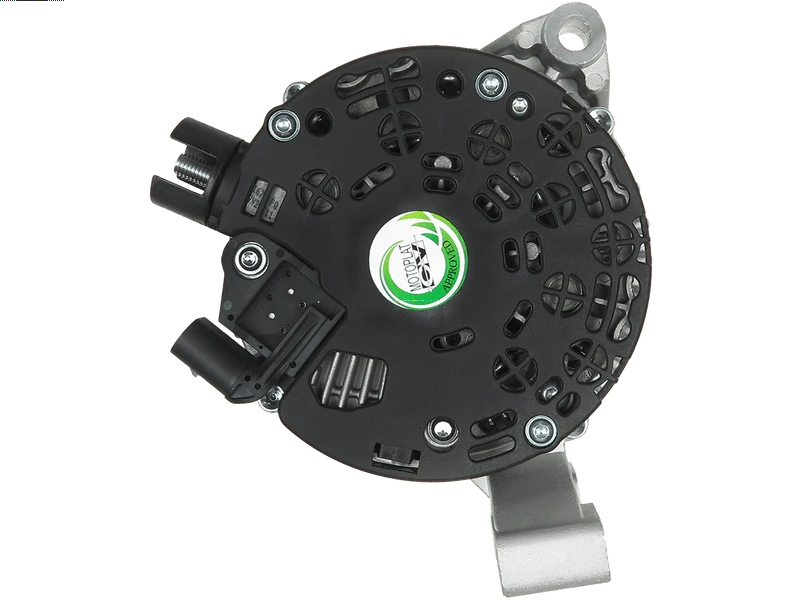

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 659.26 including GST
NZ$ 573.27 excluding GST
or four payments of $164.82
with
Learn More
each
A0287
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0121615005 0121615105 0986047930 11.1968 1379701 1388004 1425016 20101514BN 20101514OE 2010415 23976N 28-5590 301968RI 30667118 36000037 4844 57321 6G9N10300HA 6G9N10300HB 6G9N10300HC 6G9N10300HD 6G9N10399HB 6G9NHA 6G9NHB 6G9NHC 6G9NHD 89213211 8EL738212-041 9090671 A0287 AEK2976 ALT10431 CA1968IR CAL10415AS CAL10415GS CAL10415RS DRA0057 EAA-221576 LRA02976 SB243 SB327 UD12083ASpecifications
| Amp | 150 A |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 91 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 32 mm |
| Pad mount thickness (E.2) | 32.5 mm |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 63 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Mondeo 2.5 V5 | [HUBA] | 03.2007- |
| FORD | S-Max 2.5 ST | [HUWA] | 05.2006- |
| VOLVO | C30 2.0 Diesel | [D5204T] | 10.2010- |
| VOLVO | C30 2.0 Diesel | [D5204T5] | 10.2010- |
| VOLVO | C70 2.0 Diesel | [D5204T]1 | 10.2010- |
| VOLVO | C70 2.0 Diesel | [D5204T5] | 10.2010- |
| VOLVO | S40 2.0 Diesel D3 | [D5204T5] | 10.2010- |
| VOLVO | S40 2.0 Diesel D4 | [D5204T] | 10.2010- |
| VOLVO | S60 2.0 D3 | [D5204T7] | 05.2012- |
| VOLVO | S60 2.0 D4 | [D5204T3] | 05.2012- |
| VOLVO | S60 2.0 Diesel D3 | [D5204T2] | 04.2010-04.2012 |
| VOLVO | S60 2.4 Diesel | [D5244T11] | 06.2011- |
| VOLVO | S60 2.4 Diesel | [D5244T15] | 06.2011- |
| VOLVO | S60 2.4 Diesel D5 | [D5244T10] | 04.2010- |
| VOLVO | S60 2.4 Diesel D5 AWD | [D5244T10] | 04.2010- |
| VOLVO | S60 2.4 Diesel D5 AWD | [D5244T11] | 06.2011- |
| VOLVO | S60 2.4 Diesel D5 AWD | [D5244T15] | 06.2011- |
| VOLVO | S80 2.0 Diesel D3 | [D5204T2] | 01.2010- |
| VOLVO | S80 2.4 Diesel | [D5244T14] | 01.2010- |
| VOLVO | S80 2.4 Diesel | [D5244T5] | 03.2006- |
| VOLVO | S80 2.4 Diesel D5 | [D5244T10] | 01.2010- |
| VOLVO | S80 2.4 Diesel D5 | [D5244T11] | 06.2011- |
| VOLVO | S80 2.4 Diesel D5 | [D5244T15] | 06.2011- |
| VOLVO | S80 2.4 Diesel D5 | [D5244T4] | 03.2006- |
| VOLVO | S80 2.4 Diesel D5 AWD | [D5244T10] | 01.2010- |
| VOLVO | S80 2.4 Diesel D5 AWD | [D5244T11] | 06.2011- |
| VOLVO | S80 2.4 Diesel D5 AWD | [D5244T15] | 06.2011- |
| VOLVO | S80 2.4 Diesel D5 AWD | [D5244T4] | 01.2007- |
| VOLVO | S80 2.5 Turbo | [B5254T10] | 01.2010- |
| VOLVO | S80 2.5 Turbo | [B5254T6] | 03.2006- |
| VOLVO | S80 2.5 Turbo AWD | [B5254T6] | 10.2006- |
| VOLVO | S80 2.5 Turbo FlexFuel | [B5254T11] | 01.2010- |
| VOLVO | S80 2.5 Turbo FlexFuel | [B5254T8] | 05.2008- |
| VOLVO | V50 2.0 Diesel D3 | [D5204T5] | 10.2010- |
| VOLVO | V50 2.0 Diesel D4 | [D5204T] | 10.2010- |
| VOLVO | V60 2.0 D3 | [D5204T7] | 12.2012- |
| VOLVO | V60 2.0 Diesel D3 | [D5204T2] | 09.2010- |
| VOLVO | V60 2.4 D5 | [D5244T17] | 12.2012- |
| VOLVO | V60 2.4 Diesel AWD | [D5244T11] | 06.2011- |
| VOLVO | V60 2.4 Diesel AWD | [D5244T15] | 06.2011- |
| VOLVO | V60 2.4 Diesel D5 | [D5244T10] | 09.2010- |
| VOLVO | V60 2.4 Diesel D5 | [D5244T11] | 06.2011- |
| VOLVO | V60 2.4 Diesel D5 | [D5244T15] | 06.2011- |
| VOLVO | V60 2.4 Diesel D5 AWD | [D5244T10] | 09.2010- |
| VOLVO | V70 2.0 Diesel D5 AWD | [D5204T2] | 03.2010-07.2011 |
| VOLVO | V70 2.4 Diesel | [D5244T10] | 12.2009- |
| VOLVO | V70 2.4 Diesel | [D5244T5] | 03.2006- |
| VOLVO | V70 2.4 Diesel AWD | [D5244T10] | 12.2009- |
| VOLVO | V70 2.4 Diesel D5 | [D5244T11] | 06.2011- |
| VOLVO | V70 2.4 Diesel D5 | [D5244T15] | 06.2011- |
| VOLVO | V70 2.4 Diesel D5 | [D5244T5] | 08.2007- |
| VOLVO | V70 2.4 Diesel D5 AWD | [D5244T11] | 06.2011- |
| VOLVO | V70 2.4 Diesel D5 AWD | [D5244T15] | 06.2011- |
| VOLVO | V70 2.4 Diesel D5 AWD | [D5244T4] | 10.2007- |
| VOLVO | V70 2.5 Turbo | [B5254T10] | 01.2010- |
| VOLVO | V70 2.5 Turbo | [B5254T6] | 08.2007- |
| VOLVO | V70 2.5 Turbo FlexiFuel | [B5254T11] | 10.2009- |
| VOLVO | V70 2.5 Turbo FlexiFuel | [B5254T8] | 05.2008- |
| VOLVO | XC60 2.0 Diesel DRIVe | [D5204T2] | 03.2010- |
| VOLVO | XC60 2.4 Diesel | [D5244T11] | 06.2011- |
| VOLVO | XC60 2.4 Diesel | [D5244T5] | 05.2008- |
| VOLVO | XC60 2.4 Diesel D5 | [D5244T4] | 05.2008- |
| VOLVO | XC60 2.4 Diesel D5 AWD | [D5244T10] | 07.2009- |
| VOLVO | XC60 2.4 Diesel D5 AWD | [D5244T11] | 06.2011- |
| VOLVO | XC60 2.4 Diesel D5 AWD | [D5244T15] | 06.2011- |
| VOLVO | XC60 2.4 Diesel DRIVe | [D5244T14] | 07.2009- |
| VOLVO | XC70 2.0 Diesel | [D5204T2] | 08.2011- |
| VOLVO | XC70 2.0 Diesel AWD | [D5204T2] | 08.2011- |
| VOLVO | XC70 2.4 Diesel | [D5244T10] | 12.2009- |
| VOLVO | XC70 2.4 Diesel | [D5244T14] | 01.2010- |
| VOLVO | XC70 2.4 Diesel AWD | [D5244T5] | 08.2007- |
| VOLVO | XC70 2.4 Diesel D5 AWD | [D5244T11] | 06.2011- |
| VOLVO | XC70 2.4 Diesel D5 AWD | [D5244T15] | 06.2011- |
| VOLVO | XC70 2.4 Diesel D5 AWD | [D5244T4] | 08.2007- |
Reference Information
CAL10415AS UD12083A A12BH0589A2 0121615105 9090671 115434 2099442 23976N ALT10431 442362 ALT124150A 36012618 EAA-221576 LRA2976 PRAL477B 1388004 6G9NHA 36000037 4844 210424 89213211 ALTL477NE 6G9J10300HA DRA0057 SB243 CAL10415RS 6G9N10300HA ALTL477B 11.1968 ALTL477 6G9N10300HD SB327 6G9N10300HC ALT1681 6G9N10300HB ANM32277X 0121615005 LRA02976 28-5590 CAL10415GS 1425016 STX101643 CA1968IR 1379701 PRAL477 UD102557A 57321 36001105 A12BH0589AS 6G9N10399HB 301968RI ALT124150R 20101514BN 30667118 31419555 AI-90077 AEK2976 A0287 6G9NHC 6G9NHB 6G9NHD 20101514OE 8EL738212-041 5510003 2010415 0986047930 ALT124150 RNL615005Video/Publications
