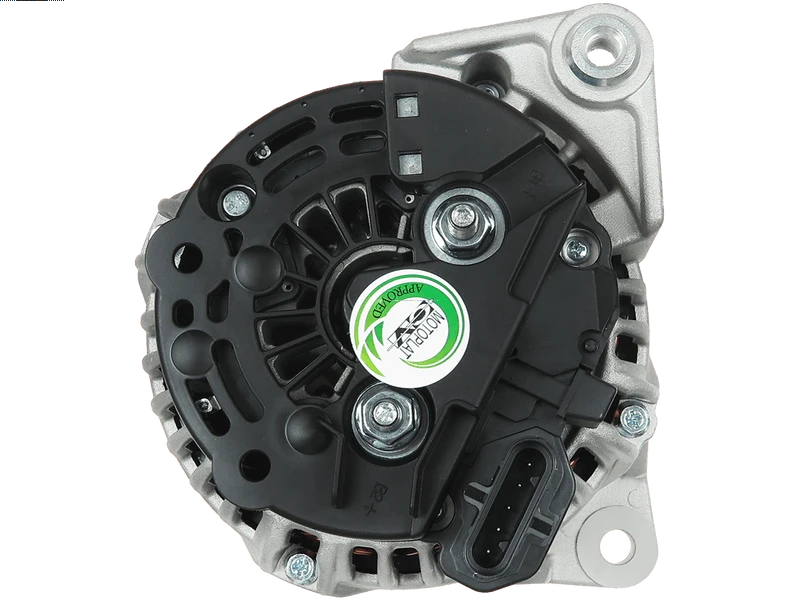

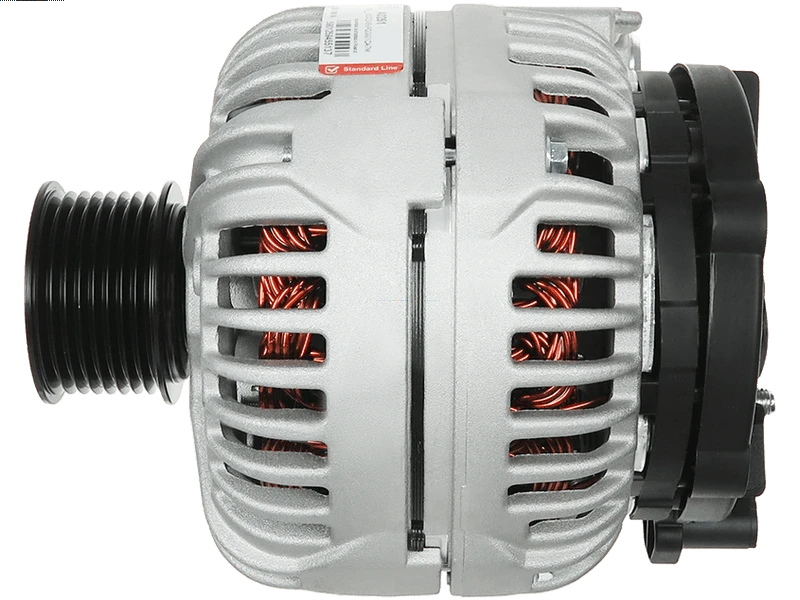

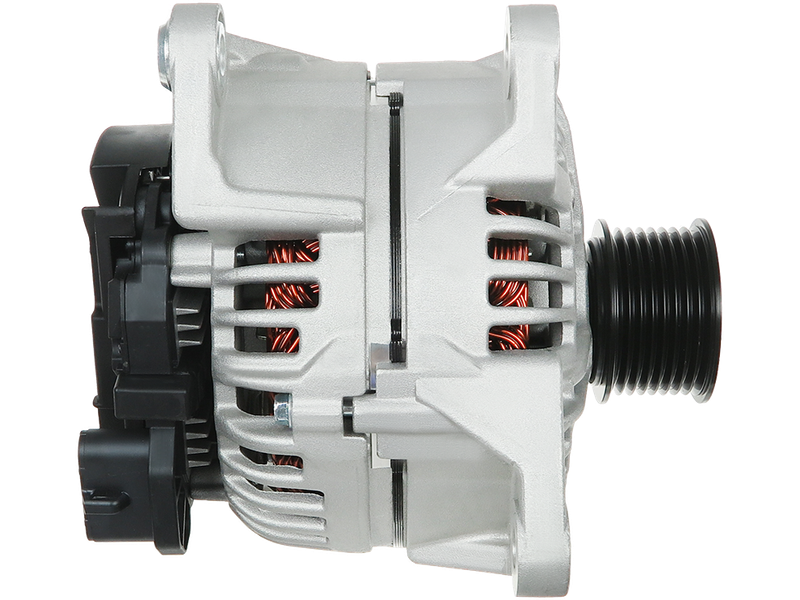

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 507.91 including GST
NZ$ 441.66 excluding GST
or four payments of $126.98
with
Learn More
each
A0251
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
0124655006Associated Numbers
0124555006 0124655006 114036 1387388 1400520 1401948 20101226OE 2010622 440129 48-6529 553004RI 553004RIB 553004RIP 860806 ALT-2119 CAL10622GS DRB0004 DRB0004N DRB7410 LRA03417Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 195 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82 mm |
| OEM Product | No |
| Plug Code | PL_5003 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 54.5 mm |
| Pulley to Mount Distance (A) | 36 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | CF 65.180 5.9 | [CE136C] | 01.2001-12.2006 |
| DAF | CF 65.220 5.9 | [CE162] | 01.2001-12.2007 |
| DAF | CF 65.220 9.7 | [GR165] | 01.2006- |
| DAF | CF 65.250 5.9 | [CE184C] | 01.2001-12.2006 |
| DAF | CF 65.250 9.7 | [GR184] | 01.2006- |
| DAF | CF 65.280 9.7 | [GR210] | 01.2007- |
| DAF | LF 45.140 4.5 | [FR103] | 01.2006- |
| DAF | LF 45.150 3.9 | [BE110C] | 01.2001-12.2007 |
| DAF | LF 45.160 4.5 | [FR118] | 01.2006- |
| DAF | LF 45.170 3.9 | [BE123C] | 01.2001-12.2007 |
| DAF | LF 45.180 4.5 | [FR136] | 01.2006- |
| DAF | LF 45.180 5.9 | [CE136C] | 01.2001-12.2008 |
| DAF | LF 45.220 5.9 | [CE162C] | 01.2001-12.2009 |
| DAF | LF 45.220 6.7 | [GR165] | 01.2006- |
| DAF | LF 45.250 6.7 | [GR184] | 01.2006- |
| DAF | LF 55.180 4.5 | [FR136] | 01.2006- |
| DAF | LF 55.180 5.9 | [CE136C] | 01.2001-12.2008 |
| DAF | LF 55.220 5.9 | [CE162C] | 01.2001-12.2008 |
| DAF | LF 55.250 5.9 | [CE184C] | 01.2001-12.2008 |
| DAF | LF 55.250 6.7 | [GR184] | 01.2006- |
| DAF | LF 55.280 6.7 | [GR210] | 01.2006- |
Reference Information
ALT-2119 0986081880 CAL10622AS 48-6529 ALB4036 906.502.100.310 11.209.618 5610079 WG2044010 ALT126220A 1401948 A24BH0095AS PRAL651 860806 CA2117IR BBA32051 20010622AV G105177 ALTM017 5001591004 0124655006 ALTS943 440129 116117 20101226BN 116118 A24BH0096 F032116118 LRA3417 553004RI DRB0004 PTC-3082 ALTL651B 1528594 AL04080 G100756 12090379 20101226OE DRB0004N 0124655018 20010622OV 0124655976 553004RIB CAL10622GS 906.502.100.010 2165376R 053.060 2492 2010622 442013 AAN5407 72446644 8EL012584-731 553004RIP 0124555006 906.502.100.014 ALT1332 WG2317482 ALT126220 3127154 ABO622 2010622.0 1986A00516 2010622.1 1986A00516 A24BH0096AS ABO622A 3127152 D276002 DRB7410 1400520R A-10301 97607 906.502.100.280 LRA03417 5.47018 112775 TT12071 ALTL651 WG2283000 ANM42224X G101070 12811N 48958 AELD075 L82520 5610079G AELD074 1387388 A0251 IA9466 1400520 H5610079G 1986A00967Video/Publications
A0251Related Items
