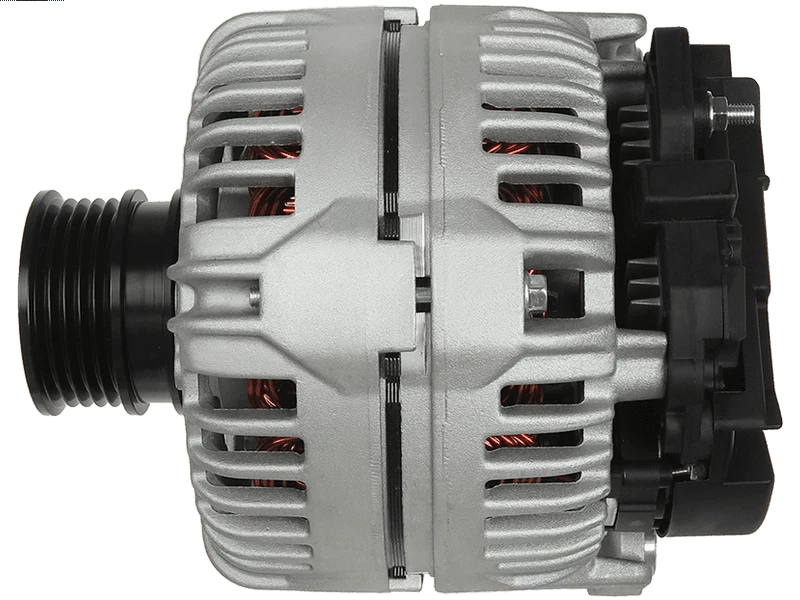

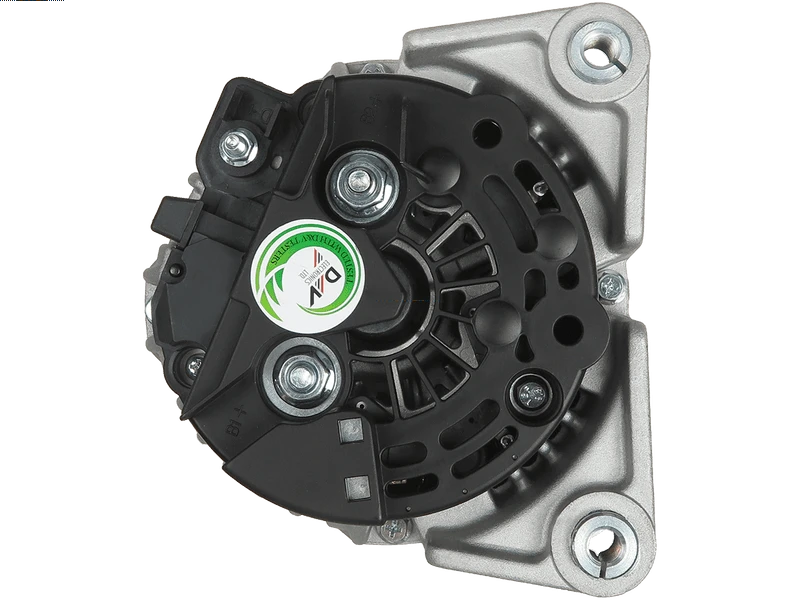

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 451.36 including GST
NZ$ 392.49 excluding GST
or four payments of $112.84
with
Learn More
each
A0244
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124425020Associated Numbers
0124425020 135.536.100 18000005 209418 28-5530 301882RI 301882RIB 4734 55556067 57548 6204205 89213186 8EL011712-481 8EL738211-581 93183437 93190146 944390472700 986047270 CA1882IR DB8380 DRB7270 EAA-221395 LRA02916 MRA47270 SB060 SB215Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 23 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 184 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57.5 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 64 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ALFA ROMEO | 159 1.8 MPi | [939A4.000] | 06.2005-11.2011 |
| ALFA ROMEO | 159 1.8 MPi Sportwagon | [939A4.000] | 06.2005-11.2011 |
| OPEL | Astra Classic 1.6 | [Z16XEP] | 02.2006-07.2009 |
| OPEL | Astra Classic 1.6 | [Z16XEP] | 03.2006-06.2008 |
| OPEL | Astra G 1.6 | [Z16XEP] | 02.2004-11.2004 |
| OPEL | Astra G 1.6 | [Z16XEP] | 11.2002-01.2005 |
| OPEL | Astra G 1.6 | [Z16XEP] | 12.2002-05.2004 |
| OPEL | Astra G 1.6 | [Z16XEP] | 12.2002-07.2009 |
| OPEL | Astra G 1.6 | [Z16XEP] | 12.2002-12.2009 |
| OPEL | Astra G 1.6 LPG | [Z16XEP] | 06.2002-07.2004 |
| OPEL | Astra G 1.6 LPG | [Z16XEP] | 11.2002-06.2007 |
| OPEL | Astra H 1.6 | [Z16XE1] | 03.2004-10.2010 |
| OPEL | Astra H 1.6 | [Z16XE1] | 08.2004-10.2010 |
| OPEL | Astra H 1.6 | [Z16XEP] | 02.2007-06.2010 |
| OPEL | Astra H 1.6 | [Z16XEP] | 03.2004-10.2010 |
| OPEL | Astra H 1.6 | [Z16XEP] | 08.2004-10.2010 |
| OPEL | Astra H 1.6 EcoTec | [Z16XEP] | 02.2004-11.2004 |
| OPEL | Astra H 1.6 GTC | [Z16XE1] | 03.2005-10.2010 |
| OPEL | Astra H 1.6 GTC | [Z16XEP] | 03.2005-10.2010 |
| OPEL | Astra H 1.6 Twintop | [Z16XE1] | 09.2005-10.2010 |
| OPEL | Astra H 1.6 Twintop | [Z16XEP] | 09.2005-10.2010 |
| OPEL | Astra H 1.6 TwinTop | [Z16XE1] | 09.2005-10.2010 |
| OPEL | Astra H 1.6 TwinTop | [Z16XEP] | 09.2005-10.2010 |
| OPEL | Zafira B 1.6 | [Z16XE1] | 07.2005-09.2012 |
| OPEL | Zafira B 1.6 | [Z16XEP] | 07.2005-09.2012 |
| OPEL | Zafira Family B 1.6 | [Z16XE1] | 07.2005-09.2012 |
| OPEL | Zafira Family B 1.6 | [Z16XEP] | 07.2005-09.2012 |
| VAUXHALL | Astra Mk IV 1.6 | [Z16XEP] | 12.2002-05.2005 |
| VAUXHALL | Astra Mk V 1.6 | [Z16XEP] | 01.2004-05.2009 |
| VAUXHALL | Astra Mk V 1.6 | [Z16XEP] | 08.2004-03.2009 |
| VAUXHALL | Astra Mk V 1.6 Sport Hatch | [Z16XEP] | 02.2005-11.2010 |
| VAUXHALL | Astra Mk V 1.6 Twintop | [Z16XEP] | 09.2005-11.2010 |
| VAUXHALL | Astravan Mk V 1.6 | [Z16XE1] | 03.2005- |
| VAUXHALL | Astravan Mk V 1.6 | [Z16XEP] | 03.2005- |
| VAUXHALL | Zafira Mk II 1.6 | [Z16XE1] | 07.2005-11.2014 |
| VAUXHALL | Zafira Mk II 1.6 | [Z16XEP] | 07.2005-11.2014 |
Reference Information
4G0657 ANM49490X AL02583 SKGN-0320879 55556067 440731 442482 93183437 944390472700 BBA2516 57548 28-4941CT 8EL011712-481 AZMT-49-035-1626 CA1882IR 209418A 301882RI 12047270 011-003-000860R ALT10101 10444242 2281481002 OP8128 G106213 ALT1402 MRA47270 QRA1612 4734 28-5530 301882RIB AC-CBA1882 ANM49490 0124425224 9047270 3111130 443106 LRA2916 3111132 548ST75 93190146 G100469 IR7923 0124425020 6204205 A0244 CAR-821395 135.536.100.010 18000005 WG2011358 L47270 LRA02916Video/Publications
