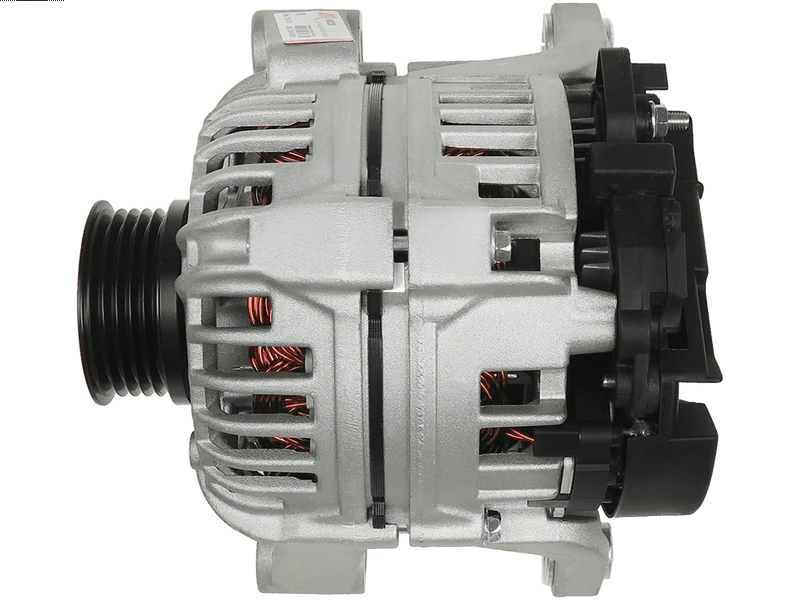

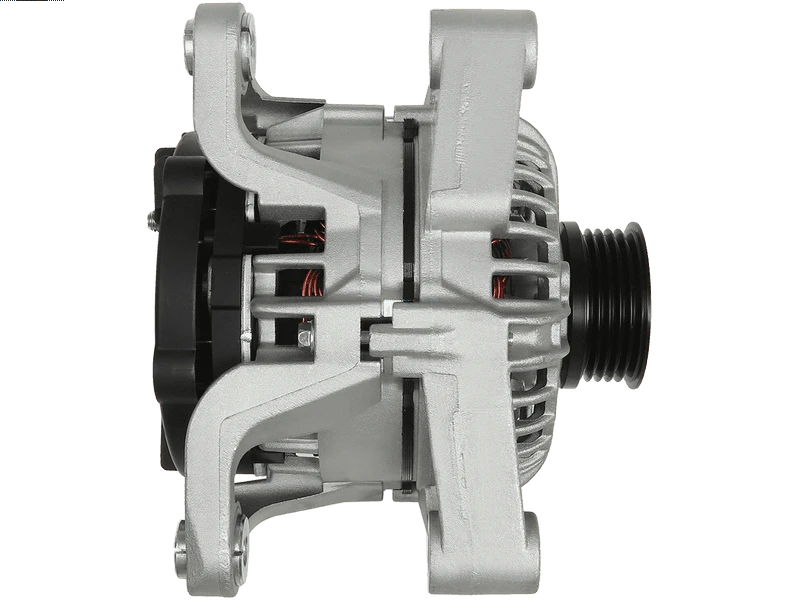

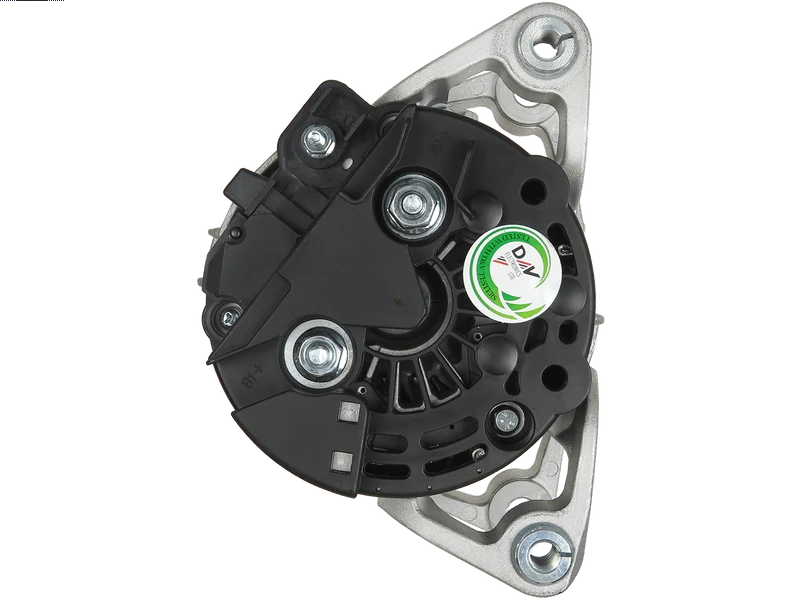

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 402.37 including GST
NZ$ 349.89 excluding GST
or four payments of $100.59
with
Learn More
each
A0225
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124225018Associated Numbers
0124225018 0124225041 0124225049 0986044210 11.1747 13156052 135.545.070 20101953BN 20101953RC 2010359 20110383 23824R 24437119 28-4942 301747RI 32044210 437604 4730 56908 6204102 6204179 6204193 8EL738116-001 9044210 9200956 93177835 93180416 AEK2824 CA1747IR CAL10359AS CAL10359RS DRB4210 G101747B-R GA225041-A LRA02824 SB068 23824NSpecifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 34 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.5 mm |
| Diameter (D.4) | M10x1.5 mm |
| Length (L.1) | 168 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 54 mm |
| Pulley to Mount Distance (A) | 54 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Agila 1.0 | [Z10XEP] | 08.2003- |
| OPEL | Agila 1.0 i 12V | [Z10XE] | 09.2000-08.2003 |
| OPEL | Agila 1.2 16V Twinport | [Z12XEP] | 07.2004- |
| OPEL | Agila 1.2 i 16V | [Z12XE] | 09.2000-06.2004 |
| OPEL | Astra F 1.2 | [X12XE] | 03.1998-08.2000 |
| OPEL | Astra G 1.2 16V | [X12XE] | 09.1997-09.2003 |
| OPEL | Astra G 1.2 16V | [Z12XE] | 09.2000-09.2003 |
| OPEL | Astra H 1.2 | [Z12XEP] | 08.2005- |
| OPEL | Astra H 1.2 GTC | [Z12XEP] | 08.2005- |
| OPEL | Astra H 1.4 | [Z14XEL] | 04.2004-10.2004 |
| OPEL | Astra H 1.4 Twinport GTC | [Z14XEP] | 03.2005- |
| OPEL | Combo 1.4 16V | [Z14XEP] | 08.2005- |
| OPEL | Combo 1.4 Tour | [Z14XEP] | 10.2004- |
| OPEL | Corsa C 1.0 i 12V | [Z10XE] | 09.2000- |
| OPEL | Corsa C 1.0 Twinport | [Z10XEP] | 06.2003- |
| OPEL | Corsa C 1.2 i 16V | [Z12XE] | 09.2000- |
| OPEL | Corsa C 1.4 | [Z14XEP] | 08.2003- |
| OPEL | Corsa C 1.4 i 16V | [Z14XEP] | 09.2003- |
| OPEL | Corsa C 1.4 Twinport | [Z14XEP] | 06.2003-08.2005 |
| OPEL | Meriva 1.4 16V Twinport | [Z14XEP] | 07.2004- |
| OPEL | Tigra 1.4 i | [Z14XEP] | 06.2004- |
| VAUXHALL | Agila 1.0 12V | [Z10XE] | 09.1999-08.2003 |
| VAUXHALL | Agila 1.0 12V | [Z10XEP] | 08.2003- |
| VAUXHALL | Agila 1.2 16V | [Z12XE] | 09.2000-06.2004 |
| VAUXHALL | Agila 1.2 16V Twinport | [Z12XEP] | 07.2004- |
| VAUXHALL | Astra MK IV 1.2 16V | [Z12XE] | 09.2000-08.2005 |
| VAUXHALL | Astra MK V 1.4 | [Z14XEP] | 03.2004- |
| VAUXHALL | Astravan 1.4 16V | [Z14XEP] | 03.2005- |
| VAUXHALL | Combo 1.4 | [Z14XEP] | 01.2004- |
| VAUXHALL | Corsa MK 1.0 12V | [Z10XE] | 09.2000-02.2001 |
| VAUXHALL | Corsa MK 1.2 16V | [Z12XE] | 09.2000-02.2001 |
| VAUXHALL | Corsa Mk II 1.0 12V | [Z10XEP] | 11.2003-08.2005 |
| VAUXHALL | Corsa MK II 1.2 Dualfuel 16V | [Z12XE] | 08.2001-08.2004 |
| VAUXHALL | Corsavan MK II 1.2 16V | [Z12XE] | 09.2000-08.2004 |
| VAUXHALL | Corsavan MK II 1.2 Dualfuel 16V | [Z12XE] | 08.2001- |
| VAUXHALL | Corsavan Mk II 1.4 | [Z14XEP] | 11.2003-11.2006 |
| VAUXHALL | Meriva 1.4 16V Twinport | [Z14XEP] | 07.2004- |
| VAUXHALL | Tigra 1.4 | [Z14XEP] | 09.2004- |
Reference Information
13156052 6204135 CAL10359AS CA1257IR 93189267 STX100135 0986044210 ALT123590A ALTL724 24437119 ANM46430X 8EL012426-781 LRA3343 2010359.2 2010359.1 2010359.0 ALT10225 A0225 90561967 311014 CAL10359RS 4730 90589721 944390442100 89213683 93175791 AEK2824 CAL10359GS 90543234 135.545.070.550 93175790 LRA03343 135.545.070.390 6204154 93189247 STX100433 ALT123590 9133599 R1530032 R1530031 DRB4210 21384N A12BH0111A2 8EL738116-001 ALT123590R 9512780 RNL4421 1204136 28-5955 9200956 20101953OE 93175939 93175938 301747RI 11.1747 93177835 063731747010 135.545.070.018 9512779 437604 135.545.070.010 6204179 ALT10034 20110383 9192815 09133599 0124225041 210866 93180416 LRA02824 ANM46430 GA225041B-R E7NN10B376AA 0124225049 6204102 441894 111824 9044210 56908 DRB4210X 93187819 210866A SA225041B-R 0124225018 ALT10212 CA1747IR 6204075 6204193 SA225041-A 6204071 STA0534R STX100433R 20101953RC CGB-85955 20101953BN ALT10160 443180 6204245 6204244 23824N 32044210 LRA2824 28-4942 SB068 9512181 XK 9117930 GA225041-A CGB-82847 ALB1747 R1530083Video/Publications
A0225View your shopping basket or Browse other items in Alternators.
