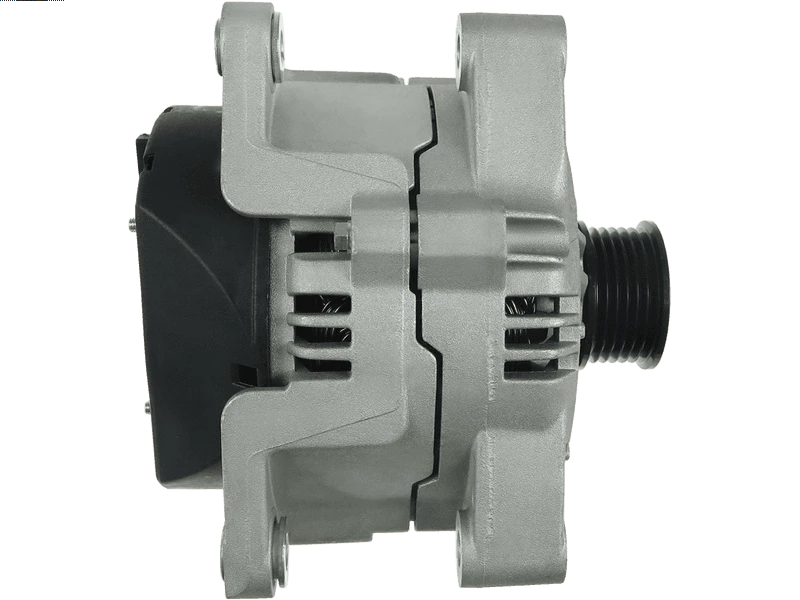

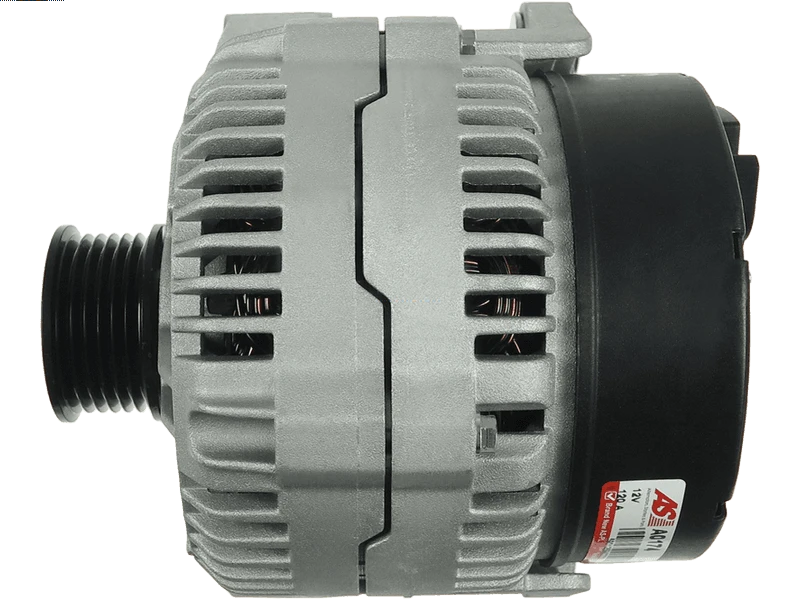

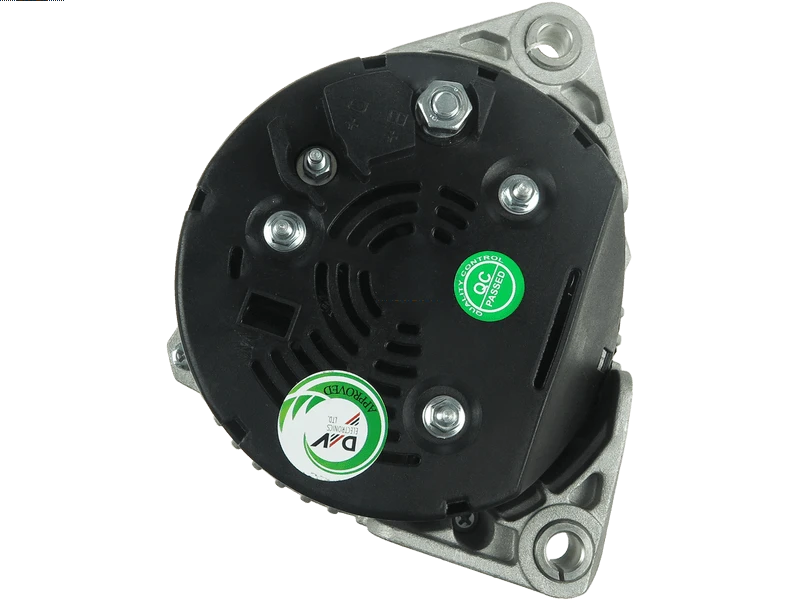

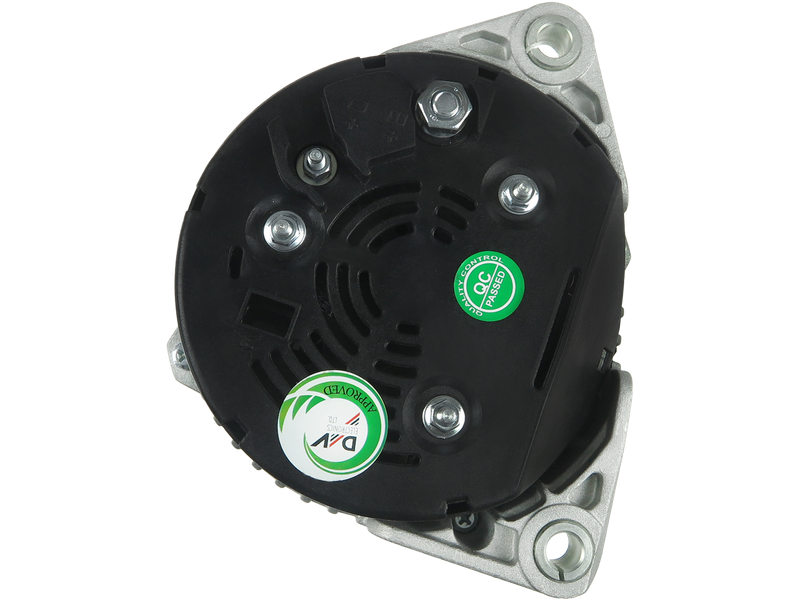

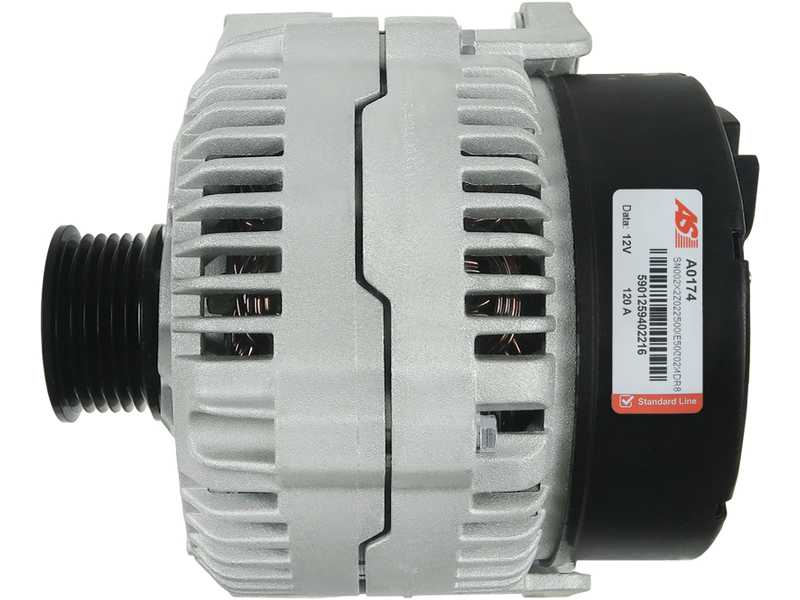

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 403.09 including GST
NZ$ 350.51 excluding GST
or four payments of $100.77
with
Learn More
each
A0174
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0123510043Associated Numbers
0123510043 0986044000 11.1328 111998 20317R 28-3539 301328RI 301577RI 6204025 89212323 8EL737502-001 90512219 AEA4208 AEC1445 ALT10215 CA1328IR LRA01748 LRA01948Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 33.5 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 11 mm |
| Diameter (D.4) | 11 mm |
| Length (L.1) | 184 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 50 mm |
| Pulley to Mount Distance (A) | 51 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 1.8 Turbo | 01.1997-12.1998 | |
| FORD | Galaxy 1.9 TDi | 03.1995-04.2000 | |
| OPEL | Omega B 2.0 TD 16V | 09.1997-09.2000 | |
| OPEL | Vectra B 2.0 TD 16V | 11.1996-07.2003 | |
| SEAT | Alhambra 1.9 TDi | 04.1996- | |
| SEAT | Cordoba 1.9 TDi | 08.1996-06.1999 | |
| SEAT | Ibiza 1.9 TDi | 08.1996-08.1999 | |
| SEAT | Toledo 1.9 TDi | [1L] | 08.1995-03.1999 |
| VOLVO | S70 2.3 | [P80_] | 11.1996-09.1998 |
| VOLVO | S70 2.3 | [P80_] | 11.1996-09.1998 |
| VW | Golf III 1.9 TDi | [1H1] [1H5] | 09.1993-12.1997 |
| VW | Golf III 1.9 TDi | [1H1][1H5] | 09.1993-12.1997 |
| VW | Golf IV 1.9 TDi | [1E7] [1J_] | 04.1998-12.2001 |
| VW | Golf IV 1.9 TDi | [1E7][1J_] | 04.1998-12.2001 |
| VW | Jetta 1.9 TDi | 01.1997-01.1998 | |
| VW | Passat 1.9 TDi | [3A5] [35] | 10.1993-05.1997 |
| VW | Passat 1.9 TDi | [3A5][35] | 10.1993-05.1997 |
| VW | Passat 1.9 TDi | 10.1993-05.1997 | |
| VW | Polo 1.9 TDi | [6V2] [6V5] | 09.1996-09.2001 |
| VW | Polo 1.9 TDi | [6V2][6V5] | 09.1996-09.2001 |
| VW | Sharan 1.9 TDi | 7M8,7M9,7M6 | 09.1995- |
| VW | Vento 1.9 TDi | [1H_] | 09.1993-09.1998 |
Reference Information
111998 LRA01748 074903025J ALT10215 CA1328IR 90506203 ALTF200 90512219 LRA1948 1111 LRA1748 20317R 8EL737502-001 ALT122780 ALTL208 ALTL208NE 89212323 STX101450 6204025 0123510043 310770 441475 301577RI ALT10309 A0174 0986044000 28-3539 301328RI AX 11.1328 AEC1445 AEA4208 LRA01948 PRAF200Video/Publications
