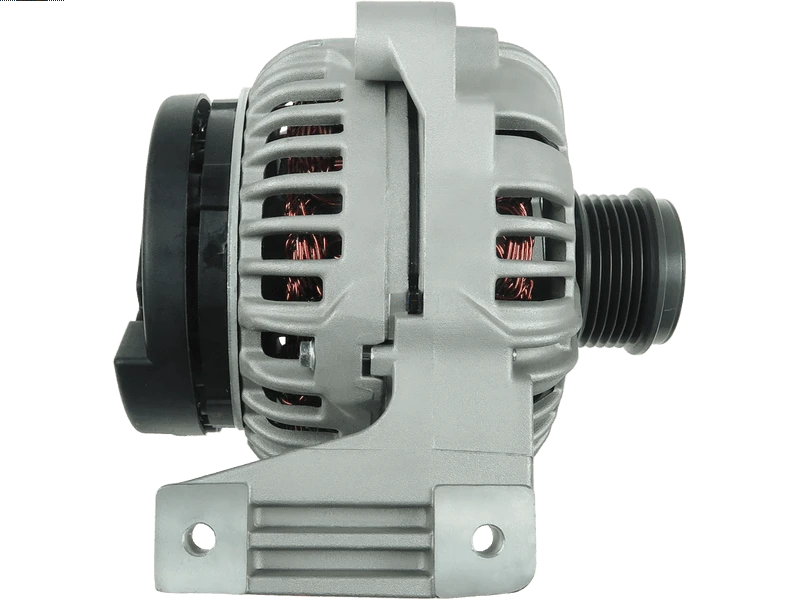

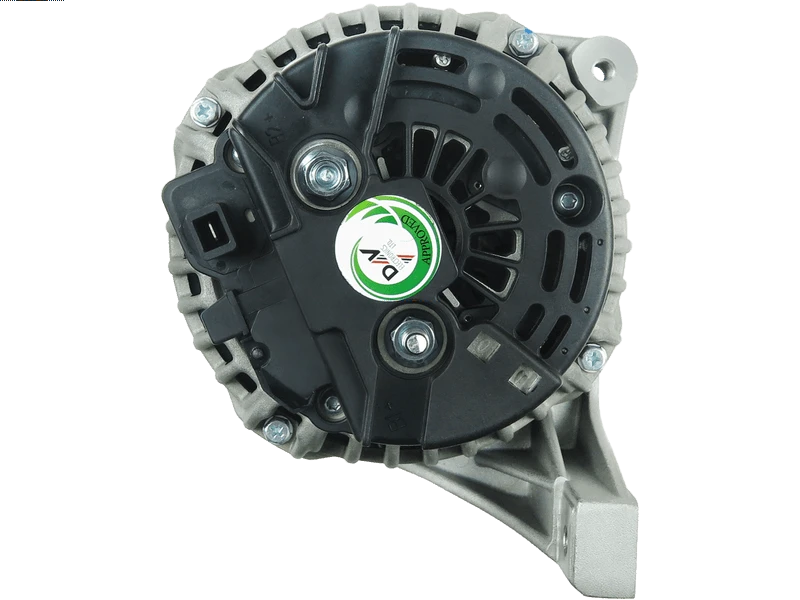

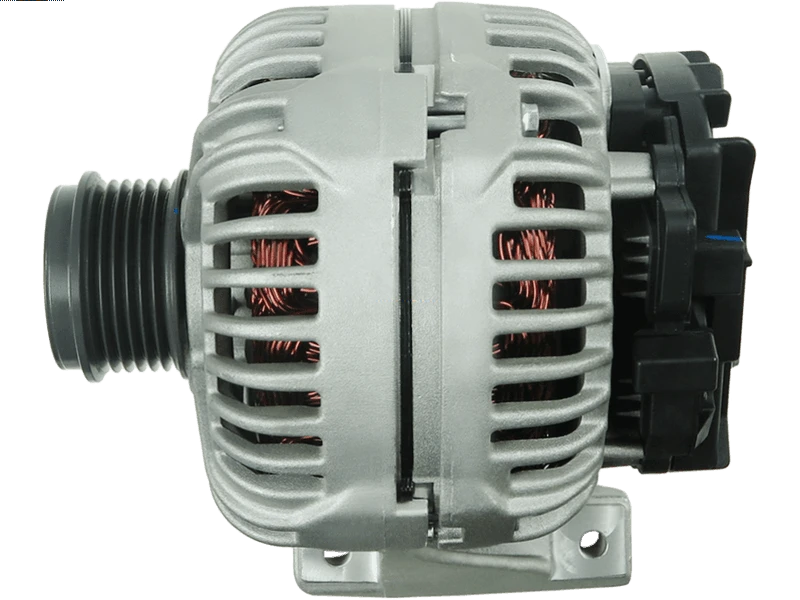

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 556.78 including GST
NZ$ 484.16 excluding GST
or four payments of $139.20
with
Learn More
each
A0146
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124625003Associated Numbers
0124625001 0124625003 0986046310 0986047470 11.1861 11.1861M 11082N 20101243BN 2010342 2010475 28-4695 28-4697 301861RI 4856 8602713 8602714 8637849 8651665 8676499 89212371 8EL738211-101 9047470 AEC1673 AEC1861 ALT10655 CA1861IR CAL10342AS CAL10342GS CAL10475GS DRB7470 EAA-221477 LRA02223 LRA02224 SB289Specifications
| Amp | 160 A |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 8.5 mm |
| Length (L.1) | 196 mm |
| Mount Inside Length or Pad Mount C-C (C) | 82 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 109 mm |
| Plug Code | PL_1200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 46 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | S60 2.0 Turbo | [B5204T5] | 11.2000-08.2004 |
| VOLVO | S60 2.3 T5 | [B5234T3] | 11.2000-03.2004 |
| VOLVO | S60 2.4 | [B5244S] | 11.2000-08.2004 |
| VOLVO | S60 2.4 | [B5244S2] | 11.2000-08.2004 |
| VOLVO | S60 2.4 Bifuel | [B5244SG2] | 06.2002-08.2004 |
| VOLVO | S60 2.4 Diesel | [D5244T] | 07.2001-08.2004 |
| VOLVO | S60 2.4 Diesel | [D5244T2] | 08.2002-08.2004 |
| VOLVO | S60 2.4 T5 | [B5244T5] | 04.2004-08.2004 |
| VOLVO | S60 2.4 Turbo | [B5244T3] | 11.2000-07.2004 |
| VOLVO | S60 2.4 Turbo AWD | [B5244T3] | 11.2001-07.2003 |
| VOLVO | S60 2.5 Turbo | [B5254T2] | 04.2004- |
| VOLVO | S60 2.5 Turbo AWD | [B5254T2] | 04.2004- |
| VOLVO | S60 R 2.5 Turbo AWD | [B5254T4] | 03.2003- |
| VOLVO | S80 2.0 Turbo | [B5204T5] | 08.1999-07.2006 |
| VOLVO | S80 2.4 | [B5244S] | 01.1999-07.2006 |
| VOLVO | S80 2.4 | [B5244S2] | 01.1999-07.2006 |
| VOLVO | S80 2.4 Bifuel | [B5244SG2] | 09.2001-07.2006 |
| VOLVO | S80 2.4 Diesel | [D5244T2] | 10.2001-07.2006 |
| VOLVO | S80 2.4 Diesel D5 | [D5244T] | 08.2001-07.2006 |
| VOLVO | S80 2.4 Turbo | [B5244T3] | 06.2000-07.2003 |
| VOLVO | S80 2.5 Turbo | [B5254T2] | 07.2003-07.2006 |
| VOLVO | S80 2.5 Turbo AWD | [B5254T2] | 07.2003-07.2006 |
| VOLVO | V70 2.0 Turbo | [B5204T5] | 03.2000-07.2007 |
| VOLVO | V70 2.3 T5 | [B5234T3] | 03.2000-07.2004 |
| VOLVO | V70 2.4 | [B5244S] | 03.2000-07.2007 |
| VOLVO | V70 2.4 | [B5244S2] | 03.2000-07.2007 |
| VOLVO | V70 2.4 Bifuel | [B5244SG] | 09.2001-07.2006 |
| VOLVO | V70 2.4 Diesel | [D5244T] | 12.2001-07.2006 |
| VOLVO | V70 2.4 Diesel | [D5244T2] | 12.2001-07.2006 |
| VOLVO | V70 2.4 Diesel D5 | [D5244T] | 08.2001-07.2004 |
| VOLVO | V70 2.4 Diesel D5 AWD | [D5244T2] | 12.2001-07.2006 |
| VOLVO | V70 2.4 Turbo | [B5244T3] | 03.2000-07.2002 |
| VOLVO | V70 2.4 Turbo AWD | [B5244T3] | 03.2000-07.2003 |
| VOLVO | V70 2.4 Turbo T5 | [B5244T5] | 04.2004-07.2007 |
| VOLVO | V70 2.5 TDi | [D5252T] | 03.2000-07.2001 |
| VOLVO | V70 2.5 Turbo | [B5254T2] | 04.2004-07.2007 |
| VOLVO | V70 2.5 Turbo AWD | [B5254T2] | 09.2002-07.2007 |
| VOLVO | V70 2.5 Turbo R AWD | [B5254T4] | 03.2003-07.2007 |
| VOLVO | XC70 2.4 Diesel AWD | [D5244T] | 09.2002-07.2004 |
| VOLVO | XC70 2.4 Turbo AWD | [B5244T3] | 03.2000-09.2002 |
| VOLVO | XC90 2.4 Diesel | [D5244T] | 08.2002-07.2004 |
| VOLVO | XC90 2.4 Diesel D5 | [D5244T] | 01.2003-07.2004 |
| VOLVO | XC90 2.4 Diesel D5 | [D5244T4] | 12.2005-07.2006 |
| VOLVO | XC90 2.5 Turbo | [B5254T2] | 10.2002- |
| VOLVO | XC90 3.0 Turbo | [B6294T] | 01.2003-07.2006 |
Reference Information
CA1861IR CGB-84697 LRA2223 LRA2224 ALT1634 PRAL253 0986046310 AEC1673 8651665 20101243BN 115709 CAL10342GS 209052 301861RI 8602714 8602713 LRA02224 LRA02223 A0146 0986047470 CAL10475GS 442148 SB289 DRB7470 36050268 AEC1861 2010475 ALT123420A 4856 0124625003 8EL738211-101 ANM49690X 0124625001 A12BH1090A2 ALT10655 ALT124750A ALTL253NE 9047470 PRAL253B 28-4695 2010342 28-4697 11082N ALTL253 CAL10342AS 11.1861M 311087 STX100517 8637849 ALT123420 ALT124750 ALTJ357 8676499 ALTL253B 5510760 89212371 11.1861Video/Publications
A0146View your shopping basket or Browse other items in Alternators.
