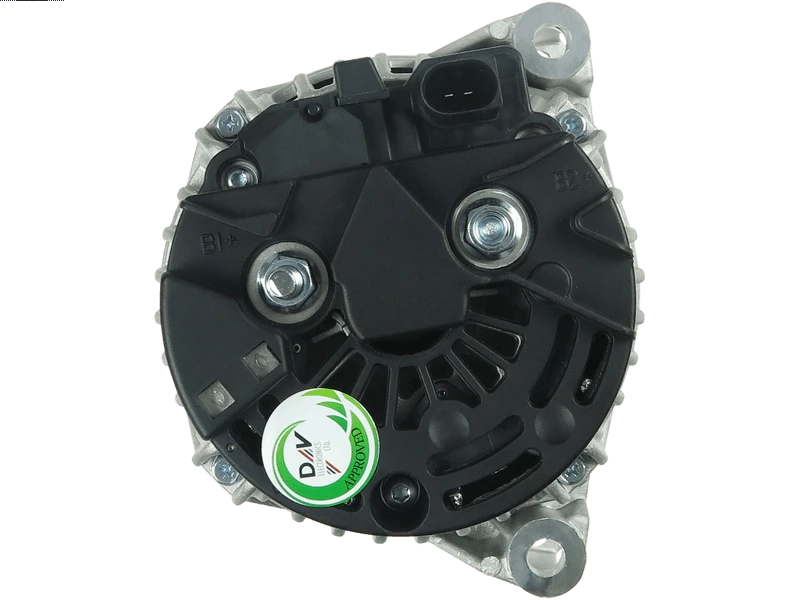

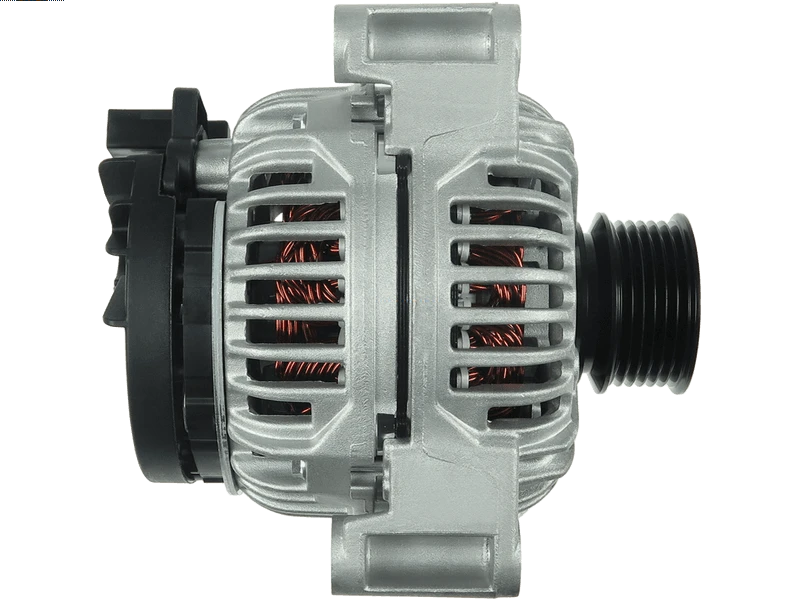

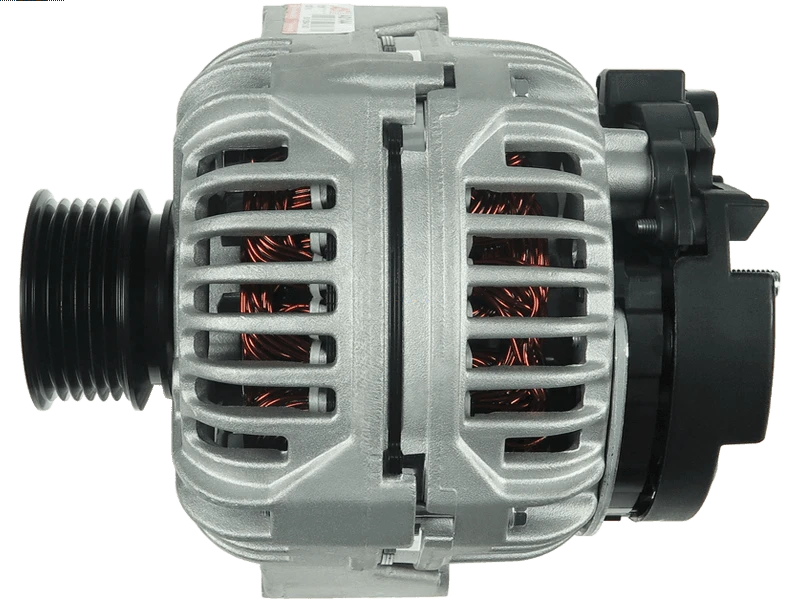

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 396.98 including GST
NZ$ 345.20 excluding GST
or four payments of $99.25
with
Learn More
each
AAM-S6002-Pulley OD Smaller
A0144
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124515046Associated Numbers
0111546802 0111547202 0124515046 0986042550 11.1689 113300 14001N 2010127 20101721OE 2542317 28-4537 28-5632 301689RI 32042550 437222 439296 57018 89213426 8EL738041-001 9042550 9213426 A0111546802 A0111547202 A0144 AEC1689 ALT10377 CA1689IR CAL10127GS DRB2550 EAA-221207 LRA02097 LRA03020 SB036 SG12B021Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 11 mm |
| Diameter (D.2) | 11 mm |
| Length (L.1) | 196 mm |
| OEM Product | No |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 93 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C 200 2.0 Kompressor | (203)[M111.955] | 03.2001- |
| MERCEDES BENZ | C 230 2.3 Kompressor | (203)[M111.981] | 03.2001- |
Reference Information
A0111546802 A011154680280 011154680280 301689RI RNL4255 PRAS083V 011154680283 2010127 0986042550 ALT1195 ALT121270A 555.544.120.010 5510514 8EL738041-001 ALT121270 2542317 LRA3020 LRA2097 ANM44770X AI-90095 A0144 0111547202 CGB-13550 20101721OE 11.1689 SG12B021 9042550 9213426 A0121540002 CAL10127GS A011154720280 89213426 210891 011154720280 STX101685 011154720283 CGB-84592 A011154720283 ALT10377 LRA02097 LRA03020 439296 STX100436 SB036 28-4537 ALT0082 A0111547202 DRB2550 555.544.120.014 555.544.120.210 0124515046 441836 113300 ALTS083 PRAS083 310990 0121540002 14001N ALTS083V 32042550 57018 0111546802 ALTS083R A011154680283 A12BH0412A2 STX100436R CA1689IR 555.544.120.461 28-5632 437222 AEC1689 555.544.120.460Video/Publications
