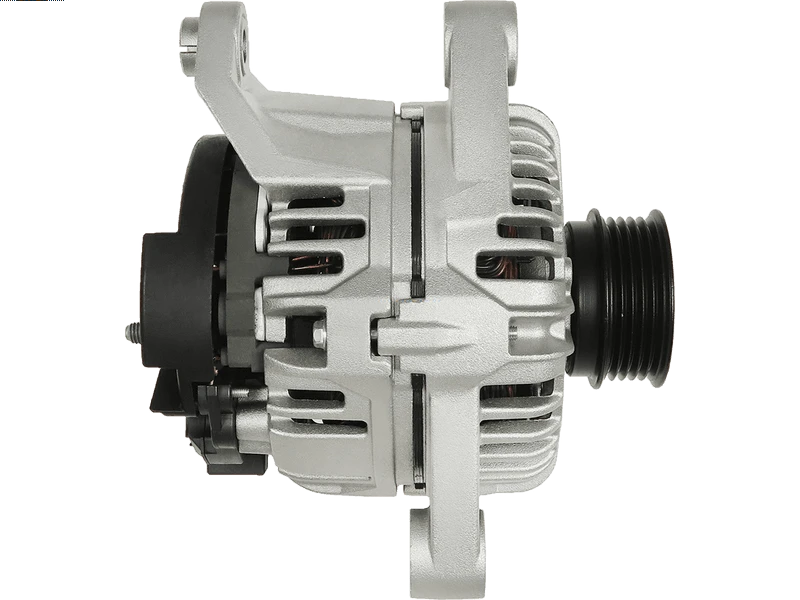

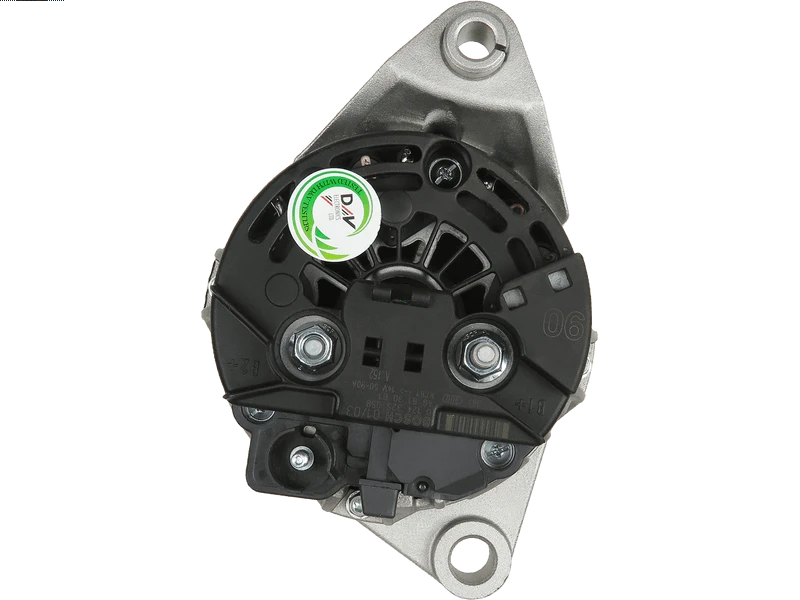

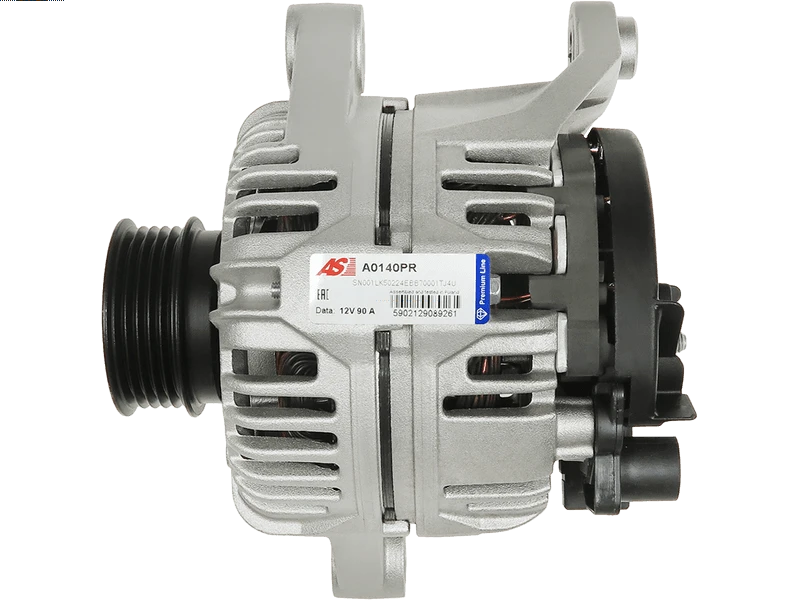

Remanufactured AS-PL Alternator
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 318.77 including GST
NZ$ 277.19 excluding GST
or four payments of $79.69
with
Learn More
each
A0140PR
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0124325058 0124325145 0124415011 0986042000 11.1471 112190 2010107 20101701BN 20101701OE 20101701RE 28-3737 301471RI 301471RIB 32042000 437672 4500 46420963 46532668 468130061 46813061 46841963 56791 63533250 89213177 8EL012428-131 8EL737679-001 9042000 9213177 AEC1471 ALT10415 CA1471IR CAL10107AS CAL10107GS CAL10107OS DRB2000 EAA-221148 GA325058-A GA325058B-R LRA01874 SA938 0124325058 0124325145 0124415011 0986042000 11.1471 112190 2010107 20101701BN 20101701OE 20101701RE 28-3737 301471RI 301471RIB 32042000 437672 4500 46420963 46532668 468130061 46813061 46841963 56791 63533250 89213177 8EL012428-131 8EL737679-001 9042000 9213177 AEC1471 ALT10415 CA1471IR CAL10107AS CAL10107GS CAL10107OS DRB2000 EAA-221148 GA325058-A GA325058B-R LRA01874 SA938Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | 16 mm |
| Diameter (D.2) | 12 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 190 mm |
| Mount Inside Length or Pad Mount C-C (C) | 69.5 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 59 mm |
| Pulley to Mount Distance (A) | 59 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Brava 1.6 16V SX | [182A4.000] | 02.1996-10.2001 |
| FIAT | Bravo 1.6 SX | [182A4.000] | 03.1996-10.2001 |
| FIAT | Doblo 1.6 i.e. 16V | [182B6.000] | 10.2001- |
| FIAT | Marea 1.6 16V Bipower | [185A3.000] | 04.1999- |
| FIAT | Marea 1.6 i 16V | [182A4.000] | 09.1996- |
| FIAT | Multipla 1.6 16V | [182A4.000] | 04.1999-06.2010 |
| FIAT | Multipla 1.6 16V Bipower | [182B6.000] | 10.2001-06.2010 |
| FIAT | Multipla 1.6 16V Bipower | [186A4.000] | 04.1999-06.2010 |
| FIAT | Multipla 1.6 16V Blupower | [182B6.000] | 04.2002-06.2010 |
| FIAT | Multipla 1.6 16V Blupower | [186A3.000] | 04.1999-06.2010 |
| FIAT | Multipla 1.6 16V GPL | [182B6.000] | 10.2001-06.2010 |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996- |
| FIAT | Palio 1.6 16V | [178B3.000] | 04.1996-02.2001 |
| FIAT | Palio 1.6 16V | [182B6.000] | 02.2001- |
| FIAT | Siena 1.6 16V | [178B3.000] | 09.1998- |
| FIAT | Stilo 1.6 16V | [182B6.000] | 10.2001- |
| LANCIA | Lybra 1.6 16V | [182A4.000] | 07.1999- |
Reference Information
46532667 46532668 CAL10107GS A12BH0080A2 11.1471 ALT1957 ALT1235 ALTL135B PRAL135 STX100455 468130061 ALT6600 310837 CAL10107OS STX100296 20101701RE 9042000 STX100174 0124415011 89213177 STX100291 8EL012428-131 441618 STX100291R AEC1471 9213177 71723381 ALT6600RS ALT123320 PRAL135B 46841963 22874N ALT2250 GA325058B-R STX100276R 8EL737679-001 0124325145 CAL10107AS 5510051 301471RI 56791 STX100904 LRA1874 112190 32042000 2010107 ALT10415 301471RIB STX100276 4500 71780119 0124325058 437672 STX100174R SA938 63533250 71793207 46420963 LRA01874 ALT254 GA325058-A 46813063 CA1471IR 46813061 STX100367 20101701OE 28-3737 ALT6600A 0986042000 ALTL135 STX100367R 210254 20101701BN DRB2000 CGB-83737 46832123Video/Publications
