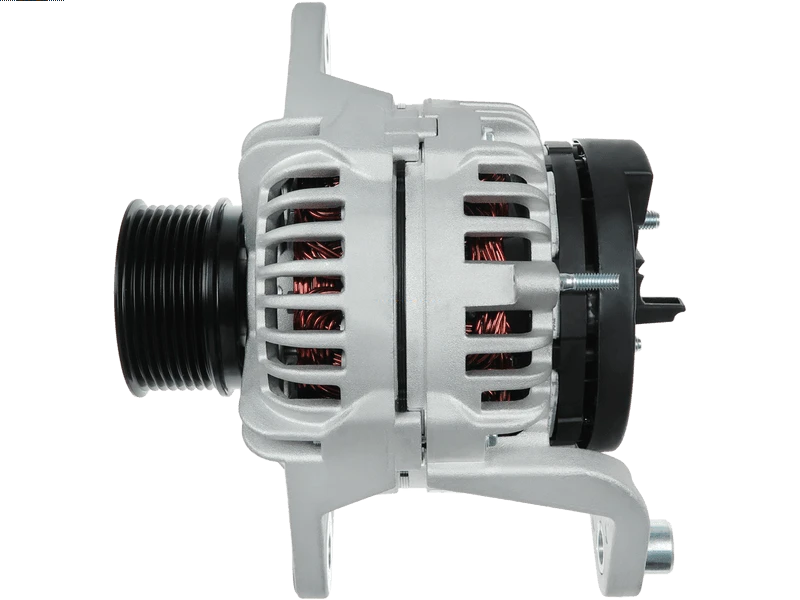

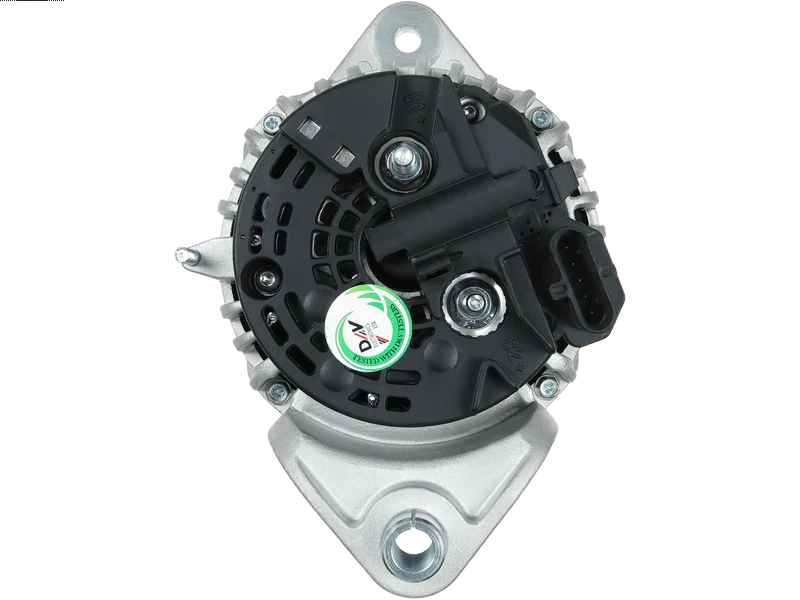

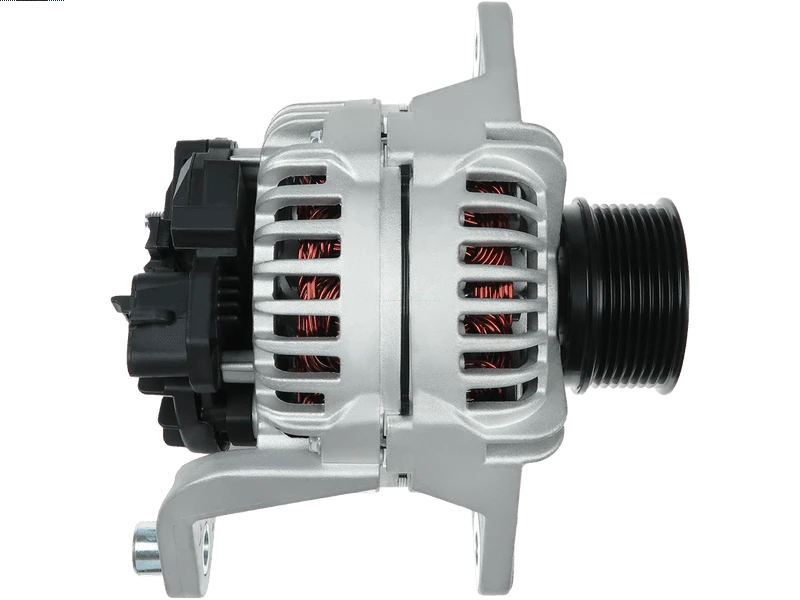

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 488.07 including GST
NZ$ 424.41 excluding GST
or four payments of $122.02
with
Learn More
each
A0139
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
0124655012Associated Numbers
0124655012 0124655019 0986049350 11209622 114212 115488 160-55202 2010626 20466317 20739778 20849352 21429787 21429789 23876N 2540 301883RI 301883RIB 48-5897 5010589551 554027RIM 7420466317 7420862899 7421429789 816.502.110 860804GB 861291 89213744 8EL012584-271 8EL738211-611 A-6473 A004TR5592ZT A4TR5592ZT AAN5411 ALT10306 AVI147J3110HD AVI147J3120HD BOS0124655012 CA1883IR CAL10626 CAL10626AS CAL10626ES CAL10626GS CAL10626OS CAL10626RS EAA-221255 F042301131 IA9470 LRA03285 LRA3285 MG815Specifications
| Amp | 110 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 11.5 mm |
| Diameter (D.2) | 13.5 mm |
| Diameter (D.3) | 13.5 mm |
| Length (L.1) | 217 mm |
| Mount Inside Length or Pad Mount C-C (C) | 105.5 mm |
| OEM Product | No |
| Plug Code | PL_5003 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 73 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT V.I. | 440.19 12.8 | [DXI13] | 03.2009- |
| RENAULT V.I. | 460.18 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 460.24 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 460.25 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 460.26 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 460.32 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 480.19 12.8 | [DXI13] | 03.2009- |
| RENAULT V.I. | 480.26 12.8 | [DXI13] | 03.2009- |
| RENAULT V.I. | 500.18 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 500.24 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 500.25 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 500.26 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 500.32 12.8 | [DXI13] | 05.2006- |
| RENAULT V.I. | 520.19 12.8 | [DXI13] | 08.2009- |
| RENAULT V.I. | 520.24 12.8 | [DXI13] | 08.2009- |
| RENAULT V.I. | 520.25 12.8 | [DXI13] | 08.2009- |
| RENAULT V.I. | 520.26 12.8 | [DXI13] | 08.2009- |
| VOLVO | 8700 12.1 | [DH12D340] | 01.1999- |
| VOLVO | 8700 12.1 | [DH12D380] | 01.1999- |
| VOLVO | 8700 12.1 | [DH12E340] | 01.1999- |
| VOLVO | 8700 12.1 | [DH12E380] | 01.1999- |
| VOLVO | 9700 12.1 | [DH12D340] | 04.2001- |
| VOLVO | 9700 12.1 | [DH12D380] | 10.2001- |
| VOLVO | 9700 12.1 | [DH12D420] | 10.2001- |
| VOLVO | B 12 12.1 | [D12C420] | 02.2006- |
| VOLVO | B 12 12.1 | [D12D420] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12D340] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12E340] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12E380] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12E420] | 02.2006- |
| VOLVO | B 12 12.1 | [DH12E460] | 02.2006- |
| VOLVO | FH 12/340 12.1 | [D12D340] | 01.1995- |
| VOLVO | FH 12/340 12.1 | [D12D340] | 08.1993- |
| VOLVO | FH 12/380 12.1 | [D12D380] | 08.1993- |
| VOLVO | FH 12/420 12.1 | [D12D420] | 01.1995- |
| VOLVO | FH 12/420 12.1 | [D12D420] | 08.1993- |
| VOLVO | FH 12/460 12.1 | [D12D460] | 08.1998- |
| VOLVO | FH 400 12.8 | [D13A400] | 09.2005- |
| VOLVO | FH 400 12.8 | [D13B400] | 09.2005- |
| VOLVO | FH 420 12.8 | [D13C420] | 01.2009- |
| VOLVO | FH 440 12.8 | [D13A440] | 09.2005- |
| VOLVO | FH 440 12.8 | [D13B440] | 09.2005- |
| VOLVO | FH 440 12.8 | [D13B440] | 09.2006-12.2011 |
| VOLVO | FH 440 12.8 | [D13H440] | 09.2005- |
| VOLVO | FH 460 12.8 | [D13C460] | 01.2009- |
| VOLVO | FH 460 12.8 | [D13C460] | 01.2012- |
| VOLVO | FH 480 12.8 | [D13A480] | 09.2005- |
| VOLVO | FH 500 12.8 | [D13B500] | 01.2009- |
| VOLVO | FH 500 12.8 | [D13B500] | 09.2007- |
| VOLVO | FH 500 12.8 | [D13C500] | 01.2009- |
| VOLVO | FH 500 12.8 | [D13C500] | 09.2007- |
| VOLVO | FH 520 12.8 | [D13A520] | 09.2005- |
| VOLVO | FH 540 12.8 | [D13C540] | 01.2009- |
| VOLVO | FM 12/340 12.1 | [D12D340] | 08.1998-09.2005 |
| VOLVO | FM 12H/340 12.1 | [D12D340] | 08.1998-09.2005 |
| VOLVO | FM 12H/420 12.1 | [D12D420] | 08.1998-09.2005 |
| VOLVO | FM 360 12.8 | [D13A360] | 09.2005- |
| VOLVO | FM 360 12.8 | [D13A360] | 11.2005- |
| VOLVO | FM 360 12.8 | [D13B360] | 09.2005- |
| VOLVO | FM 360 12.8 | [D13B360] | 11.2005- |
| VOLVO | FM 380 12.8 | [D13C380] | 04.2012- |
| VOLVO | FM 380 12.8 | [D13C380] | 09.2005- |
| VOLVO | FM 400 12.8 | [D13A400] | 09.2005- |
| VOLVO | FM 400 12.8 | [D13B400] | 09.2005- |
| VOLVO | FM 420 12.8 | [D13C420] | 04.2012- |
| VOLVO | FM 420 12.8 | [D13C420] | 09.2005- |
| VOLVO | FM 420 12.8 | [D13K420] | 04.2012- |
| VOLVO | FM 440 12.8 | [D13A440] | 09.2005- |
| VOLVO | FM 440 12.8 | [D13A440] | 09.2006-02.2012 |
| VOLVO | FM 440 12.8 | [D13B440] | 09.2005- |
| VOLVO | FM 460 12.8 | [D13C460] | 04.2012- |
| VOLVO | FM 460 12.8 | [D13C460] | 05.2009- |
| VOLVO | FM 460 12.8 | [D13C460] | 09.2005- |
| VOLVO | FM 460 12.8 | [D13K460] | 04.2012- |
| VOLVO | FM 460 12.8 | [D13K460] | 05.2009- |
| VOLVO | FM 480 12.8 | [D13A480] | 09.2005- |
| VOLVO | FM 480 12.8 | [D13A480] | 09.2006-02.2012 |
| VOLVO | FM 500 12.8 | [D13B500] | 09.2005- |
| VOLVO | FM 500 12.8 | [D13C500] | 04.2012- |
| VOLVO | FM 500 12.8 | [D13C500] | 09.2005- |
| VOLVO | FM 500 12.8 | [D13K500] | 04.2012- |
| VOLVO | FMX 380 12.8 | [D13C380] | 01.2011- |
| VOLVO | FMX 380 12.8 | [D13C380] | 01.2012- |
| VOLVO | FMX 380 12.8 | [D13C380] | 04.2010- |
| VOLVO | FMX 380 12.8 | [D13C380] | 09.2013- |
| VOLVO | FMX 420 12.8 | [D13C420] | 01.2011- |
| VOLVO | FMX 420 12.8 | [D13C420] | 01.2012- |
| VOLVO | FMX 420 12.8 | [D13C420] | 09.2013- |
| VOLVO | FMX 420 12.8 | [D13K420] | 09.2013- |
| VOLVO | FMX 460 12.8 | [D13C460] | 01.2011- |
| VOLVO | FMX 460 12.8 | [D13C460] | 01.2012- |
| VOLVO | FMX 460 12.8 | [D13C460] | 09.2013- |
| VOLVO | FMX 460 12.8 | [D13K460] | 09.2013- |
| VOLVO | FMX 500 12.8 | [D13C500] | 01.2011- |
| VOLVO | FMX 500 12.8 | [D13C500] | 01.2012- |
| VOLVO | FMX 500 12.8 | [D13C500] | 09.2013- |
| VOLVO | FMX 500 12.8 | [D13K500] | 09.2013- |
| VOLVO | FMX 540 12.8 | [D13K540] | 09.2013- |
Reference Information
CAL10626AS 430930 CAL10626IS 7420862899 IA9470 LRA03285 A24BH0084 441990 443489 4G1062 10443711 20466317 115488 816.502.110.280 CGB-16290 IR5923 BOS0124655012 85020824 A004TR5392 ALT126260I 554027RIM A004TR5392ZT 035.265 21277N 7421429789 ALT126260A 816.502.110.019 1986A01034 816.502.110.014 816.502.110.212 QRA3479 816.502.110.010 210916 ALT10306 0124655012 21429787 L49350 5010589551 21429789 TT12283 A0139 430930M 0124655019 CAL10626GS 89213744 11209622 A4TR5392ZT 48-5897 202103 860804AM ALT1731 ABO626A 202031 86689 A-6473 ALT126260 MG815 AL04074 20849352 ABO626 0124655988 7420466317 F042301131 160-55202 23876N 0124655500 301883RIB LRA3285 301883RI 2540 861291 AAN5411 0124655012-R 5610068 A4TR5392 816.502.110.310 A24BH0084AS 0986049350 2.21039 5301211104 AVI147J3120HDVideo/Publications
