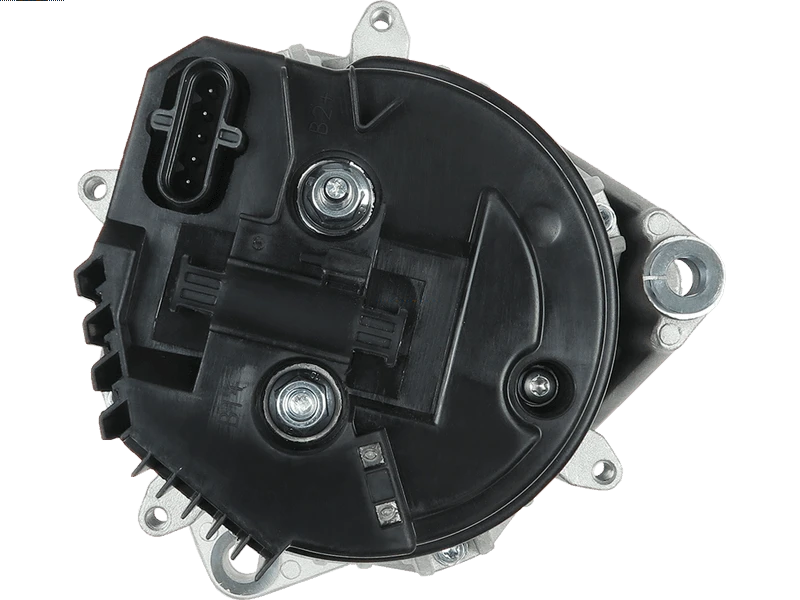

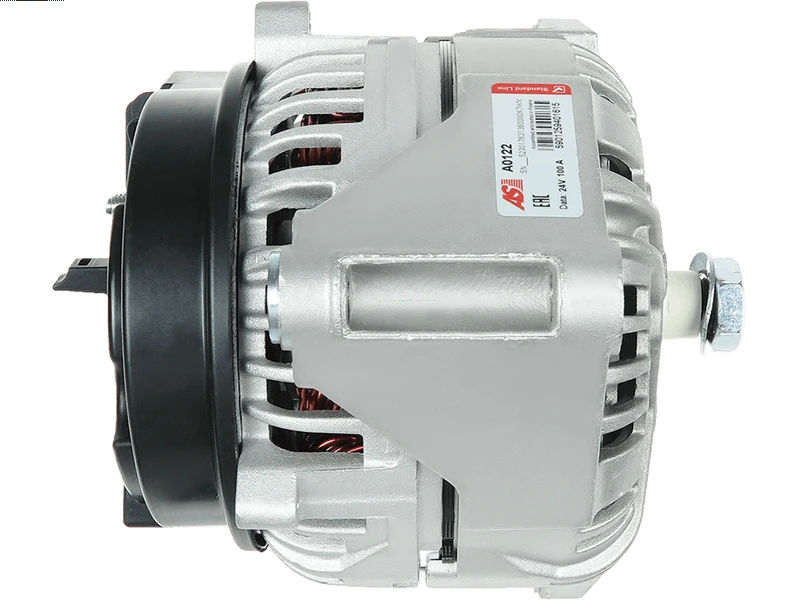

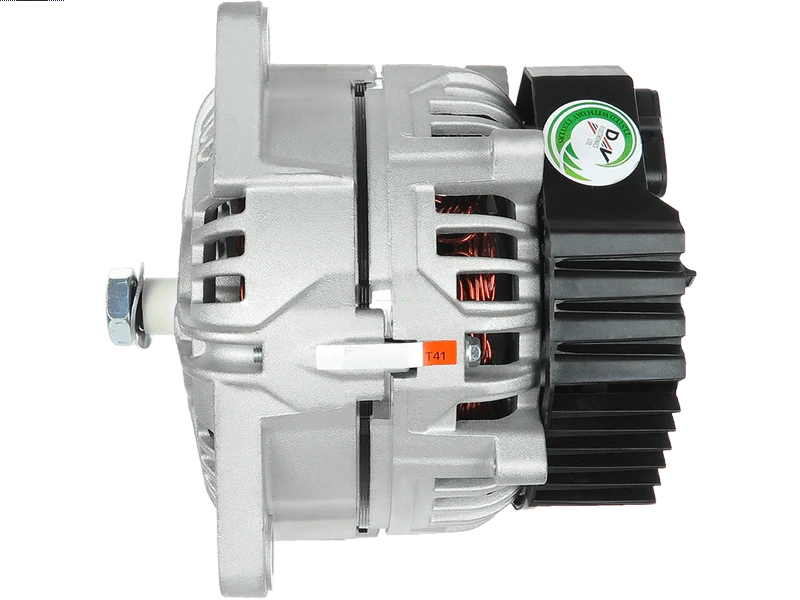

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 471.02 including GST
NZ$ 409.58 excluding GST
or four payments of $117.76
with
Learn More
each
A0122
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0121546702 0124655003 0124655036 0124655037 0124655039 0124655415 063536550370 11.209.617 115617 115618 1377860 160-55213 1697023 1697024 1697322 19092007 19092015 20101726BN 20101726OE 2010627 2010645 2443 301693RI 301693RIB 301693RIP 48-5859 554913RI 554914RI 554914RIB 554919RI 554919RIB 72446643 860809GB 89213809 8EL012584-481 8EL738053-001 A0121546702 A0122 AAN5406 AEG1309 AG0002 ALB1693 ALB9693 BOS0124655039 CA1693IR CAL10627AS CAL10627GS CAL10645 CAL10645AS CAL10645ES CAL10645GS CAL10645OS CAL10645RS LRA03247 LRA3247 MAN2100 UNIT BOM 920-3314Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 80 mm |
| Diameter (D.1) | 12 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | 12 mm |
| Length (L.1) | 195 mm |
| OEM Product | No |
| Plug Code | PL_5003 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Type | NO PULLEY |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | 85.330 11.6 | [WS242] | 07.1992-02.1998 |
| DAF | 85.330 11.6 | [WS242L] | 07.1992-02.1998 |
| DAF | 85.330 11.6 | [WS242M] | 07.1992-02.1998 |
| DAF | 85.360 11.6 | [WS268] | 07.1992-02.1998 |
| DAF | 85.360 11.6 | [WS268L] | 07.1992-02.1998 |
| DAF | 85.360 11.6 | [WS268M] | 07.1992-02.1998 |
| DAF | 85.400 11.6 | [WS295M] | 03.1995-02.1998 |
| DAF | 85CF 380 12.6 | [XE280C] | 02.1998-12.2000 |
| DAF | 85CF 380 12.6 | [XE280C1] | 02.1998-12.2000 |
| DAF | 85CF 380 12.6 | [XF280M] | 02.1998-12.2000 |
| DAF | 85CF 430 12.6 | [XF315M] | 02.1998-12.2000 |
| DAF | CF 75.250 9.2 | [PE183C] | 01.2001-05.2013 |
| DAF | CF 75.250 9.2 | [PR183S] | 01.2001-05.2013 |
| DAF | CF 75.310 9.2 | [PE228C] | 01.2001-05.2013 |
| DAF | CF 75.310 9.2 | [PR228S] | 01.2001-05.2013 |
| DAF | CF 75.360 9.2 | [PE265C] | 01.2001-05.2013 |
| DAF | CF 75.360 9.2 | [PR265S] | 01.2001-05.2013 |
| DAF | CF 85.340 12.6 | [XE250C] | 01.2001-05.2013 |
| DAF | CF 85.340 12.6 | [XE250C] | 12.2005-05.2013 |
| DAF | CF 85.380 12.6 | [XE280C] | 01.2001-05.2013 |
| DAF | CF 85.380 12.6 | [XE280C] | 12.2005-05.2013 |
| DAF | CF 85.430 12.6 | [XE315C] | 01.2001-05.2013 |
| DAF | CF 85.430 12.6 | [XE315C] | 12.2005-05.2013 |
Reference Information
0124655039 CAL10627GS 1377860 906.501.100.010 8EL012584-481 906.501.100.770 906.501.100.014 1697322R 89213809 906.501.100.215 DRB6570 20101726IT 23535N 1697322 0124655003 PRAF009 301693RI A24BH0094 LRA2920 19070018 210673 CAL10627AS 1986A00547 115618 AG0002 301693RIB ALT126270 CAL10627IS ALT440 DRB6570X 48-5534 115617 DB7680 301693RIP 0986046570 ALT1336 CA1693IR A24BH0094AS 2443 301693RIM 2010627 ALTF009 2010627.1 ALT10084 LRA02920 2010627.5 A0122 19092042 20101726OE 19092002 442004 6.8052.1 BOS0986046570 1697024 20101726BN GA655003-AVideo/Publications
A0122Related Items
