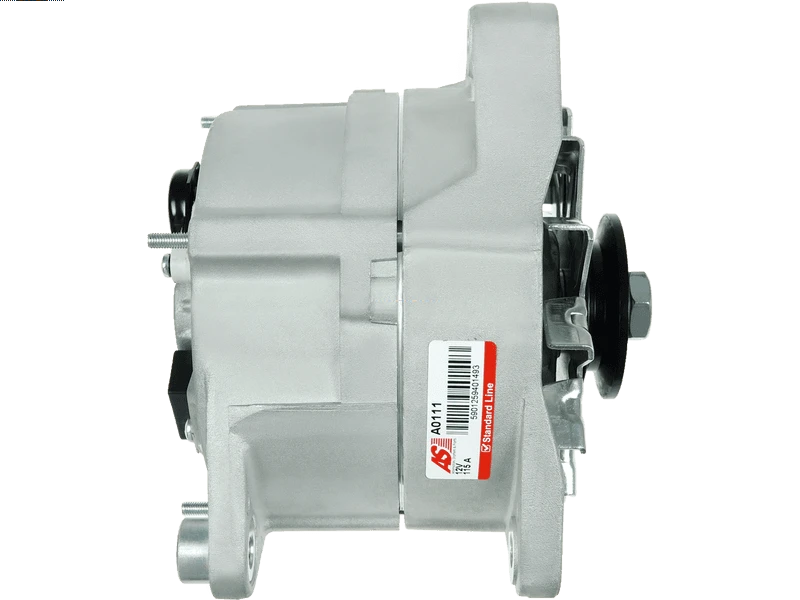

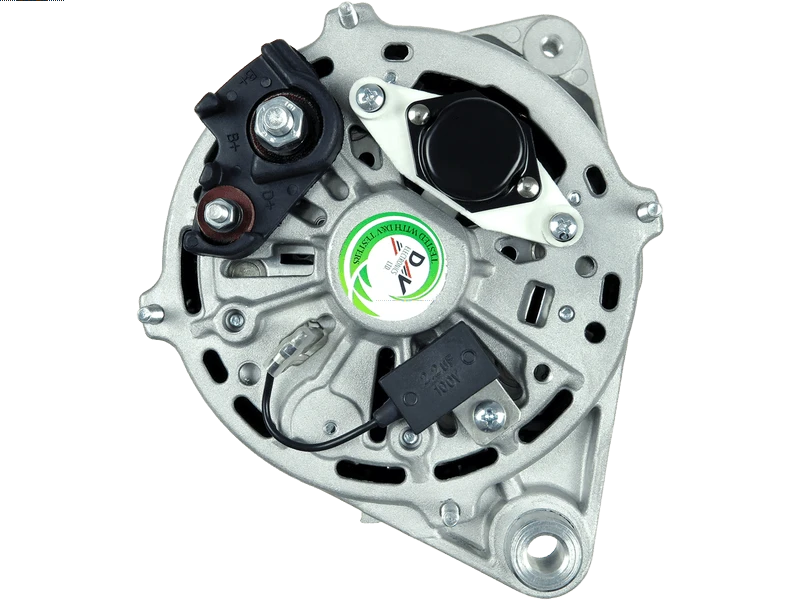

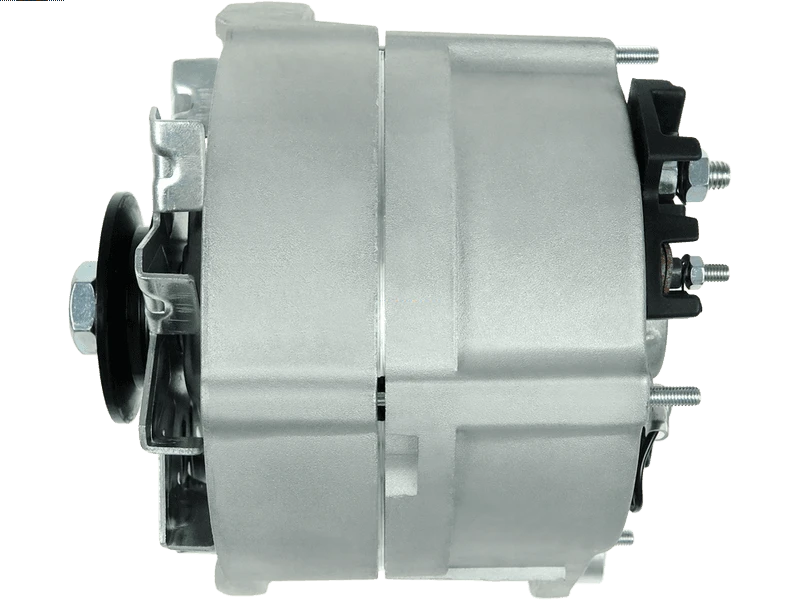

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 501.02 including GST
NZ$ 435.67 excluding GST
or four payments of $125.26
with
Learn More
each
A0111
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0120468017Associated Numbers
0120468017 0120468019 0120468020 0120468022 0120468023 0120468024 0120468044 0120468052 0120468070 0120468079 0120468108 0120468109 0120468112 0120468123 0120468141 034903015F 034903016 034903016H 034903017B 034903017BX 046903015D 051903015D 054903015A 054903015J 054903015L 077903015 077903015C 077903015G 0986038300 0986039690 11.0700 112777 13242R 20101461BN 2010164 20110372 20130239 28-1816 28-1943 28-3730 28-3742 301141RI 301141RIR 30700RI 32468017 437629 437657 4457 56393 7634026 7689341 7713061 89213064 8EL726547-001 9038300 A0111 AEA5161 ALT10389 B120501043 CA700IR CAL10164AS DRA6270 DRA9690 LRA01438 SA978Specifications
| Amp | 115 A |
| Bottom Mounting Foot Width (B) | 14.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 179 mm |
| Mount Inside Length or Pad Mount C-C (C) | 84 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 43 mm |
| Pulley Outside Diameter (O.D.2) | 67 mm |
| Pulley to Mount Distance (A) | 32 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | 100 2.2 | [KU] | 08.1984-12.1990 |
| AUDI | 100 2.2 E Turbo Quattro | [MC] | 08.1988-11.1990 |
| AUDI | 100 2.2 Turbo | [MC] | 08.1988-11.1990 |
| AUDI | 100 2.2 Turbo Quattro | [MC] | 01.1989-11.1990 |
| AUDI | 100 2.3 | [AAR] | 03.1990-07.1991 |
| AUDI | 100 2.3 | [NF] | 10.1986-11.1990 |
| AUDI | 100 2.3 E | [AAR] | 01.1990-11.1990 |
| AUDI | 100 2.3 E | [NF] | 10.1986-11.1990 |
| AUDI | 100 2.3 E Quattro | [NF] | 08.1986-11.1990 |
| AUDI | 100 2.3 Quattro | [AAR] | 01.1990-11.1990 |
| AUDI | 100 2.5 TDi | [1T] | 01.1990-11.1990 |
| AUDI | 100 2.5 TDi | [AAT] | 12.1990-06.1994 |
| AUDI | 100 2.5 TDi | [ABP] | 12.1990-07.1992 |
| AUDI | 100 4.2 V8 S4 Quattro | [ABH] | 10.1992-06.1994 |
| AUDI | 100 4.2 V8 S4 Quattro | [AEC] | 10.1992-07.1994 |
| AUDI | 200 2.2 Turbo | [1B] | 08.1988-12.1991 |
| AUDI | 200 2.2 Turbo | [2B] | 08.1988-12.1991 |
| AUDI | 200 2.2 Turbo | [MC] | 03.1988-12.1991 |
| AUDI | 200 2.2 Turbo 20V Quattro | [3B] | 03.1989-12.1990 |
| AUDI | 200 2.2 Turbo Quattro | [1B] | 08.1988-11.1990 |
| AUDI | 200 2.2 Turbo Quattro | [MC] | 08.1988-12.1991 |
| AUDI | 200 2.3 | [NF] | 11.1986-09.1991 |
| AUDI | 80 2.3 | [NG] | 09.1991-01.1996 |
| AUDI | 80 2.3 Quattro | [NG] | 09.1991-12.1994 |
| AUDI | 90 2.0 20V Quattro | [NM] | 08.1988-09.1991 |
| AUDI | 90 2.2 E Quattro | [KV] | 04.1987-09.1991 |
| AUDI | 90 2.3 E | [NG] | 03.1990-12.1991 |
| AUDI | 90 2.3 E | [NG] | 04.1987-07.1991 |
| AUDI | 90 2.3 E 20V | [7A] | 08.1988-12.1991 |
| AUDI | 90 2.3 E 20V Quattro | [7A] | 06.1988-09.1991 |
| AUDI | 90 2.3 E Quattro | [NG] | 04.1987-07.1991 |
| AUDI | 90 2.3 E Quattro | [NG] | 04.1987-09.1991 |
| AUDI | Cabriolet 2.3 | [NG] | 05.1991-07.1994 |
| AUDI | Coupe 2.2 S2 Quattro | [3B] | 09.1990-09.1992 |
| AUDI | Coupe 2.2 Turbo Quattro | [1B] | 08.1988-11.1990 |
| AUDI | Coupe 2.2 Turbo Quattro | [MB] | 08.1988-07.1989 |
| AUDI | Coupe 2.3 | [NG] | 10.1988-07.1994 |
| AUDI | Coupe 2.3 20V | [7A] | 08.1989-07.1991 |
| AUDI | Coupe 2.3 20V Quattro | [7A] | 11.1988-07.1991 |
| AUDI | Coupe 2.3 Quattro | [NG] | 11.1988-07.1994 |
| AUDI | S4 2.2 Turbo Quattro | [AAN] | 08.1991-07.1994 |
| AUDI | S6 4.2 Plus Quattro | [AHK] | 06.1996-10.1997 |
| AUDI | S6 4.2 Quattro | [AEC] | 09.1994-07.1997 |
| AUDI | V8 3.6 Quattro | [PT] | 10.1988-02.1994 |
| AUDI | V8 4.2 Quattro | [ABH] | 10.1991-11.1993 |
| LANCIA | Thema 2.0 16V | [834F1.000] | 05.1992-11.1994 |
| LANCIA | Thema 2.0 Turbo 16V | [834C.1000] | 06.1988-12.1990 |
| LANCIA | Thema 2.0 Turbo 16V | [834C1.246] | 04.1989-05.1992 |
| LANCIA | Thema 2.0 Turbo 16V | [834F2.000] | 05.1992-11.1994 |
| LANCIA | Thema 2.8 i.e. V6 | [834E.000] | 11.1984-09.1988 |
| LANCIA | Thema 2.8 i.e. V6 | [834E.146] | 06.1988-05.1992 |
Reference Information
210150 20101461BN 7689340 054903015A 0120468052 A0111 CA700IR 059903015X 28-3742 046903015FX ALT6720 11.0700 059903015 2010164 7689341 32468017 9038300 DRA9690 046903015 311264 046903017 ALT1169 LRA1438 046903015GX 051903015D 4457 5510629 034903017BX STX100575R 301141RIR 113758 046903015F 046903015G 077903015 077903017X 046903015D 049903015FX 56393 DRA6270 A12BH0732A2 30700RI 54903015 0986039690 210202 301141RI 20130239 112777 ANM38490X LRA01438 437657 0120468044 20110372 STX101379 7634026 89213064 054903015L SA978 054903015J 034903015F 0120468017 STX100854 AEA5161 46903015 STX100575 0120468020 0120468141 440847 440846 ALTL595 0120468024 CA1141IR 0120468023 0120468022 ALT10389 28-1816 077903015C 0120468019 7713061 7612356 077903015G B120501043 0120468070 437629 034903017B CAL10164AS STA0332R 51903015 049903015F 13242R 0120468079 0120468112 STX100903 0120468109 0120468108 PRAL595 28-1943 STX100197 34903017 ALT121640A 034903016 0986038300 0120468123 0120468122 034903016H 046903017X 28-3730 ALT121640 8EL726547-001 STX101379R STX100197RVideo/Publications
