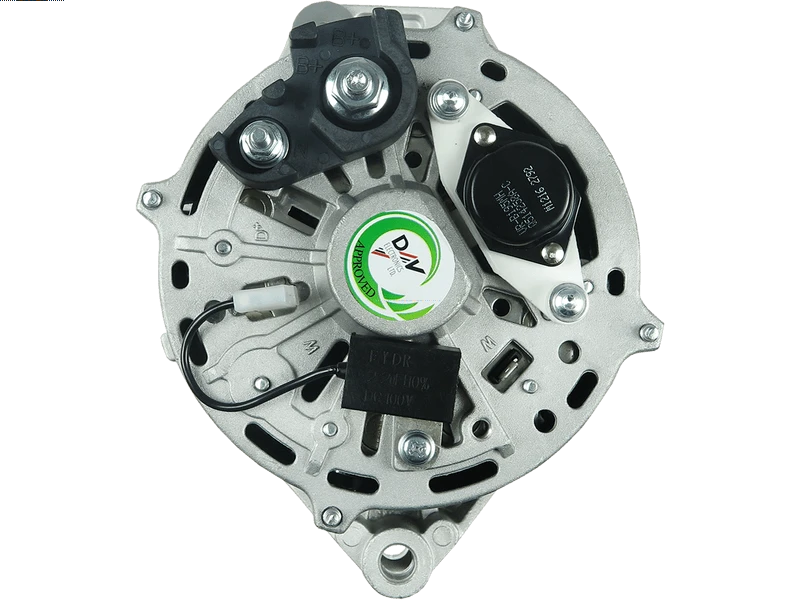

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 333.76 including GST
NZ$ 290.23 excluding GST
or four payments of $83.44
with
Learn More
each
A0106
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0120469722 0120469723 068903017Q 068903029K 112765 2010169.0 20101961BN 20110176 28-1706 32469722 437405 4488 56308 89212162 8EL012426-641 8EL725893-001 A0106 ALT10177 B120500330 B120500331 CA610IR CAL10169AS DRA6790 LRA02644Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 56.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | 10.5 mm |
| Length (L.1) | 185 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 9 mm |
| Pulley Outside Diameter (O.D.1) | 41 mm |
| Pulley Outside Diameter (O.D.2) | 66 mm |
| Pulley to Mount Distance (A) | 100 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Passat 1.6 TD | [RA] | 08.1998-09.1993 |
| VW | Passat 1.6 TD | [SB] | 08.1998-09.1993 |
| VW | Passat 1.9 D | [1Y] | 05.1989-10.1993 |
| VW | Transporter 1.5 | 07.1966-07.1967 | |
| VW | Transporter 1.6 | 06.1996-07.1997 | |
| VW | Transporter 1.6 D | [CS] | 01.1981-07.1987 |
| VW | Transporter 1.6 TD | [JX] | 08.1984-07.1992 |
| VW | Transporter 1.6 TD | [JX] | 10.1984-07.1992 |
| VW | Transporter 1.6 TD Syncro | [JX] | 03.1986-07.1992 |
| VW | Transporter 1.7 D | [KY] | 07.1989-07.1992 |
| VW | Transporter 1.7 D | [KY] | 08.1984-07.1992 |
| VW | Transporter 1.7 D | [KY] | 10.1986-07.1992 |
| VW | Transporter 2.4 D | [AAB] | 07.1990-04.1998 |
| VW | Transporter 2.4 D | [AAB] | 09.1990-04.1998 |
| VW | Transporter 2.4 D Syncro | [AAB] | 10.1992-09.1998 |
| VW | Transporter 2.5 | [AAF] | 11.1990-04.2003 |
| VW | Transporter 2.5 | [AAF] | 11.1990-06.2003 |
| VW | Transporter 2.5 | [ACU] | 11.1990-04.2003 |
| VW | Transporter 2.5 | [ACU] | 11.1990-06.2003 |
| VW | Transporter 2.5 | [AEN] | 11.1990-04.2003 |
| VW | Transporter 2.5 | [AEN] | 11.1990-06.2003 |
| VW | Transporter 2.5 | [AEU] | 11.1990-04.2003 |
| VW | Transporter 2.5 | [AEU] | 11.1990-06.2003 |
Reference Information
068903017Q 112765 ALTS559 437405 RNL3679 CAL10169AS 031903023A ALT121690A STX100731 4488 210145 89212162 CGB-81706 1516597R 068903017QX CA610IR 68903031RX 2010169 A0106 068903031RX 74903025A 069903029K STX100069 036903025J 74903023 074903025A 68903031R 56308 68903017QX 20101961BN DRA6790 068903031R 0120469722 28-1706 LRA2644 ALT10177 ALT1330 STX100069R STX100273 32469722 ALT121690 8EL012426-641 8EL725893-001 LRA02644 68903029H 68903029K 74903023A 68903029J B120500330 20110176 B120500331 ANM39010X 311237 STX100886 0120469723 68903017Q 068903029L 074903023A 068903029K 068903029J 068903029H STA0202R PRAS559Video/Publications
