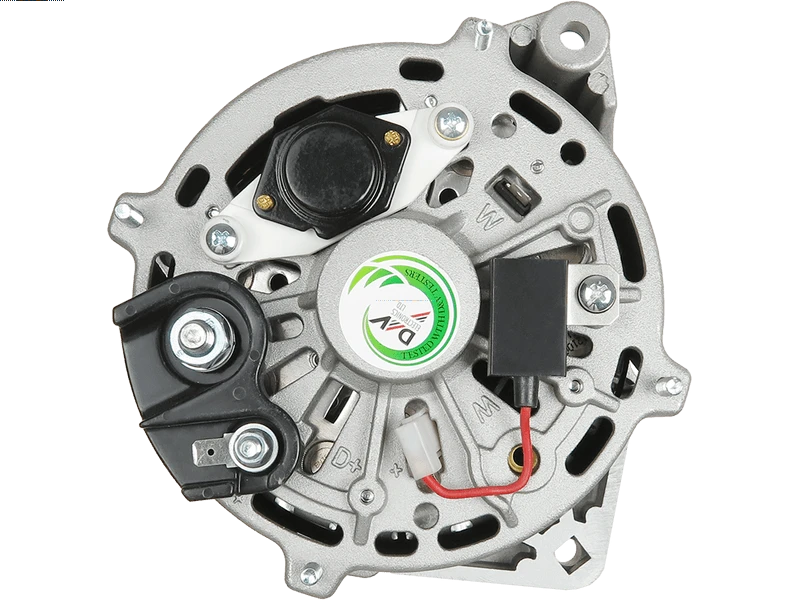

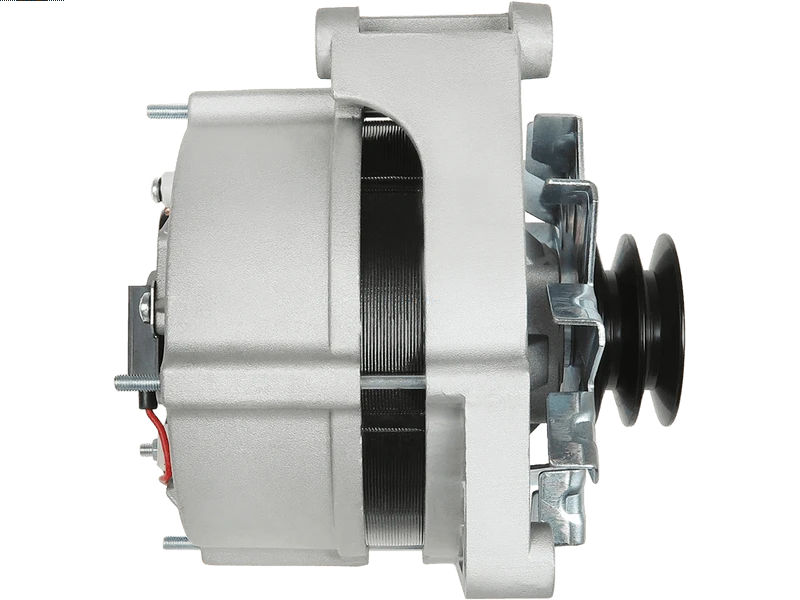

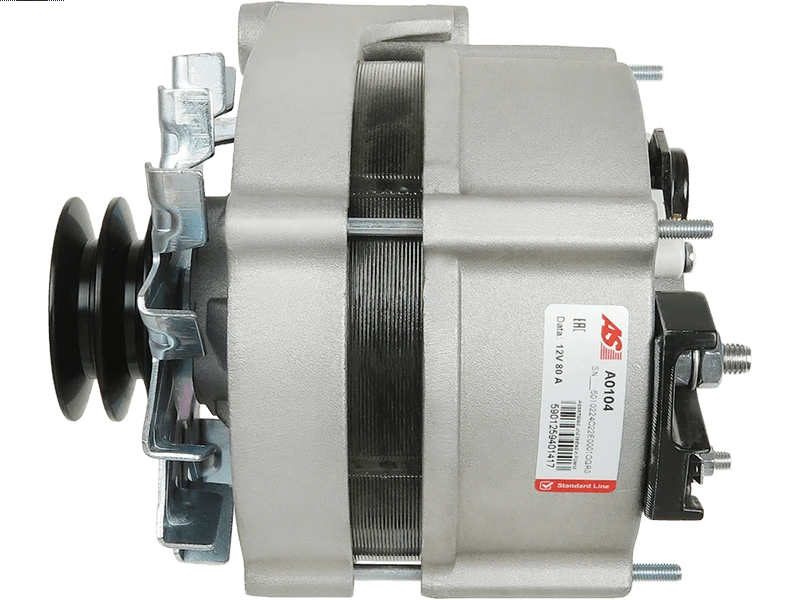

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 410.81 including GST
NZ$ 357.23 excluding GST
or four payments of $102.70
with
Learn More
each
A0104
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0120469784 0120469785 0120469786 0120469787 0120469793 0986034700 0986034710 100211-8370 11.0381 112746 13235N 13244 13244RW 1363496 1363511 1398327 20100952 20101071RC 2010170 28-1583 30381RI 30905RI 32034700 437523 437795 4381 5003665 5003804 56309 89212535 8EL725787-001 9034710 AEA9152 ALT10281 CA381IR CAL10170RS DA4635 DRA3525 DRA4700 DRA4710 EAA-222439 LRA00952 SA781Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 70 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Length (L.1) | 181 mm |
| OEM Product | No |
| Plug Code | PL_9104 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 2 qty |
| Pulley Groove Width (W.1) | 9.5 mm |
| Pulley Outside Diameter (O.D.1) | 39 mm |
| Pulley Outside Diameter (O.D.2) | 63 mm |
| Pulley to Mount Distance (A) | 93 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | 240 2.1 Turbo | [B230F] | 08.1986-07.1993 |
| VOLVO | 240 2.1 Turbo | [B230K] | 08.1984-07.1990 |
| VOLVO | 240 2.1 Turbo | [B23E] | 07.1986-12.1988 |
| VOLVO | 240 2.1 Turbo | [B23E] | 08.1986-12.1989 |
| VOLVO | 360 2.0 | [B200E] | 08.1986-07.1989 |
| VOLVO | 360 2.0 | [B200EA] | 08.1986-07.1988 |
| VOLVO | 360 2.0 | [B200EA] | 08.1987-07.1988 |
| VOLVO | 360 2.0 | [B200F] | 08.1986-07.1990 |
| VOLVO | 360 2.0 | [B200K] | 08.1986-07.1990 |
| VOLVO | 740 2.0 | [B200ET] | 08.1986-07.1989 |
| VOLVO | 740 2.0 | [B200F] | 08.1989-07.1991 |
| VOLVO | 740 2.0 | [B200K] | 08.1986-07.1989 |
| VOLVO | 740 2.3 | [B230E] | 08.1986-07.1988 |
| VOLVO | 740 2.3 | [B230F] | 08.1986-07.1990 |
| VOLVO | 740 2.3 | [B230F] | 08.1987-07.1991 |
| VOLVO | 740 2.3 | [B230FB] | 08.1988-07.1990 |
| VOLVO | 740 2.3 | [B230K] | 06.1986-07.1990 |
| VOLVO | 740 2.3 | [B23A] | 08.1986-07.1990 |
| VOLVO | 940 2.0 | [B200F] | 09.1990-08.1991 |
| VOLVO | 940 2.0 Turbo | [B200FT] | 04.1996-10.1998 |
| VOLVO | 960 2.0 | [B204E] | 09.1991-07.1994 |
Reference Information
1398327 13634936 CGB-81583 11.0381 0120469785 0120469786 0120469787 20101071RC ALT10159 0120469784 8251744 815.011.080.215 DRA4710 STX101047R 35444983 5003666 5003665 13244 4381 13634944 50036656 A12BH0597A2 1363493 ALTL554RR 8EL725787-001 ALT121700 815.011.080.010 A0104 0120469793 440486 AEA9152 35444975 ANM36930X PRAF280 ALTL554 PRAL748 1363494 437523 1363496 20100952 100211-8370 56309 112746 STX101280 89212535 LRA00952 32034700 0986034710 ALTF280 30381RI 50038041 ALT121700R 9034710 ALTL748 PRAL554 5003805 5003804 SA781 DA4635 STX101047 5003644 DRA3525 28-1583 437795 13235N CA381IR 50038058 2010170 13244RW ALT10281 CAL10170RS 0986034700 LRA952 EAA-222439 3544498 3544497 DRA4700 30905RI 50036946 5003694 1363511Video/Publications
