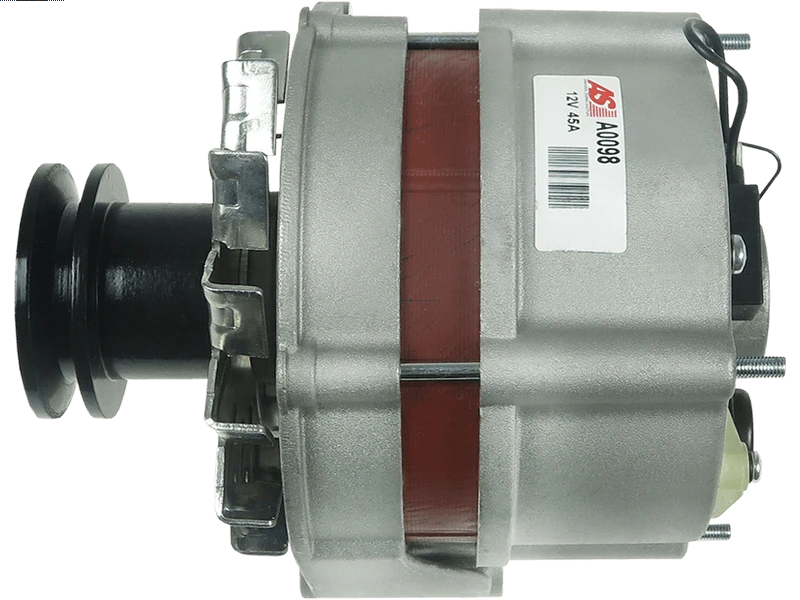

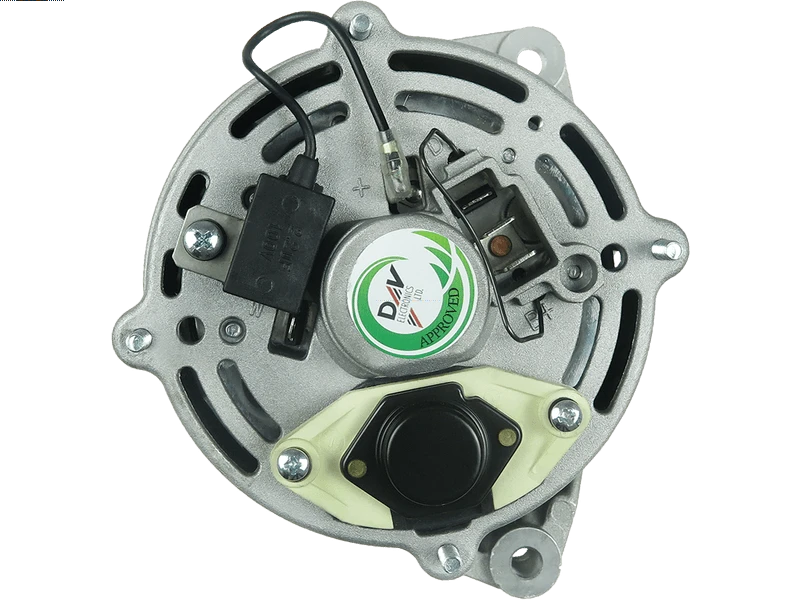

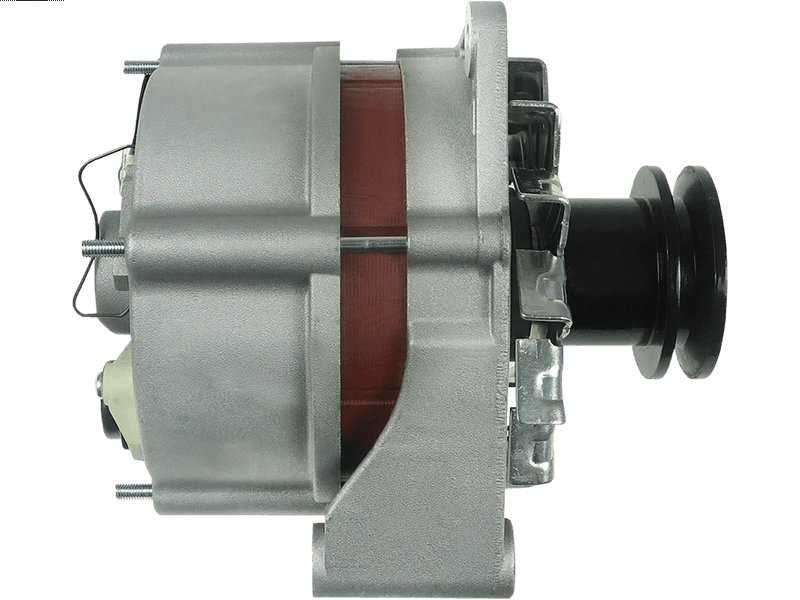

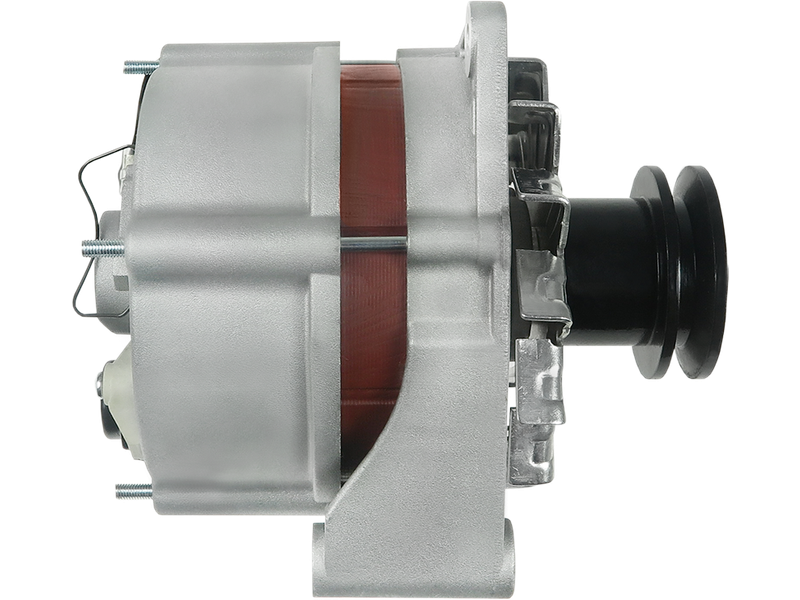

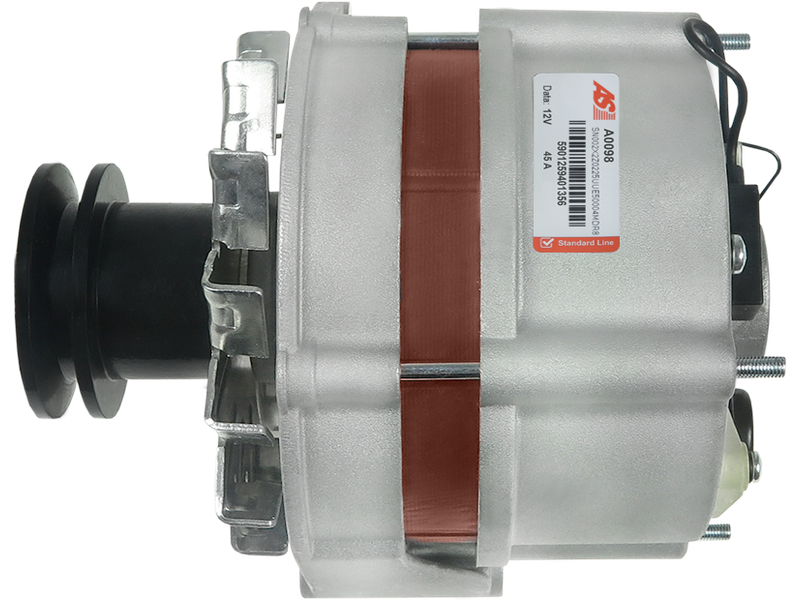

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 323.28 including GST
NZ$ 281.11 excluding GST
or four payments of $80.82
with
Learn More
each
A0098
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0120489966 0120489967 068903017 068903017X 068903025C 068903027P 068903027PX 076903023M 0986031480 0986031488 11.0367 11.201.605 110767 20101025BN 2010520 28-0584 28-946 30140RI 301466RIP 30367RI 32034520 32489732 4241 432849 436208 55575 66021423 8EL725771-001 9031480 9AR5046G A0098 AAK3505 AEA8194 ALT10239 CA367IR DRA1480 DRA1520 EAA-221525 LRA00992 LRA02584 SA283 SA931 SA932Specifications
| Amp | 45 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8.5 mm |
| Length (L.1) | 183 mm |
| OEM Product | No |
| Plug Code | PL_3200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 45 mm |
| Pulley Outside Diameter (O.D.2) | 65 mm |
| Pulley to Mount Distance (A) | 111 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | 80 1.6 Diesel | [CR] | 08.1980-07.1985 |
| AUDI | 80 1.6 Diesel | [JK] | 08.1982-07.1985 |
| AUDI | 80 1.6 TD | [CY] | 08.1981-07.1985 |
| AUDI | 90 1.6 TD | [CY] | 10.1984-07.1985 |
| VW | Passat 1.6 Diesel | [CR] | 08.1980-07.1982 |
| VW | Passat 1.6 Diesel | [JK] | 08.1982-07.1985 |
| VW | Passat 1.6 TD | [CY] | 04.1982-07.1985 |
| VW | Santana 1.6 Diesel | [CR] | 08.1981-07.1982 |
| VW | Santana 1.6 Diesel | [JK] | 08.1982-12.1984 |
| VW | Santana 1.6 TD | [CY] | 04.1982-12.1984 |
Reference Information
30367RI 076903023M 32034520 060903017A LRA2584 076903023E 076903023D AAK3505 068903017X 068903025S DRA1480 AEA8194 STX100854 DRA1520 8EL725771-001 ALT10239 STX100571 1516464R ALC959 32489732 9AR5046G 049903023FX CA367IR LRA02584 55575 SA283 055903023S 055903023R EAA-221525 30140RI 66021423 060903023C ALTF337 060903017AX 20101025BN 68903017 068903027P 049903023F PRAF337 111653 049903023E 068903023J 9031480 068903023H 0986031480 LRA00992 ANM33700X A0098 110767 0986031488 CA140IR STX100911 0120489966 0120489967 068903025DX 068903027PX 11.0367 436208 28-0946 LRA992 76903023 CGB-80584 432849 2C959 11.201.605 076903023A STX101379 STX101379R SA931 002-C959 SA932 068903025D 068903025C 28-0584 049903023JVideo/Publications
A0098Related Items
