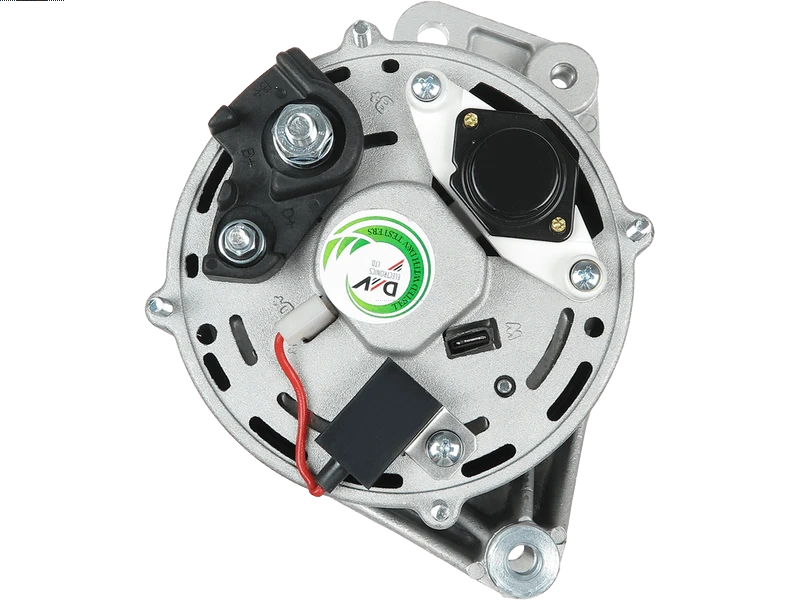

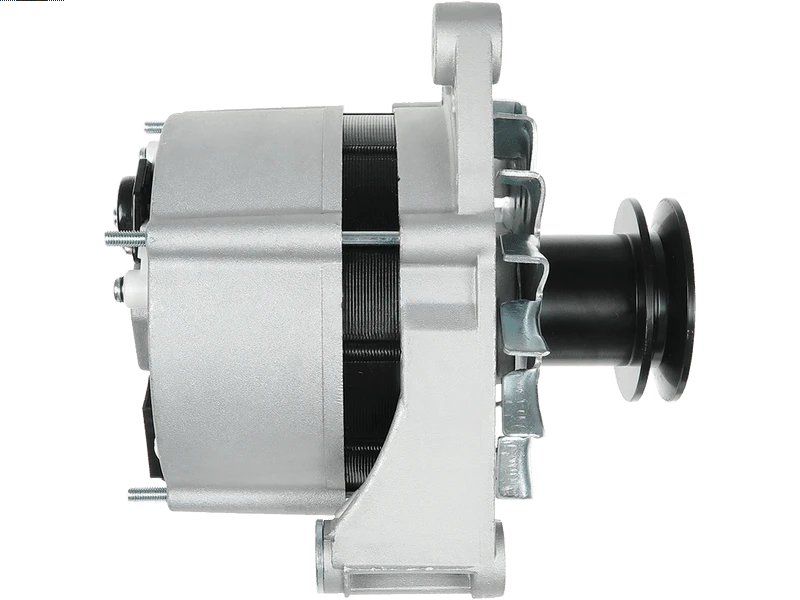

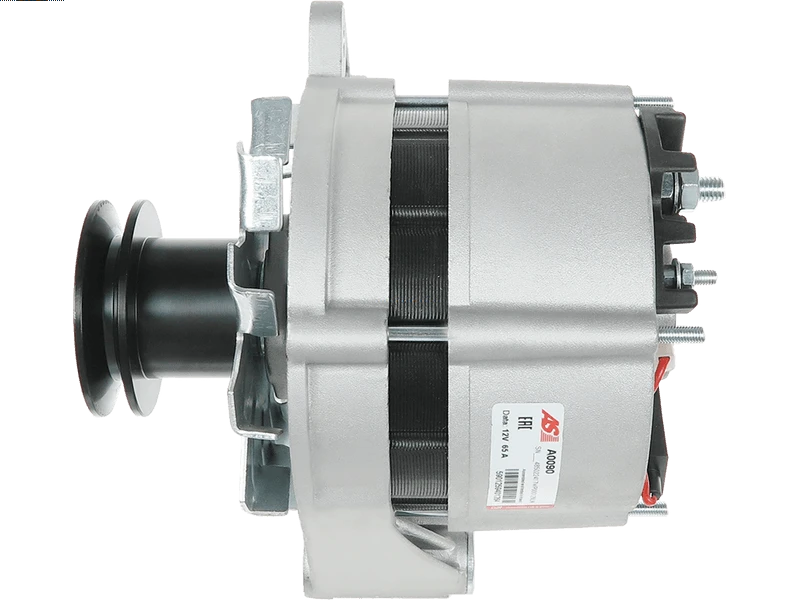

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 295.27 including GST
NZ$ 256.76 excluding GST
or four payments of $73.82
with
Learn More
each
A0090
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0120489364 0120489371 0120489441 0120489448 025903023 025903023B 034903015J 076903023I 0986034518 11.0911 112149 2010119 20101911BN 28-0944 30298RI 305.012.065 30911RI 32489365 35213795 4307 436240 55562 66021547 89212325 8EL732694-001 9034510 AEA6196 ALT10450 CA911IR CAL10119AS DRA4230 DRA4510 LRA00696Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | 10 mm |
| Length (L.1) | 193 mm |
| OEM Product | No |
| Plug Code | PL_9105 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10 mm |
| Pulley Outside Diameter (O.D.1) | 45 mm |
| Pulley Outside Diameter (O.D.2) | 67 mm |
| Pulley to Mount Distance (A) | 111 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | 100 2.0 | [AAD] | 12.1990-07.1991 |
| AUDI | 90 2.0 | [HP] | 08.1985-03.1987 |
| AUDI | 90 2.0 | [JS] | 08.1985-03.1987 |
| AUDI | 90 2.0 | [SK] | 03.1986-03.1987 |
| AUDI | 90 2.2 | [HY] | 08.1985-03.1987 |
| AUDI | 90 2.2 | [KV] | 08.1985-03.1987 |
| AUDI | 90 2.2 | [KX] | 08.1985-03.1987 |
| AUDI | Coupe 2.0 | [HP] | 08.1985-07.1986 |
| AUDI | Coupe 2.0 | [JS] | 08.1985-07.1986 |
| AUDI | Coupe 2.0 | [SK] | 03.1986-04.1988 |
| AUDI | Coupe 2.2 GT | [KV] | 08.1985-10.1988 |
| AUDI | Coupe 2.2 GT | [KX] | 08.1985-10.1988 |
| AUDI | Coupe 2.2 Quattro | [JT] | 08.1985-10.1988 |
| AUDI | Coupe 2.2 Quattro | [KV] | 08.1985-10.1988 |
| VW | LT 28-35 2.4 Diesel | [DW] | 08.1985-07.1992 |
| VW | Passat 2.0 | [HP] | 08.1985-03.1988 |
| VW | Passat 2.0 | [JS] | 08.1985-03.1988 |
| VW | Passat 2.2 | [KV] | 08.1985-03.1988 |
| VW | Passat 2.2 | [KX] | 08.1985-03.1988 |
| VW | Passat 2.2 Syncro | [JT] | 08.1985-03.1988 |
| VW | Transporter 1.9 | [DF] | 08.1985-07.1992 |
| VW | Transporter 1.9 | [DG] | 08.1985-07.1992 |
| VW | Transporter 1.9 Syncro | [DG] | 08.1985-07.1992 |
| VW | Transporter 2.1 Syncro | [DJ] | 01.1986-07.1992 |
| VW | Transporter 2.1 Syncro | [MV] | 08.1985-07.1992 |
Reference Information
026903017A 068903029S 330903015 CA911IR 35213795 068903017N LRA00696 034903015G 076903023I 076903023K DRA4230 069903017BX 076903023J STX100977 DRA4510 55562 STX100108R 436240 26903017 26903015 068903031KX 8EL732694-001 30298RI LRA696 STX100979 STX100108 1516544R 2010119 17S903015E 1516584R 66021547 025903017X 11.0911 STX100262 026903017AX 0175903015E 037903023P ALT3140 STX100181 068903031K ALT10450 112149 32489365 STX100181R 026903015A 026903015EX 0120489371 305.012.065 025903023B 026903015E 026903023B 026903015D 026903023A 9034510 CA520IR 0986034518 0120489448 30911RI ALT1253 AEA6196 STX101288 026903015DX 068903017SX 210129 25903023 4307 ALTF508 89212325 28-0944 0120489364 0120489441 CAL10119AS 026913015E ANM36730X A0090 210339 026903017N 034903015J STX100400 069903023E 069903023F 20101911BN 026903017X STX100400R 068903033B 111094 068903017NX A12BH0129A2 STX100262RVideo/Publications
