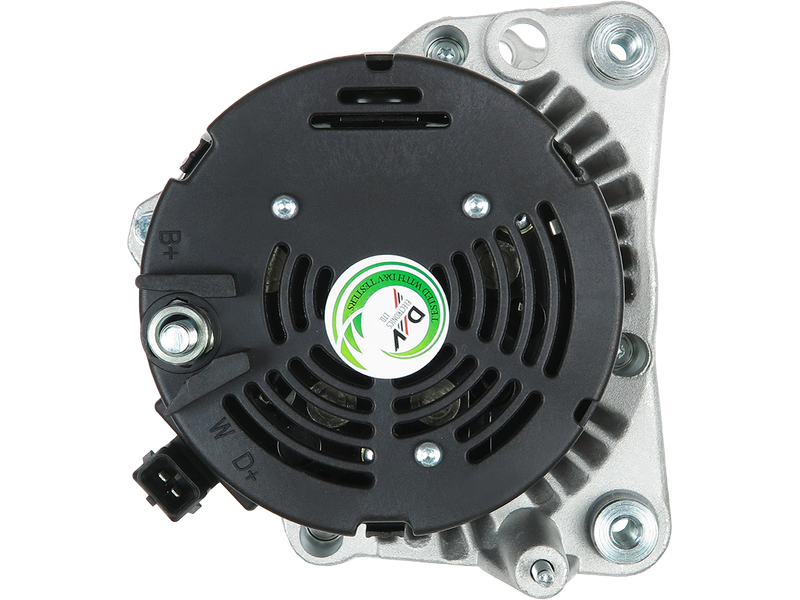

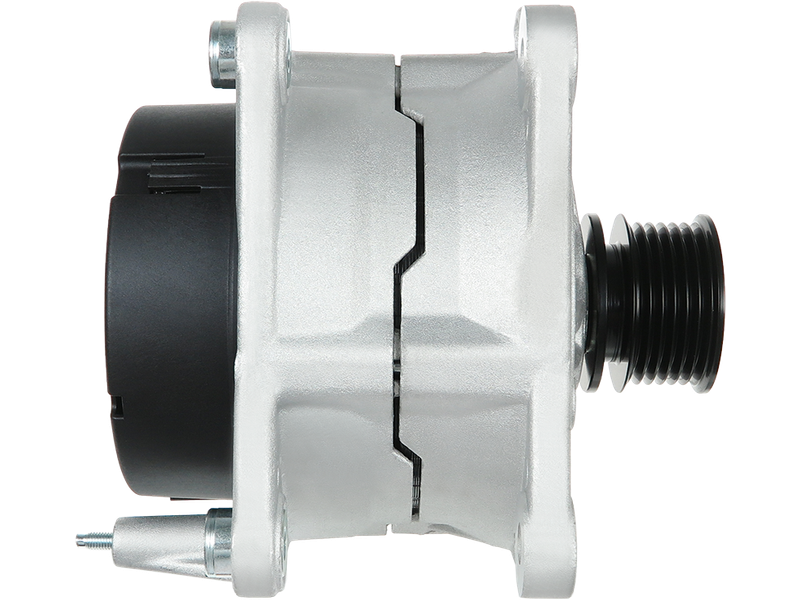

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 360.82 including GST
NZ$ 313.76 excluding GST
or four payments of $90.21
with
Learn More
each
A0080
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
0123320027 0123320034 028903018A 028903018AX 037903025C 0986040940 11.1240 11.1240M 111820 13902N 20101135BN 2010531 20119321OE 2021123 28-2864 301240RI 30736RI 32038370 35214095 35214370 35215395 436444 437477 439003 4585 56293 56703 89212409 8EL737368-001 9040940 9212409 9517183 AEA3287 ALT10183 CA1240IR CAL10531AS CAL21123GS DRB0940 EAA-221661 LRB00387 SA130 SA131Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8.5 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 185 mm |
| Mount Inside Length or Pad Mount C-C (C) | 62 mm |
| OEM Product | No |
| Plug Code | PL_2100 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 40 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A3 1.6 | [AEH] | 09.1996-05.1998 |
| AUDI | A3 1.6 | [AEH] | 09.1996-05.2003 |
| AUDI | A3 1.6 | [AKL] | 08.1997-04.1998 |
| AUDI | A3 1.6 | [AKL] | 09.1996-05.2003 |
| AUDI | A3 1.6 | [APF] | 09.1996-05.2003 |
| AUDI | A3 1.8 | [AGN] | 09.1996-05.1998 |
| AUDI | A3 1.8 | [AGN] | 09.1996-05.2003 |
| AUDI | A3 1.8 | [APG] | 09.1996-05.2003 |
| AUDI | A3 1.8 T | [AGU] | 12.1996-05.2003 |
| AUDI | A3 1.8 T | [AQA] | 12.1996-05.2003 |
| AUDI | A3 1.8 T | [ARZ] | 12.1996-05.2003 |
| AUDI | A3 1.8 T | [AUM] | 12.1996-05.2003 |
| AUDI | A3 1.8 T Quattro | [AGU] | 12.1996-05.2003 |
| AUDI | A3 1.8 T Quattro | [AQA] | 12.1996-05.2003 |
| AUDI | A3 1.8 T Quattro | [ARX] | 12.1996-05.2003 |
| AUDI | A3 1.8 Turbo 20V | [AGU] | 12.1996-04.1998 |
| AUDI | A3 1.8 Turbo Quattro | [AGU] | 08.1997-05.1998 |
| AUDI | A3 1.8 Turbo Quattro | [ARX] | 10.1999-06.2003 |
| AUDI | A3 1.9 TDi | [AHF] | 08.1997-07.2001 |
| AUDI | A3 1.9 TDi | [ASV] | 08.1997-07.2001 |
| SKODA | Felicia 1.6 | [AEE] | 06.1997-04.2002 |
| SKODA | Felicia 1.6 | [AEE] | 01.1998-06.2001 |
| SKODA | Felicia 1.6 | [AEE] | 06.1997-04.2002 |
| SKODA | Felicia 1.6 | [AEE] | 06.1997-08.2001 |
| SKODA | Felicia 1.6 GLX | [AEE] | 05.1995-08.2001 |
| SKODA | Felicia 1.6 GLX | [AEE] | 08.1995-03.1998 |
| SKODA | Felicia 1.6 LX | [AEE] | 08.1995-03.1998 |
| SKODA | Felicia 1.6 LX | [AEE] | 08.1995-08.2001 |
| SKODA | Octavia 1.6 | [AEE] | 07.1998- |
| SKODA | Octavia 1.6 | [AEE] | 07.1998-09.2004 |
| SKODA | Octavia 1.6 | [AEE] | 09.1996-09.2004 |
| SKODA | Octavia 1.8 | [AGN] | 09.1996-06.1998 |
| SKODA | Octavia 1.8 | [AGN] | 09.1996-07.2000 |
| SKODA | Octavia 1.8 20V | [AGN] | 07.1998-07.2000 |
| SKODA | Octavia 1.8 20V | [AGN] | 10.1996-06.1998 |
| VW | Caddy 1.9 D | [AEF] | 06.1996-12.2000 |
| VW | Caddy 1.9 Diesel | [AEF] | 06.1996-12.2000 |
| VW | Golf III 1.4 | [ABD] | 08.1991-05.1996 |
| VW | Golf III 1.4 | [AEX] | 08.1991-05.1996 |
| VW | Golf IV 1.4 16V | [AHW] | 10.1997-05.1998 |
| VW | Golf IV 1.4 16V | [AHW] | 10.1997-05.2004 |
| VW | Golf IV 1.4 16V | [AKQ] | 10.1997-05.1998 |
| VW | Golf IV 1.4 16V | [AKQ] | 10.1997-05.2004 |
| VW | Golf IV 1.4 16V | [APE] | 10.1997-05.1998 |
| VW | Golf IV 1.4 16V | [APE] | 10.1997-05.2004 |
| VW | Golf IV 1.4 16V | [AXP] | 10.1997-05.2004 |
| VW | Golf IV 1.4 16V | [BCA] | 10.1997-05.2004 |
| VW | Golf IV 1.6 | [AEH] | 01.1998-04.2001 |
| VW | Golf IV 1.6 | [AEH] | 05.1999-04.2002 |
| VW | Golf IV 1.6 | [AEH] | 08.1997-05.2004 |
| VW | Golf IV 1.6 | [AKL] | 05.1999-04.2002 |
| VW | Golf IV 1.6 | [AKL] | 08.1997-05.2004 |
| VW | Golf IV 1.6 | [AKL] | 10.1997-05.1998 |
| VW | Golf IV 1.6 | [APF] | 05.1999-04.2002 |
| VW | Golf IV 1.6 | [APF] | 08.1997-05.2004 |
| VW | Golf IV 1.8 | [AGN] | 08.1997- |
| VW | Golf IV 1.8 | [AGN] | 08.1997-06.2005 |
| VW | Golf IV 1.8 | [AGU] | 08.1997- |
| VW | Golf IV 1.8 T | [AGU] | 08.1997-06.2005 |
| VW | Golf IV 1.8 T | [AQA] | 08.1997-06.2005 |
| VW | Golf IV 1.8 T | [ARZ] | 08.1997-06.2005 |
| VW | Golf IV 1.8 T | [AUM] | 08.1997-06.2005 |
| VW | Golf IV 1.8 T | [AWD] | 08.1997-06.2005 |
| VW | Golf IV 1.8 T | [AWW] | 08.1997-06.2005 |
| VW | Golf IV 1.9 TDi | [AGR] | 10.1997-04.1998 |
| VW | Golf IV 1.9 TDi | [AGR] | 10.1997-05.2004 |
| VW | Golf IV 1.9 TDi | [AHF] | 08.1997-04.1998 |
| VW | Golf IV 1.9 TDi | [AHF] | 08.1997-05.2004 |
| VW | Golf IV 1.9 TDi | [ALH] | 10.1997-04.1998 |
| VW | Golf IV 1.9 TDi | [ALH] | 10.1997-05.2004 |
| VW | Golf IV 1.9 TDi | [ASV] | 08.1997-05.2004 |
| VW | New Beetle 2.0 | [AEG] | 01.1998-03.1998 |
| VW | New Beetle 2.0 | [AEG] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [APK] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [AQY] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [AZG] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [AZJ] | 01.1998-09.2010 |
| VW | New Beetle 2.0 | [BER] | 01.1998-09.2010 |
| VW | Polo 1.0 | [ALL] | 05.1997-12.1999 |
| VW | Polo 120 1.6 16V GTi | [AJV] | 09.1998-10.1999 |
| VW | Polo 1.4 | [AEX] | 05.1997-09.2001 |
| VW | Polo 1.4 | [AEX] | 07.1996-12.1997 |
| VW | Polo 1.4 | [AEX] | 08.1997-12.1999 |
| VW | Polo 1.4 | [AKK] | 05.1997-09.2001 |
| VW | Polo 1.4 | [AKK] | 10.1999-09.2001 |
| VW | Polo 1.4 | [AKV] | 05.1997-09.2001 |
| VW | Polo 1.4 | [AKV] | 12.1997-08.1999 |
| VW | Polo 1.4 | [ANW] | 05.1997-09.2001 |
| VW | Polo 1.4 | [ANW] | 10.1999-08.2000 |
| VW | Polo 1.4 | [ANX] | 01.1998-08.1999 |
| VW | Polo 1.4 | [APQ] | 05.1997-09.2001 |
| VW | Polo 1.4 | [APQ] | 12.1997-08.1999 |
| VW | Polo 1.4 | [AUA] | 06.2000-09.2001 |
| VW | Polo 1.4 | [AUD] | 05.1997-09.2001 |
| VW | Polo 1.4 16V | [APE] | 10.1999-09.2001 |
| VW | Polo 1.4 16V | [AUA] | 06.2000-09.2001 |
| VW | Polo 1.4 16V | [AUA] | 10.1999-09.2001 |
| VW | Polo 1.6 | [1F] | 11.1995-09.1997 |
| VW | Polo 1.6 | [AEE] | 05.1997-09.2001 |
| VW | Polo 1.6 | [AEE] | 09.1997-12.1998 |
| VW | Polo 1.6 | [AEH] | 05.1997-09.2001 |
| VW | Polo 1.6 | [AEH] | 10.1999-09.2001 |
| VW | Polo 1.6 | [AFT] | 05.1997-08.1999 |
| VW | Polo 1.6 | [AFT] | 05.1997-09.2001 |
| VW | Polo 1.6 | [AKL] | 05.1997-09.2001 |
| VW | Polo 1.6 | [AKL] | 10.1999-09.2001 |
| VW | Polo 1.6 | [ALM] | 05.1997-09.2001 |
| VW | Polo 1.6 | [ALM] | 07.1998-09.2001 |
| VW | Polo 1.6 | [APF] | 03.2000-10.2000 |
| VW | Polo 1.6 | [APF] | 05.1997-09.2001 |
| VW | Polo 1.6 | [AUR] | 05.1997-09.2001 |
| VW | Polo 1.6 | [AUR] | 07.2000-09.2001 |
| VW | Polo 1.6 GTi 16V | [AJV] | 04.1998-12.1999 |
| VW | Polo 1.8 | [ADD] | 03.1998-09.2001 |
| VW | Polo 1.9 SDi | [AGP] | 08.1999-09.2001 |
| VW | Polo 1.9 SDi | [AQM] | 08.1999-09.2001 |
| VW | Polo 1.9 TDi | [AGR] | 10.1999-09.2001 |
| VW | Polo 1.9 TDi | [AHU] | 07.1996-08.1999 |
| VW | Polo 1.9 TDi | [ALE] | 09.1996-08.1999 |
| VW | Polo 1.9 TDi | [ALH] | 10.1999-09.2001 |
| VW | Polo 2.0 | [ADC] | 08.1999- |
| VW | Polo 2.0 | [ADC] | 08.1999-09.2001 |
| VW | Polo 50 1.0 | [AER] | 09.1996-10.1999 |
| VW | Polo 50 1.0 | [ALL] | 09.1996-10.1999 |
| VW | Polo 68 1.9 SDi | [AGP] | 08.1999-01.2002 |
| VW | Polo 68 1.9 SDi | [AQM] | 08.1999-01.2002 |
| VW | Polo 75 1.6 | [1F] | 11.1995-09.1997 |
| VW | Polo 90 1.8 | [ABS] | 01.1997-09.2001 |
| VW | Polo 90 1.8 | [ADD] | 01.1997-09.2001 |
| VW | Polo 90 1.8 | [ADZ] | 01.1997-09.2001 |
| VW | Polo 90 1.9 TDi | [AGR] | 09.1996-09.2001 |
| VW | Polo 90 1.9 TDi | [AHU] | 09.1996-09.2001 |
| VW | Polo 90 1.9 TDi | [ALE] | 09.1996-09.2001 |
| VW | Polo 90 1.9 TDi | [ALH] | 09.1996-09.2001 |
Reference Information
LRB00387 210350 ALB1240 4G0791R 028903018AX IA1066 ALT10038 301240RI 441387 ALTS075 A12BH1157A2 ANM43160X STX100778 STX101419 A0080 32038370 DB2050 305.502.090.902 305.502.090.901 305.502.090.900 STX100778R 1516440R 8EL737368-001 305.502.090.508 STX100184R ALT79260 Mar-35 STA0276R 111820 028903028G LRB387 021903025N 4585 MG255 95VW10300JA 305.502.090.215 305.502.090.775 20101135BN 28-2864 STX100111R STX100184 037903025C 11.203.080 ALT125310A 305.502.090.010 028903027L 90-15-6564 305.502.090.770 9.4439E+11 13902N ALT1453 0123320034 PRAL151 DRB0940N STX100111 437477 STX100593 9.43355E+11 0986040940 AEA3287 028903018A 72735254 MRA40940 89212409 EAA-221661 DRB0940 8EL012427-961 CAL10531AS 35215395 AAK5351 CA1240IR 2010531Video/Publications
A0080Related Items
