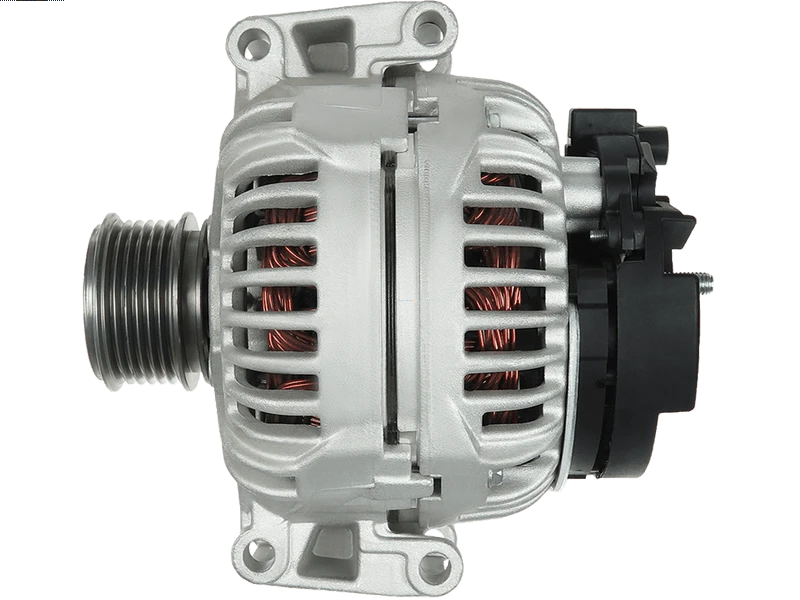

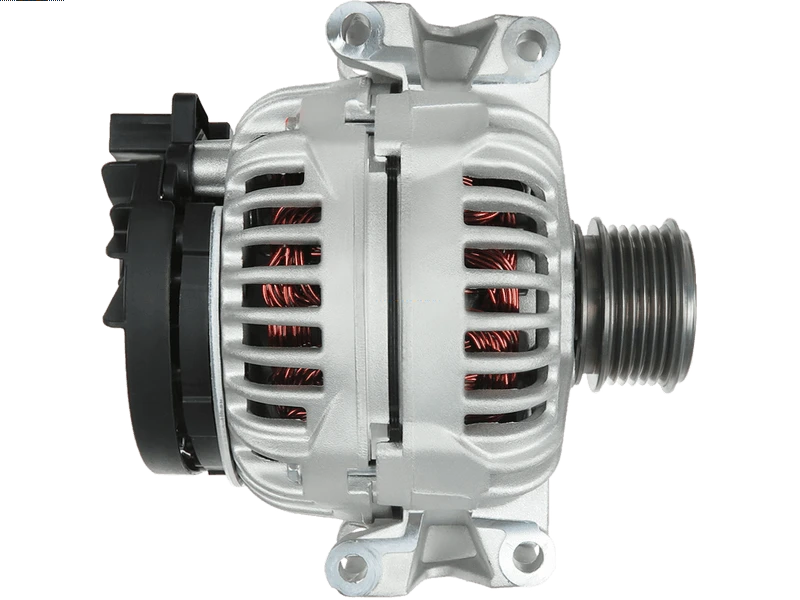

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 536.73 including GST
NZ$ 466.72 excluding GST
or four payments of $134.18
with
Learn More
each
A0076
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0124615009Associated Numbers
0124615009 06B603016Q 06B903016AC 06B903016Q 06D903016 0986044910 11.1769 11064N 2015481 20179184OE 205.527.150 2542687 2543313 28-4734 301769RI 301769RIV 301818RI 32046180 437468 437469 439498 439500 4644 57152 89212685 8EL738164-001 9044910 9212685 A0076 A1061V A1073V AEC1769 ALT14162 CA1769IR CAL15481GS DRB4910 EAA-221484 LRA02256 SB039 SB255 TG15C017 TG15C065Specifications
| Amp | 150 A |
| Diameter (D.1) | 9 mm |
| Diameter (D.2) | 9 mm |
| Diameter (D.3) | 9 mm |
| Diameter (D.4) | 9 mm |
| Length (L.1) | 202 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 70 mm |
| Pad mount thickness (E.2) | 70 mm |
| Plug Code | PL_2300 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 56 mm |
| Pulley to Mount Distance (A) | 32.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A4 1.6 | [ALZ] | 11.2000- |
| AUDI | A4 1.8 Turbo | [AVJ] | 11.2000-07.2002 |
| AUDI | A4 1.8 Turbo | [BEX] | 11.2002-12.2004 |
| AUDI | A4 1.8 Turbo | [BFB] | 07.2002- |
| AUDI | A4 1.8 Turbo | [BKB] | 07.2002- |
| AUDI | A4 1.8 Turbo Quattro | [AVJ] | 11.2000-06.2002 |
| AUDI | A4 1.8 Turbo Quattro | [BEX] | 11.2002-12.2004 |
| AUDI | A4 1.8 Turbo Quattro | [BFB] | 07.2002- |
| AUDI | A4 2.0 | [ALT] | 11.2000- |
| AUDI | A4 2.0 FSi | [AWA] | 11.2001- |
| AUDI | A4 2.0 FSi | [BYK] | 10.2006- |
| AUDI | A4 2.0 TFSi | [BGB] | 11.2004- |
| AUDI | A4 2.0 TFSi | [BWE] | 10.2005- |
| AUDI | A4 2.0 TFSi Quattro | [BGB] | 11.2004- |
| AUDI | A4 2.0 TFSi Quattro | [BWE] | 11.2004- |
| AUDI | A4 2.0 TFSi Quattro | [BWT] | 11.2004- |
| AUDI | A6 2.0 | [ALT] | 08.2001- |
Reference Information
20179184OE ALTS313 6D903016 2015481.1 CGB-84734 2015481.0 8EL012428-761 STX100808 A0076 20179184BN 2543313 CA1769IR 205.527.150.010 8EL738164-001 ALT174810 SB255 2542687A 2543313D DRB4910 ANM47130X 4644 210546 5510635 116172 06B903016AC 301769RIV 32046180 PRAS313V ALT192CP 9212685 57152 06B903016QX 06D903016 CAL15481GS LRA2256 6B903016AC 11.1769 301769RI ALT1284 205.527.150.500 06B903019G 6B903016QX 9044910 AL0825X 6D903016X L06D903016 6B903016Q RAA25021 0986044917 TG15C065 2542687 LRA02256 ALTS313V 06B903016Q 28-4734 ALT174810A ALT0087 SB039 944390449100 439498 0986044910 06B903019GX 89212685 441916 11070N ALT14162 CAL15481AS 6.3180.9 STX100808R A12BH0741A2 0124615009 TG15C017 AEC1769 205.527.150.004 06D903016X 06B603016Q 437468 PRAS313 AL0825NVideo/Publications
A0076View your shopping basket or Browse other items in Alternators.
