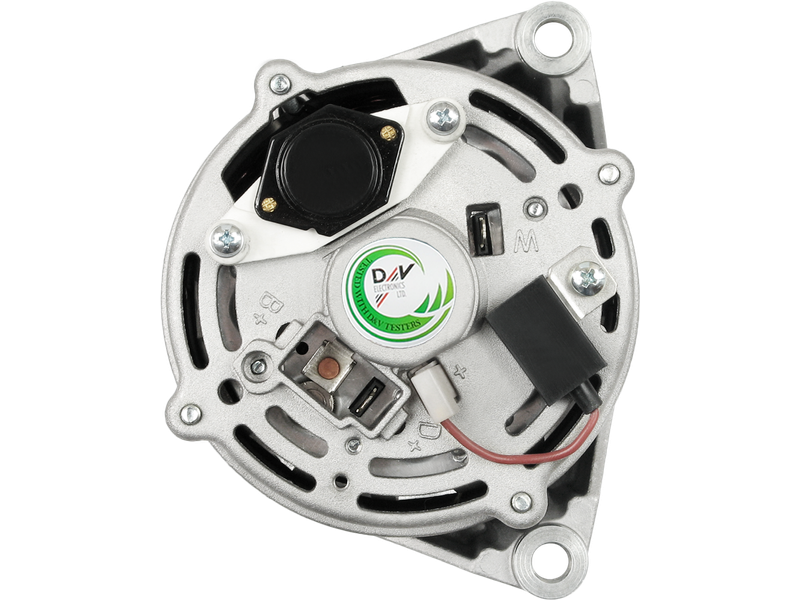

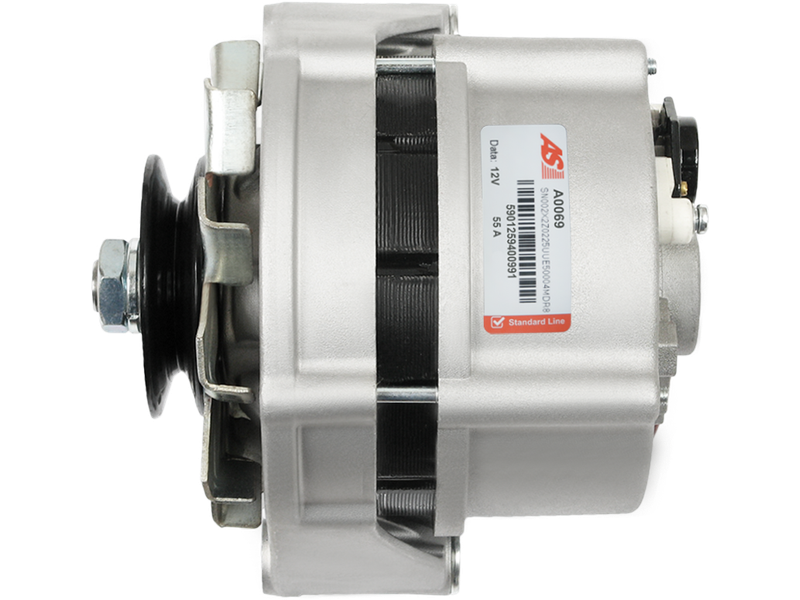

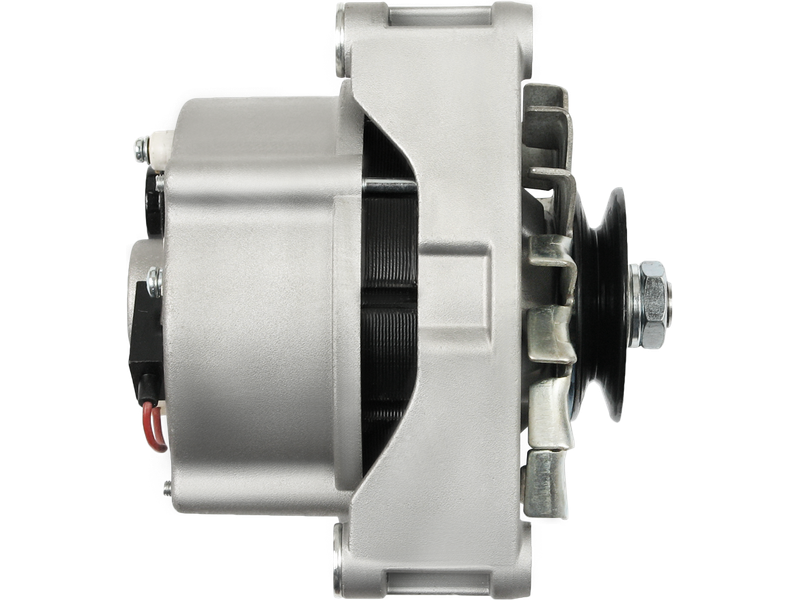

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 305.72 including GST
NZ$ 265.84 excluding GST
or four payments of $76.43
with
Learn More
each
A0393
A0069
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
0120489556Associated Numbers
0041541802 0041542002 0041545902 0041547402 0051545802 0051546702 0051547402 0051547502 0051547602 0051547702 0051547802 0051547902 0061543002 0071541202 0120400858 0120400859 0120489061 0120489526 0120489527 0120489556 0120489683 0120489828 0120489917 0120489918 0120489933 021903020D 021903020DX 0986030720 0986030721 0986031400 0986031408 0986031430 0986031431 0986032800 0986033780 0986034620 0986034621 11.0087 11.0087M 11.201.155 11.201.632 11.201.633 110358 13056N 13056R 2010118 20101811BN 2541264 28-0675 28-0859 2950281 3087RI 32489556 4140 432854 436121 436146 516055 555.005.055 55773 55947 89212592 8EL011711-681 8EL725951-001 9034620 9120144269 9120144270 9212592 943356465 9AR2759K 9AR2765 9AR2784K 9AR2785 9AR2845 9AR2846 9AR5028K02 A0041541802 A0041542002 A0041545902 A0041547402 A0051545802 A0051546702 A0051547402 A0051547502 A0051547602 A0051547702 A0051547802 A0051547902 A0061543002 A0069 A0071541202 AAK1152 AAK1157 AAK3520 AAK3525 AAK3548 AAK4141 AEA9189 ALT10117 CA87IR CAL10118AS DRA2800 DRA4620 EAA-221212 IA0445 IA0632 LRA00823 LRA00989 SA746 SA747 SA965 VA132 VA326Specifications
| Amp | 55 A |
| Bottom Mounting Foot Width (B) | 56 mm |
| Diameter (D.1) | 10.5 mm |
| Diameter (D.2) | 10.5 mm |
| Length (L.1) | 164 mm |
| OEM Product | No |
| Plug Code | PL_3200 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10.5 mm |
| Pulley Outside Diameter (O.D.1) | 46.5 mm |
| Pulley Outside Diameter (O.D.2) | 73 mm |
| Pulley to Mount Distance (A) | 78 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | 100 2.4 Diesel | (631.340)[OM616.963] | 09.1987-01.1996 |
| MERCEDES BENZ | 100 2.4 Diesel | (631)[OM616] | 12.1990-02.1996 |
| MERCEDES BENZ | 100 2.4 Diesel | (631)[OM616.963] | 09.1987-01.1996 |
| MERCEDES BENZ | 190 2.0 | (201)[M102.921] | 10.1982-09.1988 |
| MERCEDES BENZ | 190 2.0 | (201)[M102.924] | 09.1984-08.1986 |
| MERCEDES BENZ | 190 E 2.0 | (201)[M102.961] | 10.1982-08.1986 |
| MERCEDES BENZ | 190 E 2.0 | (201)[M102.962] | 10.1982-08.1986 |
| MERCEDES BENZ | 200 2.0 | (115)[M115.923] | 02.1975-01.1977 |
| MERCEDES BENZ | 200 2.0 | (115)[M115.926] | 02.1975-01.1977 |
| MERCEDES BENZ | 200 2.0 | (123)[M102.920] | 06.1980-11.1985 |
| MERCEDES BENZ | 200 2.0 | (123)[M102.939] | 06.1980-11.1985 |
| MERCEDES BENZ | 200 2.0 | (123)[M115.938] | 02.1976-08.1980 |
| MERCEDES BENZ | 200 2.0 | (123)[M115.939] | 02.1976-08.1980 |
| MERCEDES BENZ | 200 2.0 Diesel | (115)[OM615.913] | 02.1975-01.1977 |
| MERCEDES BENZ | 200 2.0 Diesel | (123)[OM615.940] | 07.1976-11.1985 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.917] | 04.1977-12.1982 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.934] | 04.1977-12.1982 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.937] | 07.1982-01.1990 |
| MERCEDES BENZ | 207 2.4 Diesel | (601)[OM616.939] | 06.1982-01.1990 |
| MERCEDES BENZ | 208 2.3 | (601)[M115.955] | 05.1977-12.1982 |
| MERCEDES BENZ | 208 2.3 | (601)[M115.972] | 05.1977-12.1982 |
| MERCEDES BENZ | 209 3.0 Diesel | (601)[OM617.913] | 12.1982-01.1990 |
| MERCEDES BENZ | 210 2.3 | (601)[M102.942] | 07.1982-03.1985 |
| MERCEDES BENZ | 210 2.3 | (601)[M102.946] | 07.1982-03.1985 |
| MERCEDES BENZ | 210 2.3 | (601)[M115.955] | 04.1977-10.1989 |
| MERCEDES BENZ | 220 2.2 Diesel | (115)[OM615.912] | 01.1968-01.1977 |
| MERCEDES BENZ | 220 2.2 Diesel | (123)[OM615.941] | 01.1976-02.1979 |
| MERCEDES BENZ | 230 2.3 | (123)[M115.954] | 02.1976-03.1981 |
| MERCEDES BENZ | 230.4 2.3 | (115)[M115.951] | 08.1973-12.1976 |
| MERCEDES BENZ | 230.6 2.3 | (114)[M180.954] | 01.1968-11.1976 |
| MERCEDES BENZ | 230 C 2.3 | (123)[M115.954] | 05.1977-04.1980 |
| MERCEDES BENZ | 230 CE 2.3 | (123)[M102.980] | 04.1980-12.1985 |
| MERCEDES BENZ | 230 G 2.3 | (460.2)[M115.973] | 03.1979-05.1980 |
| MERCEDES BENZ | 240 2.4 Diesel | (115)[OM616.916] | 08.1973-01.1977 |
| MERCEDES BENZ | 240 2.4 Diesel | (123)[OM616.912] | 03.1979-11.1985 |
| MERCEDES BENZ | 240 2.4 TD | (123)[OM616.912] | 03.1979-12.1985 |
| MERCEDES BENZ | 240 3.0 Diesel | (115)[OM617.910] | 08.1974-11.1976 |
| MERCEDES BENZ | 240 G 2.4 Diesel | (460.3)[OM616.936] | 03.1979-05.1980 |
| MERCEDES BENZ | 250 2.5 | (123)[M123.921] | 10.1979-07.1985 |
| MERCEDES BENZ | 250 2.8 | (114)[M130.923] | 08.1973-11.1976 |
| MERCEDES BENZ | 250 C 2.9 | (114)[M130.923] | 08.1973-11.1976 |
| MERCEDES BENZ | 280 2.7 | (114)[M110.921] | 06.1972-11.1976 |
| MERCEDES BENZ | 280 2.7 | (123)[M110.923] | 02.1976-08.1981 |
| MERCEDES BENZ | 280 C 2.7 | (114)[M110.921] | 06.1972-02.1977 |
| MERCEDES BENZ | 280 C 2.7 | (123)[M110.923] | 03.1977-03.1980 |
| MERCEDES BENZ | 280 CE 2.7 | (114)[M110.981] | 06.1972-01.1977 |
| MERCEDES BENZ | 280 CE 2.7 | (123)[M110.988] | 03.1977-11.1985 |
| MERCEDES BENZ | 280 E 2.7 | (114)[M110.981] | 06.1972-11.1976 |
| MERCEDES BENZ | 280 E 2.7 | (123)[M110.984] | 02.1976-11.1985 |
| MERCEDES BENZ | 280 E 2.7 | (123)[M110.988] | 02.1976-11.1985 |
| MERCEDES BENZ | 280 E 2.8 | (123)[M110.988] | 02.1976-11.1985 |
| MERCEDES BENZ | 280 GE 2.7 | (460.2)[M110.994] | 11.1979-05.1980 |
| MERCEDES BENZ | 280 S 2.7 | (116)[M110.922] | 08.1972-07.1980 |
| MERCEDES BENZ | 280 SE 2.7 | (116)[M110.983] | 08.1972-07.1976 |
| MERCEDES BENZ | 280 SE 2.7 | (116)[M110.985] | 08.1972-07.1980 |
| MERCEDES BENZ | 280 SEL 2.7 | (116)[M110.983] | 08.1972-07.1976 |
| MERCEDES BENZ | 280 SEL 2.7 | (116)[M110.985] | 08.1976-07.1980 |
| MERCEDES BENZ | 280 SL 2.7 | (107)[M110.982] | 08.1974-11.1980 |
| MERCEDES BENZ | 280 SL 2.7 | (107)[M110.986] | 08.1974-11.1980 |
| MERCEDES BENZ | 280 SL 2.7 | (107)[M110.990] | 08.1974-11.1980 |
| MERCEDES BENZ | 280 SLC 2.8 | (107)[M110.982] | 06.1976-09.1981 |
| MERCEDES BENZ | 280 SLC 2.8 | (107)[M110.986] | 06.1976-09.1981 |
| MERCEDES BENZ | 280 SLC 2.8 | (107)[M110.990] | 06.1976-09.1981 |
| MERCEDES BENZ | 300 3.0 Diesel | (123)[OM617.912] | 02.1976-11.1985 |
| MERCEDES BENZ | 300 3.0 TD | (123)[OM617.952] | 10.1980-11.1985 |
| MERCEDES BENZ | 300 C 2.9 TD | (123)[OM617.952] | 09.1981-07.1985 |
| MERCEDES BENZ | 300 G 3.0 Diesel | (460.3)[OM617.931] | 12.1979-05.1980 |
| MERCEDES BENZ | 307 2.4 Diesel | (602)[OM616.937] | 04.1977-01.1990 |
| MERCEDES BENZ | 307 2.4 Diesel | (602)[OM616.939] | 06.1982-01.1990 |
| MERCEDES BENZ | 309 3.0 Diesel | (602)[OM617.913] | 10.1982-01.1990 |
| MERCEDES BENZ | 350 SE 3.5 | (116)[M116.983] | 08.1972-03.1980 |
| MERCEDES BENZ | 350 SE 3.5 | (116)[M116.985] | 03.1976-03.1980 |
| MERCEDES BENZ | 350 SEL 3.5 | (116)[M116.983] | 08.1974-02.1976 |
| MERCEDES BENZ | 350 SEL 3.5 | (116)[M116.985] | 03.1976-03.1980 |
| MERCEDES BENZ | 350 SL 3.5 | (107)[M116.982] | 05.1971-02.1980 |
| MERCEDES BENZ | 350 SL 3.5 | (107)[M116.984] | 05.1971-02.1980 |
| MERCEDES BENZ | 350 SLC 3.5 | (107)[M116.982] | 01.1972-02.1980 |
| MERCEDES BENZ | 350 SLC 3.5 | (107)[M116.984] | 03.1976-02.1980 |
| MERCEDES BENZ | 450 SE 4.5 | (116)[M117.983] | 08.1974-11.1975 |
| MERCEDES BENZ | 450 SE 4.5 | (116)[M117.986] | 12.1975-04.1980 |
| MERCEDES BENZ | 450 SEL 4.5 | (116)[M117.983] | 08.1974-11.1975 |
| MERCEDES BENZ | 450 SEL 4.5 | (116)[M117.986] | 12.1975-04.1980 |
| MERCEDES BENZ | 450 SEL 6.9 | (107)[M117.982] | 10.1972-10.1980 |
| MERCEDES BENZ | 450 SEL 6.9 | (116)[M100.985] | 07.1975-03.1980 |
| MERCEDES BENZ | 450 SL 4.5 | (107)[M117.985] | 10.1972-10.1980 |
| MERCEDES BENZ | 450 SLC 4.5 | (107)[M117.960] | 06.1978-02.1980 |
| MERCEDES BENZ | 450 SLC 4.5 | (107)[M117.982] | 09.1975-08.1979 |
| MERCEDES BENZ | 450 SLC 4.5 | (107)[M117.985] | 09.1975-08.1979 |
| MERCEDES BENZ | MB 100 2.4 Diesel | (631)[OM616.963] | 02.1988-02.1996 |
| MERCEDES BENZ | Pullmann 600 6.3 | [M100.980] | 08.1973-01.1979 |
| MERCEDES BENZ | Pullmann 600 6.3 | [M100.982] | 08.1973-01.1979 |
| MERCEDES BENZ TRUCKS & BUSES | 407 2.4 Diesel | (T1/TN)[OM616.913](T1/TN)[OM616.939] | 07.1981-01.1989 |
| MERCEDES BENZ TRUCKS & BUSES | 409 2.3 | (T2/L)[M115.952] | 01.1975-08.1982 |
| MERCEDES BENZ TRUCKS & BUSES | 409 2.4 Diesel | (T1/TN)[OM617.913] | 04.1982-01.1989 |
| MERCEDES BENZ TRUCKS & BUSES | 409 3.0 Diesel | (T1/TN)[OM617.913] | 04.1982-01.1989 |
| MERCEDES BENZ TRUCKS & BUSES | 410 2.3 | (T1/TN)[M102.942](T1/TN)[M102.945] | 03.1985-06.1995 |
| MERCEDES BENZ TRUCKS & BUSES | 507 2.4 Diesel | (T2/LN1)[OM616.914] | 04.1986-04.1989 |
| MERCEDES BENZ TRUCKS & BUSES | O 309 B 2.3 | [M102.943] | 01.1968-02.1989 |
| SEAT | Ibiza 1.2 | [021A1000] | 06.1984-09.1985 |
| SEAT | Ibiza 1.5 | [021A2000] | 11.1984-08.1985 |
| SEAT | Malaga 1.2 | [021A1000] | 05.1985-08.1985 |
| SEAT | Malaga 1.5 | [021A2000] | 05.1985-08.1985 |
| SEAT | Ronda 1.2 | [021A1000] | 05.1984-08.1985 |
| SEAT | Ronda 1.2 | [124B6.000] | 01.1984-04.1984 |
| SEAT | Ronda 1.5 | [021A2000] | 09.1984-08.1985 |
Reference Information
A0041546902 A006154300280 ALT10117 20101811BN 007154460280 A005154770280 8EL011711-681 7421325000 021903020D 0071544602 0051545802 9120144269 A005154750280 021903020DX 0120489828 SA965 A004154180280 A0061543002 005154760280 A0051547602 VA132 A005154670280 A005154790280 A0061545802 9AR2765 SE21903020A CAL10118AS 0061543002 9AR5028K02 0051547702 0071541202 2541264 0986030720 9034620 A0069 0041546902 004154200280 005154780280 3C2411000CA 0986030721 0120489933 943356465 A007154120280 STX100142 1516641R 13056N 89212592 A0071544502 11.0087 13056R A0041542002 SA747 SA746 AAK3525 516055 LRA823 0041545902 11.201.155 0041542002 0120489526 AAK3520 0120489527 6W1T11000AA XO39415730 A0051547702 STX100142R 110358 A0051545802 A005154740280 LRA00989 A0041545902 71544502 0986031430 0986031431 0051547602 ALTS043 0986032800 2950281 A007154460280 555.005.055.460 0120489917 DRA2800 0120489918 9120144270 555.005.055 005154740280 00061540302 F75UAC 11.0087M 9AR2759K 0041541802 ANM35020X AAK3548 9212592 005154770280 0051546702 005154670280 3087RI RNL3072 A0041541802 A005154580280 A0051547402 A0041547002 436121 A005154760280 0120400859 28-0675 0120400858 A0041547402 A0051547802 004154180280 006154300280 A0061543702 4140 IA0445 005154790280 0120489061 0051547502 0051547902 5154740280 55773 8EL725951-001 2010118 ALT1007 0041547402 9AR2845 ALT121180 ALTF813 0041547002 9AR2846 210111 007154120280 A004154200280 A005154780280 SEO21903020A IA0632 AI-90265 28-0859 CA87IR 0986033780 432854 11.201.632 11.201.633 440234 LRA989 0071544502 0986031400 AEA9189 0986031408 004154740280 555.005.055.010 A004154740280 A0051547502 32489556 436146 55947 9AR2784K A0071541202 LRA00823 PRAS043 A0061543602 A0051547902 9AR2785 005154580280 0986034621 0986034620 0051547402 0120489683 0051547802 311321 005154750280 0120489556 DRA4620 VA326 ALT121180A AAK1157 AAK4141 A0051546702 A0071544602 AAK1152Video/Publications
A0069Related Items
