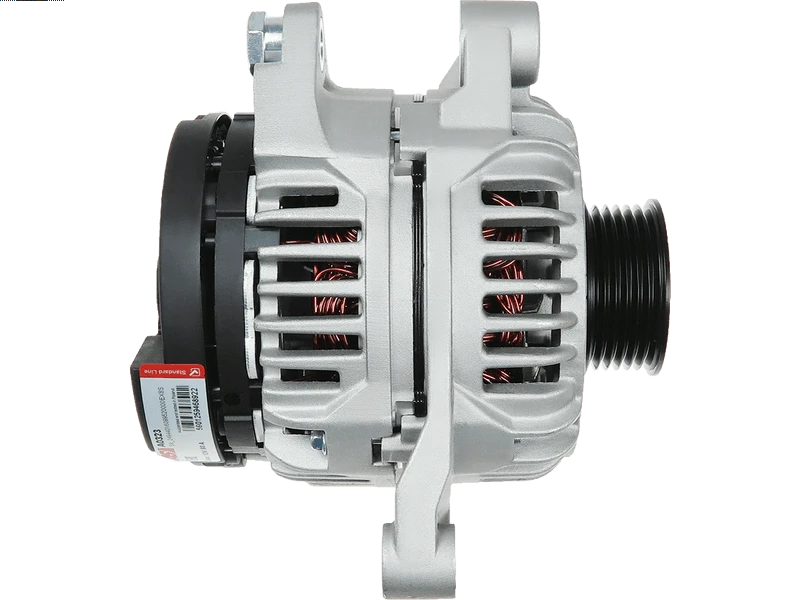

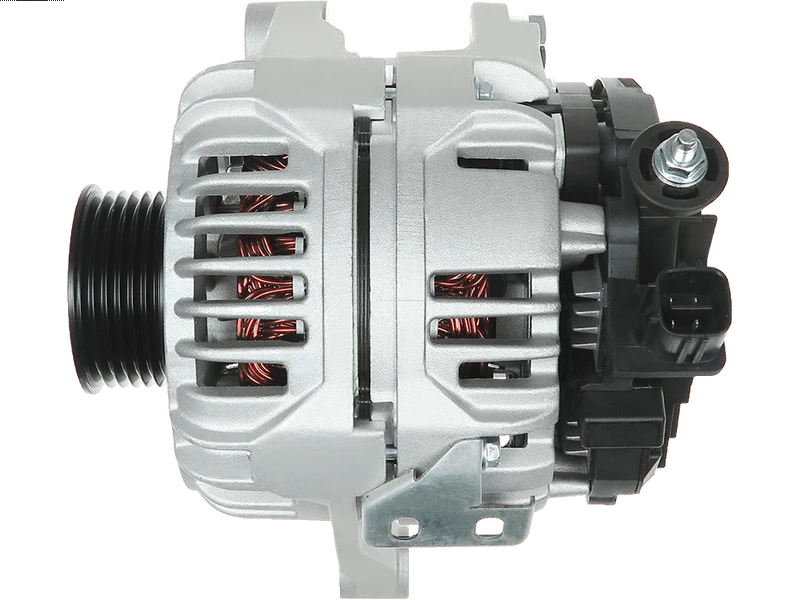

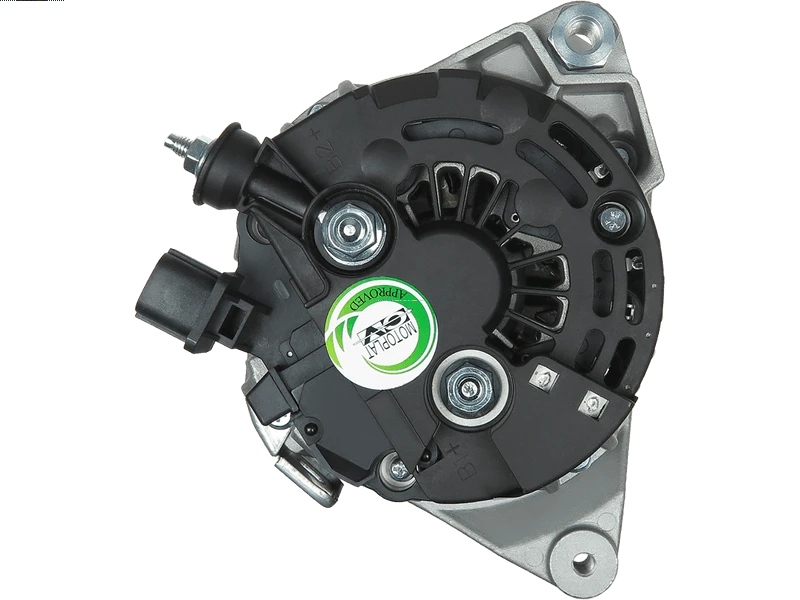

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 364.71 including GST
NZ$ 317.14 excluding GST
or four payments of $91.18
with
Learn More
each
A6146
A0323
No stock in NZ
No stock in NZ
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
ANJ216 0124315015 BOSCHList 0986081430 BOSCH 27060YF010 TOYOTA BXA056 DXA598 ANB234 651047 658498 Bosch ruil 1012115620 Denso 1012119060 1012119100 113081 Cargo 1184301ND WAI 12060917 EuroTec 13558 Lester 195904080 PSH 2706020010 Toyota 290353 PIC 90295214 Wilson 90295232 ALT5087 Unipoint F042302062 F042A02062 F042A02062FDB N5112133 Nipparts UD10927A ASPL 1042103620 DENSOList 1042103790 1042104180 1042104190 DENSO 554058RI KUHNER 270600A120 270600A140 TOYOTAList 2706020270 2706020310 11033R / TRANSPO ALT30454 WOODAUTO 11033N 12061093 195304100 270600A070 287697 Elstock 931784 EDR DRA1784 Remy LRA04088 Lucas 27060-YF010 1-1843-01ND 1-2138-01ND 101211-5620 101211-9060 101211-9100 101211-9780 102211-1620 102211-2690 11.3224 13558N 13747N 13747R 27060-0A020 27060-0A090 27060-20010 27060-20020 27060-20070 27060-20120 553827RI show 0124315015SEL +line 0124315058 0986AN0585 0986CR0019 0986UR0019 1012119780 195904080SEL 2706020230 AL3265X (USA) AL3281X BXD1221NSpecifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 25 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 173 mm |
| Mount Inside Length or Pad Mount C-C (C) | 44.5 mm |
| OEM Product | No |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | SOLID |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Avalon | ||
| TOYOTA | Camry | [MCV20] | |
| TOYOTA | Camry | [MCV36] | |
| TOYOTA | Vienta |
Reference Information
0124315058 ALB4315 0986081430 556432RI 195.904.080.210 195.904.080.010 27060-YF010 27060-20230 0124315015Video/Publications
A0323Related Items
