Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 578.34 including GST
NZ$ 502.90 excluding GST
or four payments of $144.59
with
Learn More
each
A2023(P)
A2080S
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Associated Numbers
- Specifications
- Vehicle Applications
- Alternatives >>>
- Reference Information
- Video/Publications
- Related Items
Associated Numbers
LR160745B LR160745 UD13544A ASPL List LR190771 HITACHI LR190771B 23100VZ20A NISSAN 23100VZ20B anj061 231002W201 lr170-761b lr170-761c A2023 AEK2215 AUTOELECTRO 0986049800 BOSCH 113787 CARGO CAL20132 CASCO 9223 CEVAM DA5207 DELCO DRA4097 RAA15108 EAA221117 EAA 56934 EAI 284684 ELSTOCK 210463 ERA JA1602IR HC PARTS 8EL012428251 HELLA 8EL737922001 J5111093 HERTH+BUSS 136131 LR190745 LR190752 LR190752B LR190752C ALH1602 KRAUF LRA02215 LUCAS LRA2215 943316021010 MAGNETI MARELLI 944390511930 MARC1602 MRA51193 23100VC100 23100VC101 23100VC10A 23100VC10B 23100VG100 89213509 POWERMAX 165.539.090 PSH 23215N WAI / TRANSPO 23215R ALT32068 WOODAUTO HITLR190752 1286801HI 1286801HI1 1286801HI3 165539090 23100VC10C 23215 23215N7GN 23215N7GZ 285961 440695 6066SP 934097 ADA438 ALT3046sa ALTH157 F042A0H157 HJA1602IR J5111085 KTR331078180 hxa070 hxa088 hxa098 hxa099 hxa107 136127 165933090 23100VC40C 23100VS40B 23100VS40C 23100VS40D 2506127 930911 DRA0911 LR190770 LR190770B LR190770C LR190770E LR190770F anj061 anj417 anj061ho 653131 653131G 6531312 6531313 23100-VZ20A 23100-VZ20B LR190-771 LR190-771B 231005S900 231005S90A 231005S90B 231005S90C LR160745ESpecifications

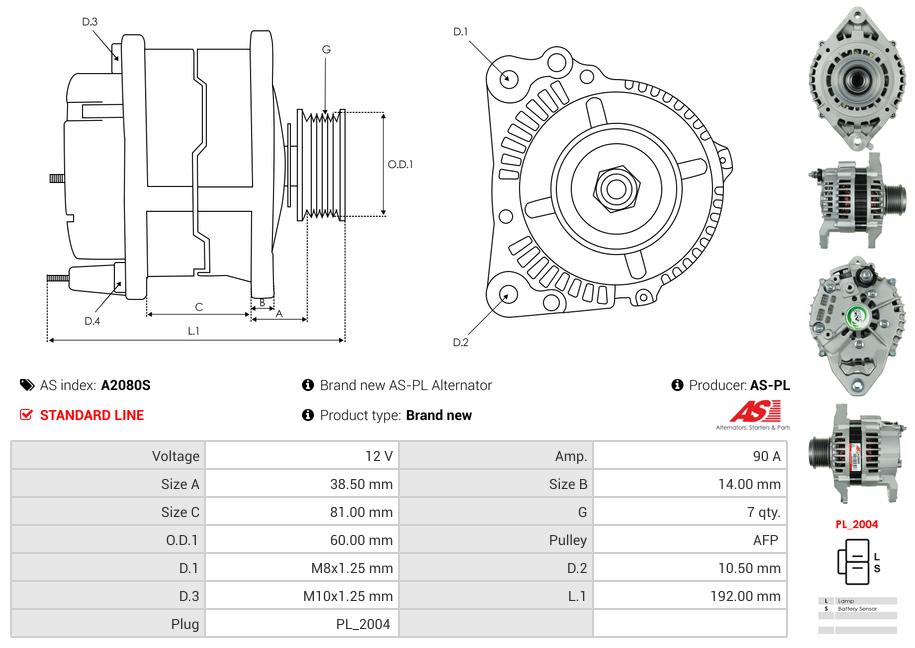

| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 10.5 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 192 mm |
| Mount Inside Length or Pad Mount C-C (C) | 81 mm |
| OEM Product | No |
| Plug Code | PL_2004 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 60 mm |
| Pulley to Mount Distance (A) | 38.5 mm |
| Pulley Type | CLUTCH |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| NISSAN | Urvan | [ZD30DDTI] |
Alternatives >>>
A2023(P) Battery stud location is different, Reported to be interchangeable
Reference Information
LR190-771 23100-VZ20A 23100-VZ20B UD13544A LR190-771BVideo/Publications
A2080SRelated Items
