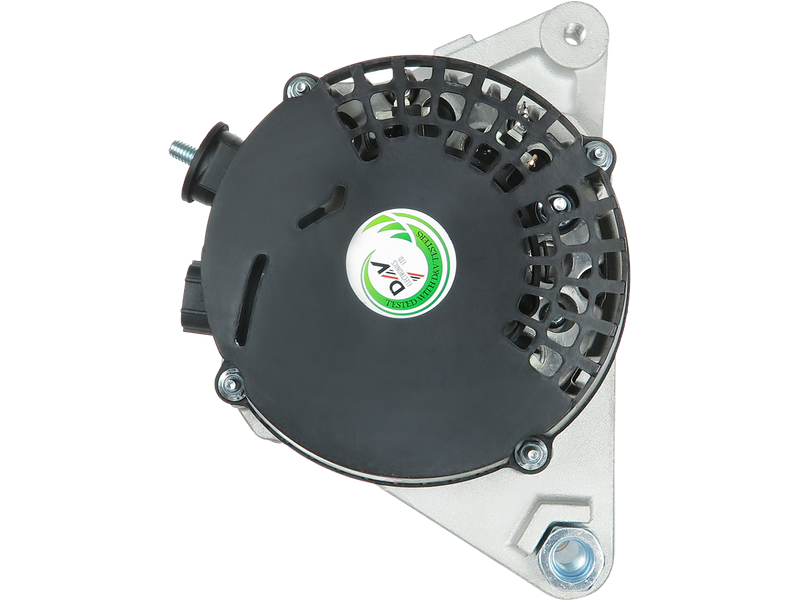

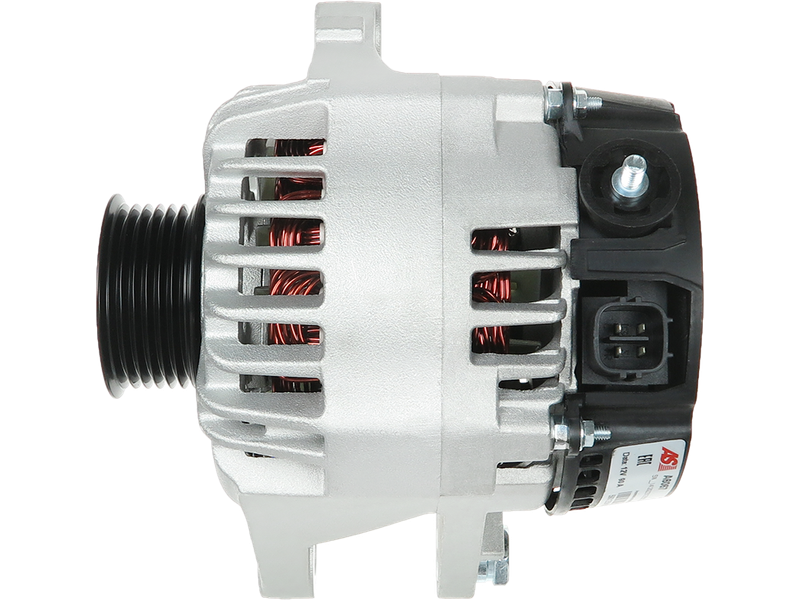

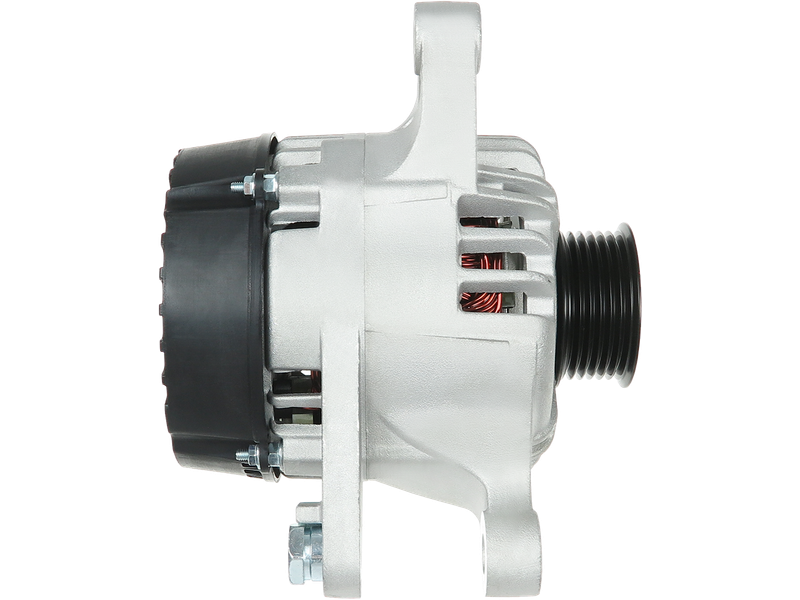

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 394.53 including GST
NZ$ 343.07 excluding GST
or four payments of $98.63
with
Learn More
each
A6067
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
- Related Items
Information
1012100891Associated Numbers
LRA02906 LUCAS 270600D140 TOYOTA 270600D170 270600D190 2706022230 ALT30484 WOODAUTO 0124325080 1022119270 1022119280 195563090 20201039 270600D140B 270600D191 270600D300 6320SP 9046110F 946110 DRB6110 HJA1894IR LRA03019 N5112118 TRA328 Cargo 114709 116332 Denso HCPARTS KRAUF ALB1894AN ALB1894UX Motorherz ALB1894RB ALB1894WA ALN1894RB Toyota WAI 1302325W 22518N bxa057 651045 anb243 101210-0890 101210-0891 102211-8500 104210-8060 20130220 27060-0D140 27060-0D170 27060-0D190 27060-22230 28-5520 401894RI 401894RID A6067 104210-9210 27060-0D260 UD11379ASpecifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 17.5 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 162.5 mm |
| Mount Inside Length or Pad Mount C-C (C) | 40 mm |
| OEM Product | No |
| Plug Code | PL_4000 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 55 mm |
| Pulley to Mount Distance (A) | 34 mm |
| Pulley Type | SOLID |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Auris 1.4 | [4ZZ-FE] | 03.2007-09.2012 |
| TOYOTA | Auris 1.4 VVTi | [4ZZ-FE] | 03.2007- |
| TOYOTA | Avensis 1.6 VVT-i | [3ZZ-FE] | 04.2003-11.2008 |
| TOYOTA | Avensis 1.6 VVT-i | (T25)[3ZZ-FE] | 01.2003-12.2008 |
| TOYOTA | Avensis 1.8 | [1ZZ-FE] | 03.2003-10.2008 |
| TOYOTA | Avensis 1.8 | [1ZZ-FE] | 04.2003-11.2008 |
| TOYOTA | Avensis 1.8 VVT-i | (T25)[1ZZ-FE] | 01.2003-12.2008 |
| TOYOTA | Corolla 1.4 | (E12)[4ZZ-FE] | 01.2001-12.2007 |
| TOYOTA | Corolla 1.4 VVT-i | [4ZZ-FE] | 01.2002-02.2007 |
| TOYOTA | Corolla 1.4 VVT-i | [4ZZ-FE] | 10.2001-10.2006 |
| TOYOTA | Corolla 1.4 VVT-i | [4ZZ-FE] | 11.2001-02.2007 |
| TOYOTA | Corolla 1.4 VVT-i | [4ZZ-FE] | 11.2006-11.2013 |
| TOYOTA | Corolla 1.6 | (E12)[3ZZ-FE] | 01.2001-12.2007 |
| TOYOTA | Corolla 1.6 VVT-i | [3ZZ-FE] | 01.2002-08.2007 |
| TOYOTA | Corolla 1.6 VVT-i | [3ZZ-FE] | 01.2002-12.2006 |
| TOYOTA | Corolla 1.6 VVT-i | [3ZZ-FE] | 10.2001-03.2008 |
| TOYOTA | Corolla 1.8 | [2ZR-FE] | 10.2006-07.2014 |
| TOYOTA | Corolla Verso 1.6 | [3ZZ-FE] | 04.2004-03.2009 |
| TOYOTA | Corolla Verso 1.6 | (ZER)[3ZZ-FE] | 01.2004- |
| TOYOTA | Corolla Verso 1.8 | [1ZZ-FE] | 04.2004-03.2009 |
| TOYOTA | Corolla Verso 1.8i | (E12J)[4S-FE] | 01.2004- |
| TOYOTA | Corolla Verso 1.8i | (ZER)[1ZZ-FE] | 01.2004- |
| TOYOTA | Corolla Verso 1.8i | (ZER)[4S-FE] | 01.2004- |
| TOYOTA | Corolla Verso 1.8 VVT-i | (130)[1ZZ-FE] | 01.2004- |
| TOYOTA | Yaris I 1.0 VVT-i | (P1)[1KR-FE] | 01.2004-12.2005 |
Reference Information
RAA27221 401894RI 27060-0T300 2040297.2 114709 2040297.0 DENDAN1021 2040297.1 ALT30484 0124325080 447134 445155 195.563.090.010 A6067 195.563.090.415 27060-0D170 DB7220 27060-22230 116332 0986046110 STX100332 J5112118 MAN7542 ALT6367 210980 ALTL753NE 28-5520 LRA02906 0124325079 MARC1894 101210-0891 27060OD140 101210-0890 CAL40297GS 195.563.090.261 DB7220N ALT422970A 270600D14084 LRA3019 9046110 20132792RC ALTL753 MQA1894 ALT422970R 9320 8EL738211-301 MRA46110 CGB-85520 ALN3893 11.1894M 20132792OE AEB1894 063377542010 943318941010 20132792BN 27060-0D191 27060-0D190 401894RID 104210-8060 22518N ALT2187 STX100332R PRAL753U CAL40297RS DRB6110 11.1894 PRAL753 27060-03D00 270600D140B CAL40297AS AI-90153 89212249 ALT492 LRA03019 ALTL753U 102211-9270 27060-0D300 102211-8500 57370 27060-0D140 SB186 AI-90153R 8EL011712-191 102211-9280 311913 944390461100 LRA2906 DAN1021 28-5594 JA1894IR 063731894010 ALT422970Video/Publications
A6067Related Items
