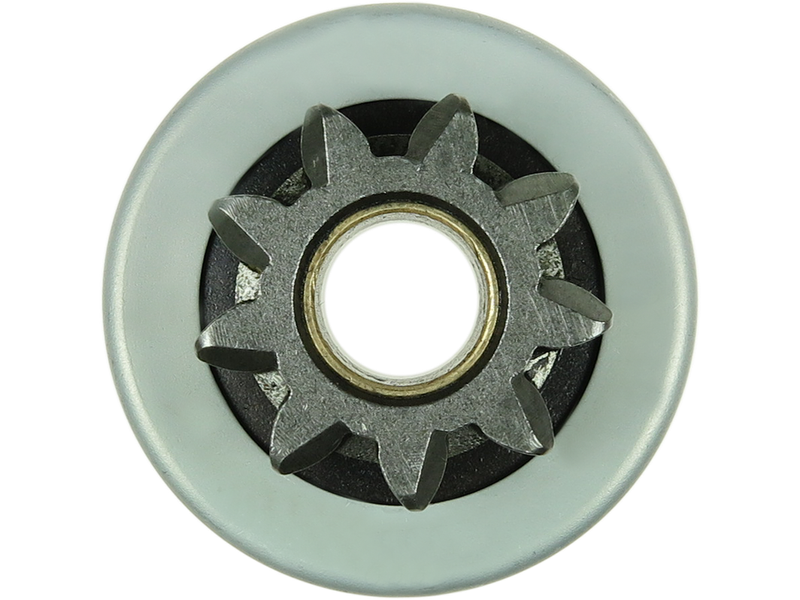

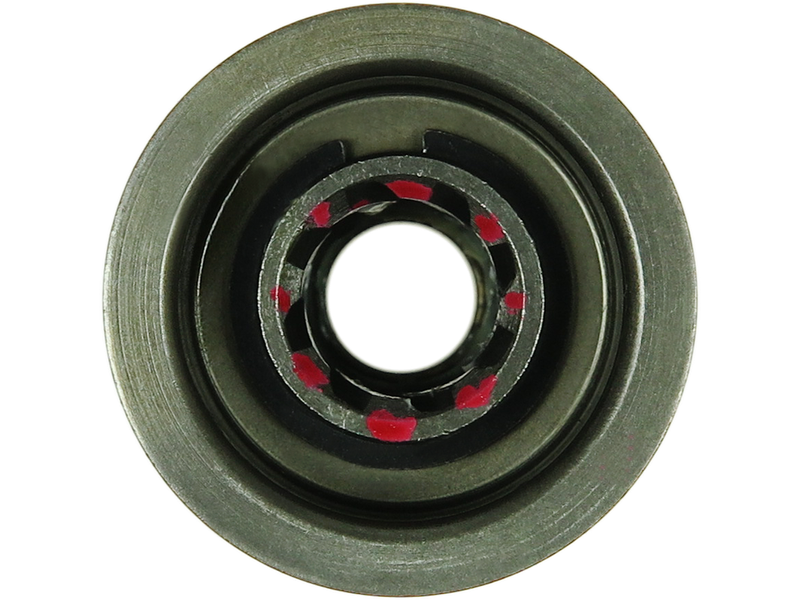

Brand new AS-PL Starter motor drive
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 27.99 including GST
NZ$ 24.34 excluding GST
or four payments of $7.00
with
Learn More
each
SD5019
5
Associated Numbers
M001T72481 M001T72481ZC M001T74581 M0T84881 M0T84882ZC M1T72481 M1T72481ZC M1T74581 M1T74583 96058456 96058457 96064782 96064783 3110050A10 3110060A11 3110060A20 3110060A21 3110060AC1 STR3048 S3121 M001T72481 M001T72481ZC M001T74581 M0T84881 M0T84882ZC M1T72481 M1T72481ZC M1T74581 M1T74583 96058456 96058457 96064782 96064783 3110050A10 3110060A11 3110060A20 3110060A21 3110060AC1 STR3048 S3121Specifications
| Inside Diameter (I.D.1) | 12 mm |
| Length (L.1) | 51 mm |
| Length (L.2) | 16.5 mm |
| No./Splines | 8 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Outside Diameter (O.D.1) | 44.8 mm |
| Outside Diameter (O.D.2) | 29.3 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Type | Drive |
| Unit Type | MITSUBISHI |
Reference Information
1.01.0617.0 136602 SDV32638 DRV5031 SDM6602PN SDM9602PN 31320-60A10 225252 1011320 54-8321 54-8321-1 SDM6602 54-8321-ZEN M191T12871 SD-3113 SDM6602HS CQ2010317Video/Publications
3110060A11 M001T72481 96064783 M1T30673 M001T74581 96064782 M0T84881 3110060AC1 M0T84882ZC M1T72481ZC S3121 S5225 M001T72481ZC M0T84881ZC 3110050A10 96058456 M1T74583 96058457 M1T72481 M1T74581 3110060A21 3110060A20 STR3048 S114381 SD5019 S2081S S114303 S5339S S2085SView your shopping basket or Browse other items in Drives, Pinions and Clutches.
