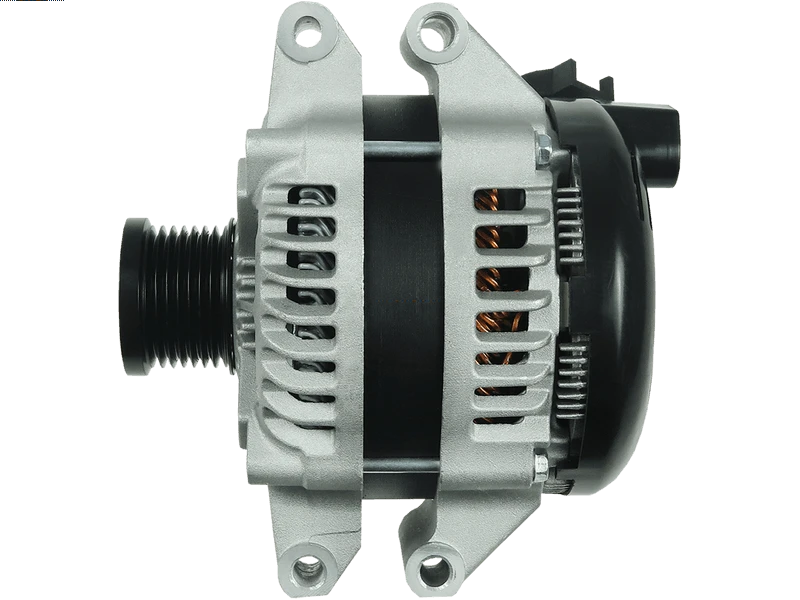

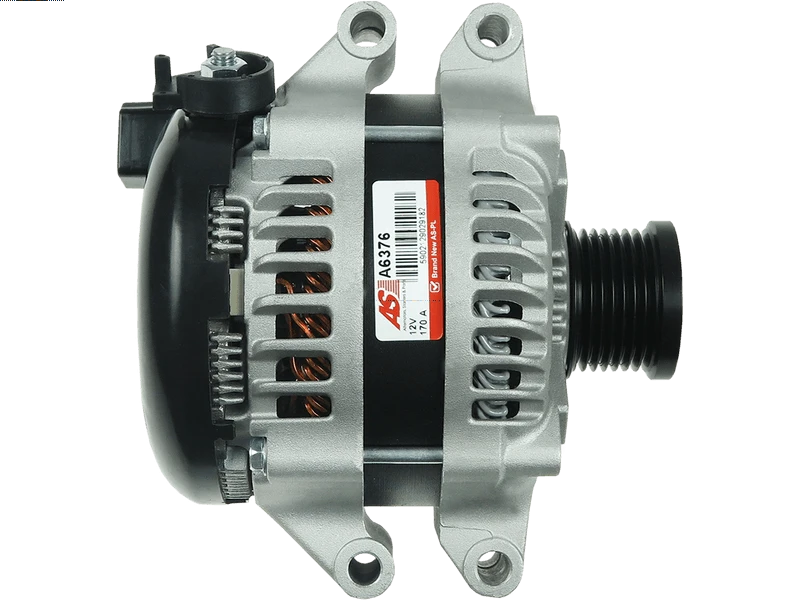

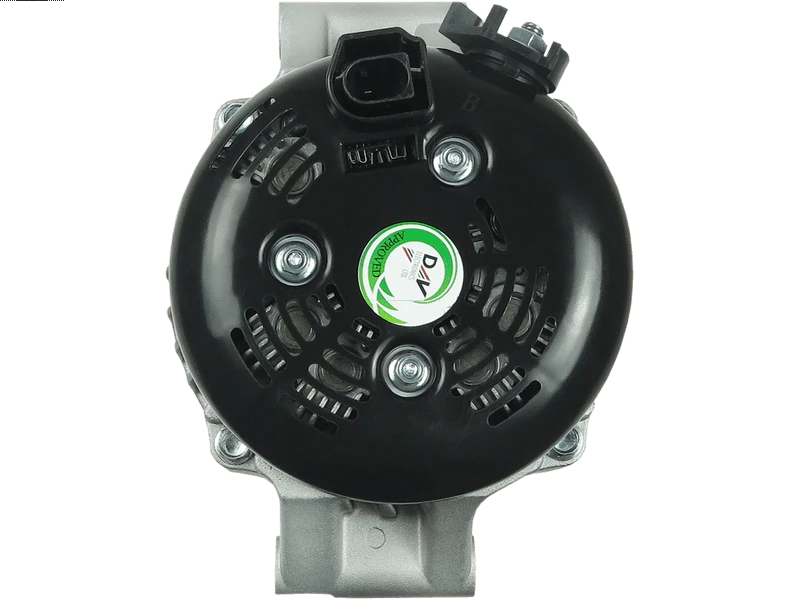

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 821.18 including GST
NZ$ 714.07 excluding GST
or four payments of $205.30
with
Learn More
each
A6376
1
Associated Numbers
UD12672A ASPL 12317591532 BMW 12317591533 0986UR6228 BOSCH 11150 DELCO 1042106052 DENSO A80620 DIXIE 1042106050 1042106050OR+ 1042106053 215582170 287663 7591532 759153203 DAN1132 TNA031 1042106051 Denso Lester 11750 11779 PIC Picture ID 2906011 2906378 Remy Light Duty Wilson 90295852 104210-6052 A-80620 0986CR6228 Bosch ruil 1042106050RJ RNL show 1042106051RJ 2040570 Sando 2153221702 DRI PSH Elstock 440958 Valeo 9060 CEVAM AL9447X (USA) ALT30729 Wood Auto DRA1697 LRA04054 Lucas RNL1042106052 S32001001 Herth Buss TWA WOOALT30729 12-31-7-591-532 Reman Service Europe 0-986-CR6-228 0-986-UR6-228 104210-605 104210-6050 104210-6051 IAT A11750 290-6011Specifications
| Amp | 170 A |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | 11 mm |
| Diameter (D.4) | 11 mm |
| Length (L.1) | 184 mm |
| Mount Inside Length or Pad Mount C-C (C) | 41 mm |
| OEM Product | No |
| Pad mount thickness (E.1) | 62.5 mm |
| Pad mount thickness (E.2) | 62.5 mm |
| Pad mount thickness (E.3) | 62.5 mm |
| Pad mount thickness (E.4) | 62.5 mm |
| Plug Code | PL_2305 |
| Product Line | Standard Line |
| Product Type | Brand new |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley to Mount Distance (A) | 32 mm |
| Pulley Type | CLUTCH |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 135 3.0 i | 01.2011- | |
| BMW | 335 3.0 i | 01.2011- |
Reference Information
UD12672A 12317591532 11150 2040570 STX110260R STX110260 ALT6759 104210-6052 CAL40570AS 7626155 0986UR6228 A-80620 12317591533 104210-6050 20132075BN 7591533 12317626155 7591532Video/Publications
