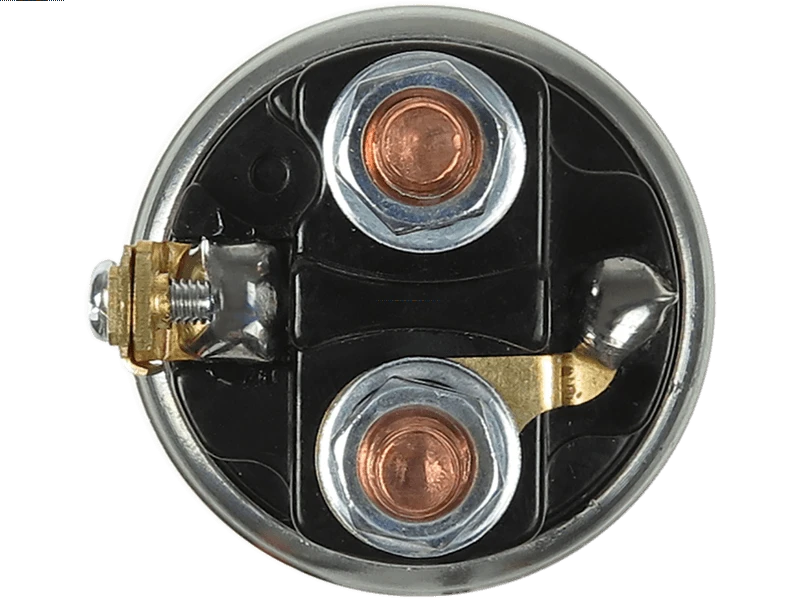

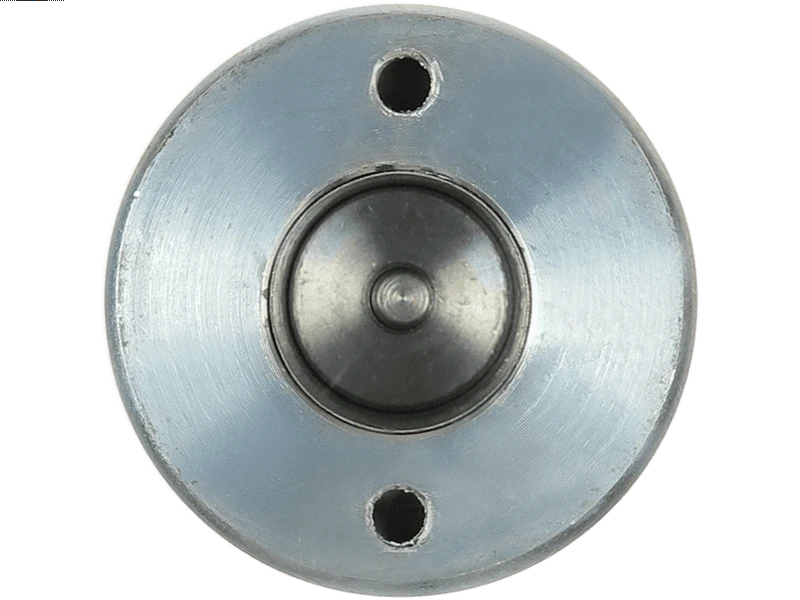

Brand new AS-PL Starter motor solenoid
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 84.49 including GST
NZ$ 73.47 excluding GST
or four payments of $21.12
with
Learn More
each
SS2005
5+
Associated Numbers
S1206 S1228 S1246 S1246A S1258 S1288 S1306A S1314 S1318 S1323 S1324 S1324A S1327 S1327A S1328 S1331 S1333A S1333B S1334A S1336 S1338A S1338B S1340 S1340A S1341 S1341A S1341B S1341C S1341D S1343 S1345A S1345B S1346A S1368 S1368A S1368C S1378 5811000800 5811000801 5811001111 5811001112 2330061504 S1206 S1228 S1246 S1246A S1258 S1288 S1306A S1314 S1318 S1323 S1324 S1324A S1327 S1327A S1328 S1331 S1333A S1333B S1334A S1336 S1338A S1338B S1340 S1340A S1341 S1341A S1341B S1341C S1341D S1343 S1345A S1345B S1346A S1368 S1368A S1368C S1378 5811000800 5811000801 5811001111 5811001112 2330061504SS1217
Specifications
| B+ Stud Diameter & Thread Pitch (B+) | M8x1.25 mm |
| Coil Bolt Diameter & Thread Pitch (Coil Bolt) | M8x1.25 mm |
| Coil Bolt Length | 18 mm |
| Inside Diameter (I.D.1) | 22.6 mm |
| L.B+ | 17 mm |
| Length (L.1) | 72.7 mm |
| OEM Product | No |
| Outside Diameter (O.D.1) | 52.5 mm |
| Outside Diameter (O.D.2) | 44.9 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Type | Solenoid |
| Unit Type | HITACHI |
| Voltage | 12 V |
Reference Information
UD10565SS 23343-61504 121254-77671 2130-6700 SND1316 2130-47012 132059 CQ2030762 2130-27001 66-8107 5811510290 5811510150 66-8107-1 SNLS-617 23343-G7001 227653 2130-17002 SOL3010 23343-T3470 ZM686 1010799 8115300180 SSH2059Video/Publications
S1368C S1338B S1346A S1368A S1324A S2114S S1334A S1306A S1338A S1206 S1228 S1327 S1328 S1340 S1341 S1340A S1343 S1288 S1246 S1323 S1368 S1324 S1345B S1333A S1333B S1341A S1345A S1246A SS2005 S1327A 5811000800 S1314 S1336 S1318 5811000801 5811001111 S1331 S1341B S1341C S1341D S1378 5811001112 S1258View your shopping basket or Browse other items in Starter Solenoid.
